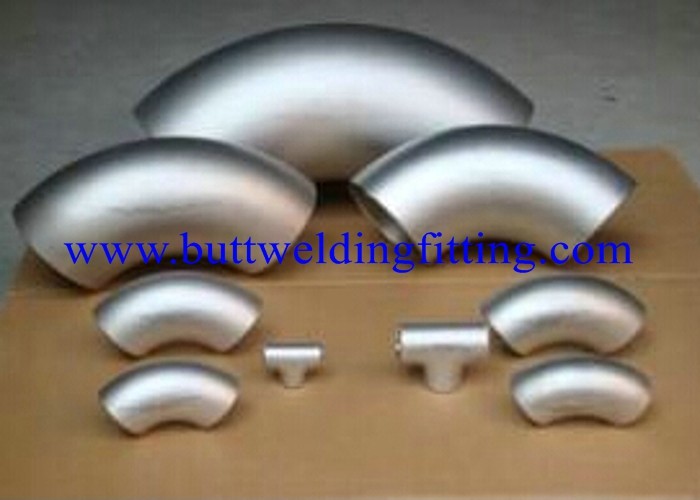

Nickel Alloy Steel 600 / Inconel 600 But Weld Fittings No6600 / Ns333 / 2.4816 ASME SB366 UNS NO6625
| Place of Origin | CHINA |
|---|---|
| Brand Name | TOBO |
| Certification | SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED |
| Model Number | Nickel Alloy Steel 600 / Inconel 600 No6600 / Ns333 / 2.4816 ASME SB366 UNS NO6625. |
| Minimum Order Quantity | 1PCS |
| Price | USD 1-400 PER PC |
| Packaging Details | Wooden cases, pallets, nylon bags or according to the customers' requirements |
| Payment Terms | T/T, L/C, Western Union |
| Supply Ability | 9990000PCS PER MONTH |
Product Details
| Products | Elbow, Bend, Equal/reduce Tee, Concentric/eccentric Reducer, Cap, Flange | Manufacturing Process | Push, Press, Forge, Cast, Etc. |
|---|---|---|---|
| Delivery Time | 10-30 Days Depending On Quantity | Shipment | FOB Shanghai, CFR, CIF, Etc |
| Highlight | butt weld tube fittings,butt welded pipe fittings |
||
Product Description
Nickel Alloy Steel 600 / Inconel 600 But Weld Fittings No6600 / Ns333 / 2.4816 ASME SB366 UNS NO6625
Detailed Product Description
|
Grade |
UNS |
W.Nr. |
Trade Name |
|
Inconel 600 |
N06600 |
2.4816 |
Inconel 600®, Nickelvac® 600, Ferrochronin® 600 |
|
Inconel 601 |
N06601 |
2.4851 |
Inconel 601®, Pyromet® 601, Nicrofer® 601 |
|
Inconel 617® |
N06617 |
2.4663 |
Inconel 617®, Nicrofer® 617 |
|
Inconel 625 |
N06625 |
2.4856 |
Inconel 625®, Chornin® 625, Altemp® 625, Nickelvac® 625,
Haynes® 625 Nicrofer® 6020
|
|
Inconel |
N07718 |
2.4668 |
Inconel 718®, Nicrofer® 5219, Alvac® 718, Haynes® 718, Altemp® 718 |
|
Inconel X 750 |
N07750 |
2.4669 |
Inconel X750®, Haynes X750®, Pyromet® X750, Nickelvac®X750,
Nicorros® 7016
|
|
Incoloy 800 |
N08800 |
1.4876 |
Incoloy 800®, Ferrochronin® 800, Nickelvac® 800, Nicrofer® 3220 |
|
Incoloy 800H |
N08810 |
1.4876 |
Incoloy 800H®, Ferrochronin® 800, Nickelvac® 800, Nicrofer® 3220 |
|
Incoloy 800HT |
N08811 |
1.4876 |
Incoloy 800HT®, Ferrochronin® 800, Nickelvac® 800, Nicrofer® 3220 |
|
Incoloy 825 |
N08825 |
2.4858 |
Incoloy 825®, Nickelvac® 825, Nicrofer 4241® |
FORM:
- Elbows in Long & Short Radius in 45 deg, 90 deg, 180 deg.
- Return Bend, U Bend, Long Radius Bend.
- Equal, Unequal Tee & Barred Tee.
- Eccentric Reducer & Concentric Reducer.
- Caps & Crosses.
- Long & Short Stub End.
- Swage Nipple & Barrel Nipple
- Laterals
Nickel Alloy Butt Weld Fittings
Our traded products include nickel alloy butt weld fittings that are extensively used in diverse industries. These butt weld fittings conform to rds. Various grades of nickel alloy butt weld fittings are.
Standard: ASTM / ASME SB 366
Grade: UNS 2200 (NICKEL 200), UNS 2201 (NICKEL 201), UNS 4400 (MONEL 400), UNS 8020 (ALLOY 20 / 20) CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276).
ALLOY 625 _ UNS N06625
common trade names
Inconel 625®, Chronin® 625, Altemp® 625, Haynes® 625, Nickelvac® 625, Nicrofer® 6020
Inconel ® 625 is a nonmagnetic, corrosion and oxidation resistant, nickel-base alloy. It has high strength and toughness in the temperature range cryogenic to 2000°F (1093°C) which is derived largely from the solid solution effects of the refractory metals, columbium and molybdenum, in a nickel-chromium matrix. Alloy 625 has excellent fatigue strength and stress-corrosion cracking resistance to chloride ions.
Typical applications for Alloy 625 have included heat shields, furnace hardware, gas turbine engine ducting, combustion liners and spray bars, chemical plant hardware and special seawater applications.
Available forms are seamless pipe, welded pipe, seamless tube, welded tube, bar, wire, sheet, plate, forgings, pipe fittings and flanges.
|
Chemical Analysis of ALLOY 625 (UNS N06625) common trade names |
|||||||||||||||
|
C |
MN |
P |
S |
Si |
Cr |
Ni |
Mo |
Cu |
Co |
Cb+Ta |
Ti |
Al |
Fe |
Nb |
Other |
|
.10 |
.50 max |
.015 max |
.015
max
|
.50
max
|
20.0
-23.0
|
58.0
min
|
8.0
- 10.0
|
|
1.0
max
|
|
0.40
max
|
0.40
max
|
5.0
max
|
3.15
- 4.15
|
|
|
Specifications for Inconel 625 ® (UNS N06625) |
||||||
|
International Specifications |
Sheet/Plate |
Round Bar
/Wire
|
Pipe |
Tube |
Fittings |
Forgings |
|
BS 3072, BS 3074, BS 3076, NA 21
DIN 17744, DIN 17750, DIN 17751,
DIN 17752, DIN 17754.
Werkstoff Nr. 2.4856
AFNOR NC 22 D Nb
|
ASME
SB-443 AMS 5599 AMS 5869
|
ASME
SB-446 AMS 5666 AMS 5837
|
ASME SB-444 ASME SB-829 ASME SB-775 ASME SB-705 |
ASME SB-444 ASME SB-829 ASME SB-751 ASME SB-704 AMS 5581 |
ASME
SB-366
|
ASME
SB-564 AMS 5666
|
Nickel alloy steel:
Alloy 200/Nickel 200/NO2200/2.4066/ASTM B366 WPN;
Alloy 201/Nickel 201/NO2201/2.4068/ASTM B366 WPNL;
Alloy 400/Monel 400/NO4400/NS111/2.4360/ASTM B366 WPNC;
Alloy K-500/Monel K-500/NO5500/2.475;
Alloy 600/Inconel 600/NO6600/NS333/2.4816;
Alloy 601/Inconel 601/NO6001/2.4851;
Alloy 625/Inconel 625/NO6625/NS336/2.4856;
Alloy 718/Inconel 718/NO7718/GH169/GH4169/2.4668;
Alloy 800/Incoloy 800/NO8800/1.4876;
Alloy 800H/Incoloy 800H/NO8810/1.4958;
Alloy 800HT/Incoloy 800HT/NO8811/1.4959;
Alloy 825/Incoloy 825/NO8825/2.4858/NS142;
Alloy 925/Incoloy 925/NO9925;
Hastelloy C/Alloy C/NO6003/2.4869/NS333;
Alloy C-276/Hastelloy C-276/N10276/2.4819;
Alloy C-4/Hastelloy C-4/NO6455/NS335/2.4610;
Alloy C-22/Hastelloy C-22/NO6022/2.4602;
Alloy C-2000/Hastelloy C-2000/NO6200/2.4675;
Alloy B/Hastelloy B/NS321/N10001;
Alloy B-2/Hastelloy B-2/N10665/NS322/2.4617;
Alloy B-3/Hastelloy B-3/N10675/2.4600;
Alloy X/Hastelloy X/NO6002/2.4665;
Alloy G-30/Hastelloy G-30/NO6030/2.4603;
Alloy X-750/Inconel X-750/NO7750/GH145/2.4669;
Alloy 20/Carpenter 20Cb3/NO8020/NS312/2.4660;
Alloy 31/NO8031/1.4562;
Alloy 901/NO9901/1.4898;
Incoloy 25-6Mo/NO8926/1.4529/Incoloy 926/Alloy 926;
Inconel 783/UNS R30783;
NAS 254NM/NO8367;
Monel 30C
Nimonic 80A/Nickel Alloy 80a/UNS N07080/NA20/2.4631/2.4952
Nimonic 263/NO7263
Nimonic 90/UNS NO7090;
Incoloy 907/GH907;
Nitronic 60/Alloy 218/UNS S21800
