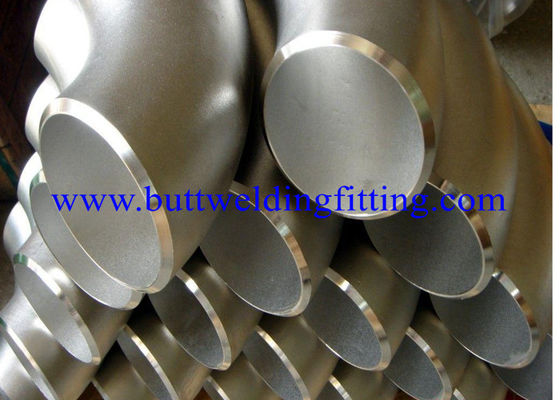

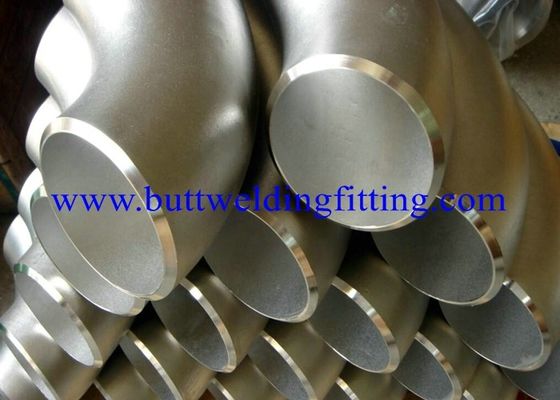

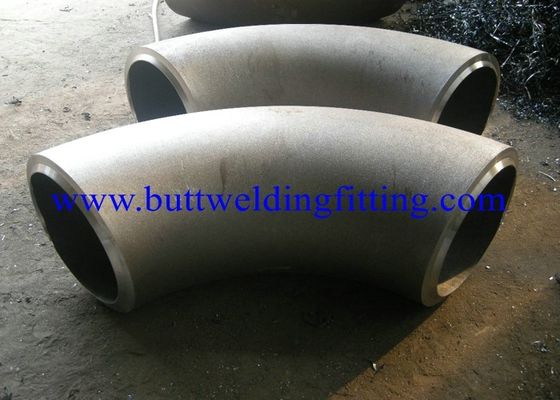

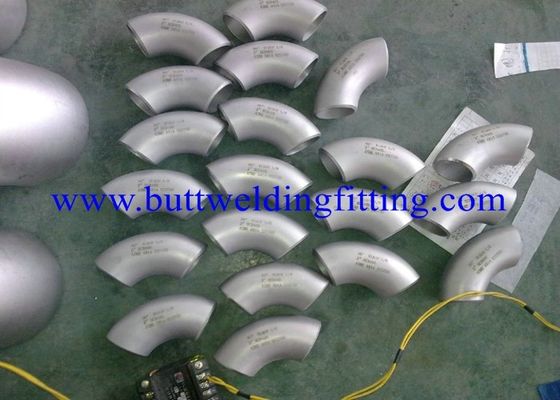

LR SR 90 Degree Elbow Stainless Steel Butt Weld Fittings A403-WP304L A403-WP316L WP321

  • LR SR 90 Degree Elbow Stainless Steel Butt Weld Fittings A403-WP304L A403-WP316L WP321
  • LR SR 90 Degree Elbow Stainless Steel Butt Weld Fittings A403-WP304L A403-WP316L WP321
  • LR SR 90 Degree Elbow Stainless Steel Butt Weld Fittings A403-WP304L A403-WP316L WP321
  • LR SR 90 Degree Elbow Stainless Steel Butt Weld Fittings A403-WP304L A403-WP316L WP321
  • LR SR 90 Degree Elbow Stainless Steel Butt Weld Fittings A403-WP304L A403-WP316L WP321
  • LR SR 90 Degree Elbow Stainless Steel Butt Weld Fittings A403-WP304L A403-WP316L WP321
Place of Origin CHINA
Brand Name TOBO
Certification SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number A403-WP304 A403-WP304L A403-WP316. A403-WP316L A420-WPL6,316L, 304L, 321, 321H.
Minimum Order Quantity 1PC
Price USD 0.5 -100 PER PC
Packaging Details In wooded cases or pallets, or as for clients' requirements.
Payment Terms T/T, Western Union, L/C
Supply Ability 9600000PCS PER MONTH
Product Details
Elbow Type LR 30,45,60,90,180 Degree ; SR 30,45,60,90,180 Degre Standard ASME B16.9, ASTM A234, ASTM A420, ANSI B16.9/B16.25/B16.28;
Size 1/2’’~48’’(Seamless);16’’~72’’(Welded) Wall Thickness Sch5~Sch160\XXS
Highlight

Pipe Fittings Elbow

,

Stainless Steel 90 Degree Elbow
Leave a Message
Product Description



LR , SR 45 / 90 Degree ,Stainless Steel Elbow  A403-WP304L A403-WP316L WP321 , 321H . WP347. A815 UNSS31803







We provide our clients with butt weld fittings that are made from high quality stainless steel by our original manufacturers. Offered in seamless and welded forms, these fittings are precision-made and are offered to our clients in the following specifications:


Form:
1/8" NB TO 48" NB. (Seamless & Welded)


Thickness
SCH: 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS & NS available with NACE MR 01-75

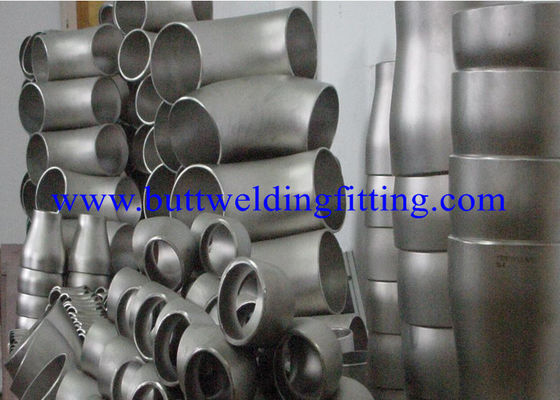

Type:
· Elbows in 45 deg, 90 deg, 180 deg, R=1D,1.5D,3D, 5D, 6D, 8D, 10D & 20D.
· Eccentric & concentric reducer.
· Caps & crosses.
· Equal & unequal tee.
· Long & short stub end.


Standard:
· ASME: ANSI B16.9, ANSI B16.28, MSS SP75
· DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
· SGP: JIS B2313
· EN: EN10253-1, EN10253-2


Material:
Stainless Steel : ASTM A403 WP 304/ 304L/ 304H/ 316/ 316L/ 317/ 317L/ 321/ 310/ 347/ 904L/ etc.
Carbon Steel : ASTM A234 WPB / A420 WPL3/ A420 WPL6/ MSS-SP-75 WPHY 42/46/52/56/60/65/70 etc.
Alloy Steel : ASTM A234 WP1/ WP5/ WP9/ WP11/ WP22/ WP91/ etc.
Other materials : Monel, Nickel, Inconel, Hastalloy, Copper, Brass, Bronze, Titanium, Tantalum, Bismuth, Aluminium, High Speed Steel, Zinc, Lead, etc.





Unit : inch
Nominal
 Pipe
 Size

Outside Dia.
(OD)

Wall Thickness (T)

90o L/R Elbow Center To End A

45o L/R Elbow Center To End B

90o S/R Elbow Center To End A

Sch.5S

Sch.10S

Sch.40S

Sch.80S

1/2

0.840

0.065

0.083

0.109

0.147

1.50

0.625



3/4

1.050

0.065

0.083

0.113

0.154

1.12

0.438



1

1.315

0.065

0.109

0.133

0.179

1.50

0.875

1.00

1-1/4

1.660

0.065

0.109

0.140

0.191

1.88

1.00

1.25

1-1/2

1.900

0.065

0.109

0.145

0.200

2.25

1.12

1.50

2

2.375

0.065

0.109

0.154

0.218

3.00

1.38

2.00

2-1/2

2.875

0.083

0.120

0.203

0.276

3.75

1.75

2.50

3

3.500

0.083

0.120

0.216

0.300

4.50

2.00

3.00

4

4.500

0.083

0.120

0.237

0.337

6.00

2.50

4.00

5

5.563

0.109

0.134

0.258

0.375

7.50

3.12

5.00

6

6.625

0.109

0.134

0.280

0.432

9.00

3.75

6.00

8

8.625

0.109

0.148

0.322

0.500

12.00

5.00

8.00

10

10.750

0.134

0.165

0.375

0.500

15.00

6.25

10.00

12

12.750

0.156

0.180

0.375

0.500

18.00

7.50

12.00

14

14.000

0.156

0.250

0.375

0.500

21.00

8.75

14.00

16

16.000

0.165

0.250

0.375

0.500

24.00

10.00

16.00

18

18.000

0.165

0.250

0.375

0.500

27.00

11.25

18.00

20

20.000

0.188

0.250

0.375

0.500

30.00

12.50

20.00



LR SR 90 Degree Elbow Stainless Steel Butt Weld Fittings A403-WP304L A403-WP316L WP321
