| Place of Origin: | CHINA |
|---|---|
| Brand Name: | TOBO |
| Certification: | SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED |
| Model Number: | Duplex steel UNS S31803 ASTM A182 F51 / UNS31803 / 1.4462 |
| Minimum Order Quantity: | 5PCS |
| Price: | USD 0.9-50 PER PC |
| Packaging Details: | PLY-WOODEN CASE OR PALLET |
| Payment Terms: | T/T, Western Union, L/C |
| Size:: | 1/2" ~ 48" (DN15mm ~ 1, 200mm) | Type:: | 45 Deg, 90 Deg, 180 Deg, Long Redius, Short Redius |
|---|---|---|---|
| Standard: | • ASME: ANSI B16.9, ANSI B16.28, MSS SP75 • DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011 • SGP: JIS B2313 • EN: EN10253-1, EN10253-2 | ||
| Highlight: | Pipe Fittings Elbow,Butt Welding Elbow |
||

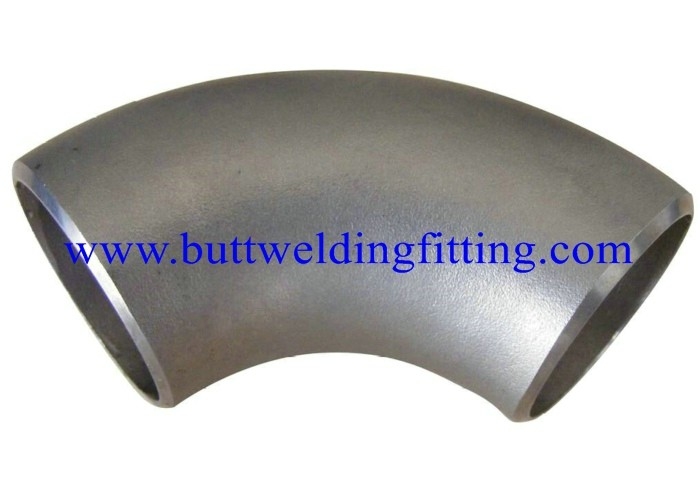

Duplex steel UNS S31803 Stainless steel elbow ASTM A182 F51 / UNS31803 / 1.4462
Form:
1/8" NB TO 48" NB. (Seamless & Welded)
Thickness
SCH: 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS & NS available with NACE MR 01-75
Type:
· Elbows in 45 deg, 90 deg, 180 deg, R=1D,1.5D,3D, 5D, 6D, 8D, 10D & 20D.
· Eccentric & concentric reducer.
· Caps & crosses.
· Equal & unequal tee.
· Long & short stub end.
Standard:
· ASME: ANSI B16.9, ANSI B16.28, MSS SP75
· DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
· SGP: JIS B2313
· EN: EN10253-1, EN10253-2
Material:
Stainless Steel : ASTM A403 WP 304/ 304L/ 304H/ 316/ 316L/ 317/ 317L/ 321/ 310/ 347/ 904L/ etc.
Carbon Steel : ASTM A234 WPB / A420 WPL3/ A420 WPL6/ MSS-SP-75 WPHY 42/46/52/56/60/65/70 etc.
Alloy Steel : ASTM A234 WP1/ WP5/ WP9/ WP11/ WP22/ WP91/ etc.
Other materials : Monel, Nickel, Inconel, Hastalloy, Copper, Brass, Bronze, Titanium, Tantalum, Bismuth, Aluminium, High Speed Steel, Zinc, Lead, etc.
Chemical Composition:
|
C |
P |
S |
Cr |
Ni |
Other |
Mn |
Mo |
N |
Si |
|
0.030max |
0.03max |
0.02 max |
21.0- 23.0 |
4.50- 6.50 |
Bal |
2.0 max |
2.50- 3.50 |
0.08- 0.20 |
1.0 max |
