| Place of Origin: | CHINA |
|---|---|
| Brand Name: | TOBO |
| Certification: | SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED |
| Model Number: | C70600 90/10 |
| Minimum Order Quantity: | 20PCS |
| Price: | USD 1-90 PER PC |

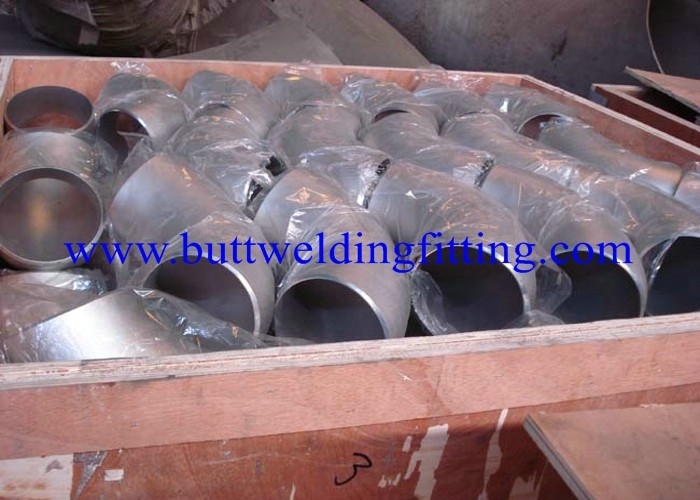

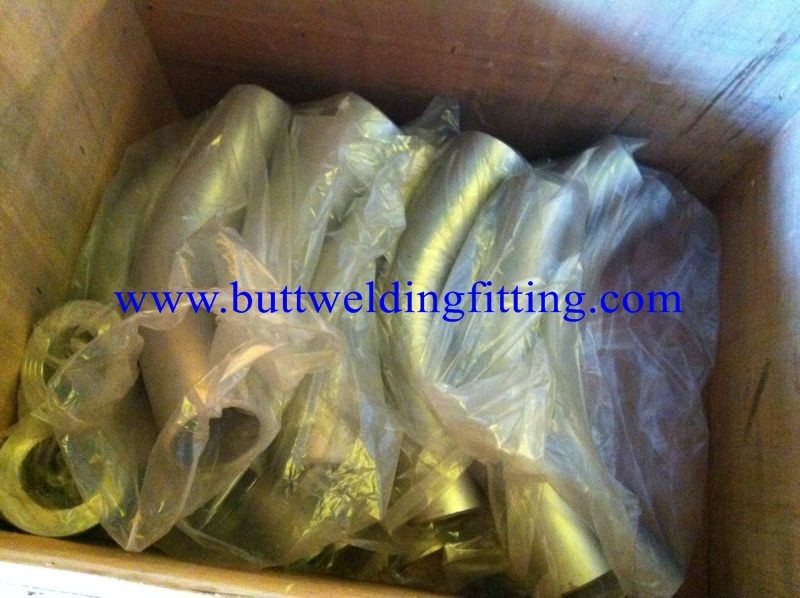

| Packaging Details: | Wooden cases fumigated |
| Payment Terms: | T/T, Western Union, L/C |
| Materials:: | C70600,C71500 | Surface:: | Brightness |
|---|---|---|---|
| Packaging Details:: | Wooden Cases Fumigated | Place Of Origin:: | CHINA |
| Highlight: | Pipe Fittings Elbow,Stainless Steel 90 Degree Elbow |
||

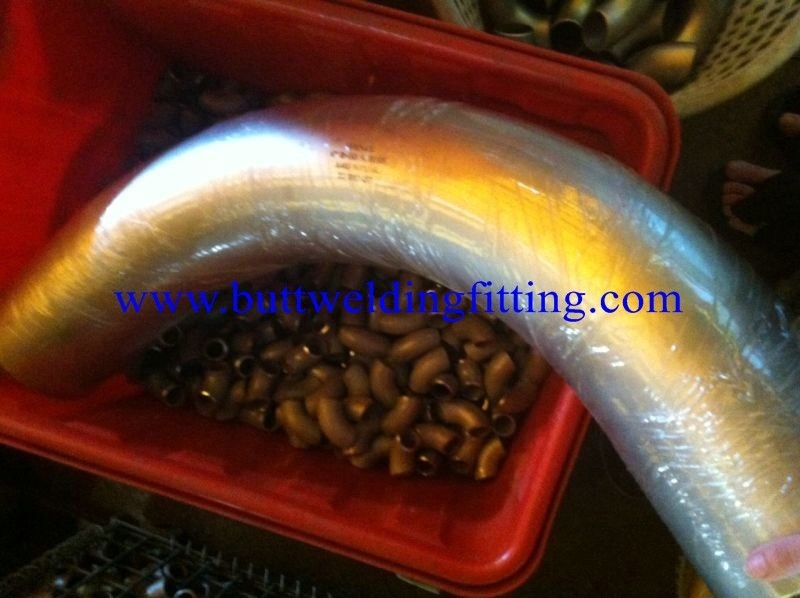

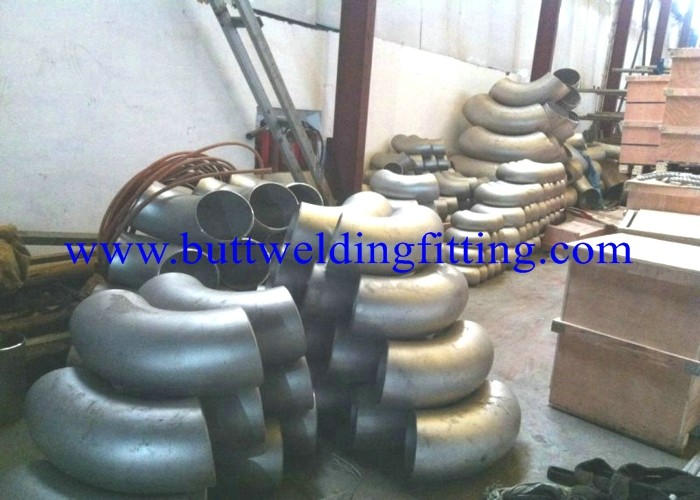

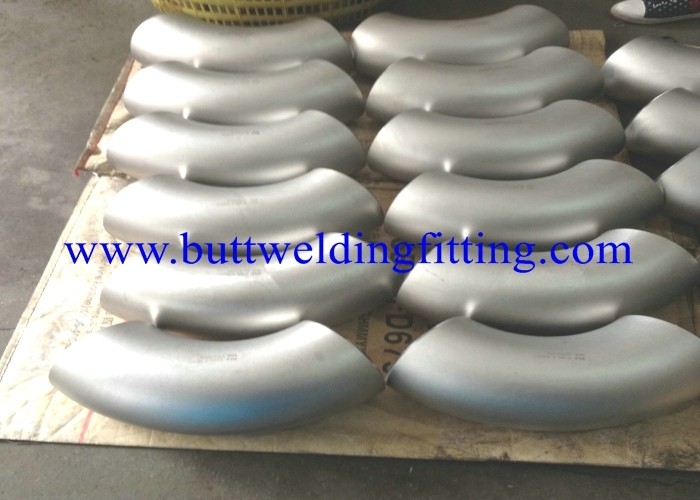

C70600 90/10 Copper Nickel 90 Degree Elbow 1” 8” 10” 12” Sch10s Sch40s Sch80s Sch160
1) seamless, single-slit tube wall thickness: 1 / 2 "NPS Sch5S to 24" OD x 30mm
2) double-slit tube wall thickness: from 10 "to 58" OD x 30mm
Manufacturing standards:
1) ASTM ASME A/SA 403 MSS SP43 & SP75 ANSI B16.9 ANSI B16.28 ASTM A815 ASTM B363 B366
2) DIN2605 DIN2615 DIN2616 DIN2617
3) GB12459 GB13401
4) JIS2313
Process: stainless steel, nickel copper used cold, Mandrel molding (elbow can minimize thickness thinning) Using carbon steel, and other thermal processing, forming within Mandrel
Dimensions: seamless 1 / 2 "-20" (DN15 - DN500), a slit 1 / 2 "-48" (DN15 - DN1200)
Standards:GB/T12459, GB/T13401,SH3408,SH3409,HG/T21635,
HG/T21631,ASME B16.9,MSS SP-43,DIN 2605,JIS B2313
Thickness:SCH5S-SCH160
material: stainless steel, nickel copper, carbon steel and low alloy steel, alloy steel
Technical Specifications 90/10 Copper Nickel pipe c70600
BS 2871 PART III/72 CN 102 & 07 EQUIVALENT SPEC.
ASTMB C70600 & 71500
|
Chemical Requirements |
C70600 |
C71500 |
|
Copper |
Remainder |
Remainder |
|
Iron |
1.0 to 2.0% |
0.4 to 1.0% |
|
Nickel |
10 to 11% |
30 to 32% |
|
Manganese |
0.5 to 1.0% |
0.5 to 1.5% |
|
Total Imp. |
0.30% max. |
0.30% max. |
|
Physical Properties |
||||
|
Condition |
T.S. Kg/mm2 |
EL% Min |
T.S. Kg/mm2 |
EL% Min |
|
Annealed (O) |
35 |
35% |
37.5-46 |
30% |
|
As manufactured (M) |
44 min |
- |
51 min |
- |
