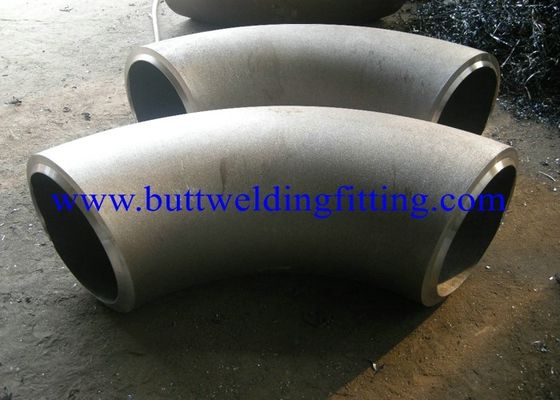

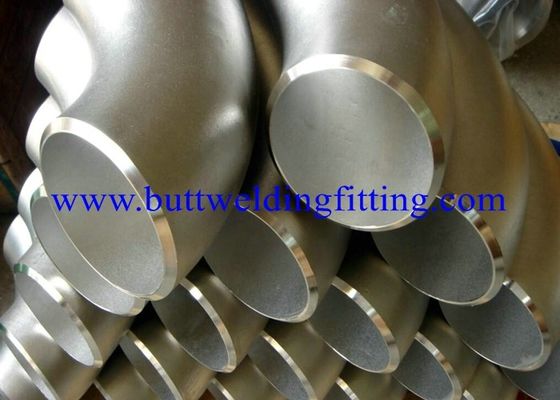

Long / Short Radius Bend Stainless Steel Elbow ASTM A403 WP310S 316L 904L 2205 304

  • Long / Short Radius Bend Stainless Steel Elbow ASTM A403 WP310S 316L 904L 2205 304
  • Long / Short Radius Bend Stainless Steel Elbow ASTM A403 WP310S 316L 904L 2205 304
  • Long / Short Radius Bend Stainless Steel Elbow ASTM A403 WP310S 316L 904L 2205 304
  • Long / Short Radius Bend Stainless Steel Elbow ASTM A403 WP310S 316L 904L 2205 304
  • Long / Short Radius Bend Stainless Steel Elbow ASTM A403 WP310S 316L 904L 2205 304
Place of Origin CHINA
Brand Name TOBO
Certification SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number ASTM A403 WP310S 316L 904L 2205 304
Minimum Order Quantity 3PCS
Price USD 0.3-10 PER PC
Packaging Details In wooded cases or pallets, or as for clients' requirements
Payment Terms T/T, Western Union, L/C
Supply Ability 9990000 Per month
Product Details
Standard Specification ASME/ANSI B16.9,ANSI/ASME B16.11, ANSI/ASME B16.28; Brand Name TOBO
Type ASTM A403 WP310S 316L 904L 2205 304 Stainless Steel Elbow Long / Short Radius Elbow Surface Of Finish Pickling Sandblasting Polishing
Highlight

Pipe Fittings Elbow

,

Butt Welding Elbow
Leave a Message
Product Description



ASTM A403 WP310S 316L 904L 2205 304 Stainless Steel Elbow  Long / Short Radius Elbow





Description:



      1. STAINLESS STEEL ELBOW

2.    Product name: ASTM A403 WP310S 316L 904L 2205 304 Stainless Steel 90D LR Elbow

3.    Material: stainless steel,alloy steel,carbon steel

4.    Size:
Seamless(SMLS) Elbows : 1/2"-2 4" ,DN15-DN600
Butt Welded Elbows (seam) :24"-72",DN600-DN1800

5.    Thickness:SCH10,SCH20,SCH30,STD SCH40, SCH60, XS, SCH80., SCH100, SCH120, SCH140, SCH160, XXS

6.    Type:
SR 30,45,60,90,180 degree
1.0D, 1.5D, 2.0D, 2.5D, 3D,4D,5D,6D,7D-40D.

7.    Pressure: Sch5--Sch160,XXS

8.    Standard: ASME,ANSI B16.9; DIN2605,2615,2616,2617,JIS B2311 ,2312,2313; EN 10253-1 ,EN 10253-2

9.    CE and Certification: ISO9001:2000,  API, BV, SGS, LOIYD

10.  Application Range: "Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, water and nuclear power etc."

11.  The third party inspection:  BV, SGS, LOIYD, TUV, and other party alloyed by clients.

12.  Remark:   Also can supply IBR fittings and Specialized NACE & HIC Fittings.

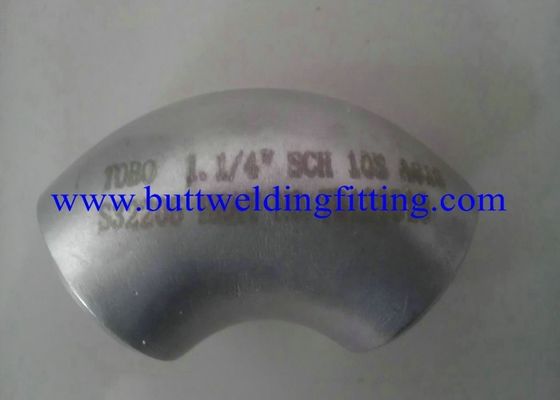

13.  Marking: Registered logo,Heat Number,Steel Grade,Standard,Size

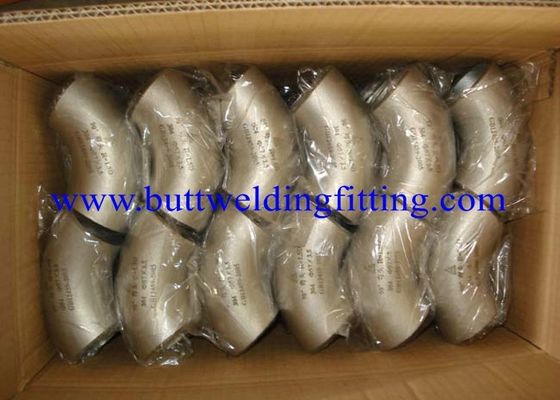

14.  Packing: Wooden box or wooden pallet.

15.  H.S Code: 73072300

16.  Material:



Material

ASTM

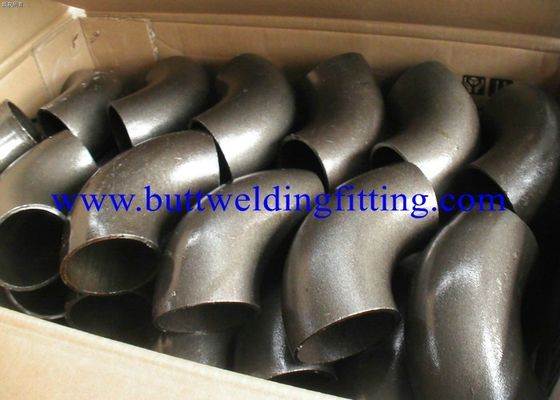

Carbon steel(ASTM A234WPB,,A234WPC,A420WPL6.

Stainless steel(ASTM A403 WP304,304L,316,316L,321. 1Cr18Ni9Ti, 00Cr19Ni10,

00Cr17Ni14Mo2,  ect.)

 Alloy Steel:A234WP12,A234WP11,A234WP22,A234WP5,
A420WPL6,A420WPL3

DIN

Carbon steel:St37.0,St35.8,St45.8

Stainless steel:1.4301,1.4306,1.4401,1.4571

Alloy steel:1.7335,1.7380,1.0488(1.0566)

JIS

Carbon steel:PG370,PT410

Stainless steel:SUS304,SUS304L,SUS316,SUS316L,SUS321

Alloy steel:PA22,PA23,PA24,PA25,PL380

GB

10#,20#,20G,23g,20R,Q235,16Mn, 16MnR,1Cr5Mo,
12CrMo, 12CrMoG, 12Cr1Mo



































Applications:



We,this type pipe fittings be widely used in kinds of industries:

a.     Paper Making,Waste-water Treatment

b.    Chemical Industry and Natural Gas

c.     Shipbuilding

d.    Electrical equipment

e.    Nuclear Energy

f.     Construction

g.    Petroleum



Specification



ND

OD(MM)

Center to end

Approx Weight KG/PCS

DN

INCH

OD

A

O

5S

10S

20S

40S

80S

20

3/4

25 20.7

-

-

-

-

-

-

-

25

1

32 33.4

25

50

0.055

0.096

0.11

0.11

0.15

32

11/4

38 42.2

32

64

0.069 0.075

0.102 0.132

0.14 0.15

0.158 0.17

0.20 0.236

40

11/2

45 48.3

38

76

0.12 0.13

0.18 0.186

0.2 0.21

0.22 0.24

0.3 0.33

50

2

57 60.3

51

102

0.17 0.176

0.297 0.308

0.787 0.396

0.42 0.44

0.6 0.616

65

21/2

73 76.1

64

128

0.35 0.364

0.53 0.546

0.64 0.655

0.89 0.91

1.0 1.29

80

3

89

76

152

0.486

0.729

0.972

1.36

1.94

90

31/2

101.6

89

178

0.7

1.05

1.4

1.96

2.8

100

4

108 114.3

102

204

0.90 0.94

1.2 1.4

1.7 1.876

2.56 2.77

4.0 4.13

125

5

133 141.3 139.7

127

254

1.8 2.02

2.1 2.37

3.2 3.49

4.0 4.4

6.5 6.98

150

6

159 168.3 165.2

152

304

2.6 2.9

3.1 3.4

4.8 5.0

6.8 7.1

10.3 11.0

200

8

219 216.3

203

406

6.25 5.0

7.0 6.8

11.08 10.7

14.1 13.5

22 21

250

10

273 267.3

254

508

10.08 9.7

11.2 10.0

17.6 16.0

24.6 23.0

44.8 40.0

300

12

325 323.9 318.5

305

610

14.8

16.7

23.3

37

64.5

350

14

377 355.6

356

711

19.1 15.6

22 19.5

38 34

48.6 42.6

80.0 74.0




Long / Short Radius Bend Stainless Steel Elbow ASTM A403 WP310S 316L 904L 2205 304
