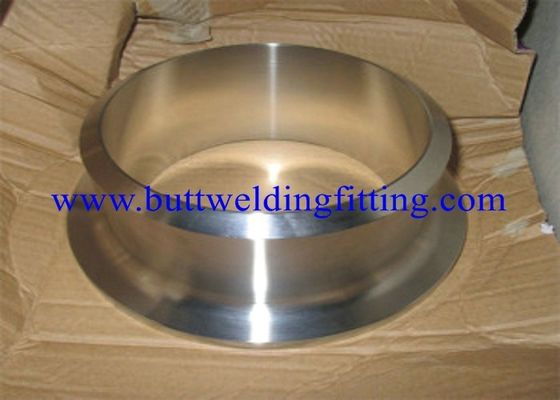

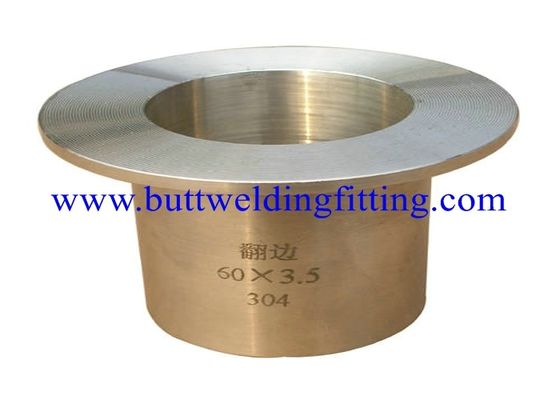

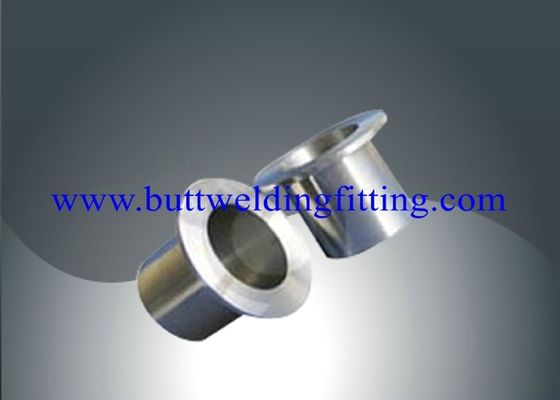

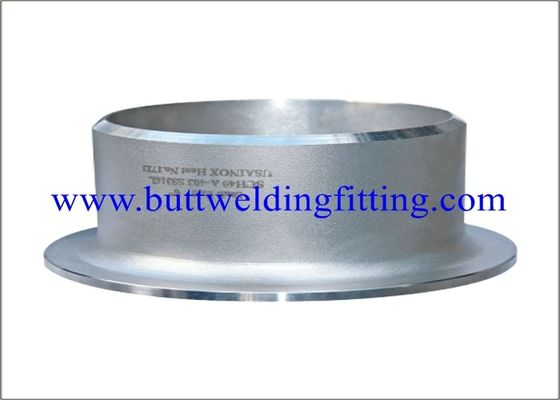

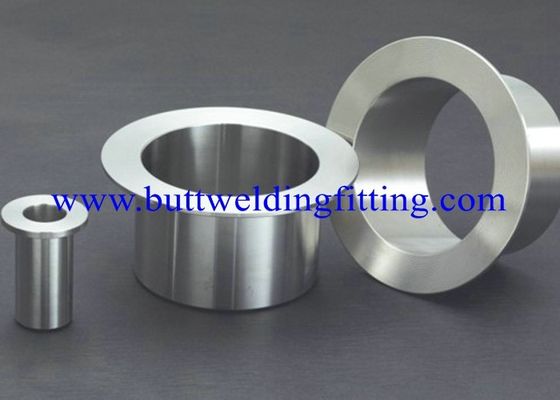

904L Stainless Steel Stub End Fittings 1 Inch 8” SCH40S ASME / ANSI B16.9, B16.28

  • 904L Stainless Steel Stub End Fittings 1 Inch 8” SCH40S ASME / ANSI B16.9, B16.28
  • 904L Stainless Steel Stub End Fittings 1 Inch 8” SCH40S ASME / ANSI B16.9, B16.28
  • 904L Stainless Steel Stub End Fittings 1 Inch 8” SCH40S ASME / ANSI B16.9, B16.28
  • 904L Stainless Steel Stub End Fittings 1 Inch 8” SCH40S ASME / ANSI B16.9, B16.28
  • 904L Stainless Steel Stub End Fittings 1 Inch 8” SCH40S ASME / ANSI B16.9, B16.28
Place of Origin CHINA
Brand Name TOBO
Certification SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number 904L ASME / ANSI B16.9, B16.28, MSS SP-43, MSS SP-75
Minimum Order Quantity 2PCS
Price USD0.3-100 PER PC
Packaging Details PLY-WOODEN CASE OR PALLET
Delivery Time 15DAYS
Payment Terms T/T, L/C, Western Union
Supply Ability 9990000PCS Per Month
Product Details
Product Name Butt Welding Stainless Steel Fitting Stub End Material Grade 904L
Size Range DN15-DN600 (1/2"-24") Seamless Type DN15 - DN1200 (1/2"- 48" ) Welded Type Thickness Sch5-Sch160, STD, XS, XXS
Standard ANSI/ASTM B16.9/16.28, API 5L, DIN2617, JIS B2311/2312/2313
Highlight

Lap Joint Stub End

,

SS Stub End
Leave a Message
Product Description



904L Stainless Steel Stub Ends  Lap Joint 1 Inch 8” SCH40S ASME / ANSI B16.9, B16.28, MSS SP-43, MSS SP-75



STUB ENDS IN STAINLESS STEEL

We provide our clients with butt weld fittings that are made from high quality stainless steel by our original manufacturers. Offered in seamless and welded forms, these fittings are precision-made and are offered to our clients in the following specifications:
Form:
1/8" NB TO 48" NB. (Seamless & Welded)
Thickness
SCH: 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS & NS available with NACE MR 01-75
Type:
· Elbows in 45 deg, 90 deg, 180 deg, R=1D,1.5D,3D, 5D, 6D, 8D, 10D & 20D.
· Eccentric & concentric reducer.
· Caps & crosses.
· Equal & unequal tee.
· Long & short stub end.
Standard:
· ASME: ANSI B16.9, ANSI B16.28, MSS SP75
· DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
· SGP: JIS B2313
· EN: EN10253-1, EN10253-2
Material:
Stainless Steel : ASTM A403 WP 304/ 304L/ 304H/ 316/ 316L/ 317/ 317L/ 321/ 310/ 347/ 904L/ etc.
Carbon Steel : ASTM A234 WPB / A420 WPL3/ A420 WPL6/ MSS-SP-75 WPHY 42/46/52/56/60/65/70 etc.
Alloy Steel : ASTM A234 WP1/ WP5/ WP9/ WP11/ WP22/ WP91/ etc.
Other materials : Monel, Nickel, Inconel, Hastalloy, Copper, Brass, Bronze, Titanium, Tantalum, Bismuth, Aluminium, High Speed Steel, Zinc, Lead, etc.









DN

NPS

Outside Diameter

Long Pattern Length,F

Short Pattern Length,F


Radius of Filet,R

Diameter  of Lap,G

Max

Min

mm

Inch

mm

Inch

15

1/2

22.8

0.896

20.5

0.809

76

51

3

35

20

3/4

28.1

1.106

25.9

1.019

76

51

3

43

25

1

35.0

10376

32.6

1.284

102

51

3

51

32

1.1/4

43.6

10716

41.4

1.629

102

51

5

64

40

1.1/2

49.9

1.965

47.5

1.869

102

51

6

73

50

2

62.4

2.456

59.5

2.344

152

64

8

92

65

2.1/2

75.3

2.966

72.2

2.844

152

64

8

105

80

3

91.3

3.596

88.1

3.469

152

64

10

127

90

3.1/2

104.0

4.096

100.8

3.969

152

76

10

140

100

4

116.7

4.593

113.5

4.469

152

76

11

157

125

5

144.3

5.683

140.5

5.532

203

76

11

186

150

6

171.3

6.743

167.5

6.594

203

89

13

216

200

8

222.1

8.743

218.3

8.594

203

102

13

270

250

10

277.2

10.913

272.3

10.719

254

127

13

324

300

12

328.0

12.913

323.1

12.719

254

152

13

381

350

14

359.9

14.170

354.8

13.969

305

152

13

413

400

16

411.0

16.180

405.6

15.969

305

152

13

470

450

18

462.0

18.190

456.0

17.969

305

152

13

533

500

20

514.0

20.240

507.0

19.969

305

152

13

584

550

22

565.0

22.240

558.0

21.969

305

152

13

641

600

24

616.0

24.240

609.0

23.969

305

152

13

692


904L Stainless Steel Stub End Fittings 1 Inch 8” SCH40S ASME / ANSI B16.9, B16.28
