| Place of Origin: | CHINA |
|---|---|
| Brand Name: | TOBO |
| Certification: | SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED |
| Model Number: | ASTM A815 UNS 31803, UNS 32750 |
| Minimum Order Quantity: | 2PCS |
| Price: | USD0.5 -100 PER PC |
| Packaging Details: | PLY-WOODEN CASE OR PALLET |
| Delivery Time: | 15DAYS |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 9990000PCS Per Month |
| Products: | ASME/ANSI B16.9 Stub Ends | Material Grade: | ASTM A403 317L , 321 , 321H, 347 , 347H UNS 31254 / 254SMo |
|---|---|---|---|
| Size Range:: | DN15-DN600 (1/2"-24") Seamless Type DN15 - DN1200 (1/2"- 48" ) Welded Type | Thickness:: | Sch5-Sch160, STD, XS, XXS |
| Type: | Pipe Stub Ends (Seamless) | ||
| Highlight: | Lap Joint Stub End,Stub End Fittings |
||

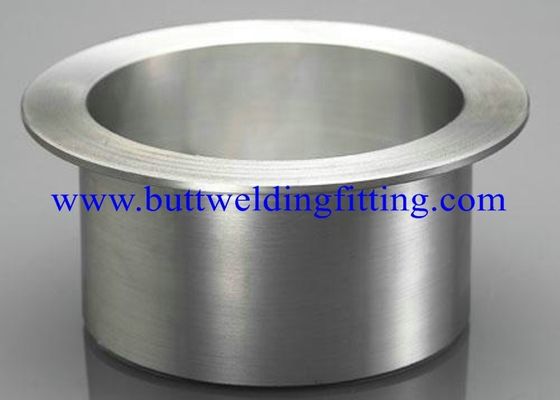

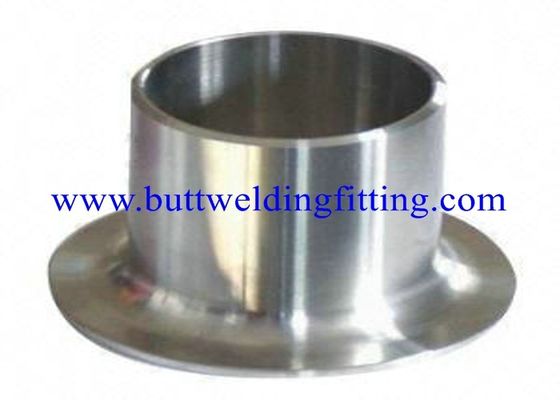

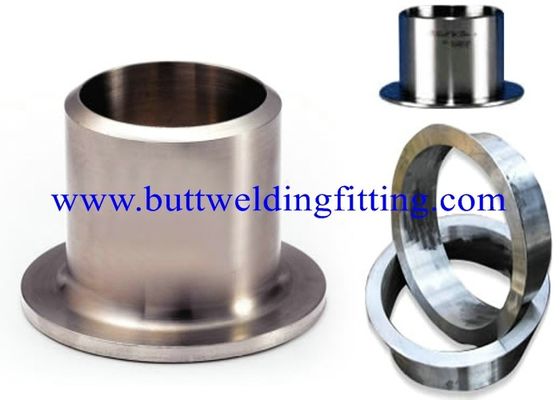

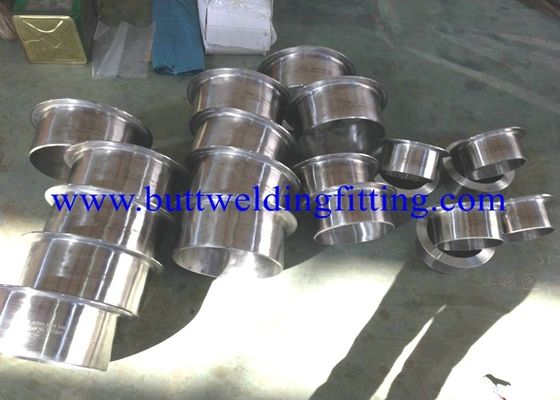

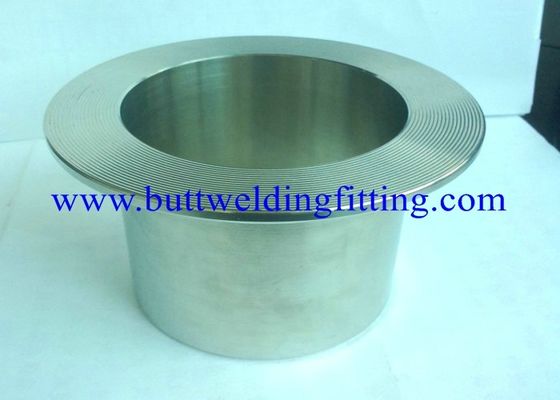

ASTM A403 317L , 321 , 321H, 347 , 347H UNS 31254 / 254SMo Stainless Steel stub ends Lap Joint 6” SCH80
Product Name: Butt Welding Stainless Steel Fitting Stub end
Size Range:
DN15-DN600 (1/2"-24") Seamless Type
DN15 - DN1200 (1/2"- 48" ) Welded type
Wall Thickness: SCH5 to SCH160
Material:
Carbon Steel: ASTM A234 WPB, WPC, ASTM A420 WPL1, WPL3, WPL6 etc
Stainless Steel: ASTM A403 WP304/304L, WP316/316/L, WP317L, WP321, WP347 & WPS31254
Alloy Steel: ASTM A234 WP1/WP12/WP11/WP22/WP5/WP7/WP9/WP91
Duplex and super duplex steel: ASTM A815 UNS S31803/S32205/S32750/S32760
DIN 1.4301,1.4401,1.4404,1.4541,1.4401,1.4571 etc
Manufacture Standard:
ASME B16.9,ASME B16.11,ASME B16.28 ,MSS SP-43,JISB2311,JIS B2312,JIS B2313,DIN 2605,DIN 2606 ,DIN2615,DIN2616 ,BG12459-90,GB/T13401,HGJ514 ,SH3408 ,SH3409, HG/T21635, HG/T21631,
End Bevel: According to the standard or the customer's requirements
Surface Treatment: Shot blasted, rust-proof black oil
Non-destructive testing: penetration test, ultrasonic test, radiographic test, any third parties inspection,
|
DN |
NPS |
Outside Diameter |
Long Pattern Length,F |
Short Pattern Length,F |
|
Diameter of Lap,G |
||||
|
Max |
Min |
|||||||||
|
mm |
Inch |
mm |
Inch |
|||||||
|
15 |
1/2 |
22.8 |
0.896 |
20.5 |
0.809 |
76 |
51 |
3 |
35 |
|
|
20 |
3/4 |
28.1 |
1.106 |
25.9 |
1.019 |
76 |
51 |
3 |
43 |
|
|
25 |
1 |
35.0 |
10376 |
32.6 |
1.284 |
102 |
51 |
3 |
51 |
|
|
32 |
1.1/4 |
43.6 |
10716 |
41.4 |
1.629 |
102 |
51 |
5 |
64 |
|
|
40 |
1.1/2 |
49.9 |
1.965 |
47.5 |
1.869 |
102 |
51 |
6 |
73 |
|
|
50 |
2 |
62.4 |
2.456 |
59.5 |
2.344 |
152 |
64 |
8 |
92 |
|
|
65 |
2.1/2 |
75.3 |
2.966 |
72.2 |
2.844 |
152 |
64 |
8 |
105 |
|
|
80 |
3 |
91.3 |
3.596 |
88.1 |
3.469 |
152 |
64 |
10 |
127 |
|
|
90 |
3.1/2 |
104.0 |
4.096 |
100.8 |
3.969 |
152 |
76 |
10 |
140 |
|
|
100 |
4 |
116.7 |
4.593 |
113.5 |
4.469 |
152 |
76 |
11 |
157 |
|
|
125 |
5 |
144.3 |
5.683 |
140.5 |
5.532 |
203 |
76 |
11 |
186 |
|
|
150 |
6 |
171.3 |
6.743 |
167.5 |
6.594 |
203 |
89 |
13 |
216 |
|
|
200 |
8 |
222.1 |
8.743 |
218.3 |
8.594 |
203 |
102 |
13 |
270 |
|
|
250 |
10 |
277.2 |
10.913 |
272.3 |
10.719 |
254 |
127 |
13 |
324 |
|
|
300 |
12 |
328.0 |
12.913 |
323.1 |
12.719 |
254 |
152 |
13 |
381 |
|
|
350 |
14 |
359.9 |
14.170 |
354.8 |
13.969 |
305 |
152 |
13 |
413 |
|
|
400 |
16 |
411.0 |
16.180 |
405.6 |
15.969 |
305 |
152 |
13 |
470 |
|
|
450 |
18 |
462.0 |
18.190 |
456.0 |
17.969 |
305 |
152 |
13 |
533 |
|
|
500 |
20 |
514.0 |
20.240 |
507.0 |
19.969 |
305 |
152 |
13 |
584 |
|
|
550 |
22 |
565.0 |
22.240 |
558.0 |
21.969 |
305 |
152 |
13 |
641 |
|
|
600 |
24 |
616.0 |
24.240 |
609.0 |
23.969 |
305 |
152 |
13 |
692 |
|
