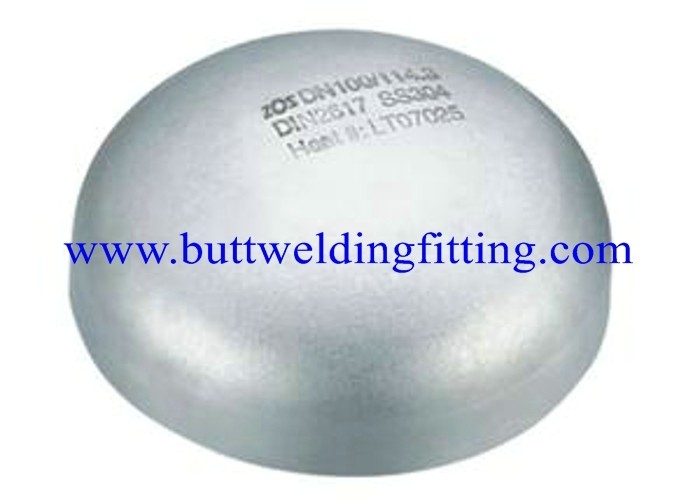

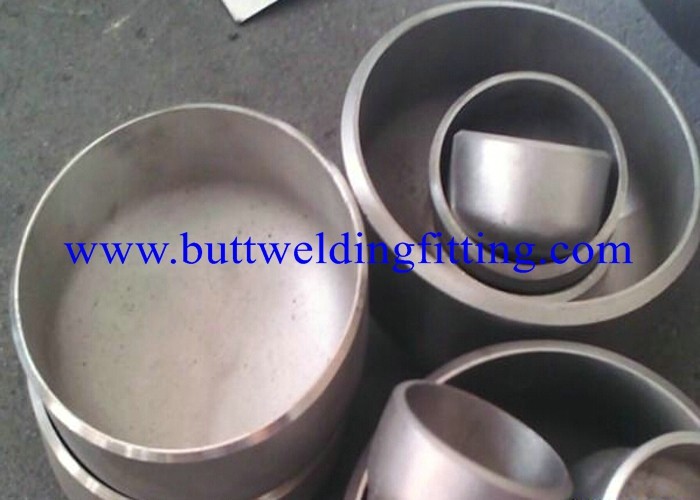

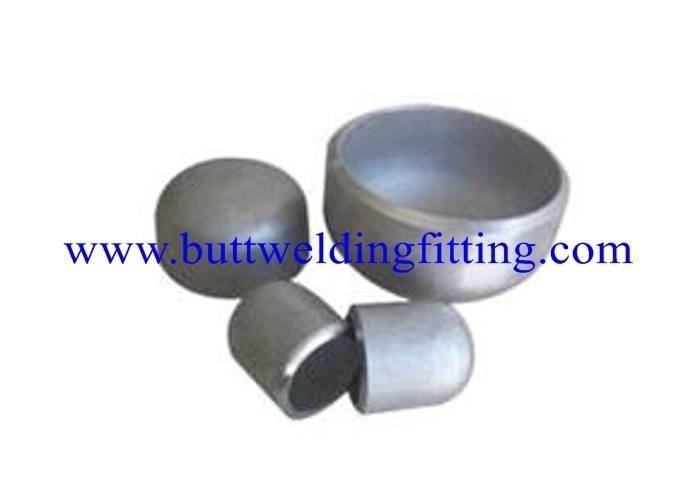

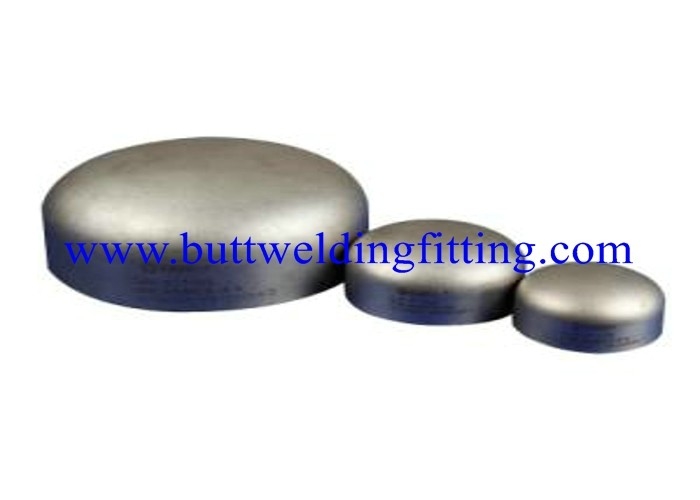

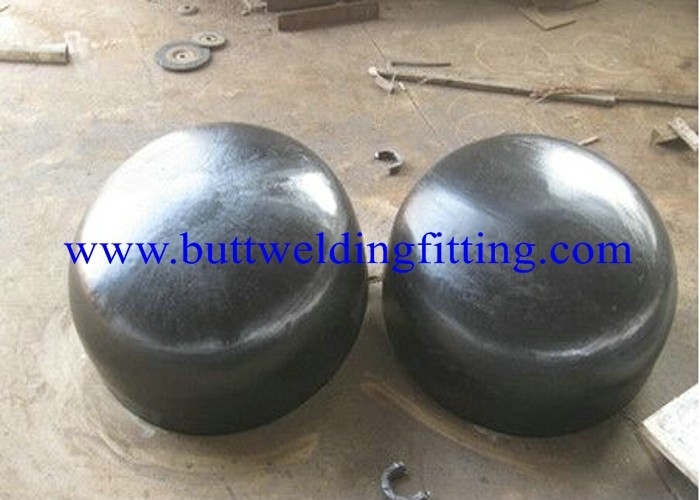

Butt Weld Pipe Cap Stainless Steel Pipe Cap Incoloy 800 / WPNIC , Incoloy 825 / WPNICMC

  • Butt Weld Pipe Cap Stainless Steel Pipe Cap Incoloy 800 / WPNIC , Incoloy 825 / WPNICMC
  • Butt Weld Pipe Cap Stainless Steel Pipe Cap Incoloy 800 / WPNIC , Incoloy 825 / WPNICMC
  • Butt Weld Pipe Cap Stainless Steel Pipe Cap Incoloy 800 / WPNIC , Incoloy 825 / WPNICMC
  • Butt Weld Pipe Cap Stainless Steel Pipe Cap Incoloy 800 / WPNIC , Incoloy 825 / WPNICMC
  • Butt Weld Pipe Cap Stainless Steel Pipe Cap Incoloy 800 / WPNIC , Incoloy 825 / WPNICMC
  • Butt Weld Pipe Cap Stainless Steel Pipe Cap Incoloy 800 / WPNIC , Incoloy 825 / WPNICMC
Place of Origin CHINA
Brand Name TOBO
Certification SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number Incoloy 800 / WPNIC , Incoloy 825
Minimum Order Quantity 3PCS
Price USD0.3-50 PER PC
Packaging Details PLY-WOODEN CASE OR PALLET
Delivery Time 15DAYS
Payment Terms T/T, L/C, Western Union
Supply Ability 9990000PCS Per Month
Product Details
Name Pipe End Caps Material Grade Incoloy 800 / WPNIC , Incoloy 825
Product Type Stainless Steel Pipe End Cap Thickness Sch5-Sch160, STD, XS, XXS
Standard ANSI/ASTM B16.9/16.28, API 5L, DIN2617, JIS B2311/2312/2313
Highlight

stainless steel pipe end caps

,

tube end caps
Leave a Message
Product Description

WP347 / 317L / WPS31254 Stainless steel Cap 8” Sch80S Pipe end Cap  Asme B16.9




Stainless Steel Pipe End Caps,



Chemical Analysis of ALLOY 825 (UNS N08825)
Common Names : Incoloy 825®, Nickelvac® 825, Nicrofer® 4221


C MN P S Si Cr Ni Mo Cu Co Cb Ta Ti Al Fe Other Other
.05 max 1.0 max   .03 max .5 max 19.5 – 23.5 38.0 – 46.0 2.5 – 3.5 1.5 – 3.0     0.6 1.2 0.2 max 22.0 min



Specifications

Sheet/Plate Round Bar Pipe Tube Fittings Forgings
ASME SB-424 ASME SB-425 ASME SB-423 ASME SB-829 ASME SB-705 ASME SB-775 ASME SB-163 ASME SB-704 ASME SB-751 ASME SB-366 ASME SB-564
Inconel Buttweld Fittings are available in different grades of the super alloy, as follows:
Grade UNS W.Nr. Trade Name
Inconel 600 N06600 2.4816 Inconel 600®, Nickelvac® 600, Ferrochronin® 600
Inconel 601 N06601 2.4851 Inconel 601®, Pyromet® 601, Nicrofer® 601
Inconel 617® N06617 2.4663 Inconel 617®, Nicrofer® 617
Inconel 625 N06625 2.4856 Inconel 625®, Chornin® 625, Altemp® 625, Nickelvac® 625, Haynes® 625 Nicrofer® 6020
Inconel N07718 2.4668 Inconel 718®, Nicrofer® 5219, Alvac® 718, Haynes® 718, Altemp® 718
Inconel X 750 N07750 2.4669 Inconel X750®, Haynes X750®, Pyromet® X750, Nickelvac®X750, Nicorros® 7016
Incoloy 800 N08800 1.4876 Incoloy 800®, Ferrochronin® 800, Nickelvac® 800, Nicrofer® 3220
Incoloy 800H N08810 1.4876 Incoloy 800H®, Ferrochronin® 800, Nickelvac® 800, Nicrofer® 3220
Incoloy 800HT N08811 1.4876 Incoloy 800HT®, Ferrochronin® 800, Nickelvac® 800, Nicrofer® 3220
Incoloy 825 N08825 2.4858 Incoloy 825®, Nickelvac® 825, Nicrofer 4241®

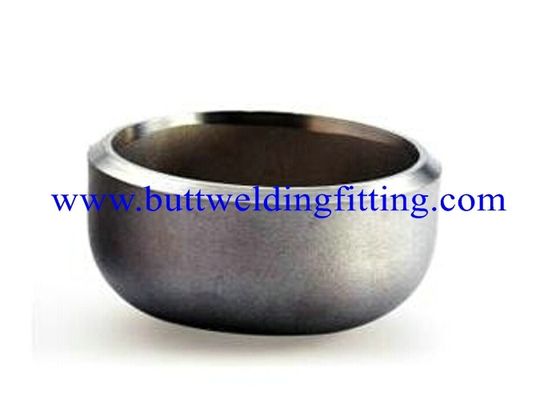

Butt Weld Pipe Cap Stainless Steel Pipe Cap Incoloy 800 / WPNIC , Incoloy 825 / WPNICMC

stainless steel pipe cap stainless steel pipe cap stainless steel pipe cap

Product name : stainless steel pipe cap
Item : buttweld-Cap
Details :

Pipe Cap Nominal Diameter Pipe Cap Outside Diameter at Bevel Pipe Cap Back to End
DN NPS Series A Series B E T E1
15
 1/2
21.3
18
25
 4.57 25
20
 3/4
26.9
25
25
 3.81 25
25
 1
33.7
32
38
 4.57 38
32
 1.1/4
42.4
38
38
 4.83 38
40
 1.1/2
48.3
45
38
 5.08 38
50
 2
60.3
57
38
 5.59 44
65
 2.1/2
76.1(73)
76
38
 7.11 51
80
 3
88.9
89
51
 7.62 64
90
 3.1/2
101.6
-
64
 8.13 76
100
 4
114.3
108
64
 8.64 76
125
 5
139.7
133
76
 9.65 89
150
 6
168.3
159
89
 10.92 102
200
 8
219.1
219
102
 12.70 127
250
 10
273.0
273
127
 12.70 152
300
 12
323.9
325
152
 12.70 178
350
 14
355.6
377
165
 12.70 191
400
 16
406.4
426
178
 12.70 203
450
 18
457.2
478
203
 12.70 229
500
 20
508.0
529
229
 12.70 254
550
 22
559
-

254

 12.70 254
600
 24
610
630

267

 12.70 305
650
 26
660
-
 267 - -
700
 28
711
720
 267　 - -
750
 30
762
-
 267　 - -
800
 32
813
820
 267 - -
850
 34
864
-
 267 - -
900
 36
914
920
 267 - -
950
 38
965
-
 305 - -
1000
 40
1016
1020
 305 - -
1050
 42
1067
-
 305 - -
1100
 44
1118
1120
 343 - -
1150
 46
1168
-
 343 - -
1200
 48
1220
1220
 343 - -

PS:  When T is less the dimension in parentheses, the height E is available. Otherwise E1 is available.
