ASTM A234 WPB / WPC But weld fittings 1/2’’ To 48’’ SCH10 To SCHXXS ASME / ANSI B16.9

ASTM A234 WPB / WPC But weld fittings 1/2’’ To 48’’ SCH10 To SCHXXS ASME / ANSI B16.9

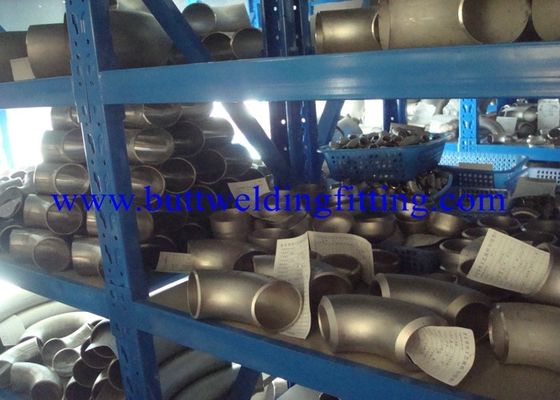

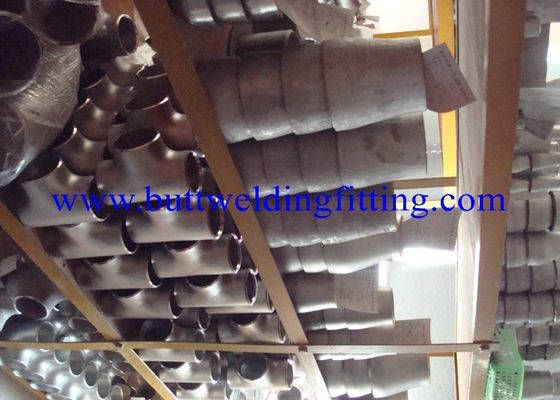

ASTM A234 WP5 butt welded tee

Tee Type

Equal tee, reducing tee,lateral tee, BW/butt weld tee, TH/threaded tee, SW/socket weld tee, seamless tee

Standard

ASTM B16.9, ASTM B16.11, ASTM B16.5;                JIS B2311,JIS B2312,JIS B2313,JIS B2316;

MSS SP-43, MSS SP-95, MSS SP-75, MSS SP-79; ISO 3419,ISO 5251,DIN 2615SY/T 0510, SH 3408, SH3410

Size

1/2''-48''(Butt-welding and seamless);1/8''-4''(Threaded and socket-welding);16''~72''(Welded)

Wall thicknessSch5~Sch160XXS

Manufacturing process

Push, Press, Forge, Cast, etc.

Material

Carbon steel

Stainless steel

Alloy steel

Duplex steel

Nickel alloy steel

Carbon steel tee, stainless steel tee, alloy steel tee

ASTM A234 WPB,ASTM A420 WPL6, WPL3;ASTM A105 WPB; ASTM A106;ASTM A350 LF2,DIN St37, St45.8, St52.4,St.35.8,St.35.8/IASTM A333 GR.6,

ASTM A860 WPHY 70, WPHY 65, WPHY 60, WPHY 52,WPHY 46,WPHY 42,API 5L GRB, X60, X65, X42,X52,ASTM A403 WP304, A403 WP304L, A403 WP316, A403 WP316LA403 WP321

ASTM A182 F 304, 304L,316, 316L,904LASTM A234 WP12, A234 WP11, A234 WP22, A234 WP5, A234 WP9A420 WPL8, A420 WPL9ASTM A335 P5, P9, P11, P12, P22, P91ASTM A213

ASTM A182 F5,F11,F22,F91

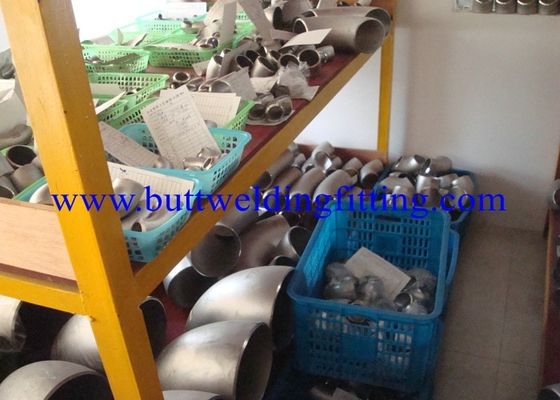

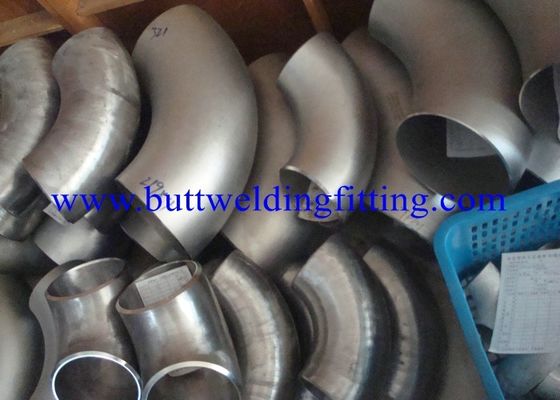

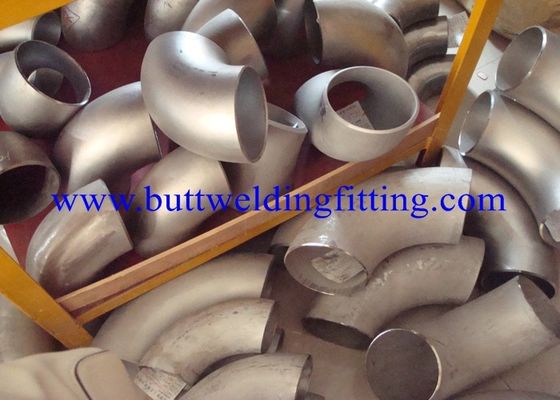

Product name : carbon steel 90º elbow

Item : buttweld-Elbow

Details :

Nominal Diameter  Outside Diameter  at Bevel  Center to End Center to Center Back to Face 45°Elbow           90°Elbow 180°Elbow B        A       O        K DN NPS Series A Series B Long  Radius Long  Radius Short   Radius Long  Radius Short   Radius Long  Radius Short   Radius 15 1/2 21.3 18 16 38 - 76 - 48 - 20 3/4 26.9 25 19 38 - 76 - 51 - 25 1 33.7 32 22 38 25 76 51 56 41 32 1.1/4 42.4 38 25 48 32 95 64 70 52 40 1.1/2 48.3 45 29 57 38 114 76 83 62 50 2 60.3 57 35 76 51 152 102 106 81 65 2.1/2 76.1(73) 76 44 95 64 190 127 132 100 80 3 88.9 89 51 114 76 229 152 159 121 90 3.1/2 101.6 - 57 133 89 267 178 184 140 100 4 114.3 108 64 152 102 305 203 210 159 125 5 139.7 133 79 190 127 381 254 262 197 150 6 168.3 159 95 229 152 457 305 313 237 200 8 219.1 219 127 305 203 610 406 414 313 250 10 273.0 273 159 381 254 762 508 518 391 300 12 323.9 325 190 457 305 914 610 619 467 350 14 355.6 377 222 533 356 1067 711 711 533 400 16 406.4 426 254 610 406 1219 813 813 610 450 18 457.2 478 286 686 457 1372 914 914 686 500 20 508.0 529 318 762 508 1524 1016 1016 762 550 22 559 - 343 838 559 1676 1118 1118 838 600 24 610 630 381 914 610 1829 1219 1219 914 650 26 660 - 406 991 660 1982 1320 - - 700 28 711 720 438 1067 711 2134 1422 - - 750 30 762 - 470 1143 762 2286 1524 - - 800 32 813 820 502 1219 813 2438 1626 - - 850 34 864 - 533 1295 864 2590 1728 - - 900 36 914 920 565 1372 914 2744 1828 - - 950 38 965 - 600 1448 965 2896 1930 - - 1000 40 1016 1020 632 1524 1016 3048 2032 - - 1050 42 1067 - 660 1600 1067 3200 2134 - - 1100 44 1118 1120 695 1676 1118 3352 2236 - - 1150 46 1168 - 727 1753 1168 3506 2336 - - 1200 48 1220 1220 759 1829 1219 3658 2440 - -
