Tube Reducer Butt Weld Fittings Nickel 200 UNS N02200 Nickel 99.2 SCH10S To SCH80S

Place of Origin	CHINA
Brand Name	TOBO
Certification	SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number	Nickel 200 UNS N02200 Nickel 99.2
Minimum Order Quantity	3PCS
Price	Negotiation
Packaging Details	PLY-WOODEN CASE OR PALLET
Delivery Time	15DAYS
Payment Terms	T/T, L/C, Western Union
Supply Ability	9980000PCS Per Month

Product Details

Material	Nickel 200 UNS N02200 Nickel 99.2	Thickness	Sch5-Sch160, STD, XS, XXS
Standard	ANSI/ASTM B16.9/ B16.11	Surface Finish	Sand Blast, Black Painting, Galvanizing Finish
Manufacturing Process	Push, Press, Forge, Cast, Etc.	Application	Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding Etc
Packaging Details	Butt Welding Pipe Fitting Commonly Should Be Shipped In Wooden Cases, Wooden Pallets Or As Per Customers Request
Highlight	butt weld tube fittings , butt welded pipe fittings

Leave a Message

Product Description

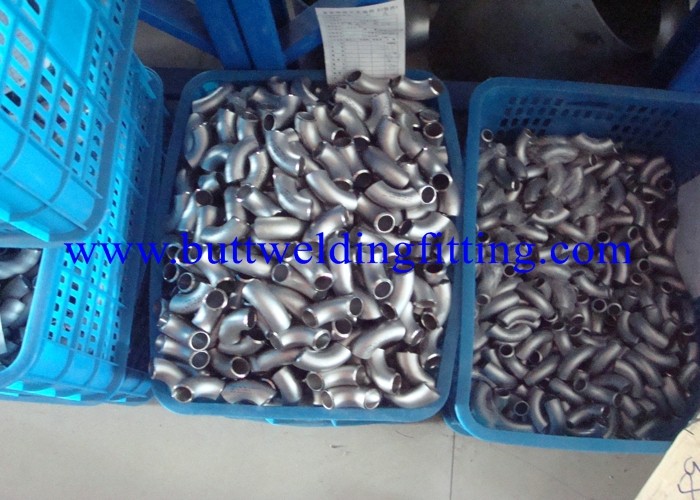

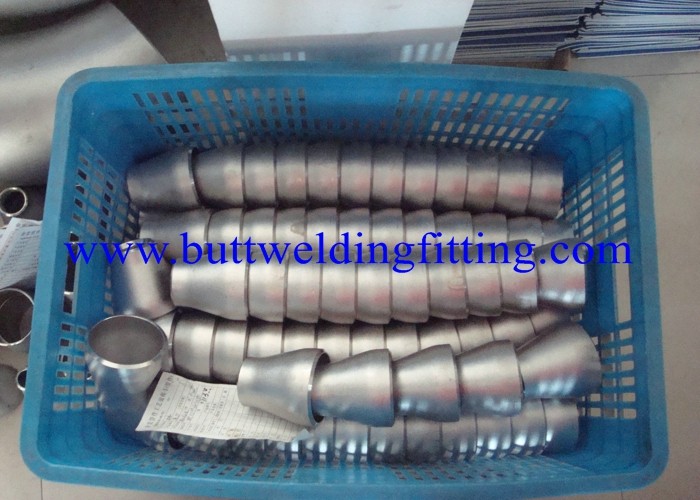

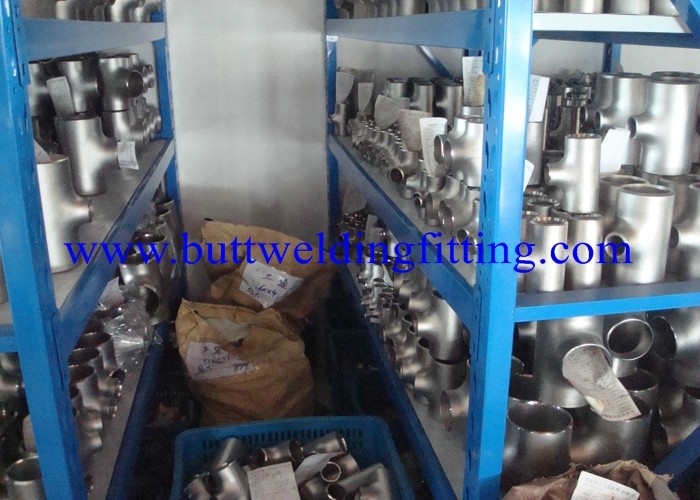

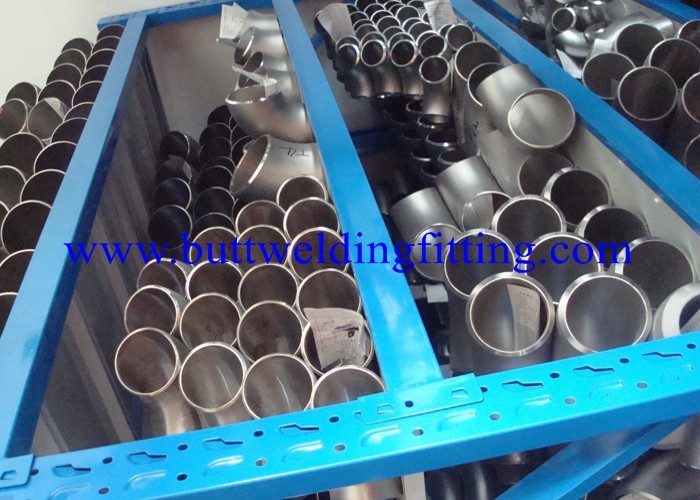

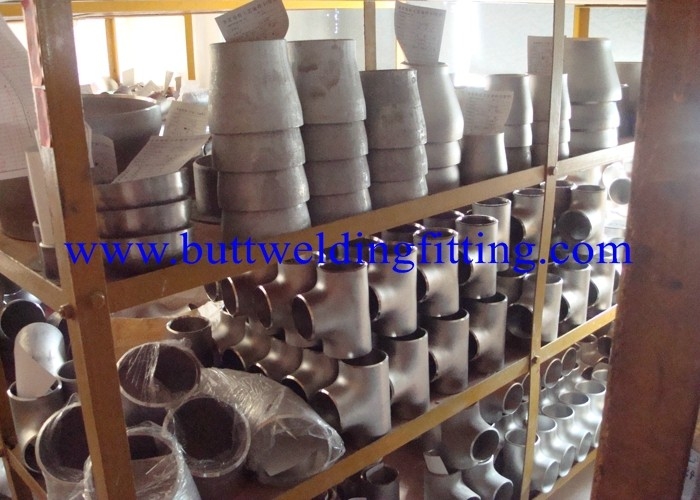

Nickel 200 UNS N02200 Nickel 99.2 But Weld Fittings Elbow Tee Reducer 1” To 24” SCH10S To SCH80S ASME B16.9

Nickel 200 (UNS N02200)

General Description

Nickel 200 ( UNS N02200) , a grade of pure nickel contains 99.2% nickel, has excellent mechanical properties, magnetic properties, high thermal, electrical conductivity and excellent resistance to many corrosive environment. Nickel 200 is useful in any environment below 600℉(315℃). It has highly resistance to neutral and alkaline salt solutions. Nickel 200 also has low corrosion rates in neutral and distilled water.

The applications of pure nickel includes food processing equipment, magnetostrictive devices and rechargeable batteries, computers, cellular Phone, power tools, camcorders and so on.

Chemical Composition

Alloy	Ni%	Mn%	Fe%	Si%	Cu%	C%	S%
Nickel 200	Min 99.2	Max 0.35	Max 0.4	Max 0.35	Max 0.25	Max 0.15	Max 0.01

Physical Data

Density	8.89g/cm3
Specific Heat	0.109(456 J/kg.℃)
Electrical Resistivity	0.096×10-6ohm.m
Melting Point	1435-1446℃
Thermal Conductivity	70.2 W/m-K
Mean Coeff Thermal Expansion	13.3×10-6m/m.℃

Typical Mechanical Properties

Mechanical Property	Nickel 200
Tensile Strength	462 Mpa
Yield Strength	148 Mpa
Elongation	47
