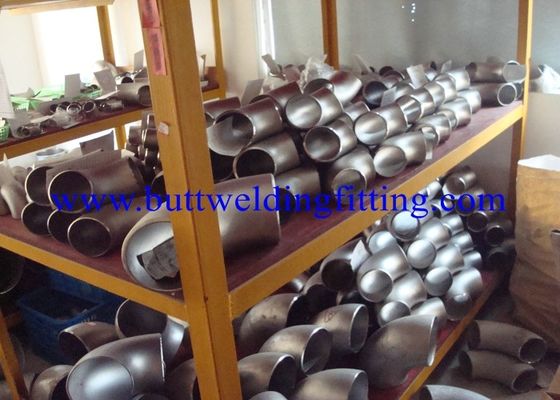

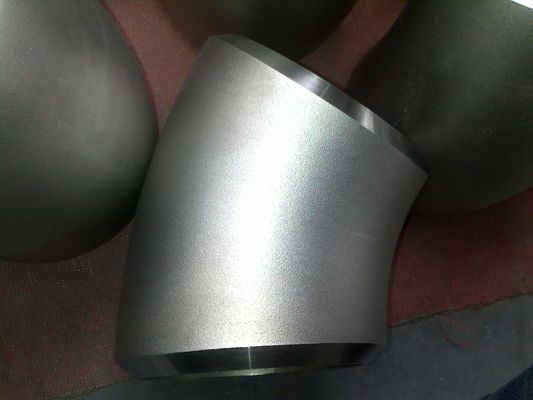

Reducer tee / stub end Cap But Weld Fittings UNS S31254 / ASTM A182 F44 / 254SMO / 1.4547 1/2” To 60” SCH10S To SCH160

Reducer tee / stub end Cap But Weld Fittings UNS S31254 / ASTM A182 F44 / 254SMO / 1.4547 1/2” To 60” SCH10S To SCH160

UNS S31254 Stainless Steel

PDF datasheet

UNS S31254 stainless steel stockholders and suppliers TOBOGROUP suppliers of UNS S31254, a high molybdenum austenitic stainless steel specification. Its high molybdenum content combined with elements such as nickel and copper gives UNS S31254 excellent resistance to pitting and crevice corrosion. In acids containing halides it offers good resistance to uniform corrosion and is superior to other austenitic stainless steel grades.

We welcome export enquiries for stainless steel. Contact our sales office and consult our shipping policy for further details.

Related Specifications

 6 Mo 31254 254SMO F44 1.4547 ASTM A182
ASTM A479 ASTM A276 EN10272 ASME SA479

Analysis

Carbon 0.02% max Chromium 19.50-20.50%
Manganese 1.00% max Nickel 17.50-18.50%
Silicon 0.70% max Molybdenum 6.00-7.00%
Phosphorous 0.03% max Copper 0.50-1.00%
Sulphur 0.01% max Nitrogen 0.18-0.25%

Form of Supply

TOBOGROUP are UNS S31254 stainless steel suppliers and stockholders of round bar. Diameters can be supplied sawn to your requirements. UNS S31254 plate can be plasma cut to size. Ground bar can be supplied, providing a high quality precision ground bar to your close tolerances.

Sheet Plate Diameter

Applications

UNS S31254 stainless steel is ideally suited for use in halide environments and widely used in the chemical, marine, oil and gas industries. Typical applications include pumps, valves, heat exchangers, flanges and manifolds.

Corrosion Resistance

UNS S31254 offers higher resistance to abrasion, erosion and cavitation erosion than other austenitic stainless grades such as 316. UNS S31254 has excellent resistance to corrosion in sea water and concentrated halide environments, with good resistance to crevice corrosion in seawater.

Welding

Stainless steel UNS S31254 is readily weldeable with welding procedures used for other austenitic stainless steel specifications. Welding should be carried out at the lowest heat possible as due to its austenite structure it can be prone to hot cracking. We recommend you contact your welding consumables supplier who should provide you full assistance and information on welding UNS S31254 stainless steel.

Typical Physical Properties

Temp °C
Density Kg/m³Mean Coefficientof Thermal Expansion


Modulus of Elasticicykg/mmElectricalResistivityΩmm²/mSpecific HeatJ/kgºC20 8.0 16x10-6 20000 0.5 500

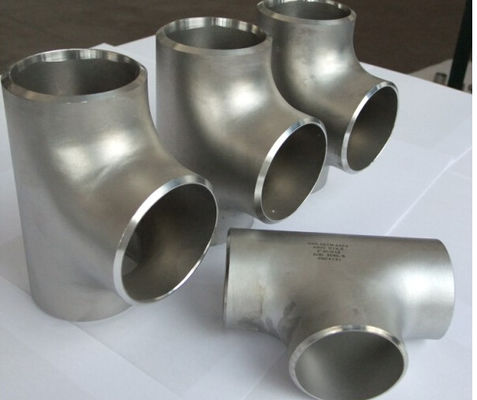

Product name : stainless steel straight tee

Item : buttweld-Tee

Details :

Nominal Diameter Outside Diameter Center to End D1 D2 DN NPS Series A Series B Series A Series B C M 15×15×15 1/2×1/2×1/2 21.3 18 21.3 18 25 25 15×15×10 1/2×1/2×3/8 21.3 18 17.3 14 25 25 15×15×8 1/2×1/2×1/4 21.3 18 13.7 10 25 25 20×20×20 3/4×3/4×3/4 26.9 25 26.9 25 29 29 20×20×15 3/4×3/4×1/2 26.9 25 21.3 18 29 29 20×20×10 3/4×3/4×3/8 26.9 25 17.3 14 29 29 25×25×25 1×1×1 33.7 32 33.7 32 38 38 25×25×20 1×1×3/4 33.7 32 26.9 25 38 38 25×25×15 1×1×1/2 33.7 32 21.3 18 38 38 32×32×32 1.1/4×1.1/4×1.1/4 42.4 38 42.4 38 48 48 32×32×25 1.1/4×1.1/4×1 42.4 38 33.7 32 48 48 32×32×20 1.1/4×1.1/4×3/4 42.4 38 26.9 25 48 48 32×32×15 1.1/4×1.1/4×1/2 42.4 38 21.3 18 48 48 40×40×40 1.1/2×1.1/2×1.1/2 48.3 45 48.3 45 57 57 40×40×32 1.1/2×1.1/2×1.1/4 48.3 45 42.4 38 57 57 40×40×25 1.1/2×1.1/2×1 48.3 45 33.7 32 57 57 40×40×20 1.1/2×1.1/2×3/4 48.3 45 26.9 25 57 57 40×40×15 1.1/2×1.1/2×1/2 48.3 45 21.3 18 57 57 50×50×50 2×2×2 60.3 57 60.3 57 64 64 50×50×40 2×2×1.1/2 60.3 57 48.3 45 64 60 50×50×32 2×2×1.1/4 60.3 57 42.4 38 64 57 50×50×25 2×2×1 60.3 57 33.7 32 64 51 50×50×20 2×2×3/4 60.3 57 26.9 25 64 44 65×65×65 2.1/2×2/1/2×2.1/2 73.0 76 73.0 76 76 76 65×65×50 2.1/2×2/1/2×2 73.0 76 60.3 57 76 70 65×65×40 2.1/2×2/1/2×1.1/2 73.0 76 48.3 45 76 67 65×65×32 2.1/2×2/1/2×1.1/4 73.0 76 42.4 38 76 64 65×65×25 2.1/2×2/1/2×1 73.0 76 33.7 32 76 57 80×80×80 3×3×3 88.9 89 88.9 89 86 86 80×80×65 3×3×2.1/2 88.9 89 73.0 76 86 83 80×80×50 3×3×2 88.9 89 60.3 57 86 76 80×80×40 3×3×1.1/2 88.9 89 48.3 45 86 73 80×80×32 3×3×1.1/4 88.9 89 42.4 38 86 70 90×90×90 3.1/2×3.1/2×3.1/2 101.6 - 101.6 - 95 95 90×90×80 3.1/2×3.1/2×3 101.6 - 88.9 89 95 92 90×90×65 3.1/2×3.1/2×2.1/2 101.6 - 73.0 76 95 89 90×90×50 3.1/2×3.1/2×2 101.6 - 60.3 57 95 83 90×90×40 3.1/2×3.1/2×1.1/2 101.6 - 48.3 45 95 79 100×100×100 4×4×4 114.3 108 114.3 108 105 105 100×100×90 4×4×3.1/2 114.3 108 101.6 - 105 102 100×100×80 4×4×3 114.3 108 88.9 89 105 98 100×100×65 4×4×2.1/2 114.3 108 73.0 76 105 95 100×100×50 4×4×2 114.3 108 60.3 57 105 89 100×100×40 4×4×1.1/2 114.3 108 48.3 45 105 86 125×125×125 5×5×5 141.3 133 141.3 133 124 124 125×125×100 5×5×4 141.3 133 114.3 108 124 117 125×125×90 5×5×3.1/2 141.3 - 101.6 - 124 114 125×125×80 5×5×3 141.3 133 88.9 89 124 111 125×125×65 5×5×2.1.2 141.3 133 73.0 76 124 108 125×125×50 5×5×2 141.3 133 60.3 57 124 105 150×150×150 6×6×6 168.3 159 168.3 159 143 143 150×150×125 6×6×5 168.3 159 141.3 133 143 137 150×150×100 6×6×4 168.3 159 114.3 108 143 130 150×150×90 6×6×3.1/2 168.3 - 101.6 - 143 127 150×150×80 6×6×3 168.3 159 88.9 89 143 124 150×150×65 6×6×2.1/2 168.3 159 73.0 76 143 121 200×200×200 8×8×8 219.1 219 219.1 219 178 178 200×200×150 8×8×6 219.1 219 168.3 159 178 168 200×200×125 8×8×5 219.1 219 141.4 133 178 162 200×200×100 8×8×4 219.1 219 114.3 108 178 156 200×200×90 8×8×3.1/2 219.1 - 101.6 - 178 152 250×250×250 10×10×10 273.0 273 273.0 273 216 216 250×250×200 10×10×8 273.0 273 219.1 219 216 203 250×250×150 10×10×6 273.0 273 168.3 159 216 194 250×250×125 10×10×5 273.0 273 141.3 133 216 191 250×250×100 10×10×4 273.0 273 114.3 108 216 184 300×300×300 12×12×12 323.9 325 323.9 325 254 254 300×300×250 12×12×10 323.9 325 273.0 273 254 241 300×300×200 12×12×8 323.9 325 219.1 219 254 229 300×300×150 12×12×6 323.9 325 168.3 159 254 219 300×300×125 12×12×5 323.9 325 141.3 133 254 216 350×350×350 14×14×14 355.6 377 355.6 377 279 279 350×350×300 14×14×12 355.6 377 323.9 325 279 270 350×350×250 14×14×10 355.6 377 273.0 273 279 257 350×350×200 14×14×8 355.6 377 219.1 219 279 248 350×350×150 14×14×6 355.6 377 168.3 159 279 238 400×400×400 16×16×16 406.4 426 406.4 426 305 305 400×400×350 16×16×14 406.4 426 355.6 377 305 305 400×400×300 16×16×12 406.4 426 323.9 325 305 295 400×400×250 16×16×10 406.4 426 273.0 273 305 283 400×400×200 16×16×8 406.4 426 219.1 219 305 273 400×400×150 16×16×6 406.4 426 168.3 159 305 264
