ASME / ANSI / DIN 150#-2500# SS / Alloy Steel Forged Pipe Fittings Blind Flange

Place of Origin CHINA
Brand Name TOBO
Certification BV/ABS/LR/TUV/DNV/BIS/API/PED
Minimum Order Quantity 0.5-1 tons
Price negotiable
Packaging Details in plastic bags then in bundles
Delivery Time According to the qty
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability According to the qty
Product Details
Standard Or Nonstandard Standard Material Stainless Steel,Carbon Steel,alloy Steel
Size Customize,1/2" - 120" Packing Plywood Cases,wooden Case Or Pallets,Standard Export Wooden Case Or As Your Requested,pallet Or As The Customers Requirements,In Wooden Case
Pressure 150#-2500# Surface Rust-proof Oil
Application Gas,Water Color Customer Required
Highlight

ASME alloy steel blind flange

,

DIN forged pipe fittings

,

SS 150#-2500# flange

Leave a Message
Product Description

ASME/ANSI/DIN 150#-2500# SS/Alloy Steel Forged Pipe Fittings Blind Flange

Specification:

item
value
Place of Origin
China

Zhejiang
Brand Name
TOBO
Standard
ANSI, bs, DIN, GB, ISO, JIS, Jpi, ASME
Material
304L Steel
Product name
Forged Steel Flange
Usage
Oil Gas Water Industrial
Type
Round Flange
Standard or Nonstandard
EN DIN ANSI JIS GOST
Surface treatment
Sandblasting
Technics
Forged + Cnc Machining
MOQ
100 Pieces



Material used:

- Alloy 20

- Nickel 200, 201

- Monel 400. K-500

- Inconel 600, 601, 625, 718, 725, X-750, 751, 783

- Incoloy 800, 800H, 800HT, 825, 890, 901, 925, 926

- Hastelloy B, B-2, C-22, C-276

- Special Stainless Steel F309, F310, F347, F348, 904L

- Dual Phase Steel F44, F51, F52, F53, F55

- Precipitation Hardening Steel 15-5PH, 17-4PH, 17-7PH, 18-8MoPH

- Stainless Steel S30403, S30408, S30409, S31008, S31603, S31608, S31609, S31668, S31703, S32168, S34779,

S39042, S11306, S22253, S22053, S21953

- High temperature alloy GH600, GH3128, GH3030, GH2132, GH1140



Our standard Flanges:

- ANSI B16.5, B16.47

- ASME B16.5, B16.47

- JIS B2220

- BS10, BS3293, BS4504

- DIN 2502, 2503, 2527, 2565 / 2566, 2573 / 2576, 2627 / 2628, 2629 / 2630, 2631, 2632, 2633, 2634, 2635 / 2636,

2637 / 2638, 2641, 2642, 2655 / 2656, 86029 / 86030

- UNI 2253, 2254, 2276-2278, 2281-2284, 6083, 6084, 6089-6093

- EN 1092, 1092-1

- API605, 6A ,6B MSS SP44 AWWA C207



Inconel 718 corresponding brands in China and abroad

  GB UNS SEW VDIUV BS AFNOR
Inconel 718 GH4169 N07718 W.Nr.2.4668
NiCr19Fe19Nb5Mo3
NA 51 NC19FeNb





Inconel 718 Chemical components

Alloy C Mn Si P S Cr Ni Mo Cu Ti Al Fe Other
Inconel 718 ≤0.08 ≤0.35 ≤0.015 ≤0.35 ≤0.015 17
~21
50
~55
2.8
~3.3
≤0.3 0.65
~1.15
0.2
~0.8
- Nb 4.75~5.5
B≤0.006
Co≤1

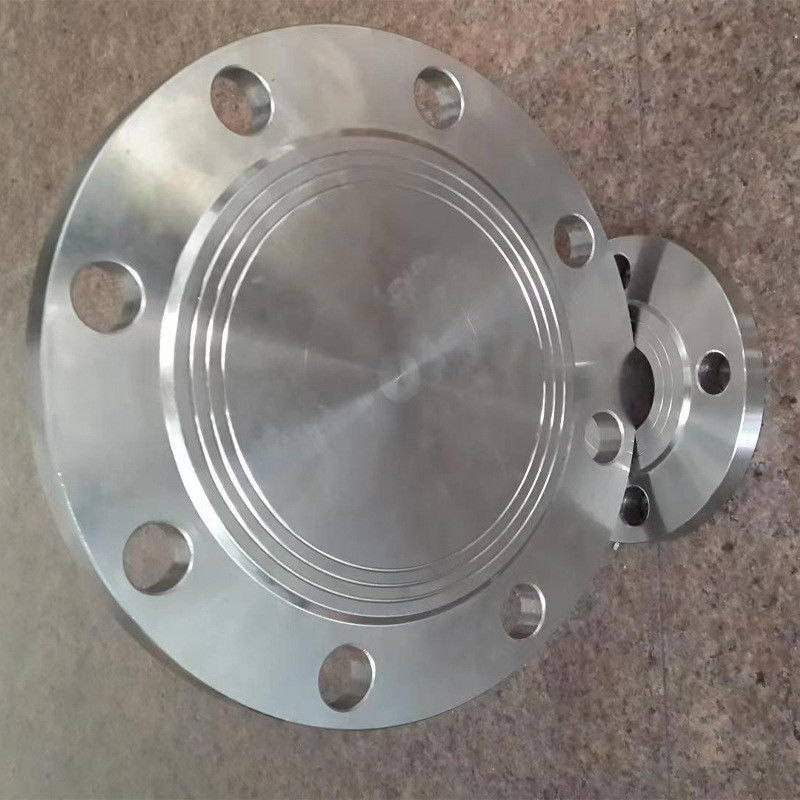

ASME / ANSI / DIN 150#-2500# SS / Alloy Steel Forged Pipe Fittings Blind Flange 0

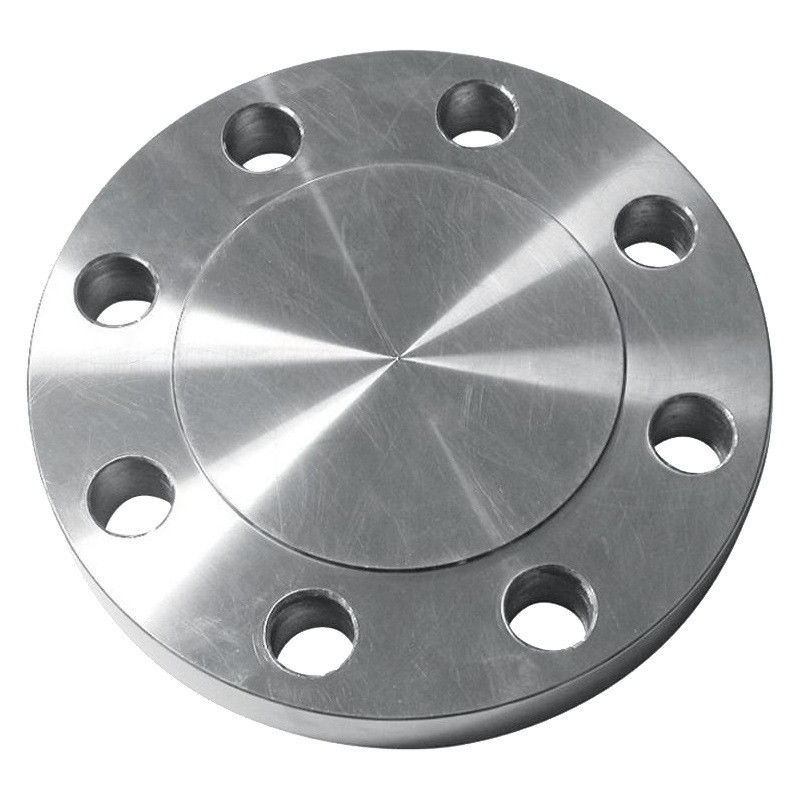

ASME / ANSI / DIN 150#-2500# SS / Alloy Steel Forged Pipe Fittings Blind Flange 1
ASME / ANSI / DIN 150#-2500# SS / Alloy Steel Forged Pipe Fittings Blind Flange 2



Related Products
ASME / ANSI / DIN 150#-2500# SS / Alloy Steel Forged Pipe Fittings Blind Flange 3
Weld Neck Flanges
Socket Weld Flanges
Blind Flanges
ASME / ANSI / DIN 150#-2500# SS / Alloy Steel Forged Pipe Fittings Blind Flange 4
Theaded Flanges
Slip On Flanges
Lap Joint Flanges
ASME / ANSI / DIN 150#-2500# SS / Alloy Steel Forged Pipe Fittings Blind Flange 5
ASME / ANSI / DIN 150#-2500# SS / Alloy Steel Forged Pipe Fittings Blind Flange 6

FAQ



Q1: Are you trading company or manufacturer ?

A: We are factory.You can visit our factory if you have time, we also can take a video for you to show our office and factory.



Q2: How long is the delivery ?

A:Generally it is 5-10 days if the goods are in stock.it is 15-20 days if the goods are not in stock It is According the QUANTITY.



Q3: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.



Q 4. What's the payment term?

A: We accept T/T 30% deposit and 70% balance before the shipment, West Union, VISA is also accepted.



Q5. Can I request to change the form of packaging and transportation?

A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.



Q6. Can I have my own Logo on the product?

A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.



Q7. Can you produce the products according to my own drawings?

A: Yes, we can produce the products according to your drawings that will be most satisfy you.
