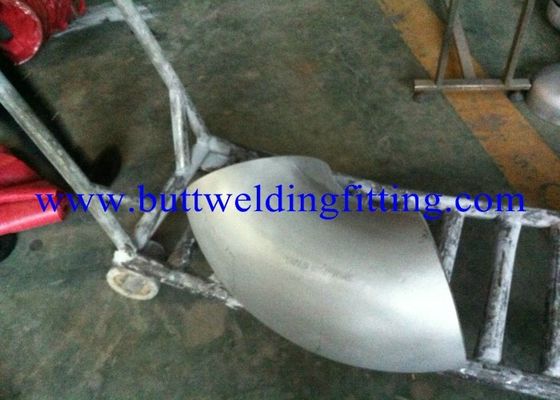

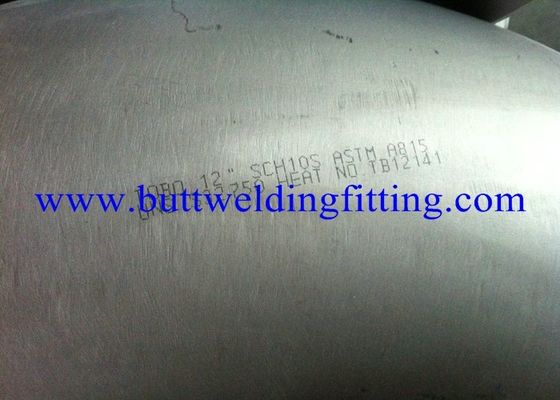

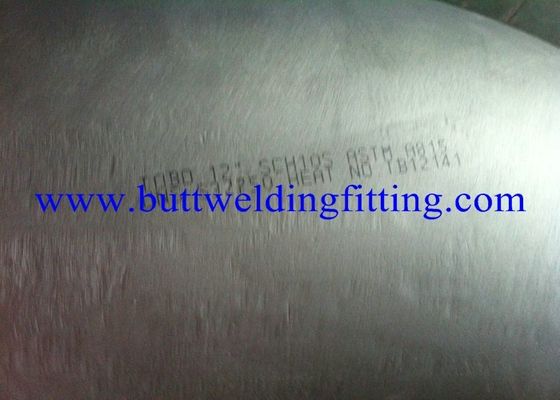

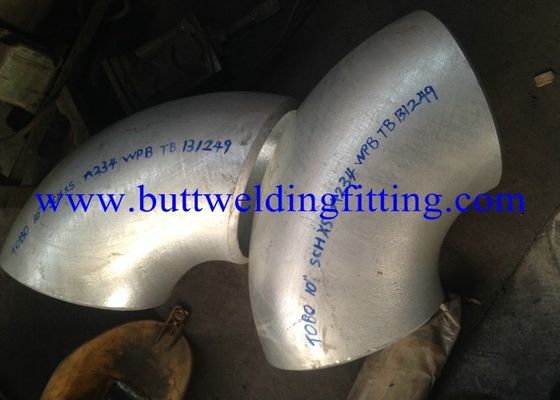

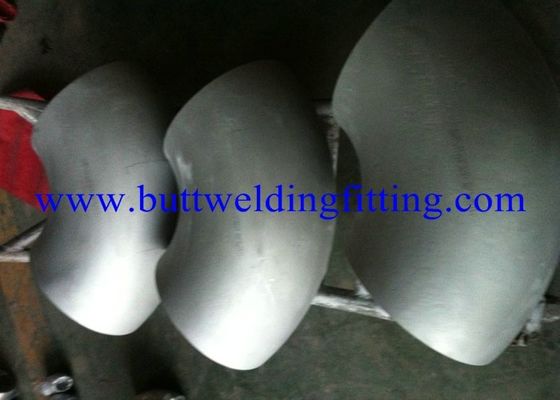

ASTM A403 WP317 317l Butt Weld Fittings Elbow LR/ SR R 1.5D 1” To 60” SCH10S To SCH160

  • ASTM A403 WP317 317l Butt Weld Fittings Elbow LR/ SR R 1.5D 1” To 60” SCH10S To SCH160
  • ASTM A403 WP317 317l Butt Weld Fittings Elbow LR/ SR R 1.5D 1” To 60” SCH10S To SCH160
  • ASTM A403 WP317 317l Butt Weld Fittings Elbow LR/ SR R 1.5D 1” To 60” SCH10S To SCH160
  • ASTM A403 WP317 317l Butt Weld Fittings Elbow LR/ SR R 1.5D 1” To 60” SCH10S To SCH160
  • ASTM A403 WP317 317l Butt Weld Fittings Elbow LR/ SR R 1.5D 1” To 60” SCH10S To SCH160
Place of Origin CHINA
Brand Name TOBO
Certification SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number ASTM A403 WP317 /317l
Minimum Order Quantity 3PCS
Price Negotiation
Packaging Details PLY-WOODEN CASE OR PALLET
Delivery Time 15DAYS
Payment Terms T/T, L/C, Western Union
Supply Ability 9980000PCS Per Month
Product Details
Material ASTM A403 WP317 /317l Standard ASME B16.9, ASME B16.25, MSS SP-75 DIN2617 JISB2311 JISB2312 JISB2313
Manufacturing Process Push, Press, Forge, Cast, Etc. Application Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding Etc
Packaging Details Butt Welding Pipe Fitting Commonly Should Be Shipped In Wooden Cases, Wooden Pallets Or As Per Customers Request Test Direct Reading Light Spectrum, Hydrostatic Test ,X-ray Detector,ultrasonic Flaw Detection ,magnetic Powder Detector ,etc
Highlight

butt weld tube fittings

,

butt welded pipe fittings
Leave a Message
Product Description



ASTM A403 WP317 317l Butt Weld Fittings Elbow LR/ SR R 1.5D 1” To 60” SCH10S To SCH160





Specifications:

Butt Weld Stainless Steel Equal Tee, Recuding Tee,

Material: SS304, SS304L, SS316L, SS310, 904L ECT
size : 1/2"-60"
w.t.: sch10-sch160, SGP , XS, XXS, DIN ,STD

Packing: In wooden cases or pallet. or carton box , surface treatment : anti-rust,sand blast ect

The thickness tolerance is: +or - 12.5%

Delivery: 20-30days, after received balance payment



Seamless SS317 pipe tube fittings
1.ASTM A312 TP304 304L 316 316L 317 317L pipe tube
2.seamless welded pipe SMLS




Stainless steel pipe fittings

Size

1/2''~48''

Wall thickness

SCH10-XXS

Type

seamless,SMLS, welded, forged, etc

Packing

steel strap, etc

Lead time

10-100days

Stainless steel



ASTM A312

TP 304, 304L, 304H;309S,309H; 310S, 310H; TP 316, 316L;317,317L;

TP 310, 310S; TP 321, TP 347, TP420



Chemical

composition

C
Max

Si
Max

Mn
Max

Cr

Ni

P
Max

S
Max

SS317

0.08

0.75

2

18.00/20.00

11.00/15.00

0.045

0.03

SS317L

0.03

0.75

2

18.00/20.00

11.00/15.00

0.045

0.03

Competitive price, good quality, experienced manufactures







ASTM A403 WP317 317l Butt Weld Fittings Elbow LR/ SR R 1.5D 1” To 60” SCH10S To SCH160
