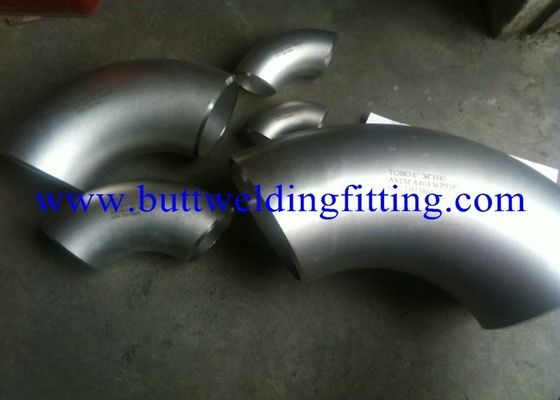

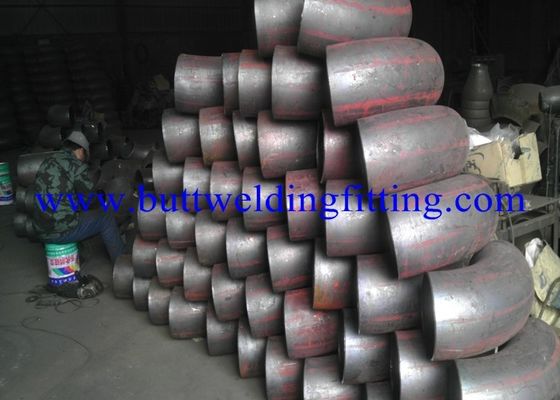

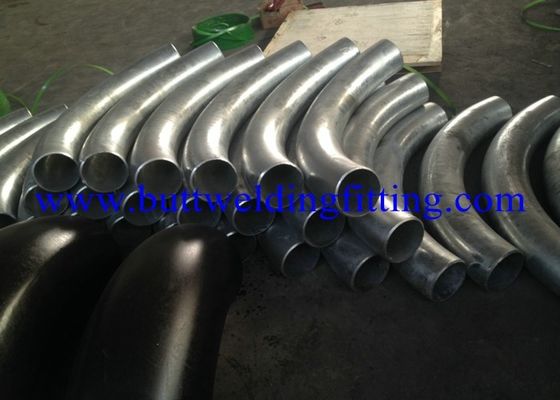

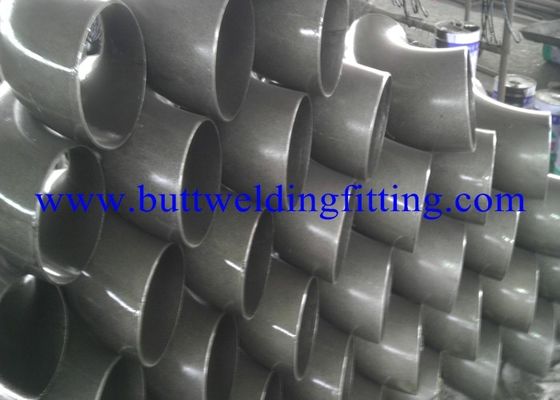

Stainless Steel Weld Elbows ASTM / ASME SB 111 / 466/ASTM A403 UNS NO. C 10100 10200 10300 10800

Stainless Steel Weld Elbows ASTM / ASME SB 111 / 466/ASTM A403 UNS NO. C 10100 10200 10300 10800

1) Cast Bronze Flared Tube Fittings to ANSI B18.26
2) Streamline Copper Tube TYPES K, L & M — to ANSI H23.1, ASTM B88 and WWT-799 for Refrigeration
3) Streamline Copper Refrigeration Service Tube to ANSI H23.5, ASTM B280, and WWT- 775
4) Streamline Nitrogenized ACR Hard Drawn Copper Tube to ANSI H23.1 Type L and ASTM B88 Type L, in accordance with ASTM 8280
5) Oxygen Service Tube to ANSI H23. 1 Types K and L and ASTM B88, Types K and L — hard drawn lengths only in accordance to CDA cleanliness specifications and NFPA 56F, Seamless Copper Tube cleaned for Oxygen Gas Service
6) Streamline Copper Tube TYPE DWV — to ANSI H23.6 and ASTM B306
7) Copper Pipe to ASTM B42
8) Red Brass Pipe to ASTM B43

Tubular Wrought Copper:

ASTM B75 Alloy C12200 — Standard Specification for Seamless Copper Tube or Products Made From Sheet

B-42 Seamless copper pipe in all standard pipe sizes, both regular and extra-strong, suitable for use in plumbing, boiler feed lines, and for similar purposes

B-43 Seamless red brass (Copper Alloy UNS No. C23000) pipe in all standard pipe sizes, both regular and extra-strong, suitable for use in plumbing, boiler feed lines, and for similar purposes

B-68 Annealed seamless copper tube suitable for use in refrigerators, oil lines, gasoline lines, etc., where tube absolutely free from scale end dirt is required.

B-75 Seamless copper, round and rectangular including square tube suitable for general engineering purposes.

B-88 Seamless copper water tube suitable for general plumbing, and similar applications for the conveyance of fluids, and commonly used with solder, flared, or compression type fittings.

B-111 Seamless tube and ferrule stock of copper and various copper alloys up to 2 in. (50.8mm), inc., in diameter, for use in surface condensers, evaporators, and heat exchangers.

B-135 Seamless round and rectangular including square copper alloy tube in straight lengths.

B-280 Seamless copper tube for air conditioning and refrigeration service and intended for use in the field for connection, repairs, and alterations.

B-302 Threadless, seamless, deoxidized copper pipe (TP) in straight lengths, for piping systems that are assembled with brazed-joint pipe fittings.

B-306 Seamless copper drainage tube (DWV) intended for use with soldered fittings for sanitary drainage, such as soil, waste, and vent piping.

Nonferrous Fittings:

Cast Pressure Solder Joint Fittings to ANSI B16.18
Cast Bronze Flared Tube Fittings to ANSI B18.26
Flare Type Fittings to ANSI B70.1 and SAE J513
WROT DWV Solder Joint Fittings to ANSI B16.29
Cast DWV Solder Joint Fittings to ANSI B16.23

Fittings to meet the following specifications::

MSS SP1O4 - Wrought Copper LW Solder, Joint Pressure Fittings
ANSI B16.29-1990 - Wrought Copper and Wrought Copper Alloy Solder Joint Drainage Fittings - DWV
ANSI B16.18-1984 - Cast Copper Alloy Solder Joint Pressure Fittings
ANSI B16.15-1978 - Cast Bronze Threaded Fittings
ANSI B16.26-1983 - Cast Copper Alloy Fittings for Flared Copper Tube
ANSI B16.23-1984 - Cast Copper Alloy Solder Joint Drainage Fittings - DWV
ANSI B16.24-1 979 - Bronze Pipe Ranges and Flanged Fittings

Fitting to comply with the material, performance and installation/joining dimensions of
ANSI B16.22 and following specifications
ASTM B152 Alloy C11000 — Standard Specification for Copper Sheet Strip, Plate and Rolled Bar,
ASTM B584 Alloy C84400 — Standard Specification for Copper Alloy Sand Castings for General Applications,
Federal Specification WW-U-516 for Type Ill, Class A and Class B Copper Alloy Unions.

Other applicable standards for nonferrous tubes and fittings:

Inner grooved copper tube to ASTM B 68, EN 12735, JIS H3300 standards
Pancake coiled copper tube ASTM B 280, EN 12735, JIS H3300
Straight copper tube to ASTM B 280, C 121000, C12200, EN 12735, JIS H3300 C1220. M 741121
Brass Tube & Pipe - ASTM B 111 C26000, C27000, C28000, or BS 2871 or JIS H3300
Admiralty Brass Tube -C44300, C44400, C44500
Aluminum brass tube - ASTM B 111 C68700, BS 2871 CZ111or JIS H3300 C6870 standard
Copper-Nickel Tube & Pipe - ASTM B 111 C70600,C71500,C71640 BS 2871 or JIS H3300
Inner grooved copper tube to ASTM B 68, EN 12735, JIS H3300 standards
Water copper tube ASTM B 88, EN 1057, BS 2871, JIS H3300
Water copper tube ASTM B 88, EN 1057, BS 2871, JIS H3300




Standard: ASTM / ASME SB 111 / 466 Grade: UNS NO. C 10100, 10200, 10300, 10800, 12000, 12200, 70600 (CU -NI- 90/10), 71500 (CU -NI- 70/30).Copper Ally No. Temper Size(inch) Standard O.D. Thickness Length C44300 HSn70-1 61 1/2 ~1-1/5 0.035 ~0.1 710 ASTM B111-99 GB/T8890-1998 JIS H3300:1997 C68700 HAi77-2 C70600 BF210-1-1 61 H55 C71500 BFe30-1-1 61 HR55 Application : Widely applicable for the condenser tubes to the electric power, the shipbuilding, the salty chemical industry, the central air conditioning, the water treatment and so on. The Copper Alloy Tube has the good corrosion resistance ability and the high intensity, widely applied to the industry of the tubular electricity-generating heat exchanger, the ship condenser, the water-supplying heater, the distiller, the oil cooler and the warter- treating heat exchanger and so on.
