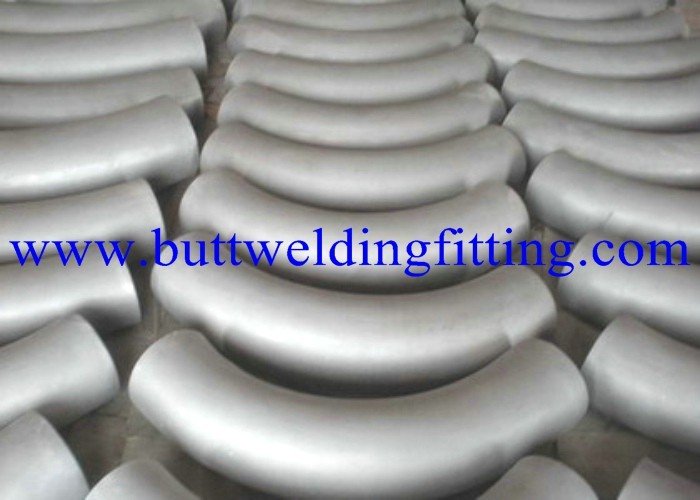

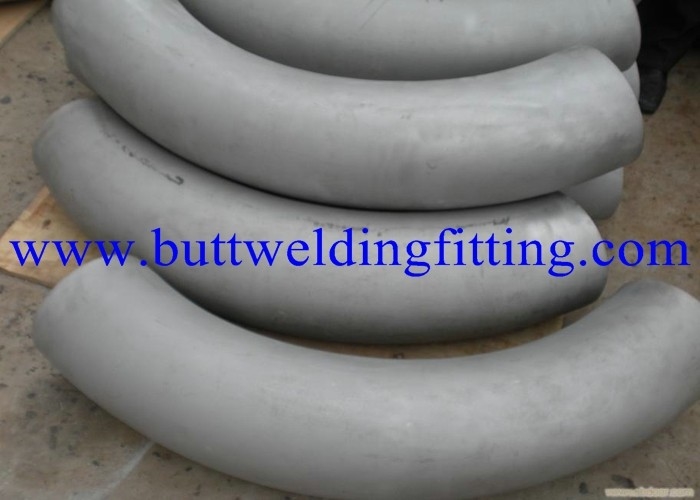

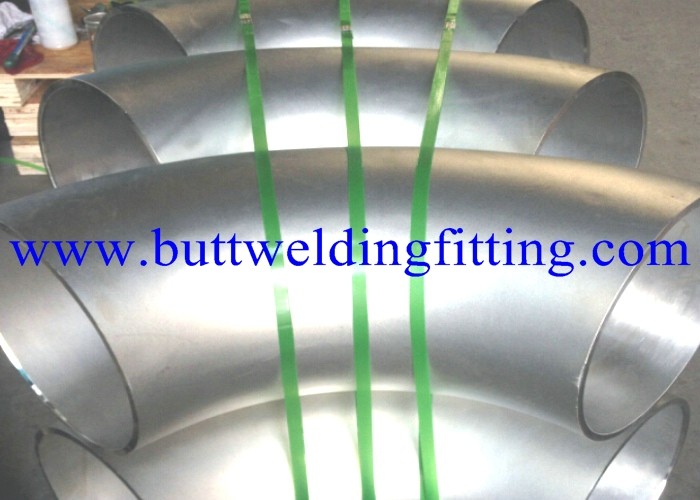

Stainless Steel Bends R 3D 5D 6D ASTM A403 WP316L / 316H / 316LN / 316N / 316Ti ASME B16.9

Basic Information

Place of Origin:	CHINA
Brand Name:	TOBO
Certification:	SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number:	ASTM A403 WP316L / 316H / 316LN / 316N / 316Ti

Minimum Order Quantity:	3PCS
Price:	Negotiation
Packaging Details:	PLY-WOODEN CASE OR PALLET
Delivery Time:	15DAYS
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	9980000PCS Per Month

Get Best Price Contact Now

Name:	Stainless Steel Bend	Surface:	Annealing,Picking,Hair Line,Polished,Bright,Brush,Coated,Sand Blast,etc
Delivery Time::	15 Days	Packaging Details::	Butt Welding Pipe Fitting Commonly Should Be Shipped In Wooden Cases, Wooden Pallets Or As Per Customers Request
Material Grade:	ASTM A403 WP316L / 316H / 316LN / 316N / 316Ti
Highlight:	Pipe Fittings Elbow , Butt Welding Elbow

Stainless Steel Bend R 3D 5D 6D ASTM A403 WP316L / 316H / 316LN / 316N / 316Ti ASME B16.9

Specifications

1) Size: DN15-DN1200 (1/2"-48")
2) Material:304/L,316/L,347H,310S,321H,S31803/F51,32750/F53,
3) Standard:ANSI JIS.DIN ,GB

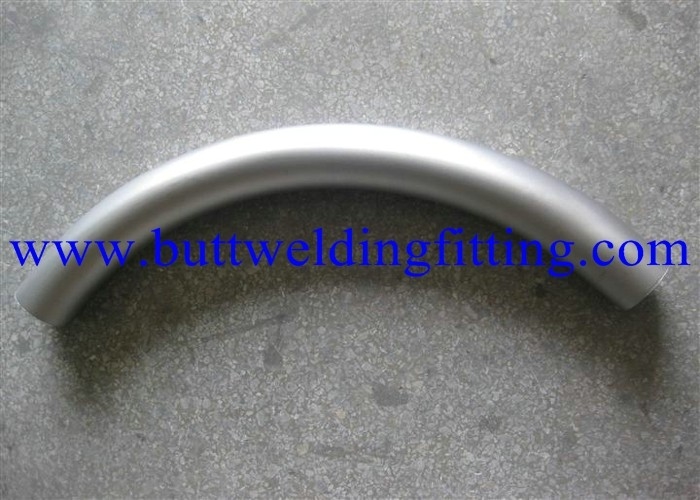

Stainless Steel 180 Degree Bend

Features:

1) Type: butt welded and seamless pipe fitting.
2) Size: we can also produce other specifications according to customers' requirements.DN15-DN1200 (1/2"-48").
3) Wall thickness: SCH10S-SCH80S.
4) Standard: ASME/ANSI B16.9, GB/T12459, GB/T13401, SH3408, SH3409, HG/T21635, HG/T21631, MSS SP-43, DIN 2605, JIS B2313.
5) Material: Stainless steel (304, 304L, 316, 316L, 321, 321H, 310S, 347H).
6) Our products are corrosion and high-temperature resistant.
7) Applications range: For use in the petroleum, smelting, foodstuff, power, papermaking, chemical, medical equipment, aviation, boiler heat exchanger, and other fields.

8) Packing: plywood case or as per customers' requests.

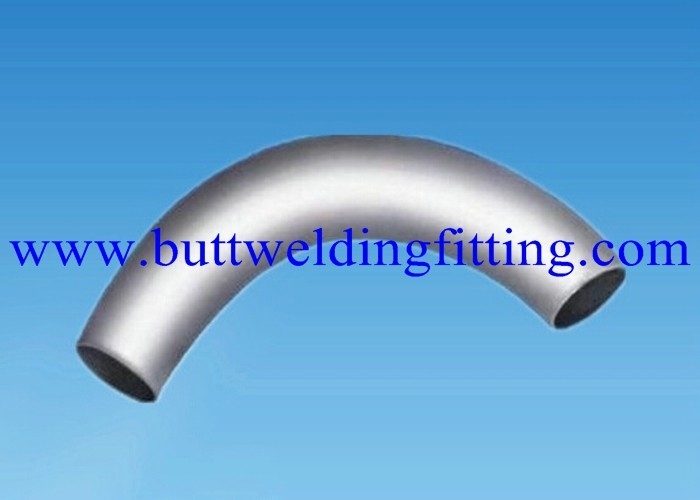

Product name : stainless steel 180º elbow

Item : buttweld-Elbow

Details :

Nominal Diameter		Outside Diameter at Bevel		Center to End			Center to Center		Back to Face
				45°Elbow	90°Elbow		180°Elbow
				B	A		O		K
DN	NPS	Series A	Series B	Long Radius	Long Radius	Short Radius	Long Radius	Short Radius	Long Radius	Short Radius
15	1/2	21.3	18	16	38	-	76	-	48	-
20	3/4	26.9	25	19	38	-	76	-	51	-
25	1	33.7	32	22	38	25	76	51	56	41
32	1.1/4	42.4	38	25	48	32	95	64	70	52
40	1.1/2	48.3	45	29	57	38	114	76	83	62
50	2	60.3	57	35	76	51	152	102	106	81
65	2.1/2	76.1(73)	76	44	95	64	190	127	132	100
80	3	88.9	89	51	114	76	229	152	159	121
90	3.1/2	101.6	-	57	133	89	267	178	184	140
100	4	114.3	108	64	152	102	305	203	210	159
125	5	139.7	133	79	190	127	381	254	262	197
150	6	168.3	159	95	229	152	457	305	313	237
200	8	219.1	219	127	305	203	610	406	414	313
250	10	273.0	273	159	381	254	762	508	518	391
300	12	323.9	325	190	457	305	914	610	619	467
350	14	355.6	377	222	533	356	1067	711	711	533
400	16	406.4	426	254	610	406	1219	813	813	610
450	18	457.2	478	286	686	457	1372	914	914	686
500	20	508.0	529	318	762	508	1524	1016	1016	762
550	22	559	-	343	838	559	1676	1118	1118	838
600	24	610	630	381	914	610	1829	1219	1219	914
650	26	660	-	406	991	660	1982	1320	-	-
700	28	711	720	438	1067	711	2134	1422	-	-
750	30	762	-	470	1143	762	2286	1524	-	-
800	32	813	820	502	1219	813	2438	1626	-	-
850	34	864	-	533	1295	864	2590	1728	-	-
900	36	914	920	565	1372	914	2744	1828	-	-
950	38	965	-	600	1448	965	2896	1930	-	-
1000	40	1016	1020	632	1524	1016	3048	2032	-	-
1050	42	1067	-	660	1600	1067	3200	2134	-	-
1100	44	1118	1120	695	1676	1118	3352	2236	-	-
1150	46	1168	-	727	1753	1168	3506	2336	-	-
1200	48	1220	1220	759	1829	1219	3658	2440	-	-

Stainless Steel Bends R 3D 5D 6D ASTM A403 WP316L / 316H / 316LN / 316N / 316Ti ASME B16.9 3
