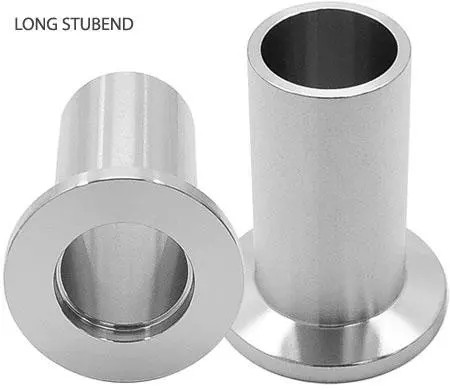

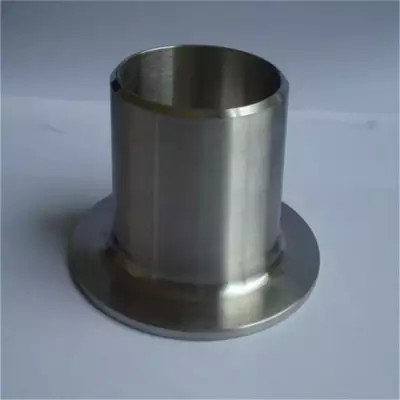

SCH40 Butt Welding Pipe Fitting ASME B16.9 Stainless Steel Lap Joint Long Stub End

Basic Information

Place of Origin:	China
Brand Name:	TOBO
Certification:	OEM, ODM
Model Number:	Stub End

Minimum Order Quantity:	10pcs
Price:	Depending on quantity
Packaging Details:	wooden case
Delivery Time:	5-8days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000pcs per year

Get Best Price Contact Now

Material:	Stainless Steel	Shape:	ROUND
Connection:	Welding	Technics:	Cold Press
Type:	Long Stub End	Size:	Customized Size
Standard:	ASTM	Application:	Connect Pipes
Color:	Silver	Place Of Origin:	China

SCH40 BW Pipe Fitting ASME B16.9 Stainless Steel Lap Joint Long Stub End

Overview

Butt welding Fittings Lap Joint Stub End Material Grades

Nickel Alloy	ASTM/ASME SB366 Alloy 200/UNS N02200, Alloy 800HT/Incoloy 800HT/UNS N08811, Alloy 400/Monel 400/UNS N04400, F904L/UNS N08904, Alloy 800/Incoloy 800/UNS N08800, Alloy C-2000/UNS N06200, Alloy 925/Incoloy 925/UNS N09925, Alloy C-22/UNS N06022, Alloy 201/UNS N02201, Alloy C-276/Hastelloy C-276/UNS N10276, Alloy 625/UNS N06625, Nimonic 80A/Nickel Alloy 80A/UNS N07080, Alloy K-500/Monel K-500, Alloy 20/UNS N08020, Alloy 800H/Incoloy 800H/UNS N08810,Alloy 600/Inconel 600/UNS N06600, Alloy 31/UNS N08031,Hastelloy C-276/UNS N10276, Alloy 825/Incoloy 825/UNS N08825,Alloy 20/N08020
Duplex and Super Duplex Steel	ASTM/ASME SA 815 WPS31803, WPS32205, WPS32750, WPS32760, WPS32550
Stainless Steel	ASTM/ASME SA403 WP 304, WP 304L, WP 304H, WP 304LN, WP 304N, ASTM/ASME A403 WP 316, WP 316L, WP 316H, WP 316LN, WP 316N, WP 316Ti, ASTM/ASME A403 WP 321, WP 321H ASTM/ASME A403 WP 347, WP 347H
Carbon Steel	ASTM/ASME SA234 WPB
Low Temp Carbon Steel	ASTM/ASME SA420 WPL3-WPL6
Low Alloy Steel	ASTM/ASME SA 234 WP9, WP91, WP11, WP22

Dimensional Tolerances of Stub Ends ASME B16.9

Nominal Pipe Size	1/2 to 2.1/2	3 to 3.1/2	4	5 to 8	10 to 18	20 to 24
Outside Diameter at Welding End (OD)	+ 1.6 - 0.8	1.6	1.6	+ 2.29 - 1.6	+ 4.06 - 3.05	+ 6.35 - 4.83
Overall Length (F)	1.6	1.6	1.6	1.6	2	2
Outside Diameter of Lap (G)	+ 0 - 0.76	+ 0 - 0.76	+ 0 - 0.76	+ 0 - 0.76	+ 0 - 1.6	+ 0 - 1.6
Thickness of Lap (T)	+ 1.52 - 0	+ 1.52 - 0	+ 1.52 - 0	+ 1.52 - 0	+ 1.52 - 0	+ 1.52 - 0
Fillet Radius of Lap (R)	+ 0 - 0.76	+ 0 - 0.76	+ 0 - 1.6	+ 0 - 1.6	+ 0 - 1.6	+ 0 - 1.6
Wall Thickness (t)			Not less than 87.5% of Nominal Wall Thickness

Key attributes

Industry-specific attributes

Technics

Butt Weld

Shape

Equal

Head Code

Round

Other attributes

Place of Origin

Henan, China

Warranty

3 years

Customized support

OEM, ODM, OBM

Brand Name

TOBO

Model Number

1/2"-48"

Connection

Welding

Material

Stainless Steel

Application

Pipe Lines Connect

Product name

Stub End

Standard

ANSI JIS DIN ASME

Surface treatment

Customers' Request

Usage

Oil Gas Water Industrial

Type

Butt Welded

Color

Nature Color

MOQ

1 Piece

Size

1/2"-48"

Lead time

Quantity (pieces)	1 - 500	> 500
Lead time (days)	15	To be negotiated

Product Description

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

FAQ

Q1:What product information must I provide before making a purchase?

Please provide the grade, width, thickness, and surfacetreatment requirements, as well as the quantities you require.

Q2:What shipping ports are there?

We normally ship from Shanghai,Tianjin, Qingdao, and Ningbo ports

Q3:What are your payment terms?

30% T/T in advance and 70% balance before shipment or based onBL copy or LC at sight. Q4:What about product pricing information?

Prices vary due to changes in raw material prices on a regular basis.

Q5:Is it possible to send samples?

Of course, we offer free samples and express shipping to customers all over the world.
Q6:Do you offer a service for customized products?

Yes, we can produce according to your specifications and drawings.

Q7:Can I pay you a visit at your factory?

Customers from all around the world are welcome to visit our factory.

Q8:Can you assist me in importing steel products for the first time?

Yes, we have shipping agent who will arrange the shipment with you.

Q9. What is your delivery time?

Within 7 working days after receiving your balance payment.
