China Manufacturers Customized Pipe Fittings Stainless Steel 304 316 Butt Welded Loose Pipe Stub End For Pipe Coupling

  • China Manufacturers Customized Pipe Fittings Stainless Steel 304 316 Butt Welded Loose Pipe Stub End For Pipe Coupling
  • China Manufacturers Customized Pipe Fittings Stainless Steel 304 316 Butt Welded Loose Pipe Stub End For Pipe Coupling
  • China Manufacturers Customized Pipe Fittings Stainless Steel 304 316 Butt Welded Loose Pipe Stub End For Pipe Coupling
Place of Origin China
Brand Name MOTO
Certification SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number 6mo
Minimum Order Quantity 1PC
Price negotiation
Packaging Details PLY-WOODEN CASE OR PALLET
Delivery Time 15 work days
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 9800000PCS Per month
Product Details
Material Stainless Steel Connection Welding,butt Welded
Technics Forged Application Industry
Standard ANSI,DIN Packing Wooden Case
Color Can Be Customed Type Stub End
Highlight

stainless steel 304 pipe stub end

,

butt welded loose pipe fittings

,

316 stainless steel pipe coupling
Leave a Message
Product Description

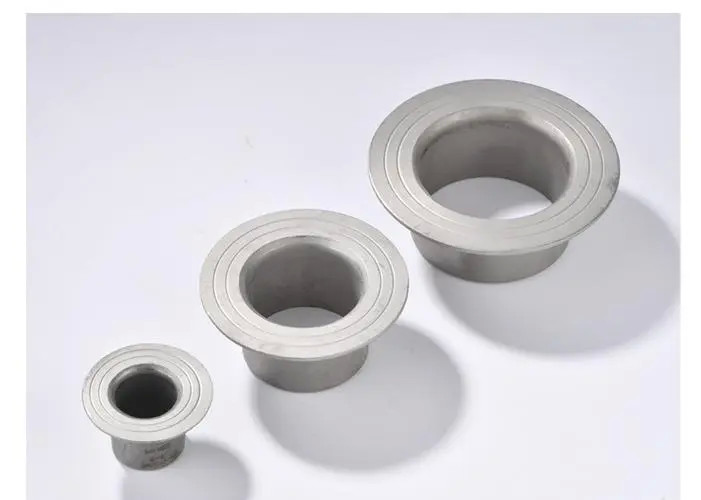

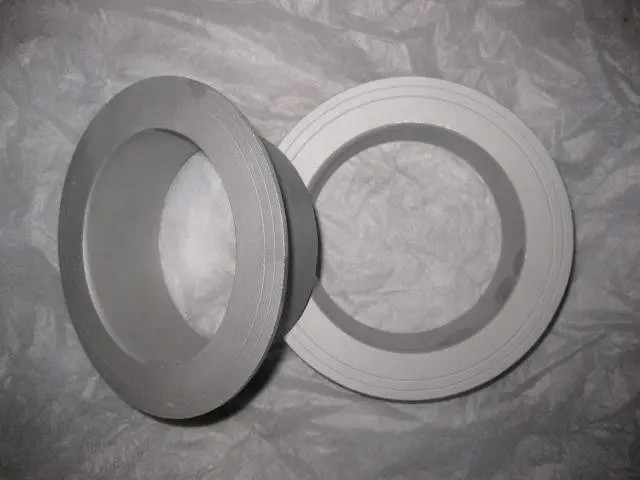

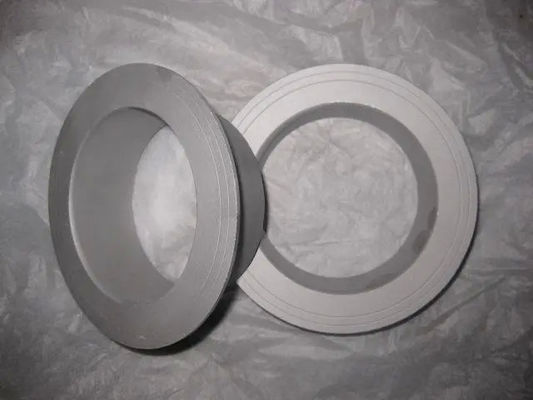

China Manufacturers Customized Pipe Fittings Stainless Steel 304 316 Butt Welded Loose Pipe Stub End For Pipe Coupling



Product Description
ASTM B363 Titanium Stub End Pipe Fitting DN15 To DN1200
we are committed to providing high quality titanium fittings that have been manufactured to meet your exact needs.You can easily finish your pipes with our range of titanium pipe stub ends. Titanium and its alloy Stub Ends are widely used in medical equipment and petrochemical equipment, and serve as connectors for tubes.
Product
ASTM B363 Titanium and Titanium Alloy Stub End
Size
DN15-1200 NPS 1/2"-48", WT: Sch5s-Sch160
Material
Gr.1, Gr.2, Gr.7, Gr.9, Gr.12
Standard
ASME B16.9, ASTM B363, DIN.
Type
Short pattern, Long pattern
China Manufacturers Customized Pipe Fittings Stainless Steel 304 316 Butt Welded Loose Pipe Stub End For Pipe Coupling 0
China Manufacturers Customized Pipe Fittings Stainless Steel 304 316 Butt Welded Loose Pipe Stub End For Pipe Coupling 1

Quick Details

Material: Alloy Technics: Forged Type: All Types
Place of Origin: Shanghai, China Model Number: pipe fitting Brand Name: TOBO
Connection: all types Shape: equal / reducing / unequal Head Code: bevel

Packaging & Delivery

Packaging Details: Shrik Wrap, Carton Box, Wooden Box, Crate, Export Seaworthy, Airworthy
Delivery Detail: Ready Stock

Specifications

PIPE FITTING - BUTT WELD FITTING - BUTTWELD - SEAMLESS - WELDED - INDIAN - JAPAN - EUROPE - ELBOW - TEE - REDUCER - CAP - CROSS



We are preminum manufacturers of pipe fittings, buttweld fittings, bends. we do it in seamless as well as welded connection. our manufacturing unit it is Mumbai, Maharashtra, India, we do hot working as well as cold working. We provide material test certificate as per EN 10204 3.1 and EN 10204 3.2.

The Size that we manufacture are:

Seamless : 1/2" to 24" Inch

Welded: 1/2" to 64 Inch

Thickness : 1mm to 100mm

Dimension Standard as per : ANSI B16.9, ASME B16.25, MSS SP 75, MSS SP 43

We provide services such as galvanizing, sand blasing, electro polishing, anti rust coating, epoxy coating, cement lining.

the material grades that we deal in are as follows:



Stainless Steel:

ASTM / ASME A/SA 403 304, 304h, 304l, 316, 316l, 316ti, 316h, 317l, 321, 321h, 347, 347h, 904l, 6MO, SMO254, 410, 405



Duplex Stainless Steel, Super Duplex Stainless Steel

ASME / ASTM SA/A 815 32750 32760 31803 32205



High Nickel Alloys:

INCOLOY alloy 020 INCOLOY alloy 25-6MO INCOLOY alloy 27-7MO INCOLOY alloy 028 INCOLOY alloy 330 INCOLOY 800 INCOLOY 800H INCOLOY 800HT INCOLOY alloy 803 INCOLOY alloy 825 INCOLOY alloy 832 INCOLOY alloy 864 INCOLOY alloy 890 INCOLOY alloy 903 INCOLOY alloy 907 INCOLOY alloy 908 INCOLOY alloy 909 INCOLOY alloy 925 INCOLOY alloy 945 INCOLOY alloy A-286 INCOLOY alloy DS INCOLOY alloy MA956 INCONEL alloy 22 INCONEL 600 INCONEL 601 INCONEL alloy 617 INCONEL 625 INCONEL alloy 686 INCONEL alloy 690 INCONEL alloy 693 INCONEL alloy 706 INCONEL alloy 718 INCONEL alloy 725 INCONEL alloy C-276 INCONEL alloy G-3 INCONEL alloy HX INCONEL alloy MA754 INCONEL alloy MA 758 INCONEL alloy N06230 INCONEL alloy X-750 Monel alloy 400 MONEL alloy K-500 Nickel 200 Nickel 205 Nickel 212 Nickel 270



Alloy Steel:

ASTM / ASME A/SA 234 WP11, WP22, WP5, WP9, WP91, 4130



Carbon Steel:

ASME / ASTM SA/A234 WPB, WPC, A694 WPHY60, WPHY65, Low Temperature Carbon Steel SA / A 350 LF2



Other:

Cupro Nickel, Copper Nickel 90 10, 70 30, Titanium grade 2 grade 5, Copper, Brass





Alloys 254 / 254 SMO / 6 Mo is an austenitic stainless steel with a high molybdenum content. Coupled with Nickel and Copper this gives the alloy a good resistance to pitting and crevice corrosion, especially in environments containing halide ions, e.g. chloride, bromide and fluoride solutions.
254 SMO (UNS S31254) may offer a cost effective solution to Nickel and Titanium alloys in these environments.
Alloy Common Name Related Specifications Tensile Strength Proof Stress Elongation
British European United States
Alloy 254 254SMO   1.4547 ASTM A479/A473,
/A240 S31254
F44		 655
[95]		 305
[44.2]		 35

Alloy 254 Technical Information

Alloy 254 Bar stock sizes available
Diameter
(in)		 Diameter
(mm)		 kg per m
3/8 9.53 0.57
1/2 12.70 1.01
5/8 15.88 1.58
3/4 19.05 2.28
7/8 22.23 3.10
1 25.40 4.05
1 1/4 31.75 6.33
1 3/8 31.75 6.33
1 1/2 34.93 7.66
1 3/4 44.45 12.41
2 50.80 16.21
2.36 60 22.62
2.56 65 26.55
2.76 70 30.79
2.95 75 35.34
3.15 85 40.21
3.54 90 50.89
3.94 100 62.83
4.33 110 76.03
4.72 120 90.48
5.12 130 106.19
6.10 155 150.95
Specifications of Alloy 254
  • Alloy 254 to MLA-MPS-254-BAR
  • ASTM A479 Bar UNS S31254
  • ASTM A276 Bar UNS S31254
  • ASTM A182 Forgings UNS S31254 F44
  • ASTM A240 Plate S31254
