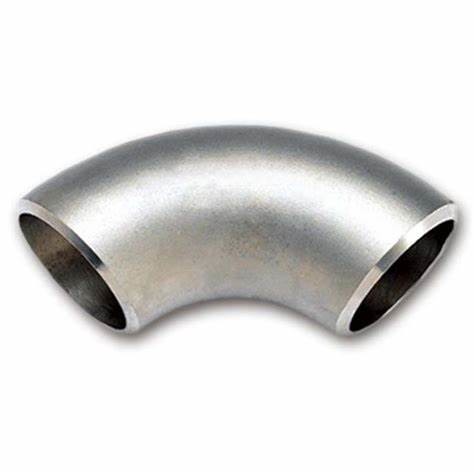

pipe fittings Stainless steel elbow butt-weld fittings BW LR long radius 90 degree sch10 sch40 seamless ss elbow

Basic Information

Place of Origin:	China
Brand Name:	TOBO
Model Number:	#000013

Minimum Order Quantity:	1pc
Price:	Negotiable
Packaging Details:	export packing
Delivery Time:	20days at least
Payment Terms:	T/T, L/C, D/A, D/P
Supply Ability:	50-100ton per month

Get Best Price Contact Now

Features:	High Pressure Resistance, Corrosion Resistance, Durable, Easy To Install, Cost-effective	Usage:	Oil Gas Water Industrial
End Type:	Plain End, Beveled End, Threaded	Payment Term:	T/T, L/C, Western Union
Head Style:	HEX	Connection Type:	Butt Weld
Technology:	Extruding	Surface:	Black Painting, Rust-proof Oil,
Temperature Rating:	Up To 1200°F	Types:	Elbow, Tee, Reducer, Cap, Stub End, Cross, Coupling, Union, Plug, Nipple, Bushing, Swage Nipple, Boss, Insert
Wall Thickness:	SCH80	End Connections:	Butt Weld
Product Type:	Butt Weld Fitting	Customized Support:	OEM, ODM
Stander:	ANSI B16.9	Tolerances:	ASME B16.9
Material:	Carbon Steel/Stainless Steel/Alloy Steel	Size:	1/8
Temperature Range:	-20°C To 300°C	Steel Number:	1.0402
Technical:	Cold Rolled, Cold Drawn	Body Material:	SS304L SS316L
Outer Diameter:	1 - 600 Mm	Type:	Seamless Or Weld
Standard:	ASME	Production Year:	Butt Welding Fittings
Special Features:	High Pressure/Corrosion Resistance/Durable	Function:	Quick Locking
Technics:	Casting	Surface Treatment:	Pickling/Polishing/Sandblasting
Cusomized Support:	OEM, ODM, OBM	End Connection:	Butt Welded
Thickness:	STD	Material Grade:	S400/TPY(Mariloy)
Package:	Wooden Cases/Pallets/Crates/Bundles/etc.	Pressure:	2000
Pressure Rate:	Class150 ToClass2500,PN10 To PN40	End:	BE

pipe fittings Stainless steel elbow butt-weld fittings BW LR long radius 90 degree sch10 sch40 seamless ss elbow

Specification

Product Name	Pipe elbow
Size	1/2"-24" seamless, 26"-110" welded
Standard	ANSI B16.9, EN10253-4, DIN 2605, GOST 17375-2001, JIS B2313, MSS SP 75, etc.
Wall thickness	SCH5S, SCH10S, SCH10, SCH40S, STD, XS, SCH80S, XXS, SCH20, SCH30, SCH40, SCH60, SCH80, SCH160, XXS and etc.

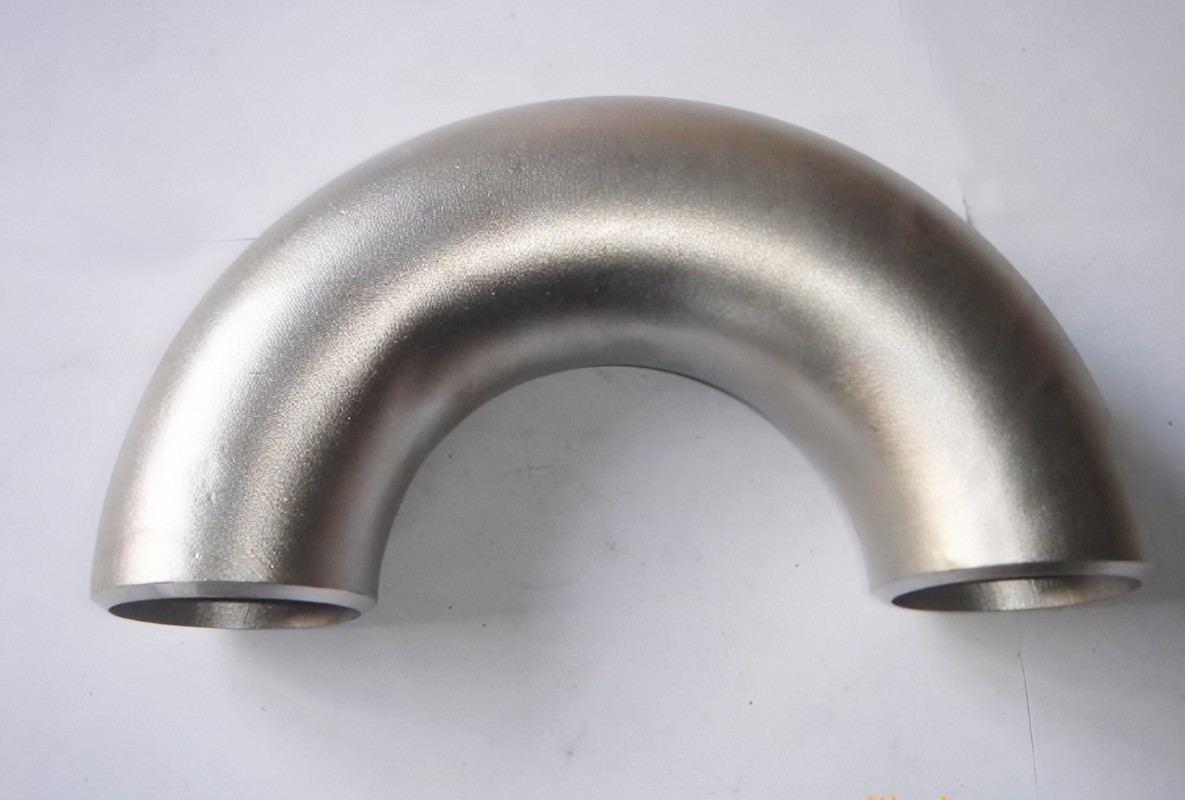

Elbow	30° 45° 60° 90° 180°,etc
Radius	LR/long radius/R=1.5D,SR/Shrot radius/R=1D, various radius: 3D,4D,5D,6D,7D, 10D, 20D etc.
End	Bevel end/BE/buttweld
Surface	Pickled,sand blasting, rolling blast,brighten,matt polished,mirror polished,vanished, shinning
Material	Stainless steel: A403 WP304/304L, A403 WP316/316L, A403 WP321, A403 WP310S, A403 WP347H, A403 WP316Ti, A403 WP317, 904L, 1.4301,1.4307,1.4401,1.4571, 1.4541, 254Mo and etc.
	Duplex stainless steel: UNS31803, SAF2205, UNS32205, UNS31500, UNS32750 , UNS32760, 1.4462,1.4410,1.4501 and etc.
	Nickel alloy: inconel600, inconel625, inconel690, incoloy800, incoloy 825, incoloy 800H, C22, C-276,Monel400, Alloy20 etc.

Details Images

1. Bevel end as per ANSI B16.25.
2. Rough polish first before sand rolling, then the surface will be much smooth
3. Without lamination and cracks
4. Without any weld repairs
5. Surface treatment can be pickled, sand rolling, matt finished, mirror polished. For sure, the price is different. For your reference, sand rolling surface is the most popular. The price for sand roll is suitable for most clients.

Markings

Various marking work can be on your request. We accept mark your LOGO

Inspection

1. Dimension measurements, all within standard tolerance.
2. Thickness tolerance:+/-12.5% , or on your request
3. PMI
4. PT, UT,X-ray test
5. Accept Third party inspection
6. Supply MTC, EN10204 3.1/3.2 certificate, NACE
7. ASTM A262 practice E

Our group

Why Choose us

7*24 service time

Trace shippment each week

Professional QC QA team, more than 5 people. Inspect all goods before delivery

REFUND MONEY IF REJECTION BECAUSE OF QUALITY

PAYMENT TERM CAN BE L/C, O/A, T/T

CZIT GROUP(3 factories, 300+workers, 200 +customers, 20+ years experience)
5000tons production capacity each month, fast delivery.
Standard dimension fittings,we have lots of stock, they are ready to ship

We have CE, ISO certificate, accept third party inspection. And can supply EN10204 3.1/3.2 certificate, and NACE certificate.

Alibaba already verified our factory by THIRD PARTY inspection company

Q: Can you accept TPI? A: Yes, sure. Welcome visit our factory and come here to inspect the goods and inspect production process. Q: Can you supply Form e, Certificate of origin? A: Yes, we can supply. Q: Can you supply invoice and CO with chamber of commerce? A: Yes, we can supply. Q: Can you accept L/C deferred 30, 60, 90days? A: We can. Please negotiate with sales. Q: Can you accept O/A payment? A: We can. Please negotiate with sales. Q: Can you supply samples? A: Yes, some samples are free, please check with sales. Q: Can you supply the products which comply with NACE? A: Yes, we can.
