ASTM ASME S B366 UNS N08020 N04400 N06600 N06625 N08800 N08810 N08825 N10276 N10665 N10675 Forged Steel Flanges

  • ASTM ASME S B366 UNS N08020 N04400 N06600 N06625 N08800 N08810 N08825 N10276 N10665 N10675 Forged Steel Flanges
  • ASTM ASME S B366 UNS N08020 N04400 N06600 N06625 N08800 N08810 N08825 N10276 N10665 N10675 Forged Steel Flanges
  • ASTM ASME S B366 UNS N08020 N04400 N06600 N06625 N08800 N08810 N08825 N10276 N10665 N10675 Forged Steel Flanges
  • ASTM ASME S B366 UNS N08020 N04400 N06600 N06625 N08800 N08810 N08825 N10276 N10665 N10675 Forged Steel Flanges
  • ASTM ASME S B366 UNS N08020 N04400 N06600 N06625 N08800 N08810 N08825 N10276 N10665 N10675 Forged Steel Flanges
  • ASTM ASME S B366 UNS N08020 N04400 N06600 N06625 N08800 N08810 N08825 N10276 N10665 N10675 Forged Steel Flanges
Place of Origin Shanghai, China
Brand Name METAL
Certification ISO/PED/TUV/SGS/LR/BV
Model Number Forged Steel Flanges
Minimum Order Quantity 100 pieces
Price US$14.40 - US$14.60
Packaging Details In wooden case, pallets or as per customers' requirement
Delivery Time 15-30work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 10000 pcs per Month
Product Details
Features High Strength Name Forged Steel Flanges
Packing Wooden Case Or Pallet Material Forged Steel
Connection Welding Ut Standard ASTM A388
Usage Connection Standard ASME B16.5, ASME B16.47, MSS SP-44, API, AWWA, DIN, JIS, BS
Highlight

ASTM ASME forged steel flanges

,

UNS N08020 forged steel flanges

,

N10276 corrosion resistant flanges
Leave a Message
Product Description

Customized Forged Steel Flanges for Nickel Alloy Super Stainless Steel Materials

Product descriptions from the supplier

Overview

ASTM ASME S B366 UNS N08020 N04400 N06600 N06625 N08800 N08810 N08825 N10276 N10665 N10675 Forged Steel Flanges 0ASTM ASME S B366 UNS N08020 N04400 N06600 N06625 N08800 N08810 N08825 N10276 N10665 N10675 Forged Steel Flanges 1

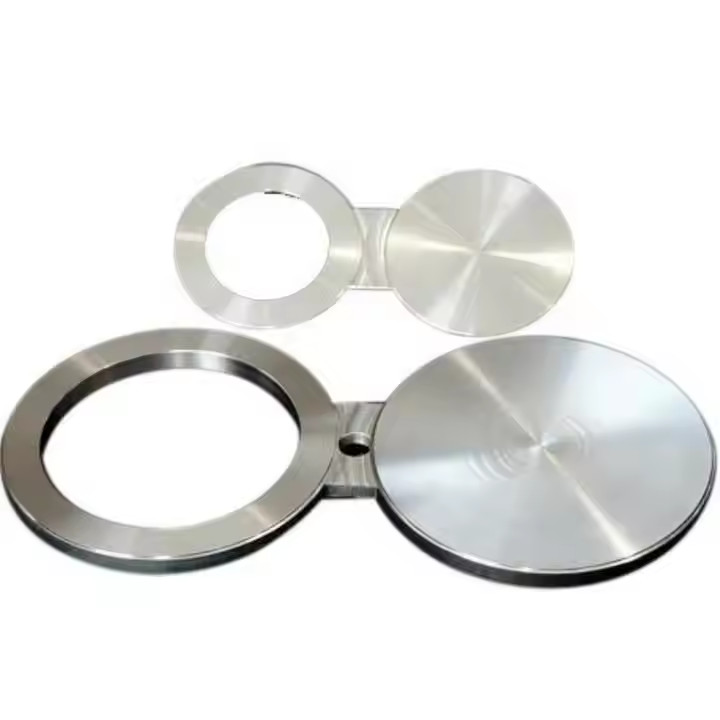

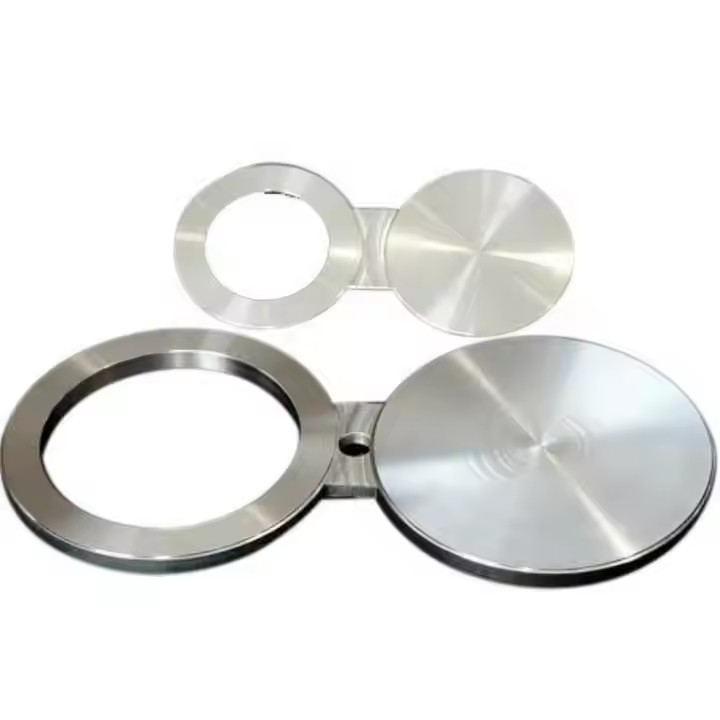

Product Name Spectacle Blind Flange
Standard ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092
Type Spectacle Blind Flange Special Flange: According to the drawing Picture
Materials

Nickel Alloy: ASTM/ASME S/B366 UNS N08020, N04400, N06600, N06625, N08800, N08810, N08825, N10276,N10665,N10675, Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276


Super Stainless Steel: ASTM/ASME S/A182 F44, F904L, F317L,



Stainless steel: ASTM/ASME S/A182 F304, F304L, F304H, F316, F316L, F321, F321H, F347H


Duplex Steel: ASTM A182 F51, F53, F55


Alloy Steel: ASTM/ASME S/ A182 F11, F12, F22, F5, F9, F91

ASTM A350 LF1; LF2; A350 LF3 ;LF4;LF6;LF8



Copper Alloy:ASTM AB564 , NO6600/ Alloy 600, NO6625/ Alloy 625, Alloy 690, Alloy 718



Inconel Alloy Steel:ASTMAB564, NO8800/Alloy800, NO8810/Alloy800H, NO8811/Alloy 800HT



Carbon Steel: ASTM/ASME S/A105, ASTM/ASME S/A350 LF2, ASTM/ASME S/A694/A694M, F42, F52, F56, F60, F65, F70....ASTM/ASME S/A350 LF2, ASTM/ASME S/A694/A694M, F42, F52, F56, F60, F65, F70....
Dimension (150#,300#,600#): DN15-DN1500
900# : DN15-DN1000
1500#: DN15-DN600
2500#:D N15-DN300

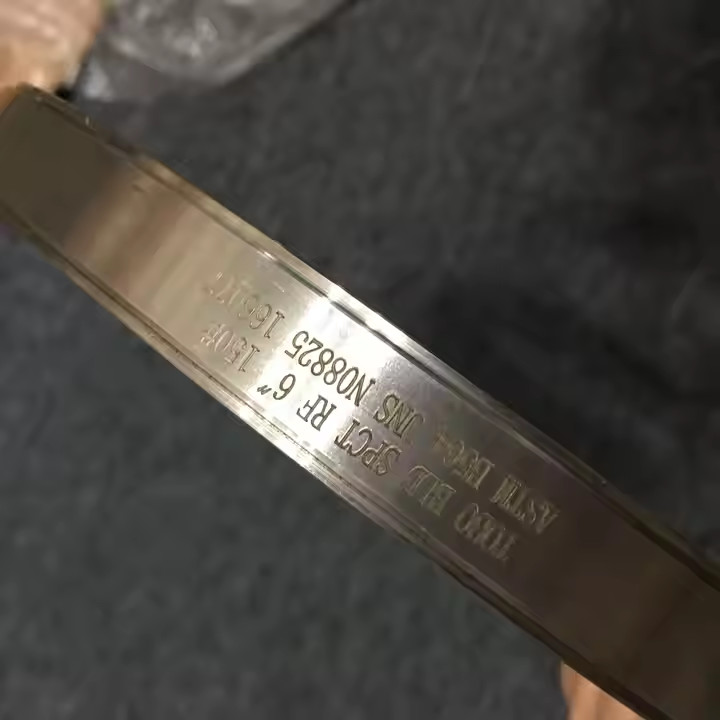

Marking Supply Logo + Standard + Size(mm) + HEAT NO +or as your requirement

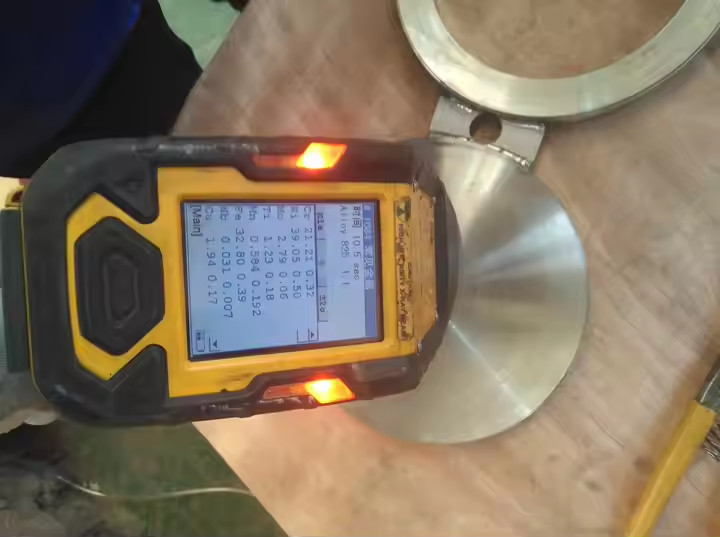

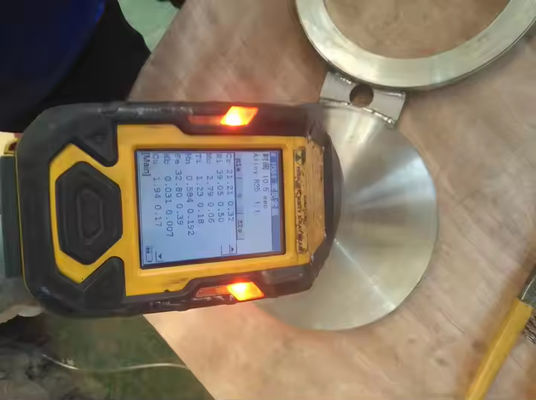

Test Chemical Component Analysis, Mechanical Properties, Metallurgical Analysis, Impact Testing, Hardness testing , Ferrite Testing, Intergranular corrosion testing, X-ray Inspection (RT), PMI, PT, UT, HIC & SSC test, etc. or as your requirement
Brand TOBO
Certificates API, ISO, BV, CE, PED, KOC, CCRC, PDO, CH2M HILL and etc.

ASTM ASME S B366 UNS N08020 N04400 N06600 N06625 N08800 N08810 N08825 N10276 N10665 N10675 Forged Steel Flanges 2



1. Spectacle Flanges, Single Blinds, and ring spacer are crucial pipeline accessories when a section of the pipeline may need to be isolated from the rest. Single Blinds or Blanks are positive shut-off devices that prevent flow through a pipeline.



2.The products a according to the requirements of API 590 can be used to the RF Flange as following standard: ANSI B16.5, SH3406, IS07005-1, GB9112~9124, HG20615.



3.The corrosive capacity is involved in the thickness of paddle blind, spacer and Figure 8 & the corrosive capacity is 1.3mm for c.s. Low-alloy & low-temperature steel and O for s.s.


4.Adopted to flat spacer. Adjust the thickness if adopt other spacer.

ASTM ASME S B366 UNS N08020 N04400 N06600 N06625 N08800 N08810 N08825 N10276 N10665 N10675 Forged Steel Flanges 3





ASTM ASME S B366 UNS N08020 N04400 N06600 N06625 N08800 N08810 N08825 N10276 N10665 N10675 Forged Steel Flanges 4

ASTM ASME S B366 UNS N08020 N04400 N06600 N06625 N08800 N08810 N08825 N10276 N10665 N10675 Forged Steel Flanges 5ASTM ASME S B366 UNS N08020 N04400 N06600 N06625 N08800 N08810 N08825 N10276 N10665 N10675 Forged Steel Flanges 6
