ASTM A182 SORF Stainless Steel Pipe Flanges DN20-300 CL150-2500 Forged Flanges

  • ASTM A182 SORF Stainless Steel Pipe Flanges DN20-300 CL150-2500 Forged Flanges
  • ASTM A182 SORF Stainless Steel Pipe Flanges DN20-300 CL150-2500 Forged Flanges
Place of Origin China
Brand Name TOBO
Certification SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number Inconel 625
Minimum Order Quantity 1pc
Price US $ 10 - 100 / Kilogram
Packaging Details Seaworthy wooden cases or pallets tied by steel band or as per client's requirements
Delivery Time 30 days After Receiving the 50% Prepayment by T/T or LC
Payment Terms L/C, T/T, Western Union
Supply Ability 50 Metric Ton/Metric Tons per Month
Product Details
Type ASTM A182 F53 SORF Flange Size 1/2''~72''
Class Rating 150#~2500# Facing RF(raised Face);FF(flat Face);RTJ(ring Type Joint);RJ(ring Joint Face) TG(tongue And Groove Face);MFM(male And Female Face)
Manufacturing Process Push, Press, Forge, Cast, Etc. Packing Wooden Cases, Pallets, Nylon Bags Or According To The Customers' Requirements
MOQ 1pcs Delivery Time 10-100 Days Depending On Quantity
Payment Terms L/C,T/T Shipment FOB Tianjin/Shanghai, CFR, CIF Etc
Application Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding Etc Remarks Other Materials And Drawings Are Available.
Highlight

ASTM A182 stainless steel flanges

,

forged steel pipe flanges DN20-300

,

SORF flanges CL150-2500
Leave a Message
Product Description

ASTM A182 SORF Stainless Steel Pipe Flanges DN20-300 CL150-2500 Forged Flanges

Quick Details

Material:
F53, 2507 Super Duplex Stainless Steel, etc
 Technics:
Forged
 Type:
F53 SORF Flange
Place of Origin:
Shanghai, China (Mainland)
 Head Code:
Round
 Brand Name:
TOBO
Connection:
Welding
 Shape:
Round




Packaging & Delivery



Packaging Details: Seaworthy plywood case or as customer requests
Delivery Detail: 2 - 10 days after receiving the deposi

Specifications

ASME B16.5 ASTM A182 F53 SORF Flange DN20 CL150
1. Material: F53, 2507 Super Duplex Stainless Steel, etc
2. Size: 3/4" (DN20)
3. Standard: ASTM B16.5, DIN, etc

4. Pressure: 150#, 300#, 600#, etc



Type F53 SORF Flange
Size 1/2" to 120"
Standards SO, WN, SW, TH, LJ, BL, PL, etc
Material

Stainless Steel: ASTM A403 WP304, 304L, 310, 316, 316L, 321, 347, 904L

Carbon Steel: ASTM A234 WPB, WPC ASTM A105 WPHY 42, 46, 52, 56, 60, 65, 70

Alloy Steel: ASTM A234 WP1, WP5, WP9, WP11, WP22, WP91

Duplex Stainless Steel: F51, 2205, F53, 2507, etc
Sealing surface FF, RF, LJ, FM, R.T.J, R.J and so on
Applications Petroleum,chemical,power,gas,metallurgy, shipbuilding, construction, et



Products base infomations of a182 F53 alloy steel SO Flange
Type: Slip On Flange, Welding Neck Flange, Socket Welding Flange, Threaded Flange, Lap Joint Flange, Blind Flange and other kinds of special flangs.
Standard:

· America:ASME B16.5,ASME B16.48,ASME B16.47,API 590

· China:GB/T9112~GB/T9124-2000,GB/T2506-1989(2005),GB/T2504-1989(2005),GB/T10746-1989,GB/T4450-1989

· Germany:DIN 2573~2576,DIN 2527,DIN 2630~2637,DIN 2641~2642

· Japan:JIS B2220-2004,JIS F7806-1996,JIS B2291-1994

· Shipbuilding:CB1001-81,CBM1013-81,CBM1018-81,CBT47-1999

· Industry Standard:JB/T74-1994,JB4700-4707-2000,JB/ZQ4485-4486-1997

· Industry Standard:HG/T20592-2009,HG/T20615-2009

· International Standard:ISO 7005-1-1992

· EU:BS EN 1092-1-2008


Material:

· Austenitc Stainless steel:

· F304,F304L,F304H,F316,F316L,F316H,F317,F317L,F347H,F310S,

F310H,F321,F321H

· Superaustenitic stainless steel:S31254

· Duplex stainless steel

· S31500,S31803(2205),S32304,S32205,S32760,S32750,HDR

· Copper Nickel Alloy:B10,B30

· Special steel:N06600,N08800,N08811,Titanium alloy, Alloy steel etc.

· Carbon manganese steel:20# / Q235B / A105,16Mn,F11,F13


Size: 1/2’—120’(DN15—DN3000)
Rate: 100Lb—2500Lb(0.6MPa—42.0MPa)
Technics: Hot die forging from round bar,CNC machining,Drilling and Passivating
ASTM A182 SORF Stainless Steel Pipe Flanges DN20-300 CL150-2500 Forged Flanges 0

What is a Slip On Flange?

Slip On Flange is slightly larger than the outer diameter of the pipe it is to be used with. The pipe is slipped into the Flange prior to welding both inside and outside. High quality ASTM A182 F53 Slip On Flanges are ideal for lower pressure applications. The ASTM A182 F53 Slip On Flange's ease of fitting and welding also reduces fabrication costs.



APPLICATIONS Of ASME B16.5 ASTM A182 F53 SORF Flange DN20 CL150:



1. petrochemical industry

2. Pharmaceutical industry

3. Food industry

4. Aviation and aerospace industry

5. Architectural decoration industry

6. Oil and gas industry



Other Features:



1) Chemical and Physical characteristic: durable, corrosion resistant and high-temperature resistant

2) We also produce flange with special specifications according to customers’ requirements;



Slip on flanges are slipped over the pipe and welded (usually both inside and outside) to provide strength and prevent leakage. Slip on Flanges are at the low cost end of the scale, and do not require high accuracy when cutting the pipe to length. These slip on can sometimes have a boss or hub, and can be made with a bore to suit either pipe or tube.

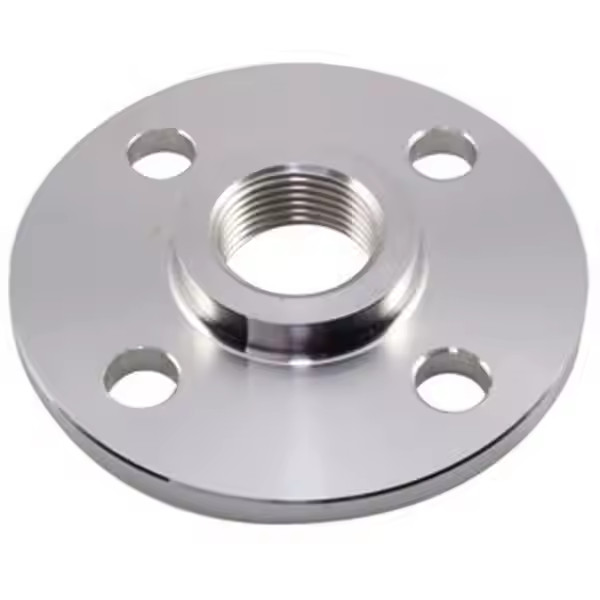

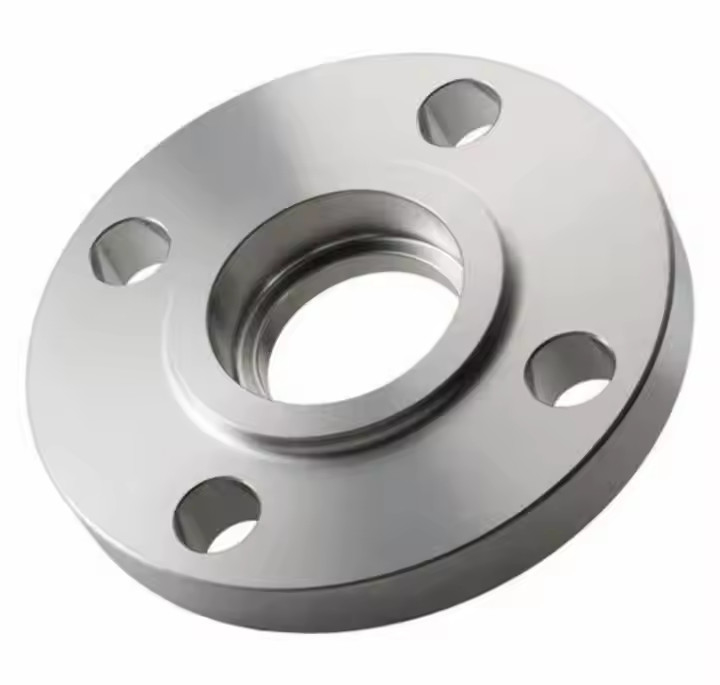

ASTM A182 SORF Stainless Steel Pipe Flanges DN20-300 CL150-2500 Forged Flanges 1ASTM A182 SORF Stainless Steel Pipe Flanges DN20-300 CL150-2500 Forged Flanges 2
