TOBO GROUP
TOBO International Trading(Shanghia)Co.,Ltd Tianda Oil Pipe Co., Ltd
TOBO Pipeline Equipment Co.,Ltd TPCO & TISCO Pipe(Tianjin)Co.,Ltd.
Place of Origin: | CHINA |
---|---|
Brand Name: | TOBO |
Certification: | ISO 9001:2015 |
Model Number: | ANSI B16.5 |
Minimum Order Quantity: | 1PCS |
Price: | negotiable |
Packaging Details: | Wooden case |
Delivery Time: | 25workdays |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 1000 Piece/Pieces per Month |
Material: | Stainless Steel | Shape: | ROUND |
---|---|---|---|
Connection: | Welding | Technics: | Seamless |
Head Code: | Round | Type: | Elbow |
Size: | Customized Size | Standard: | ANSI / ASME |

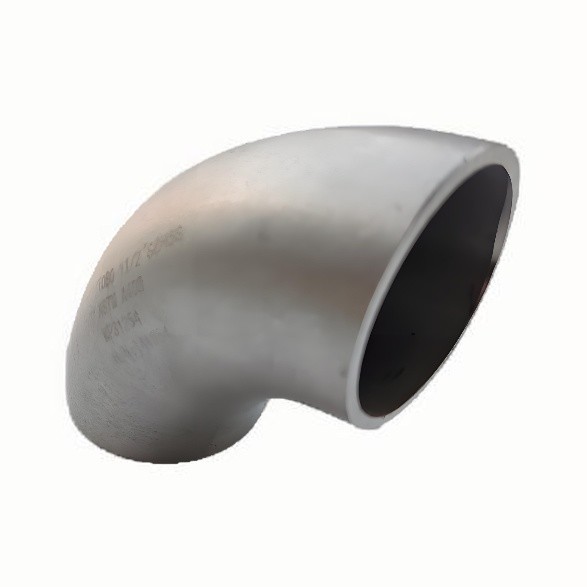

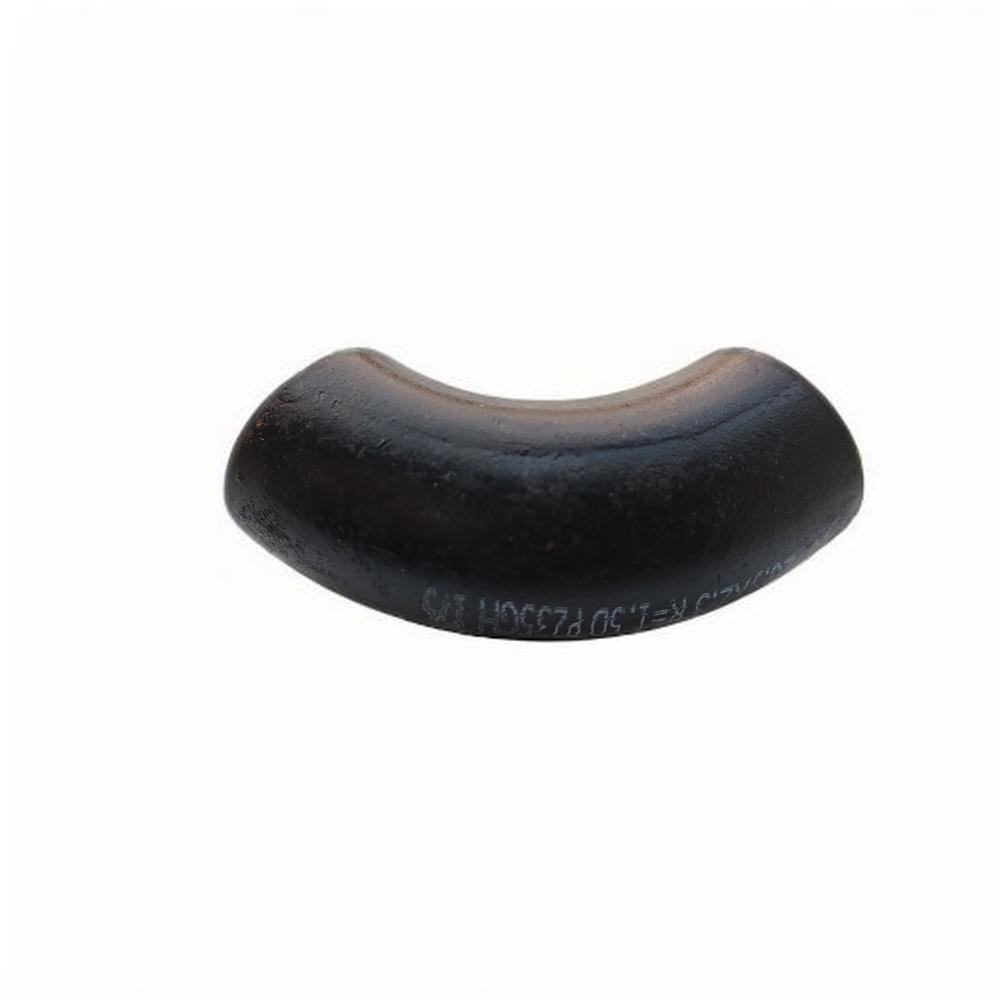

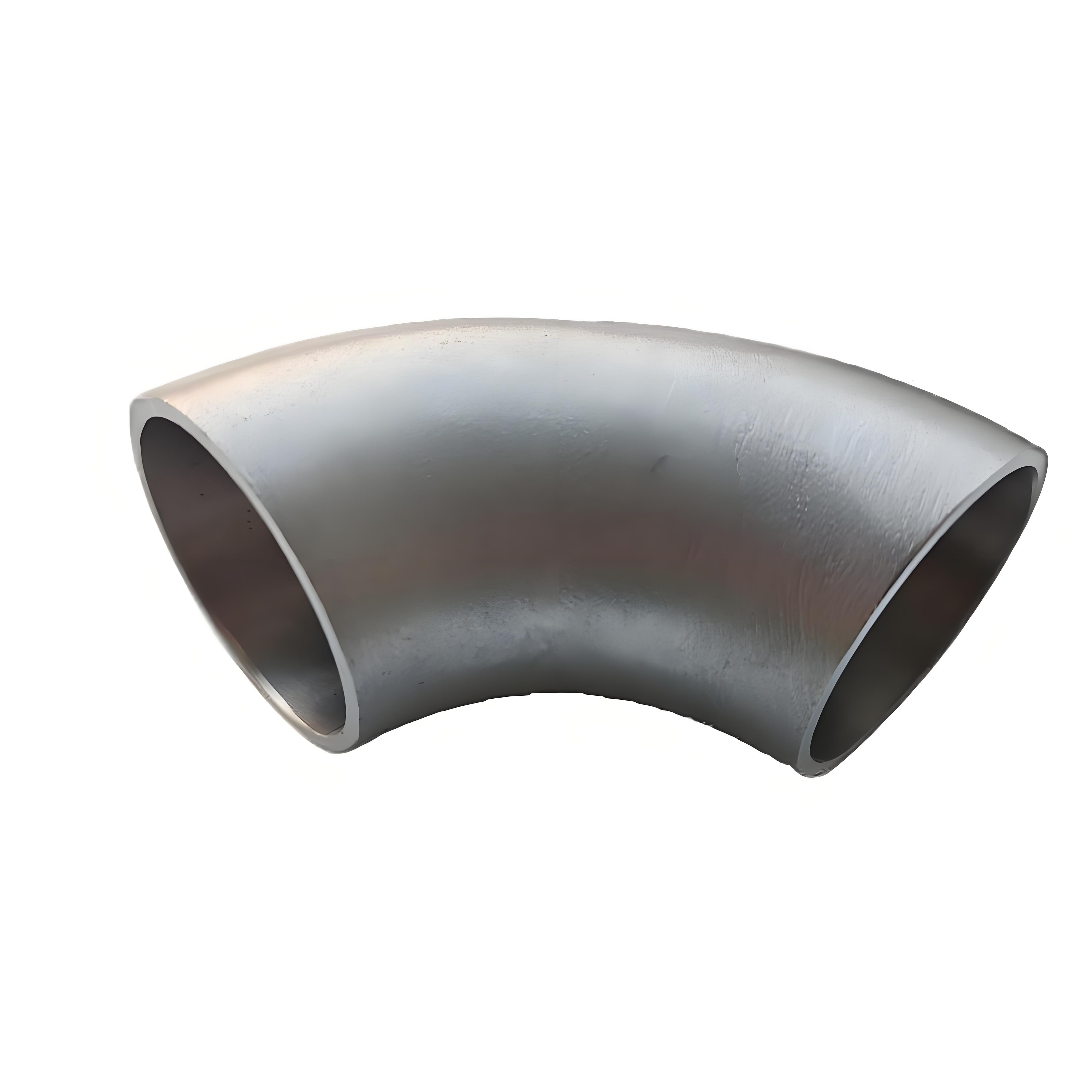

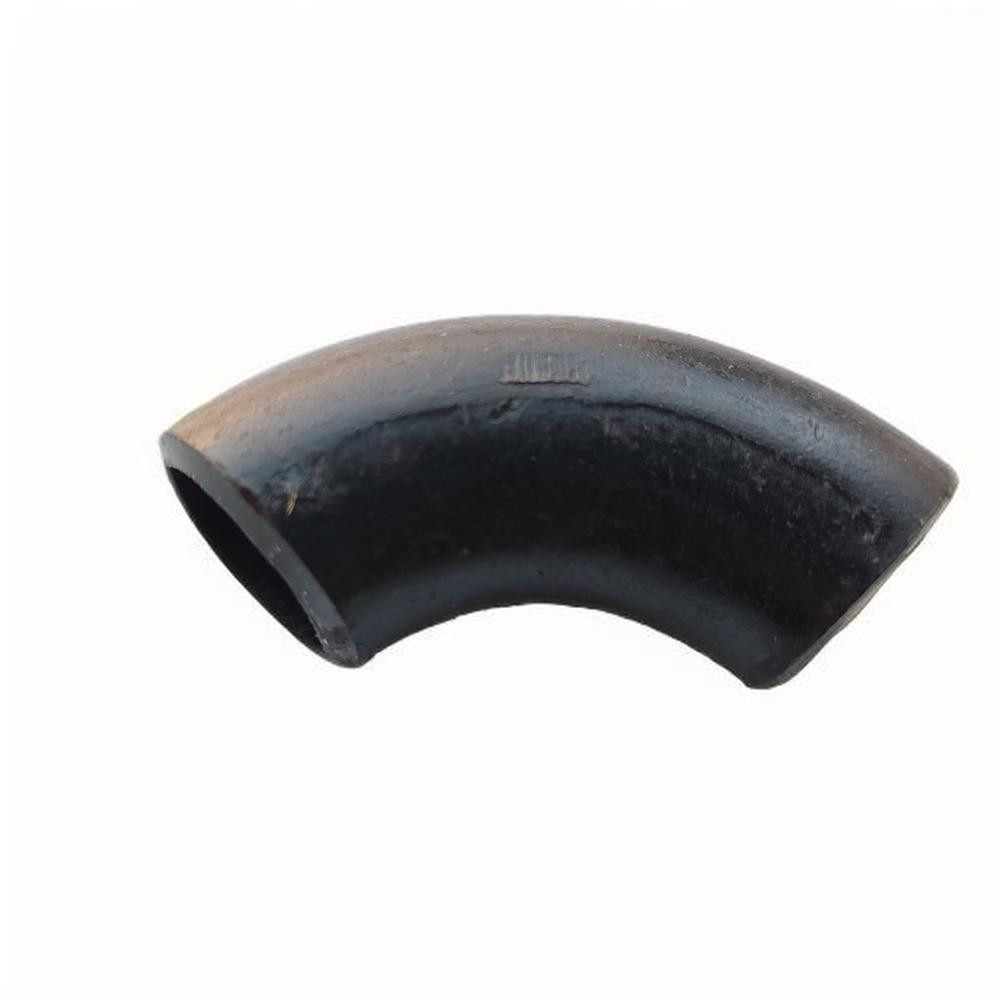

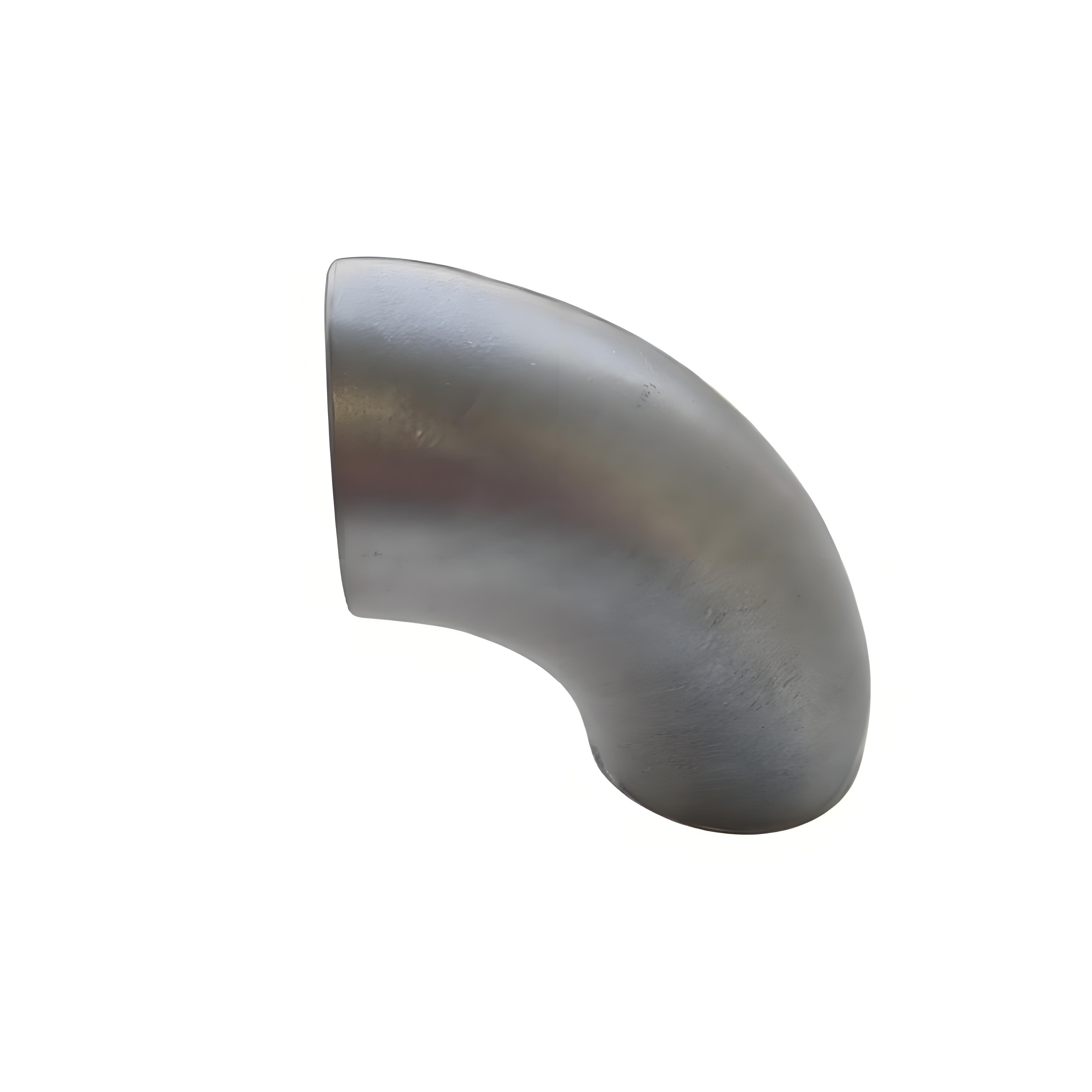

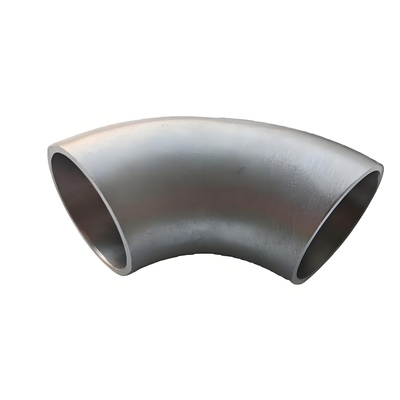

Name: | 45/90/180 Degree Elbow | Usage: | Oil Gas Water Industrial |
Packing: | According Customer's Requesment | Color: | Silver |
Nominal Size
|
Outside Diameter at Bevel
|
Center to End
|
|||
90 Elbows
|
45 Elbows
|
||||
DN
|
NPS
|
OD
|
A
|
B
|
|
LR
|
SR
|
LR
|
|||
15
20
25
|
1/2
3/4 1 |
21.3
26.7 33.4 |
38
38 38 |
-
- 25 |
16
19 22 |
32
40 50 |
1¼
1½ 2 |
42.2
48.3 60.3 |
48
57 76 |
32
38 51 |
25
29 35 |
65
80 90 100 |
2½
3 3½ 4 |
73.0
88.9 101.6 114.3 |
95
114 133 152 |
64
76 89 102 |
44
51 57 64 |
125
150 200 |
5
6 8 |
141.3
168.3 219.1 |
190
229 305 |
127
152 203 |
79
95 127 |
250
300 350 |
10
12 14 |
273.0
323.8 355.6 |
381
457 533 |
254
305 356 |
159
190 222 |
400
450 500 |
16
18 20 |
406.4
457.0 508.0 |
610
686 762 |
406
457 508 |
254
286 318 |
550
600 650 |
22
24 26 |
559.0
610.0 660.0 |
838
914 991 |
559
610 660 |
343
381 406 |
700
750 800 |
28
30 32 |
711.0
762.0 813.0 |
1067
1143 1219 |
711
762 813 |
438
470 502 |
850
900 950 |
34
36 38 |
864.0
914.0 965.0 |
1295
1372 1448 |
864
914 965 |
533
565 600 |
1000
1050 1100 |
40
42 44 |
1016.0
1067.0 1118.0 |
1524
1600 1676 |
1016
1067 1118 |
632
660 695 |
1150
1200 1300 |
46
48 52 |
1168.0
1219.0 1321.0 |
1753
1829 1981 |
1168
1219 1321 |
727
759 821 |
1400
1500 1600 |
56
60 64 |
1422.0
1524.0 1626.0 |
2134
2286 2438 |
1422
1524 1626 |
883
947 1010 |
1700
1800 1900 2000 |
68
72 76 80 |
1727.0
1829.0 1930.0 2032.0 |
2591
2743 2896 3048 |
1727
1829 1930 2032 |
1073
1137 1199 1263 |
