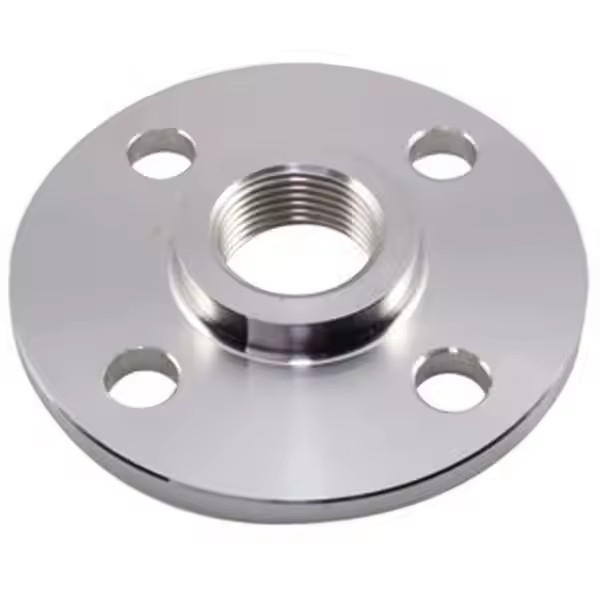

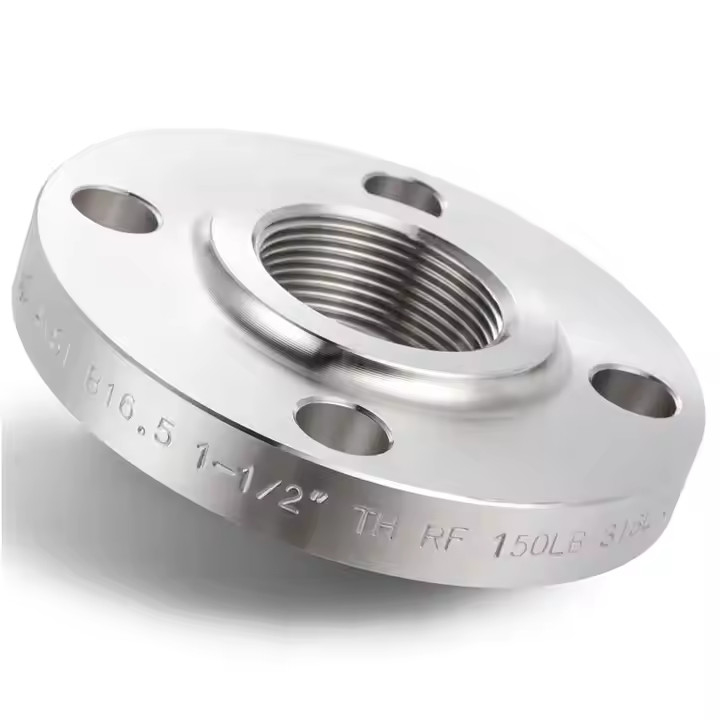

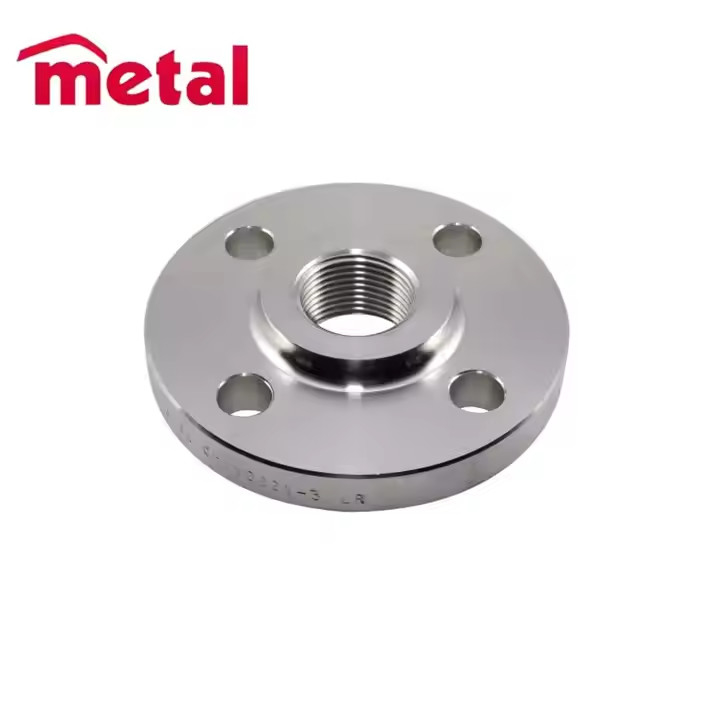

ANSI B16.5 SOFF Flange CL150 ASTM A182 F53 / 2507 / UNS S32750 Super Duplex Stainless Steel Slip on Flanges
Product Details
| Class | Class150/300/600/9001500 | Technics | Forged |
|---|---|---|---|
| Head Code | Round | Size | 1/2 |
| Packaging Type | Wooden Case | Technical | Forged |
| Surface Treatment | Shot Blasting, Sand Blasting, Pickling, Polishing | Face Type | Raised Face, Flat Face, Ring Type Joint |
| Usage | Pipe-line Connection | Type | Weld Neck, Slip On, Socket Weld, Threaded, Blind, Lap Joint, Spectacle Blind |
| Sealing | FF, RF, RTJ, Etc. | Product Type | BL Flange |
| Color | Silver | Finish | Cool Rolled |
| Material | Carbon Steel | ||
| Highlight | ANSI B16.5 SOFF flange CL150,Super Duplex Stainless Steel flanges,ASTM A182 F53 slip on flanges |
||
Product Description
Product descriptions from the supplier
Product Description
| Product Name | Carbon steel / Stainless steel / Alloy Flanges |
| Standard | ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Type | WN Flange, So Flange, LJ Flange, LWN Flange, SW Flange, Orifice Flange, Reducing Flange, figure 8 blind (blank&Spacer) Special Flange: According to the drawing Picture |
| Materials |
Nickel Alloy: ASTM/ASME S/B366 UNS N08020, N04400, N06600, N06625, N08800, N08810, N08825, N10276,N10665,N10675 Carbon Steel: ASTM/ASME S/A105, ASTM/ASME S/A350 LF2, ASTM/ASME S/A694/A694M, F42, F52, F56, F60, F65, F70....ASTM/ASME S/A350 LF2, ASTM/ASME S/A694/A694M, F42, F52, F56, F60, F65, F70.... |
| Dimension | (150#,300#,600#): DN15-DN1500 900# : DN15-DN1000 1500#: DN15-DN600 2500#:D N15-DN300 |
| Marking | Supply Logo + Standard + Size(mm) + HEAT NO +or as your requirement |
| Test | Chemical Component Analysis, Mechanical Properties, Metallurgical Analysis, Impact Testing, Hardness testing , Ferrite Testing, Intergranular corrosion testing, X-ray Inspection (RT), PMI, PT, UT, HIC & SSC test, etc. or as your requirment |
| Brand | TOBO |
| Certificates | API, ISO, BV, CE, PED, KOC, CCRC, PDO, CH2M HILL and etc. |
| Advantages |
1. Abundant stock and prompt delivery 2. Reasonable for whole packages and processes. 4. More than 150 customers spread worldwide. (Petrofac, G.S Engineer, Fluor, Hyundai Heavy industry, Kuwait National Oil, Petrobras, PDVSA, PetroEcuador, SHELL, etc.) |
