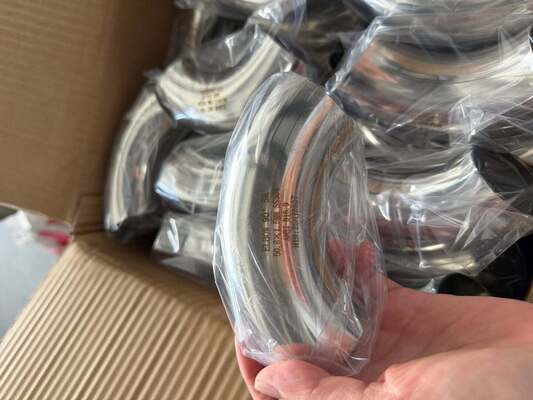

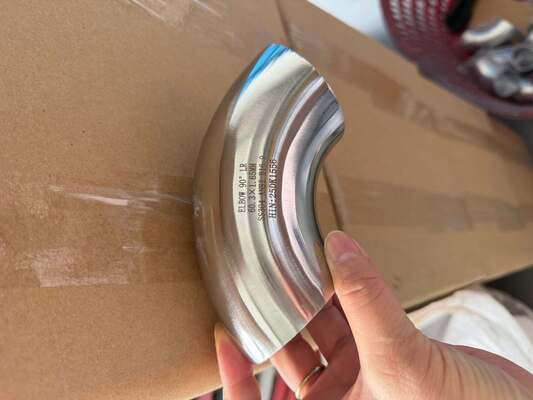

SS304 Seamless Butt Welding Elbow ASME B16.9 Corrosion Resistant High Temperature

  • SS304 Seamless Butt Welding Elbow ASME B16.9 Corrosion Resistant High Temperature
  • SS304 Seamless Butt Welding Elbow ASME B16.9 Corrosion Resistant High Temperature
  • SS304 Seamless Butt Welding Elbow ASME B16.9 Corrosion Resistant High Temperature
  • SS304 Seamless Butt Welding Elbow ASME B16.9 Corrosion Resistant High Temperature
  • SS304 Seamless Butt Welding Elbow ASME B16.9 Corrosion Resistant High Temperature
Place of Origin Shanghai,China
Brand Name TOBO
Certification ISO/TUV/SGS
Model Number Stainless Steel Elbow
Minimum Order Quantity 1PC
Price Negotiable
Packaging Details Standard Shipping Package
Delivery Time 15-30 Workdays
Payment Terms T/T, Western Union
Supply Ability 10 Ton/Month
Product Details
Product Name SS304 Seamless Butt Welding Elbow ASME B16.9 Corrosion Resistant High Temperature Style Butt Weld
Item Shape 90 Degree Elbow Corrosionresistance High
Material Stainless Steel Corrosion Resistance High
Connectiontype Butt Weld / Threaded / Socket Weld Ends Butt Weld, Socket Weld, Threaded
Size 1/2 Inch To 12 Inches Material Standard GB|ASTM|AISI|ASME|DIN|BS|EN|JIS
Test X-Ray Test, Hydro Test, UT Test Oem Accepted
Pressurerating Class 150 To Class 3000 Temperature High Temperature
Outer Diameter 6 - 710 Mm Form 1/8
Leave a Message
Product Description

SS304 Seamless Butt Welding Elbow ASME B16.9 Corrosion Resistant High Temperature



1. Product Description

The stainless steel butt welding elbow is a pipe fitting manufactured by hot pressing or forging. It is designed to be directly butt‑welded to pipes, creating a permanent, flush joint that ensures maximum flow and minimal pressure loss. The fitting is made from high‑grade stainless steel grades such as 304, 304L, 316, and 316L, offering excellent corrosion resistance, oxidation resistance, and high‑temperature strength. It conforms to international and national standards, ensuring full compatibility with pipelines of the same nominal size.

2. Product Applications

This elbow is used to change the direction of piping in various industrial systems. Main applications include:

  • Petrochemical and chemical processing plants – for crude oil, refined products, and chemical feedstocks.

  • Water treatment and environmental protection – drinking water supply, sewage, and seawater desalination.

  • Food, beverage, and pharmaceutical industries – sanitary pipelines for clean media.

  • Power generation – boiler feedwater and steam lines.

  • Oil and gas – production fluids and natural gas transmission.

  • Marine and offshore engineering – seawater cooling and fuel oil systems.

  • Building and municipal engineering – water supply, drainage, heating, and gas distribution.

​

​3. Product Advantages

  • Superior corrosion resistance – 304/316L grades resist pitting, crevice corrosion, and stress corrosion cracking, suitable for harsh environments.

  • High strength and durability – work hardening during forming provides excellent mechanical strength; service life can reach up to 100 years with low maintenance.

  • Leak‑proof permanent connection – butt welding ensures a seamless, reliable joint that eliminates leakage risks.

  • Smooth internal surface – reduces fluid friction, prevents deposit accumulation, and inhibits bacterial growth.

  • Material and energy saving – stamping process produces minimal scrap and requires no extra heating, making it efficient and eco‑friendly.

  • Quick installation – installation time is only one‑third of that for threaded or socket‑welded fittings, shortening construction schedules.

SS304 Seamless Butt Welding Elbow ASME B16.9 Corrosion Resistant High Temperature 0

4.Key Product Parameters

Parameter Specification
Materials Stainless steel 304, 304L, 316, 316L, and other custom grades
Standards GB/T12459, GB/T13401, ASME B16.9, SH3408, SH3409, HG/T21635, HG/T21631, SY/T0510, GB/T10752-1995, EN10253-2, DIN2605, GOST17375-2001, JIS B2313
Size Range (Seamless) 1/2" – 24" (DN15 – DN600)
Size Range (Welded) 4" – 72" (DN150 – DN1900)
Wall Thickness Schedules SCH5S, SCH10S, SCH10, SCH20, SCH30, SCH40S, STD, SCH40, SCH60, SCH80S, XS, SCH80, SCH100, SCH120, SCH140, SCH160, XXS
Bending Radii Long Radius (LR): R=1.5D; Short Radius (SR): R=1D
Angles 30°, 45°, 60°, 90°, 180°, and custom angles
End Finish Beveled ends for butt welding
Surface Treatment Natural, varnished, pickled, or passivated
Pressure Ratings Approximately 17 classes; STD and XS most common. Max working pressure: 275 psi at 150°F



FAQ

1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.

2.How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.

4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
