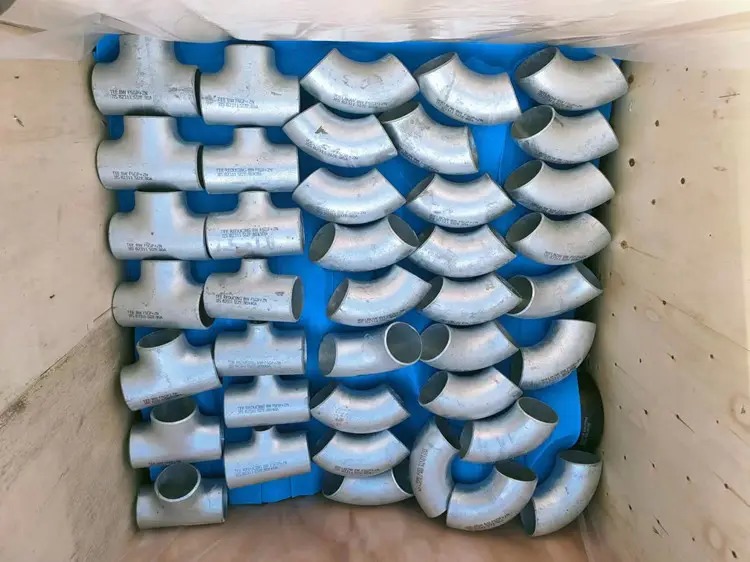

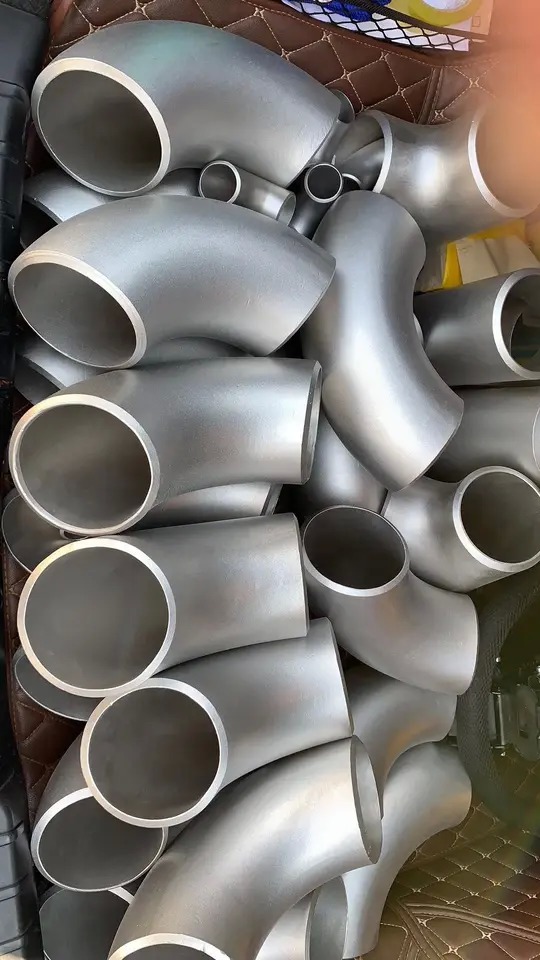

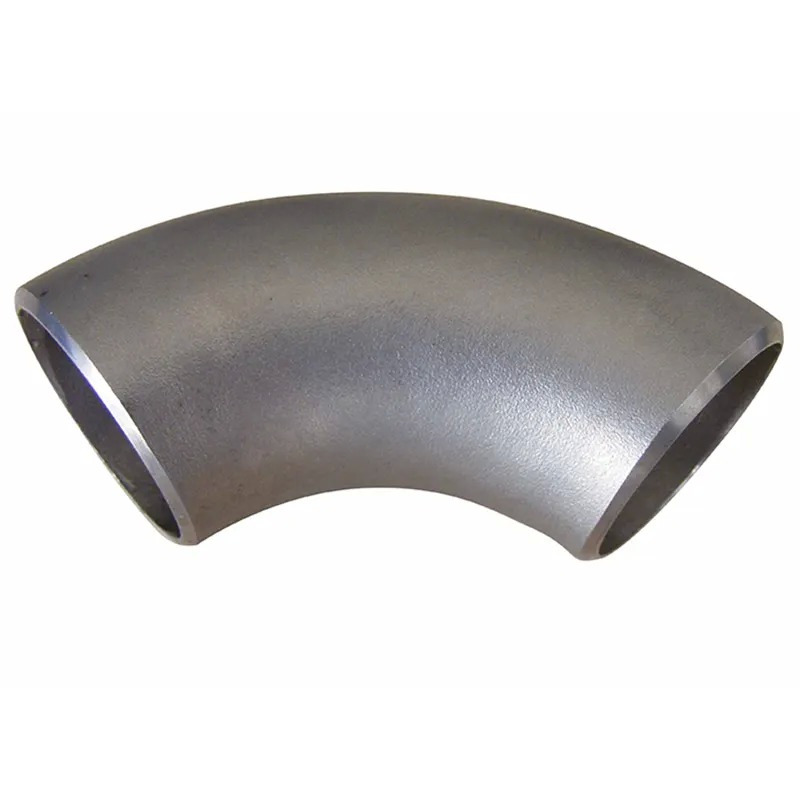

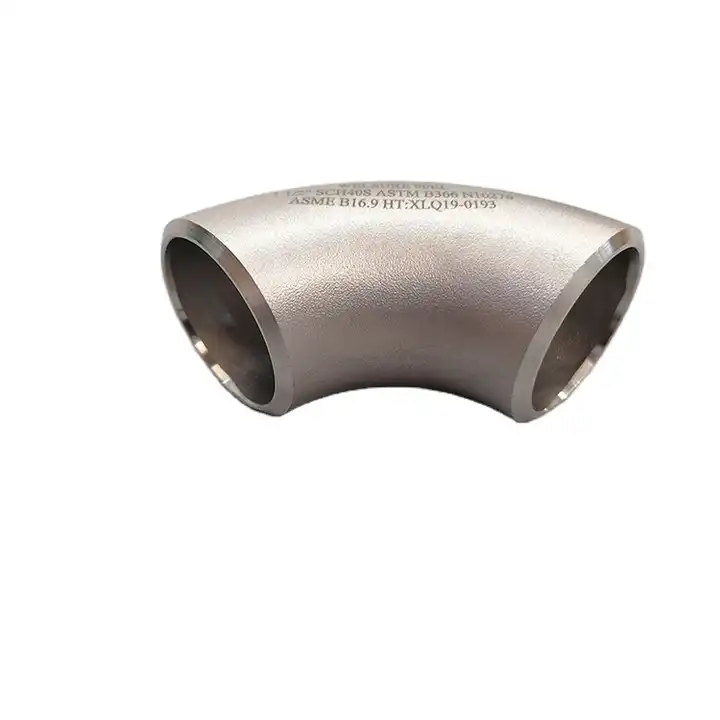

316L Stainless Steel Butt Weld 90 LR Elbow Sch80 ASME B16.9 Class600

  • 316L Stainless Steel Butt Weld 90 LR Elbow Sch80 ASME B16.9 Class600
  • 316L Stainless Steel Butt Weld 90 LR Elbow Sch80 ASME B16.9 Class600
  • 316L Stainless Steel Butt Weld 90 LR Elbow Sch80 ASME B16.9 Class600
  • 316L Stainless Steel Butt Weld 90 LR Elbow Sch80 ASME B16.9 Class600
  • 316L Stainless Steel Butt Weld 90 LR Elbow Sch80 ASME B16.9 Class600
Place of Origin Shanghai,China
Brand Name TOBO
Certification ISO/TUV/SGS
Model Number Stainless Steel Elbow
Minimum Order Quantity 1PC
Price Negotiable
Packaging Details Standard Shipping Package
Delivery Time 15-30 Workdays
Payment Terms T/T, Western Union
Supply Ability 10 Ton/Month
Product Details
Product Name 316L Stainless Steel Butt Weld 90 LR Elbow Sch80 ASME B16.9 Class600 Usual Packing Wooden Case Ir Pallet
Warranty 3 Years Thinckness 5S-XXS
Surface Treatment As Customer's Requirement Angle 90 Degrees
Steel Grade WPS31725 Body Material SS304L/ SS316L
Temperaturerange -20°C To 400°C Standards ASTM A403, ASME B16.9
Surfacefinish Polished / Pickled / Passivated Packing Plastic Bag+Carton
Wall Thickness Sch 5s/Sch 10s/Sch 40s/Sch 80s/Sch 160s Colour Silver
Application Piping Systems For Fluid And Gas Transportation Corrosion Resistance High
Leave a Message
Product Description

316L Stainless Steel Butt Weld 90 LR Elbow Sch80 ASME B16.9 Class600



1. Product Description

The stainless steel butt welding elbow is a durable pipe fitting engineered for directional changes in high-pressure and high-temperature piping systems. Manufactured through hot-pressing or cold-forming processes, it features precision-prepared weld bevels that ensure full joint penetration and structural integrity. Available in a variety of stainless steel grades, this elbow provides outstanding performance in corrosive, cryogenic, and elevated-temperature environments. Strict quality assurance protocols govern every stage of production, from raw material verification to final dimensional inspection.

2. Product Applications

These elbows are key components for routing pipelines in diverse industrial environments:

  • Refineries – crude transfer, vacuum tower piping, product fractionation.

  • Chemical plants – aggressive chemical processing, acid and alkali piping.

  • LNG terminals – cryogenic fluid handling and vaporization systems.

  • Power utilities – high-pressure steam lines and cooling circuits.

  • Offshore platforms – topside and subsea piping networks.

  • Water supply networks – large-diameter municipal pipelines.

  • Pulp mills – chemical recovery and bleaching sequences.

  • Semiconductor industry – high-purity chemical distribution.

​3. Product Advantages

  • Grade versatility – matching the right material to every service condition, from mild to severely corrosive.

  • Thickness integrity – advanced forming minimizes thinning at the bend, ensuring uniform strength.

  • Precision bevels – factory-machined bevels reduce field preparation time and welding consumables.

  • Reliable traceability – each piece marked with heat number and fully documented with test reports.

  • Shorter delivery cycles – streamlined production enables quick turnaround for both standard and custom orders.

  • Global compliance – products meet multiple international codes, simplifying import and project acceptance.

  • Minimal maintenance – stainless steel surface resists scaling and pitting, cutting long-term upkeep costs.

316L Stainless Steel Butt Weld 90 LR Elbow Sch80 ASME B16.9 Class600 0

4.Key Product Parameters

Parameter Specification
Material Options 304, 304L, 316, 316L, 321, 347H, 310S, 904L, 2205, 2507
Production Standards ASME B16.9, GB/T 13401, SH/T 3408, HG/T 21631, EN 10253-4, GOST 17375, JIS B2312
Diameter Range DN 20 – DN 1600 (NPS ¾" – 64")
Wall Thickness SCH 10S, 40S, 80S, STD, XS, XXS, up to SCH 180 on request
Radius Options 1.5D (standard), 1.0D, 3D, 4D, 5D, 6D, 8D, 10D
Available Angles 22.5°, 45°, 60°, 90°, 180° and any custom angle
End Finish Bevelled ends to ASME B16.25, plain ends optional
Exterior Finish Sandblasted, pickled, passivated, or coated upon request
Inspection Scope Dimensional check, hardness test, PMI, ferrite measurement (duplex), hydrostatic test
Temperature Range –196°C up to +750°C depending on grade
Applicable Mediums Steam, oil, gas, acid, alkali, seawater, cryogenic fluids

FAQ

1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.

2.How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.

4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
