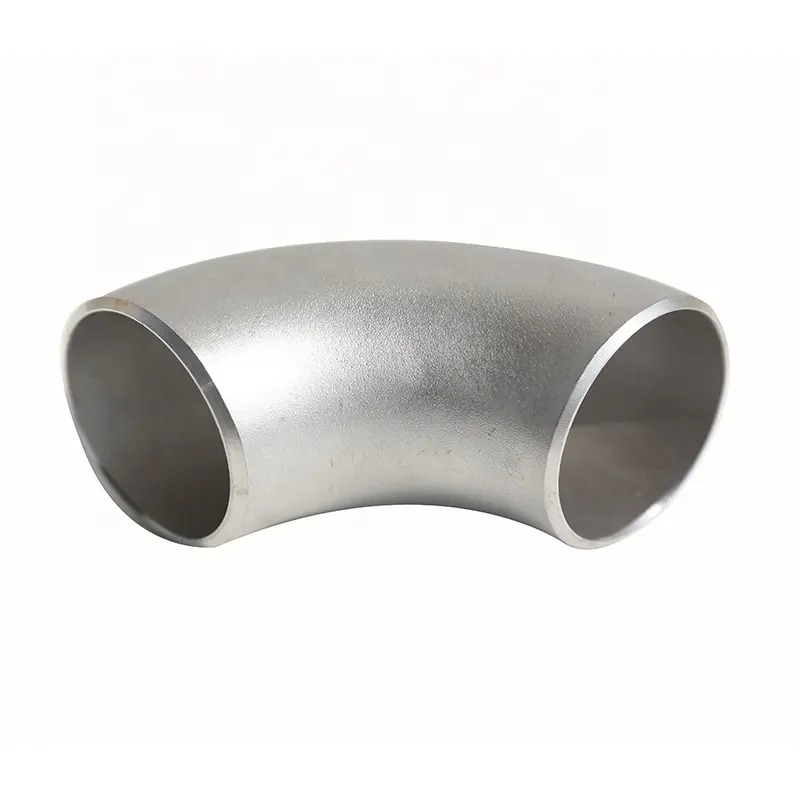

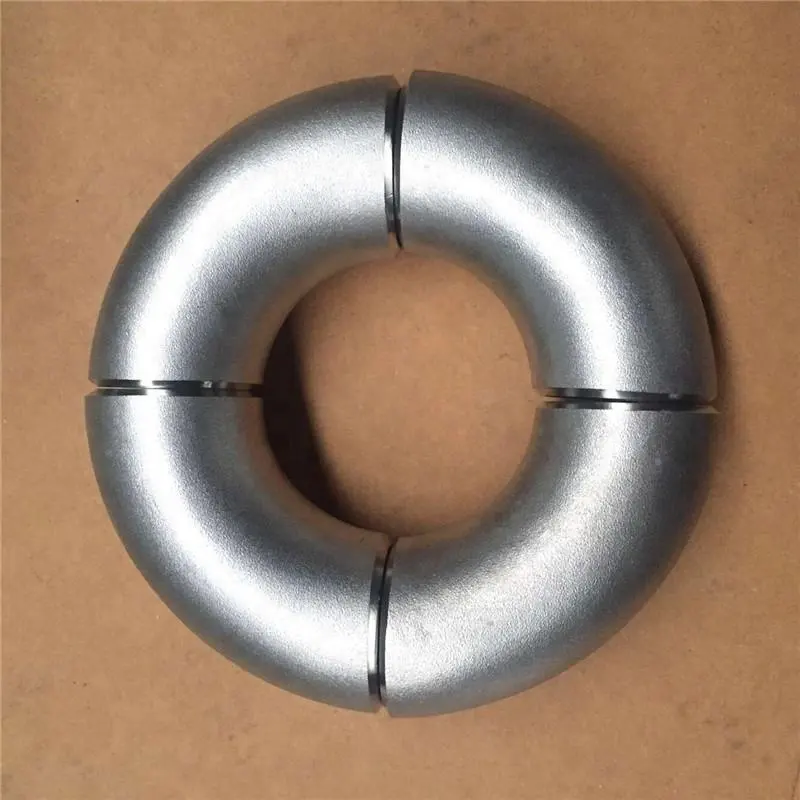

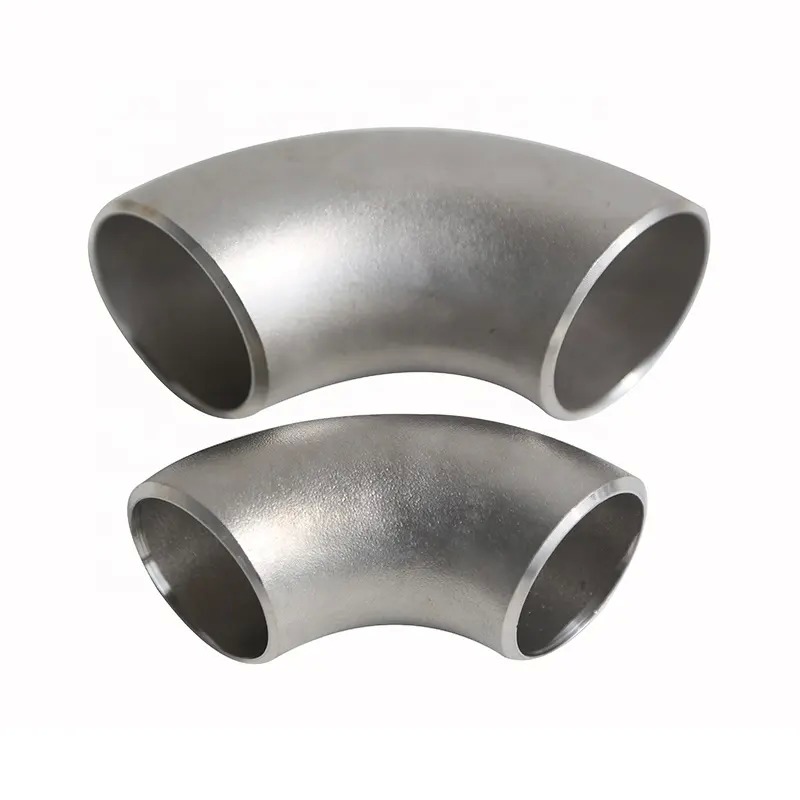

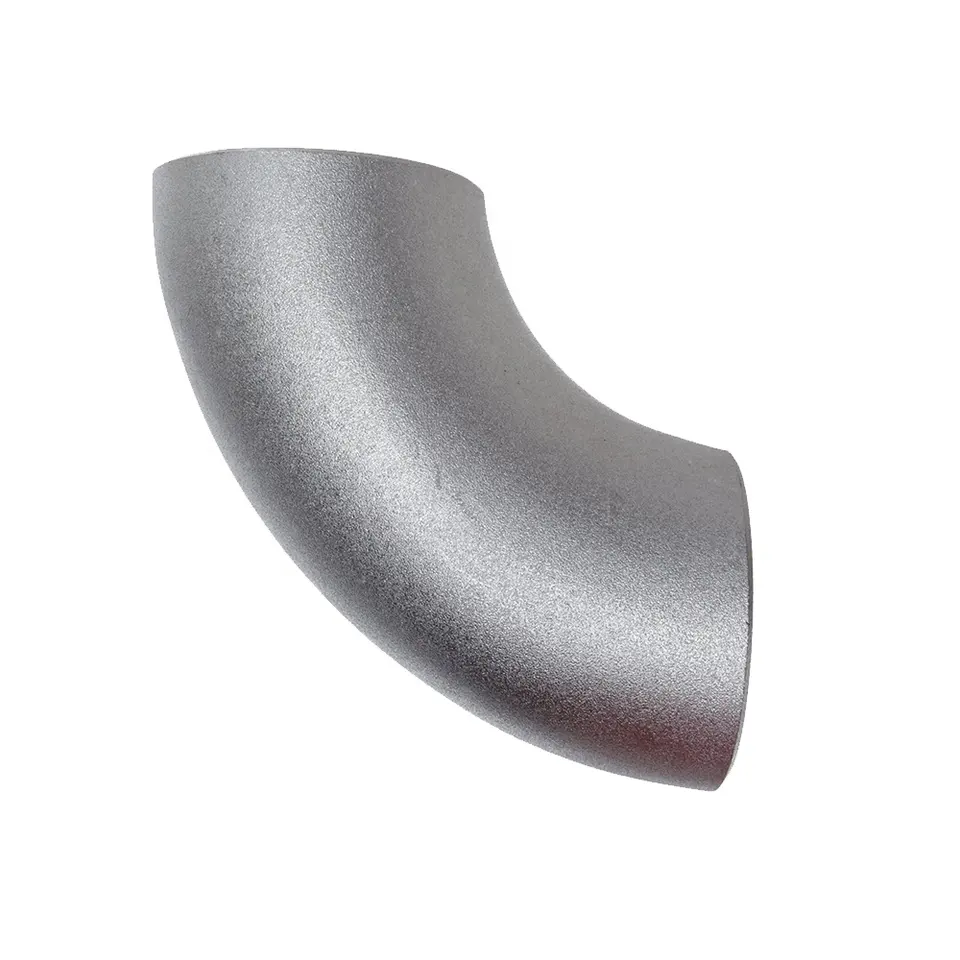

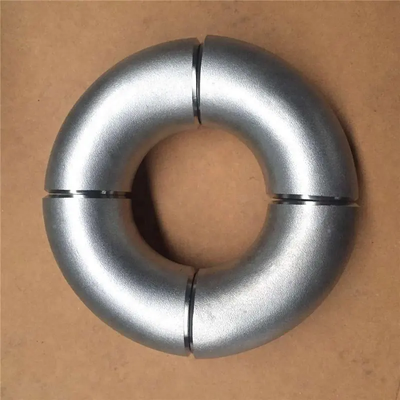

316L Stainless Steel Seamless Butt Welding Elbow ASME B16.9 Class150

316L Stainless Steel Seamless Butt Welding Elbow ASME B16.9 Class150

1. Product Description

The stainless steel butt welding elbow is a durable pipeline component manufactured through advanced hot-pressing or cold-forming techniques. Designed for permanent butt-welded connections, it provides a smooth, continuous internal bore that minimizes flow resistance and prevents media entrapment. The product is made from premium stainless steel materials with strictly controlled chemical composition and mechanical properties. Each elbow is produced under rigorous quality management systems, ensuring consistent dimensional accuracy, excellent surface quality, and reliable long-term performance in demanding service environments.

2. Product Applications

This butt welding elbow is utilized across a broad spectrum of industries where reliable directional changes are required in welded piping systems:

• Offshore production platforms – topside process piping, subsea umbilicals, and riser systems.

• Underground gas storage – injection and withdrawal wellhead piping networks.

• Cogeneration plants – combined heat and power (CHP) steam extraction and condensate return lines.

• District cooling networks – large-diameter chilled water distribution with expansion compensation loops.

• Iron and steel industry – blast furnace gas cleaning, converter flue gas systems, and continuous casting cooling circuits.

• Alumina refining (Bayer process) – high-temperature caustic slurry transfer and digestion circuit piping.

• Cement production – raw meal and clinker cooling ducting, kiln burner piping.

• Pulp bleaching sequences – chlorine dioxide, hydrogen peroxide, and sodium hydroxide transfer lines.

• Edible oil processing – degumming, neutralisation, bleaching, and deodorisation circuit piping.

• Aerospace ground support – fuel hydrant systems and de-icing fluid distribution networks.

​3. Product Advantages

• Resistance to thermal fatigue – the combination of proper material selection and solution-annealed microstructure enables the elbow to endure repeated heating and cooling cycles without compromising joint integrity.

• Minimal pressure drop – the smooth radius transition and flush internal bore reduce turbulent flow and pressure losses, improving system hydraulic efficiency and lowering pumping costs.

• Superior resistance to erosion – the homogeneous, work-hardened surface layer, particularly in cold-formed elbows, provides enhanced resistance to solid particle erosion in slurry services.

• Compatibility with automated welding – consistent bevel dimensions and end squareness facilitate automated orbital welding, reducing labor costs and improving weld repeatability.

• Full pressure rating retention – unlike threaded or socket-welded fittings, the butt-welded elbow retains 100% of the pipe's pressure rating without stress concentration at connection points.

• Simplified inventory management – standardized dimensions enable interchangeable use with components from other manufacturers, streamlining spare parts procurement.

• Enhanced fire resistance – the all-metal construction provides inherent fire resistance without elastomeric seals that could fail under extreme conditions.

• Lower insurance and compliance costs – the proven reliability of butt-welded stainless steel systems often results in reduced inspection frequencies and lower insurance premiums for critical installations.

4.Key Product Parameters

FAQ

1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.

2.How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.

4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
