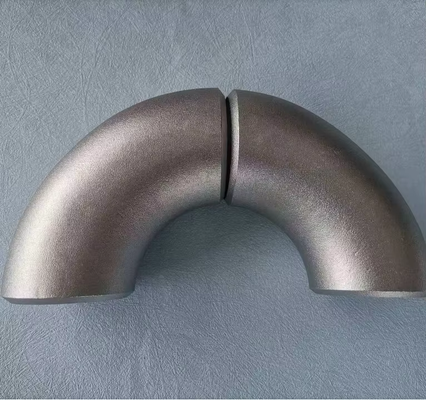

Pipe Fittings Nickel Alloy Steel Monel 400 90Deg Elbow LR 2'' SCH40 ASME B16.9
Product Details
| Brand | TOBO | Product Name | Elbow |
|---|---|---|---|
| Material | C276 C22 C4 Monel 400 K500 | Shape | Equal |
| Size | Customized Size | MOQ | 1pcs |
| Application | Industry | Standard | ASME/ANSI B16.9,GB12459,GB |
| Packing | Customers' Requirement | Delivery Time | 7-15days |
| Highlight | Nickel Alloy Steel Pipe Fittings,Monel 400 90Deg Elbow,ASME B16.9 Butt Weld Fittings |
||
Product Description
Pipe Fittings Nickel Alloy Steel Monel 400 90Deg Elbow LR 2'' SCH40 ASME B16.9
Nickel Alloy Pipe Fittings
Our nickel alloys are adopted for use in tough environments as oil platforms and desalination plants. By us you find nickel alloys with corrosion resistance, good weldability and formability.
With a nickel alloy from us you get a material adopted for use in tough environment. Within our product range you can find corrosion resistance alloys, welding alloys and nickel alloys for electrical resistance and electronic instruments. We also have high temperature alloys. By varying the combination of different chemical elements a wide range of useful properties can be achieved as high corrosion resistance, high rupture strength, toughness, metallurgical stability, good fabricability, creep strength and good fatigue life.
Some common applications for nickel alloys:
· Desalination plants
· Pressure vessels
· Oil platforms
· Heat exchangers
· Seawater handling
· Pulp bleaching
|
Main Production Name |
45 / 90 / 180 Long / Short Radius Elbows, Equal / Reducing Crosses, Concentric /Eccentric Reducers, Caps, Stub Ends,Pipe fittings |
|
Standard |
ASME/ANSI B16.9, ISO, JIS, DIN, BS,GB, SH, HG,QOST,ETC. |
|
Size |
1/2’’~48’’(Seamless);16’’~72’’(Welded) |
|
Wall thickness |
Sch5~Sch160XXS |
|
Manufacturing process |
Push, Press, Forge, Cast, etc. |
|
Nickel alloy steel |
Alloy 200/Nickel 200/NO2200/2.4066/ASTM B366 WPN; |
|
Alloy 201/Nickel 201/NO2201/2.4068/ASTM B366 WPNL; |
|
|
Alloy 400/Monel 400/NO4400/NS111/2.4360/ASTM B366 WPNC; |
|
|
Alloy K-500/Monel K-500/NO5500/2.475; |
|
|
Alloy 600/Inconel 600/NO6600/NS333/2.4816; |
|
|
Alloy 601/Inconel 601/NO6001/2.4851; |
|
|
Alloy 625/Inconel 625/NO6625/NS336/2.4856; |
|
|
Alloy 718/Inconel 718/NO7718/GH169/GH4169/2.4668; |
|
|
Alloy 800/Incoloy 800/NO8800/1.4876; |
|
|
Alloy 800H/Incoloy 800H/NO8810/1.4958; |
|
|
Alloy 800HT/Incoloy 800HT/NO8811/1.4959; |
|
|
Alloy 825/Incoloy 825/NO8825/2.4858/NS142; |
|
|
Alloy 925/Incoloy 925/NO9925; |
|
|
Hastelloy C/Alloy C/NO6003/2.4869/NS333; |
|
|
Alloy C-276/Hastelloy C-276/N10276/2.4819; |
|
|
Alloy C-4/Hastelloy C-4/NO6455/NS335/2.4610; |
|
|
Alloy C-22/Hastelloy C-22/NO6022/2.4602; |
|
|
Alloy C-2000/Hastelloy C-2000/NO6200/2.4675; |
|
|
Alloy B/Hastelloy B/NS321/N10001; |
|
|
Alloy B-2/Hastelloy B-2/N10665/NS322/2.4617; |
|
|
Alloy B-3/Hastelloy B-3/N10675/2.4600; |
|
|
Alloy X/Hastelloy X/NO6002/2.4665; |
|
|
Alloy G-30/Hastelloy G-30/NO6030/2.4603; |
|
|
Alloy X-750/Inconel X-750/NO7750/GH145/2.4669; |
|
|
Alloy 20/Carpenter 20Cb3/NO8020/NS312/2.4660; |
|
|
Alloy 31/NO8031/1.4562; |
|
|
Alloy 901/NO9901/1.4898; |
|
|
Incoloy 25-6Mo/NO8926/1.4529/Incoloy 926/Alloy 926; |
|
|
Inconel 783/UNS R30783; |
|
|
NAS 254NM/NO8367; Monel 30C |
|
|
Nimonic 80A/Nickel Alloy 80a/UNS N07080/NA20/2.4631/2.4952 |
|
|
Nimonic 263/NO7263 |
|
|
Nimonic 90/UNS NO7090; |
|
|
Incoloy 907/GH907; Nitronic 60/Alloy 218/UNS S21800 |
|
|
Package |
Wooden cases, pallets, nylon bags or according to the customers' requirements |
|
Delivery time |
10-100 days depending on quantity |
|
Payment terms |
T/T or Western Union or LC |
|
Shipment |
FOB Tianjin/Shanghai, CFR, CIF, etc |
|
Application |
Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc |
|
Remarks |
Other materials and drawings are available. |
|
The third party inspection: |
BV,SGS,LOIYD,TUV,and other party alloyed by clients. |
Chemical Composition
Nickel (plus cobalt) ......................................................99.0 min.
Copper........................................................................0.25 max.
Iron..............................................................................0.40 max.
Manganese .................................................................0.35 max.
Carbon........................................................................0.15 max.
Silicon .........................................................................0.35 max.
Sulfur ..........................................................................0.01 max
|
C |
Si |
Mn |
P |
S |
Ni |
Gr |
Al |
Ti |
Cu |
|
≤0.10
|
≤1.0
|
≤1.50
|
≤0.030
|
≤0.015
|
30.0~35.0 |
19.00~23.00 |
0.15~0.60 |
0.15~0.60 |
≤0.75
|
|
0.012 |
0.30 |
0.27 |
0.015 |
0.0005 |
30.5 |
19.9 |
0.32 |
0.40 |
0.03 |
|
Alloy |
Ni |
C |
Mn |
Fe |
S |
Si |
Cu |
Cr |
Al |
Ti |
Nb |
Mo |
|
Nickel 200 |
99.5 |
0.08 |
0.2 |
0.2 |
0.005 |
0.2 |
0.1 |
-- |
-- |
-- |
-- |
-- |
|
Nickel 200 |
99.5 |
0.01 |
0.2 |
0.2 |
0.005 |
0.2 |
0.1 |
-- |
-- |
-- |
-- |
-- |
|
Monel 400 |
66.5 |
0.2 |
1 |
1.2 |
0.01 |
0.2 |
31.5 |
-- |
-- |
-- |
-- |
-- |
|
Monel 401 |
42.5 |
0.05 |
1.6 |
0.4 |
0.008 |
0.1 |
|
-- |
-- |
-- |
-- |
-- |
|
Monel K500 |
66.5 |
0.1 |
0.8 |
1 |
0.005 |
0.2 |
29.5 |
-- |
2.7 |
0.5 |
-- |
-- |
|
Inconel 600 |
76 |
0.08 |
0.5 |
8 |
0.006 |
0.2 |
0.2 |
15.5 |
-- |
-- |
-- |
-- |
|
Inconel 601 |
60.5 |
0.05 |
0.5 |
14.1 |
0.007 |
0.2 |
0.5 |
23 |
1.4 |
-- |
-- |
-- |
|
Inconel 718 |
52.5 |
0.04 |
0.2 |
18.5 |
0.008 |
0.2 |
0.2 |
19 |
0.5 |
0.9 |
5.1 |
3 |
|
Inconel X-715 |
73 |
0.04 |
0.5 |
7 |
0.005 |
0.2 |
0.2 |
15.5 |
0.7 |
2.5 |
1 |
-- |
|
Incoloy 800 |
32.5 |
0.05 |
0.8 |
46 |
0.008 |
0.5 |
0.4 |
21 |
0.4 |
0.4 |
-- |
-- |
|
Incoloy 803 |
32.0- |
0.06- |
≤1.5 |
|
≤0.015 |
≤1.0 |
≤0.75 |
25.0- |
0.15- |
0.15- |
-- |
-- |
|
Incoloy 825 |
42 |
0.03 |
0.5 |
30.4 |
0.02 |
0.2 |
2.2 |
21.5 |
0.1 |
0.9 |
-- |
3 |
STANDARDS:
ASTM B366 - ASME SB366 - Factory-Made Wrought Nickel and Nickel Alloy Fittings
ASTM A815-Standard Specification for Wrought Ferritic, Ferritic/Austenitic, and Martensitic Stainless Steel Piping Fittings
ASTM A403-Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
ASTM A234-Standard Specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel for Moderate and High Temperature Service
ASTM A420-Standard Specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel for Low-Temperature Service
ASME B16.28 - Wrought Steel Buttwelding Short Radius Elbows and Returns
ASME B16.25 - Buttwelding Ends
MSS SP-43 - Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications
