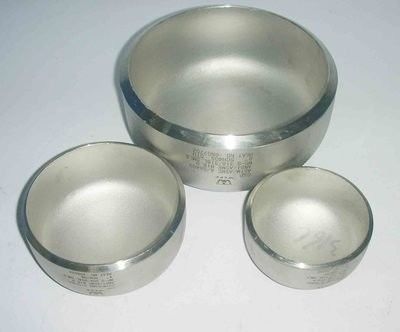

SS304 Butt Weld Pipe Cap SCH80 ASME B16.9 Stainless Steel End Pipe Fitting

Place of Origin Shanghai,China
Brand Name TOBO
Certification ISO/TUV/SGS
Model Number Stainless Steel Pipe Cap
Minimum Order Quantity 1PC
Price Negotiable
Packaging Details Standard Shipping Package
Delivery Time 15-30 Workdays
Payment Terms T/T, Western Union
Supply Ability 10 Ton/Month
Product Details
Product Name SS304 Butt Weld Pipe Cap SCH80 ASME B16.9 Stainless Steel End Pipe Fitting Used Air Outlet
Head Type Round Customized Support OEM, ODM, OBM, 3A, DIN, SMS
Name Product Pipe Cap Size Customized Size
Shape Round, Square Payment Term T/T, L/C, Western Union, Etc
Heat Treatment Annealed, Quenched, Etc. Connectiontype Welded, Threaded, Socket Weld
Grade 304, 316, 316L, 321 Productname Stainless Steel Pipe Cap
Technique Cold Rolled, Hot Rolled Corrosion Resistance High
Warranty 1 Packing Plastic Bag,carton,Wooden Case
Leave a Message
Product Description

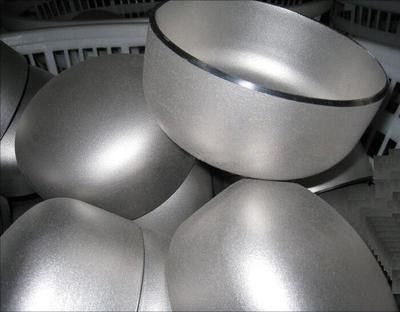

SS304 Butt Weld Pipe Cap SCH80 ASME B16.9 Stainless Steel End Pipe Fitting



1. Product Description



The stainless steel pipe cap is a robust end-closure component designed to terminate piping systems under a wide spectrum of operating conditions. It is manufactured predominantly from austenitic or duplex stainless steel, using either seamless construction (for sizes up to DN600) or welded plate construction (for larger diameters). The forming process involves hot stamping, cold pressing, or rotary forging to achieve a seamless transition between the cylindrical body and the dished end. The product is supplied in a solution-annealed and quenched condition (for austenitic grades) to ensure maximum corrosion resistance and optimal mechanical properties. Butt-weld ends are supplied with precision-ground bevels, while threaded ends are gauge-checked for perfect fit. Every cap is dimensionally verified using laser measuring equipment to ensure full interchangeability with mating pipes and fittings.



2. Product Applications

  • As a permanent end closure for main process lines in crude oil refining, natural gas treatment, and chemical synthesis plants.

  • As a temporary seal for testing loops (hydrostatic, pneumatic, and leak testing) during construction and commissioning.

  • For capping off unused branch connections in utility systems such as steam, condensate, cooling water, and compressed air.

  • In high‑purity pharmaceutical and biotechnology applications, where the caps are electropolished and certified for low surface roughness (Ra ≤ 0.4 µm) to prevent product contamination.

  • For offshore subsea pipelines, where caps with extra wall thickness and corrosion allowance are required to withstand seawater pressure and cathodic protection effects.

  • In high‑temperature furnace piping (e.g., reformer tubes and heat exchanger headers) using heat‑resistant grades like 310S or 253MA.

  • As protective covers for pipe ends during module fabrication and pre‑fabrication yard storage.

3. Product Advantages

  • Outstanding resistance to pitting and crevice corrosion – especially with 316/316L and duplex grades, making them suitable for chloride‑rich environments.

  • Excellent weldability – low carbon content (L‑grades) prevents intergranular corrosion after welding.

  • Precision‑machined sealing surfaces – ensure leak‑tight closure under repeated thermal cycling and pressure fluctuations.

  • High dimensional consistency – produced under strict quality control, with bevel angles, roundness, and wall thickness tolerances meeting or exceeding standard requirements.

  • Versatile grade selection – from standard austenitic to super‑austenitic and duplex steels, covering a wide range of corrosive media and temperatures.

  • Traceability – each cap is marked with heat number, material grade, size, and schedule, enabling full material traceability.

  • Customizable surface finish – available in mill finish, pickled and passivated, or mechanically polished to mirror finish (Ra ≤ 0.8 µm for sanitary use).

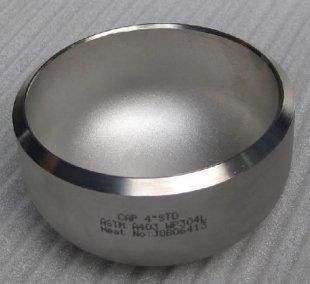

SS304 Butt Weld Pipe Cap SCH80 ASME B16.9 Stainless Steel End Pipe Fitting

​4.Key Specifications

Parameter Details / Available Range
Material Grades TP304, TP304L, TP316, TP316L, TP321, TP310S, TP347H, S31803 (Duplex 2205), S32750 (Super Duplex), 904L, N08904; also equivalent UNS and DIN designations.
Nominal Size DN15 – DN1200 (1/2″ – 48″). Seamless caps up to DN600; welded caps from DN50 to DN1200.
Wall Thickness Schedules SCH5S, SCH10S, SCH20, SCH30, SCH40S, SCH80S, SCH100, SCH120, SCH140, SCH160, XS, XXS.
End Connection Type Butt-weld ends (BW) with beveled ends per ASME B16.25; Socket-weld ends (SW) per ASME B16.11; Threaded ends (NPT or BSPT) per ASME B1.20.1.
Design / Manufacturing Standards ASME B16.9 (for butt-weld caps), ASME B16.11 (for socket-weld and threaded caps), MSS SP43 (for light-wall stainless steel butt-weld caps), EN 10253-3/4, JIS B2311/B2312. Material standards: ASTM A403, A182, A240.
PressureTemperature Ratings For threaded/socket-weld: Class 150, 300, 600 (up to 600 psi @ 100°F, derated at higher temperatures). For butt-weld: rating matches the connected pipe schedule and material, typically up to Class 2500 (on request).
Operating Temperature Range -196°C to +650°C (depending on grade – e.g., 316L up to 425°C, 310S up to 1000°C for oxidation resistance).
Surface Roughness (Sanitary) Ra ≤ 0.8 µm (electropolished optional).
NonDestructive Testing (NDT) Hydrostatic test (100% for threaded types), dye penetrant inspection, radiographic or ultrasonic examination available per customer specification.
Marking Per MSS SP-25: size, schedule, material, heat number, and manufacturer's trademark.
Packaging Wooden crates or steel pallets, with end protectors to prevent thread/bevel damage during transit.
