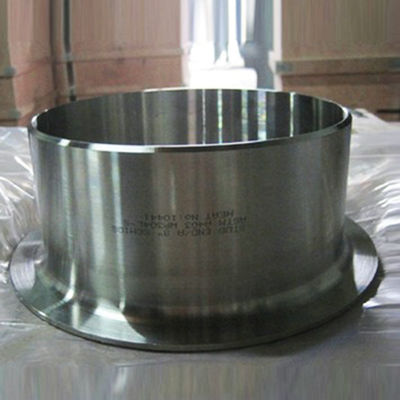

High Corrosionresistance Butt Weld Fittings Featuring UNS S32205 Stub End Material Grade and Butt Weld End Connection Solutions

Product Description:

Butt Weld Fittings are essential components used extensively in piping systems to connect straight pipe or tubing sections, adapt to different sizes, and change the direction of fluid flow. These fittings are designed to be welded directly to the pipe ends, ensuring a secure, leak-proof connection that can withstand high pressure and temperature conditions. Among the various types of butt weld fittings, the Weld Neck flange type is highly favored for its superior strength and reliability in demanding applications.

The Butt Weld Fittings product line features fittings made from high-quality materials such as SS304L and SS316L stainless steel, as well as UNS S32205 stub end material grade. These materials are selected for their excellent corrosion resistance, durability, and mechanical properties, making them ideal for use in harsh environments and critical industries such as chemical processing, oil and gas, and power generation. The use of stainless steel ensures that the fittings can resist oxidation, rust, and other forms of degradation over time, thereby extending the life of the piping system.

One of the key attributes of these Butt Weld Fittings is the connection type, which is welded. Welding provides a permanent and robust joint between the fitting and the pipe, reducing the risk of leaks and enhancing the overall integrity of the piping system. Welded connections are preferred over threaded or flanged connections in applications where high pressure, high temperature, or corrosive substances are involved. This makes the Butt Weld Fittings an excellent choice for critical piping installations requiring reliable and safe operation.

The Weld Neck flange type incorporated in these fittings is designed with a long tapered hub that gradually transitions the thickness of the pipe wall to the flange. This design feature helps to reduce stress concentration at the base of the flange, improving the mechanical strength and resistance to fatigue. The Weld Neck flange also allows for easy alignment during installation and provides a smooth bore that minimizes turbulence and pressure drop in the piping system. This makes it particularly suitable for applications involving high pressure and high flow rates.

Within the wide range of Butt Weld Fittings, reducers play a vital role in adapting pipe sizes within a system. Reducers allow for the connection of pipes with different diameters, facilitating smooth transitions and maintaining the flow efficiency. Whether concentric or eccentric, reducers made from stainless steel and compatible with the Weld Neck flange type ensure consistent performance and durability. These reducers help optimize the design of piping networks by accommodating various size requirements while maintaining structural integrity.

The body material of the Butt Weld Fittings, including SS304L and SS316L stainless steel, offers excellent tensile strength and resistance to various chemicals and environmental factors. SS304L is known for its good corrosion resistance and formability, making it suitable for general-purpose applications. SS316L, on the other hand, contains molybdenum, which enhances its resistance to chlorides and other aggressive agents, making it ideal for marine environments and chemical processing industries. The UNS S32205 stub end material grade is a duplex stainless steel that combines the benefits of austenitic and ferritic steels, offering superior strength and resistance to stress corrosion cracking.

In summary, Butt Weld Fittings with Weld Neck flange type and made from premium stainless steel materials such as SS304L, SS316L, and UNS S32205 stub end provide a reliable, durable, and efficient solution for piping systems. These fittings are designed for welded connections that ensure leak-proof joints capable of withstanding demanding conditions. Incorporating reducers within the range further enhances the versatility of these fittings by allowing size adaptations without compromising performance. Whether used in industrial, commercial, or infrastructure projects, these stainless steel fittings represent an optimal choice for engineers and designers seeking quality and longevity in their piping components.

Features:

• Product Name: Butt Weld Fittings
• Body Material: SS304L, SS316L
• Corrosion Resistance: Perfect and High (depending on material)
• End Connection: Butt Weld
• Design Standard: ASME; GB/T 14976-2002; DIN 17175
• Includes various types of fittings such as elbow and tee
• Durable and reliable for various piping applications

Technical Parameters:

Applications:

The TOBO Butt Weld Fittings, model number 5, are designed to meet a wide range of industrial application occasions and scenarios where reliable and durable pipe connections are essential. Certified under ISO standards, these butt weld type fittings ensure high quality and consistency in performance, making them suitable for critical environments. With a minimum order quantity of just 1 piece and a competitive price of 2.5 USD each, TOBO fittings offer an economical solution without compromising on quality.

These fittings are widely used in industries such as oil and gas, petrochemical, power plants, water treatment, and construction, where secure and leak-proof pipe joints are necessary. The butt weld end connection type allows for strong, permanent joins that can withstand high pressures and temperatures. The welded connection ensures minimal risk of leakage and enhances the structural integrity of the pipeline system.

TOBO’s butt weld fittings, including tees, flanges, and reducers, are manufactured through advanced processes such as pushing, pressing, forging, and casting. These methods contribute to the fittings' high corrosion resistance, which varies depending on the material used, making them ideal for harsh environments involving chemicals, extreme temperatures, or moisture. The fittings are carefully packaged in wooden cases to prevent damage during transport, with a delivery time of approximately 15 days.

The versatility of TOBO butt weld fittings makes them suitable for a variety of scenarios, from simple pipeline extensions using tees, connecting pipes of different sizes with reducers, to flange connections for easy assembly and maintenance. The fittings are commonly employed in pipeline construction, maintenance projects, and system upgrades, where durability and performance are paramount. Payment terms via T/T provide flexibility and convenience for customers worldwide.

In summary, TOBO butt weld fittings are an excellent choice for professionals seeking reliable, ISO-certified pipe components with high corrosion resistance and robust manufacturing quality. Whether you need tees, flanges, or reducers, these fittings deliver exceptional performance in demanding industrial applications.
