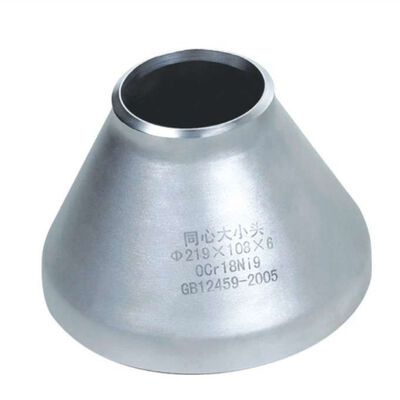

Stainless Steel Concentric Butt Weld Fittings with 1200°F Temperature Rating for Industrial Piping

Product Description:

Butt weld fittings are essential components used in piping systems to connect straight pipe or tubing sections, adapt to different sizes or shapes, and regulate fluid flow. These fittings are designed to be joined by welding, providing a smooth and leak-proof connection that ensures system integrity and durability. Among the various types of butt weld fittings, the most common shapes include elbows, tees, reducers, and caps, each serving a specific purpose within piping configurations.

Elbows are used to change the direction of the flow in the piping system, typically available in 45-degree and 90-degree angles. Tees allow for branching off the main pipeline, enabling the flow to be split or combined. Reducers are used to connect pipes of different diameters, thus adapting the size of the piping in a smooth and efficient manner. Caps are employed to close the end of a pipe, providing a secure seal when a pipeline needs to be terminated. These fittings are crucial in ensuring the proper alignment and flow control in complex piping networks.

One of the key features of these butt weld fittings is their temperature rating, which can withstand environments up to 1200°F. This makes them suitable for high-temperature applications across various industries such as oil and gas, chemical processing, power generation, and more. The ability to endure such elevated temperatures ensures that the fittings maintain their strength and performance even under extreme operating conditions.

The wall thickness of these fittings varies from Schedule 10 to Schedule 160, allowing for a wide range of pressure ratings and mechanical strength. This variety in wall thicknesses gives engineers the flexibility to select the appropriate fitting based on the specific pressure and structural requirements of their piping system. The standard thickness (STD) option is also available, offering a balanced choice for general applications.

Connection methods for these fittings rely primarily on welding, specifically butt welded joints. Butt welding provides a seamless connection by joining the ends of pipes and fittings directly, which results in a smooth internal surface with minimal flow resistance and enhanced mechanical strength. This method is preferred in critical applications where leak prevention and structural integrity are paramount.

Stainless steel is a commonly used material for butt weld fittings due to its excellent corrosion resistance, high strength, and durability. Stainless steel fittings are ideal for environments where exposure to moisture, chemicals, or high temperatures is a concern. They maintain their appearance and structural integrity over time, reducing maintenance costs and extending the lifespan of the piping system.

In addition to the core fitting types, these butt weld fittings can be integrated with flanges to facilitate easier assembly and disassembly of piping sections. Flanges provide a bolted connection point, which is especially useful in systems that require regular inspection, maintenance, or replacement of components. Combining reducers, elbows, tees, and caps with flanges enhances the versatility and functionality of the overall piping setup.

Overall, butt weld fittings such as elbows, tees, reducers, and caps are indispensable components in modern piping systems. Their ability to withstand high temperatures up to 1200°F, availability in a wide range of wall thicknesses from Schedule 10 to Schedule 160, and the use of welding for secure connections make them reliable and efficient choices. Stainless steel construction further enhances their performance in demanding environments, while the option to include flanges adds to their convenience and adaptability. Whether used in industrial, commercial, or residential applications, these fittings play a critical role in ensuring safe, efficient, and long-lasting piping infrastructure.

Features:

• Product Name: Butt Weld Fittings
• Material: Carbon Steel, Stainless Steel, Alloy Steel
• Shape: Concentric
• Shape Types: Elbows, Tees, Reducers, Caps
• End Type: BE (Beveled End)
• Connection Type: Welded
• Includes elbow fittings suitable for various piping systems
• Available in durable Stainless Steel for corrosion resistance
• Compatible with flanges for secure and leak-proof connections

Technical Parameters:

Applications:

TOBO Butt Weld Fittings, originating from Shanghai, China, are precision-engineered components designed to connect pipes securely and efficiently in various piping systems. Manufactured under stringent quality standards with ISO, TUV, and SGS certifications, these fittings ensure reliable performance and durability in demanding environments. With a supply ability of 10 tons per month and a minimum order quantity of just 1 piece, TOBO offers flexibility and convenience to meet diverse project requirements.

These Stainless Steel Butt Weld Fittings are available in various shapes including elbows, tees, reducers, and caps, catering to a wide range of piping configurations. The fittings support pipe sizes up to 6 inches and accommodate wall thicknesses from Schedule 10 to Schedule 160, with a standard thickness (STD) ensuring compatibility with most industrial pipelines. Their surface treatment options, such as pickling, polishing, and sand blasting, enhance corrosion resistance and aesthetic appeal, making them ideal for both functional and visible installations.

The Butt Weld Fittings from TOBO are extensively used in numerous application occasions and scenarios. In the oil and gas industry, these fittings provide secure connections in pipelines that transport crude oil, natural gas, and refined products under high pressure and temperature conditions. Their robust construction and reliable weld joints prevent leaks and withstand harsh operating environments.

In chemical processing plants, the stainless steel material and surface treatments protect the fittings from aggressive chemicals and corrosion, ensuring long-term stability and safety. Similarly, power plants utilize these fittings in steam and water piping systems, where high-pressure resistance and thermal stability are crucial for maintaining operational efficiency.

Food and beverage manufacturing facilities also benefit from TOBO’s Butt Weld Fittings due to their hygienic surface finishes and corrosion resistance, which comply with sanitary standards. Additionally, these fittings are employed in water treatment plants, pharmaceutical industries, and HVAC systems, where durability and leak-proof connections are essential.

TOBO provides competitive pricing with negotiable terms, standard shipping packages, and delivery times ranging from 15 to 30 workdays. Payment can be conveniently made via T/T or Western Union, supporting smooth transaction processes. Whether for new installations or maintenance projects, TOBO’s Stainless Steel Butt Weld Fittings offer dependable, high-quality solutions for a broad spectrum of industrial piping applications.
