Concentric Stainless Steel Butt Weld Fittings with Schedule 10 To Schedule 160 Wall Thickness for Pipeline Assembly

Product Description:

Butt weld fittings are essential components used in piping systems to connect pipes, change directions, or branch off flow. These fittings are designed to provide a strong, leak-proof connection by welding the ends directly to the pipes, ensuring durability and reliability in various industrial applications. The Butt Weld Fittings with BE (Butt End) are specifically crafted to offer seamless welding connections, making them an ideal choice for high-pressure and high-temperature environments.

One of the key features of these butt weld fittings is their concentric shape. Concentric fittings maintain a consistent centerline, which helps in maintaining balanced flow dynamics and reduces turbulence within the piping system. This characteristic is particularly important in applications where fluid flow efficiency and pressure maintenance are critical.

The thickness of these fittings is classified as STD (Standard Thickness), which means they meet the industry-standard thickness requirements for strength and durability. The wall thickness varies from Schedule 10 to Schedule 160, allowing for a wide range of applications depending on the pressure and mechanical demands of the system. Schedule 10 fittings are relatively thin and suitable for low-pressure systems, while Schedule 160 fittings are much thicker and used in high-pressure, heavy-duty applications.

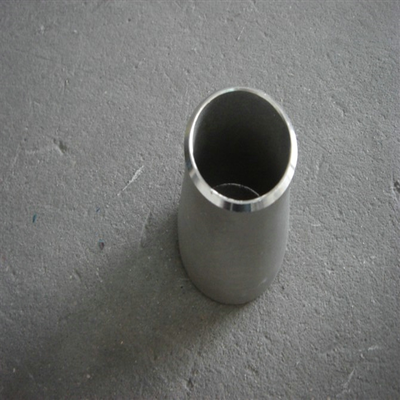

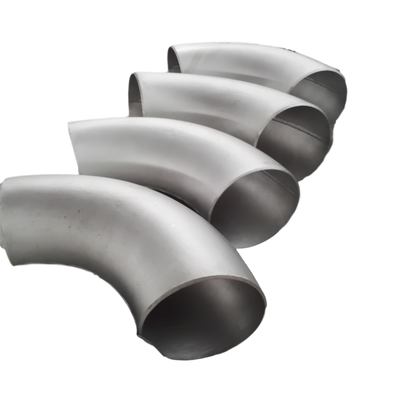

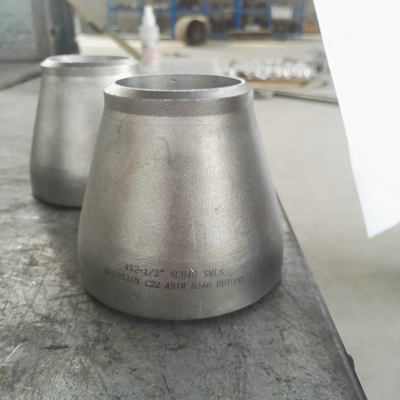

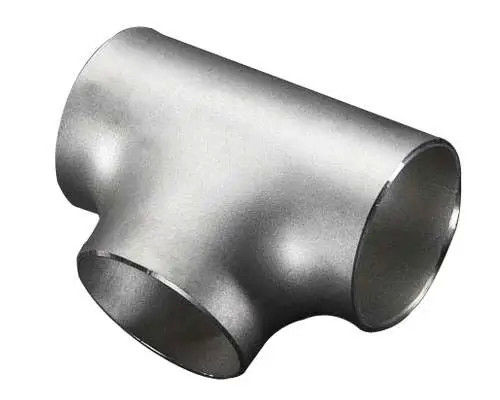

Butt weld fittings come in various types, including reducers, tees, and elbows, each serving a specific function within a piping network. Reducers are used to connect pipes of different diameters, allowing for smooth transitions in pipe size which helps in controlling flow rates and pressure drops. Tees are designed to create branch lines, enabling the flow to split into two directions or combine flows from two sources into one. Elbows change the direction of the piping system, typically at 45 or 90 degrees, facilitating the routing of pipes around obstacles or within confined spaces.

The connection type for these fittings is welded, which involves fusing the fitting ends to the pipe ends using high heat. This method provides a strong, permanent joint that can withstand significant mechanical stress and harsh operating conditions. Welded connections are preferred in industries such as oil and gas, petrochemical, power generation, and chemical processing, where safety and integrity are paramount.

Butt weld fittings with BE ends are manufactured to precise standards to ensure compatibility and ease of installation. The beveled ends allow for proper alignment and penetration during the welding process, resulting in a uniform and robust joint. This precision manufacturing helps to minimize the risk of leaks and failures, enhancing the overall reliability of the piping system.

In summary, Butt Weld Fittings with BE ends, standard thickness, and a wall thickness range from Schedule 10 to Schedule 160 offer a versatile and dependable solution for various piping applications. Their concentric shape ensures balanced flow, while the welded connection type guarantees strong and leak-proof joints. Whether you need reducers to adjust pipe sizes, tees to branch flow lines, or elbows to change pipe directions, these fittings provide the necessary functionality and performance to meet demanding industrial requirements.

Features:

• Product Name: Butt Weld Fittings

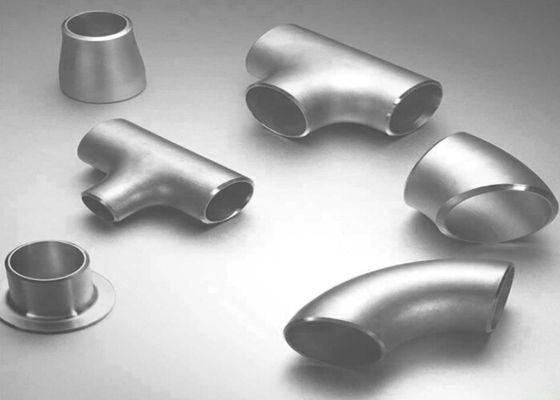

• Shape Types: Elbows, Tees, Reducers, Caps
• Shape: Concentric
• Thickness: STD
• Surface Finish: Polished
• Surface Treatment: Pickling, Polishing, Sand Blasting
• Material: Stainless Steel
• Includes reducers and flanges for versatile piping applications

Technical Parameters:

Applications:

The TOBO Butt Welding Fittings, originating from Shanghai, China, are meticulously crafted components designed for a wide range of piping systems. Featuring models such as elbows, tees, reducers, and caps, these fittings are forged using advanced techniques to ensure durability and reliability. They are available in various materials including carbon steel, stainless steel, and alloy steel, with surface finishes that are polished to meet stringent industry standards. Certified by ISO, TUV, and SGS, these fittings guarantee high quality and performance under different pressure ratings ranging from SCH5 to SCH160, including XXS.

These butt weld fittings are ideal for application occasions that demand secure and leak-proof connections in industrial pipelines. They are commonly used in oil and gas, chemical processing, power generation, and water treatment plants, where the integrity of the piping system is critical. The elbows and tees allow for directional changes and branching of pipelines, while reducers and caps facilitate size transitions and system terminations. The polished surface finish ensures smooth flow and minimizes corrosion, making them suitable for both high-pressure and high-temperature environments.

In practical scenarios, TOBO butt welding fittings serve as essential components in the assembly of piping systems requiring robust and permanent joints. Their forged construction enhances strength and resistance to mechanical stress, making them suitable for heavy-duty applications. The fittings are often paired with flanges for easy installation and maintenance in industries such as petrochemical refineries, shipbuilding, and HVAC systems. With a supply ability of 10 tons per month and a minimum order quantity of just one piece, these fittings offer flexibility for both large-scale projects and smaller maintenance tasks.

TOBO provides negotiable pricing and ensures timely delivery within 15-30 workdays, packaged securely in standard shipping packages. Payment terms are flexible, accepting T/T and Western Union, facilitating smooth transactions worldwide. Whether you need elbows to change pipe direction, tees for branching, or flanges for connecting different sections, TOBO butt welding fittings are engineered to meet the highest standards of performance and reliability in diverse application occasions and scenarios.
