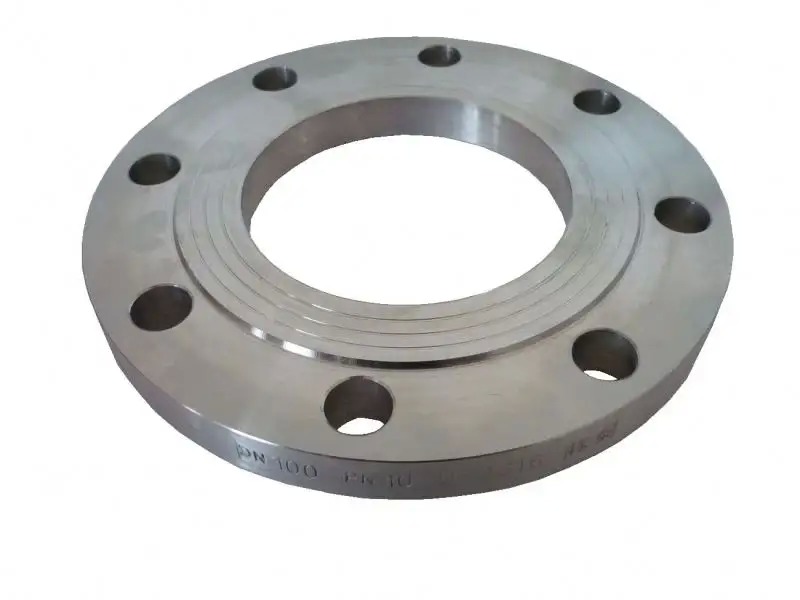

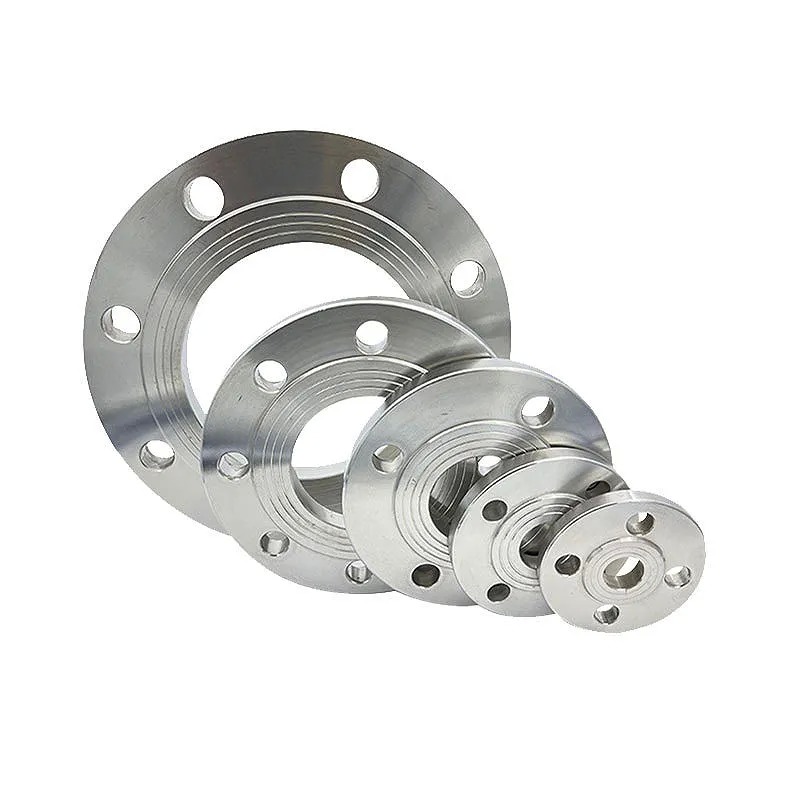

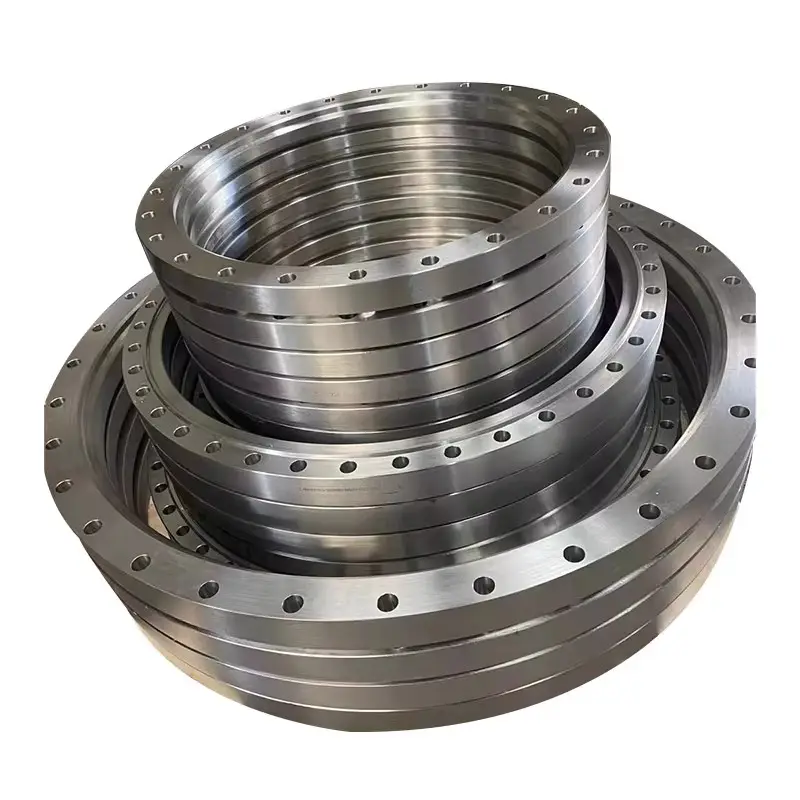

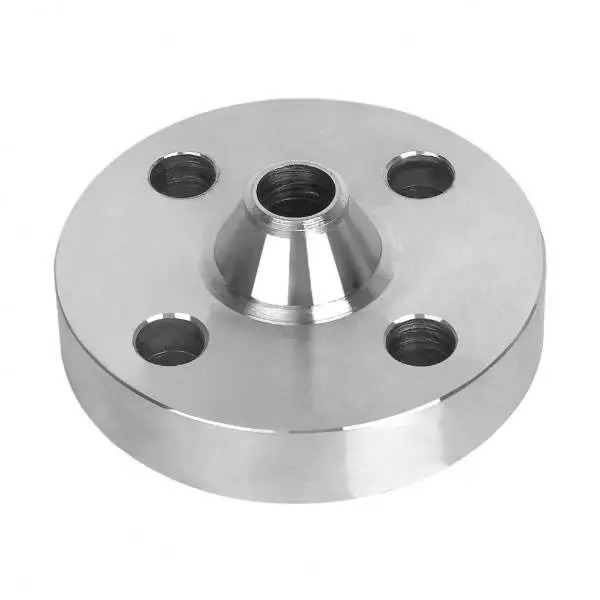

Forged Steel Socket Welding Flange ANSI B16.5 Class 150 Raised Face

Forged Steel Socket Welding Flange ANSI B16.5 Class 150 Raised Face

1. Product Description

Forged steel flanges are high-integrity connecting components manufactured by hot-working steel billets under controlled pressure and temperature. The forging process eliminates voids, refines the dendritic structure, and aligns the grain flow with the component contour, resulting in a dense, homogeneous microstructure. These flanges are produced from carbon steel, alloy steel, or stainless steel grades, conforming to ASTM, ASME, DIN, JIS, BS, EN, and GB standards. Typical materials include ASTM A105 (carbon steel), ASTM A182 F304/F316 (stainless steel), ASTM A182 F11/F22/F91 (alloy steel), and A350 LF2 (low-temperature service). They are available in all standard flange types and facing styles, with dimensional tolerances per ASME B16.5 or B16.47.

2. Product Applications

Forged steel flanges serve as the primary joining method in piping systems where reliability, safety, and maintainability are paramount. They are used to connect pipes, valves, pumps, compressors, pressure vessels, and other equipment. Key application sectors include:

• Oil & gas upstream (wellheads, Christmas trees), midstream (transmission pipelines), and downstream (refineries, petrochemical complexes)

• Power generation (thermal, nuclear, and combined-cycle plants)

• Chemical processing and specialty chemical manufacturing

• Offshore platforms, FPSO vessels, and subsea systems

• Pharmaceutical, food & beverage, and biotechnology facilities

• Water/wastewater treatment and desalination plants

• Pulp & paper, steel mills, and mining operations

• Marine propulsion and shipboard piping systems

These flanges are particularly specified for severe service conditions, including high temperature (>400°C), high pressure (up to Class 2500#), low temperature (down to -196°C), corrosive fluids, and cyclic loading.

3.Product Advantages

When compared to cast flanges or plate flanges, forged steel flanges deliver distinct performance benefits:

• Optimized grain structure – The directional grain flow enhances resistance to impact, fatigue, and stress-corrosion cracking.

• Fully dense material – No porosity, blowholes, or shrinkage cavities, ensuring leak-tightness under fluctuating pressure.

• Higher strength-to-weight ratio – Allows for compact designs while meeting pressure–temperature ratings.

• Superior weldability – Consistent chemical composition and fine grain size reduce weld cracking risks.

• Excellent machinability – Uniform hardness enables precision sealing faces with fine surface finishes (Ra ≤ 3.2 µm).

• Outstanding corrosion and erosion resistance – Especially when using high-alloy grades, surpassing cast equivalents.

• Full traceability – Each flange can be heat-number tracked from raw material to finished product, meeting strict NDE and documentation requirements (EN 10204 3.1/3.2).

• Long-term cost efficiency – Reduced downtime and maintenance intervals offset the higher initial cost.

4.Key Technical Parameters

FAQ

1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.

2.How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.

4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
