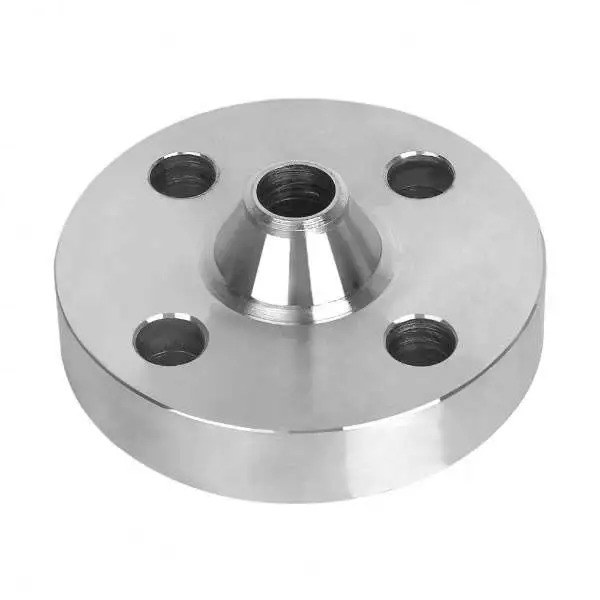

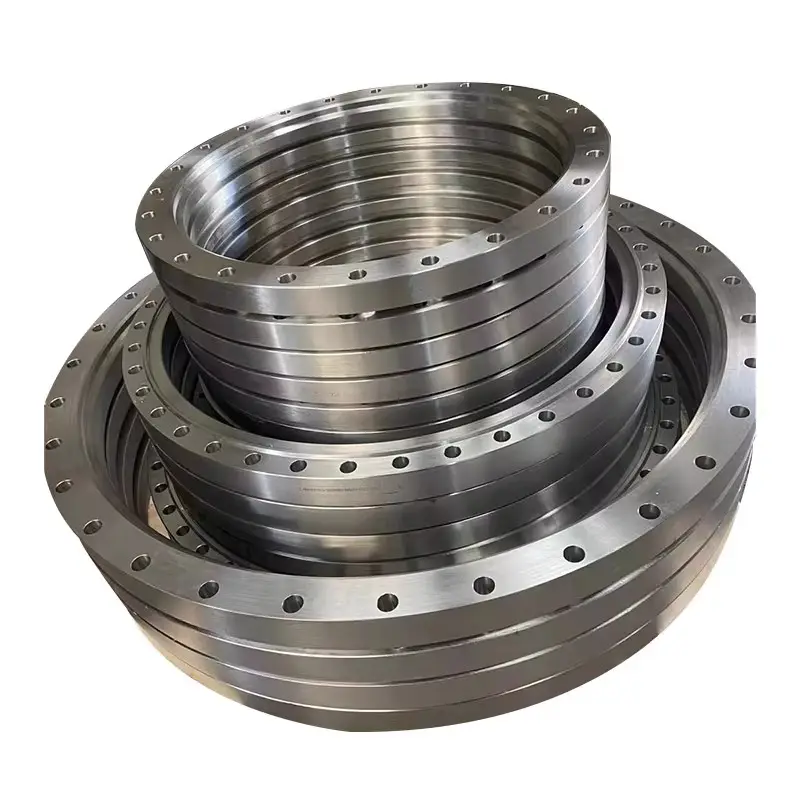

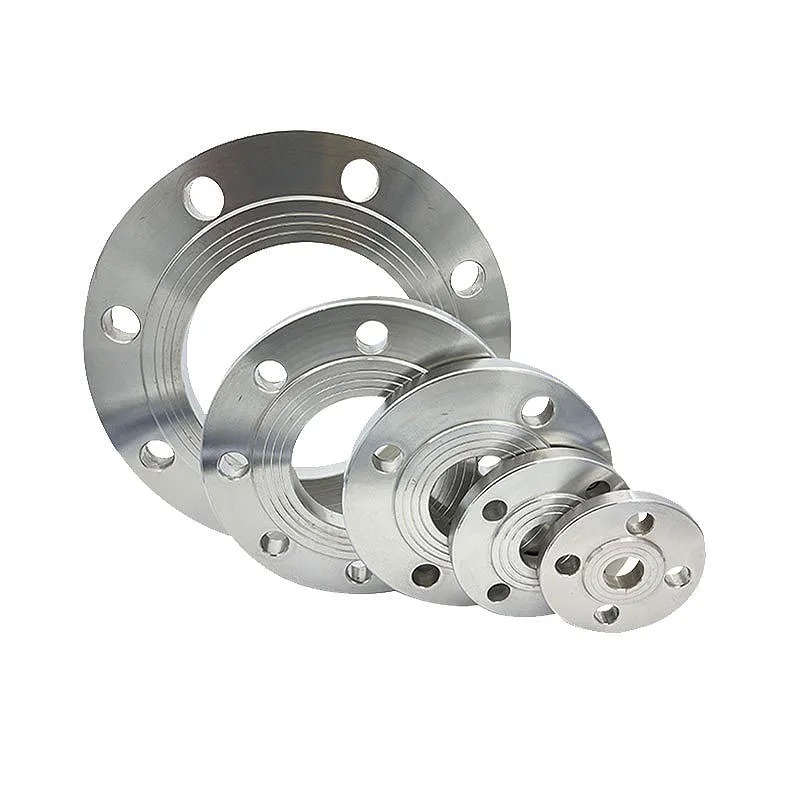

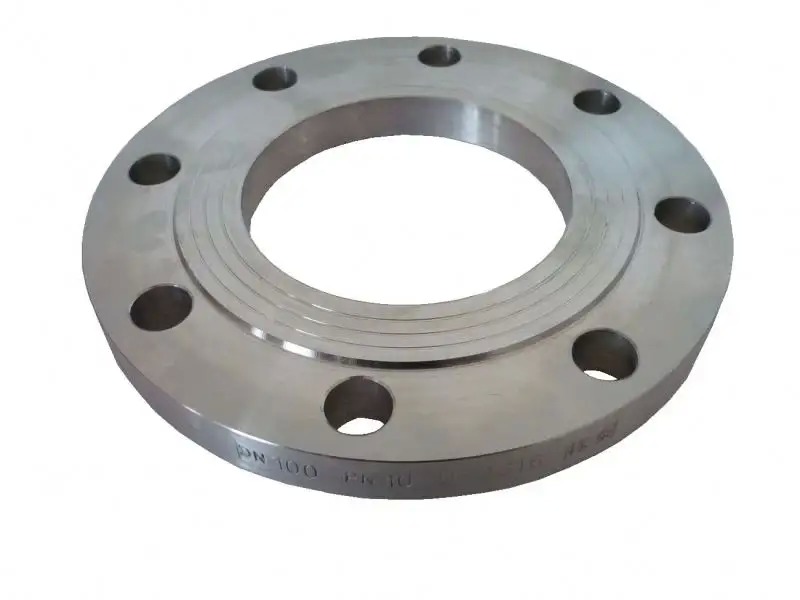

ASTM A105 Forged Steel Socket Weld Flange B16.5 Class 150 RF

  • ASTM A105 Forged Steel Socket Weld Flange B16.5 Class 150 RF
  • ASTM A105 Forged Steel Socket Weld Flange B16.5 Class 150 RF
  • ASTM A105 Forged Steel Socket Weld Flange B16.5 Class 150 RF
  • ASTM A105 Forged Steel Socket Weld Flange B16.5 Class 150 RF
  • ASTM A105 Forged Steel Socket Weld Flange B16.5 Class 150 RF
Place of Origin Shanghai,China
Brand Name TOBO
Certification ISO/TUV/SGS
Model Number Forged Steel Flanges
Minimum Order Quantity 1PC
Price Negotiable
Packaging Details Standard Shipping Package
Delivery Time 15-30 Workdays
Payment Terms T/T, Western Union
Supply Ability 10 Ton/Month
Product Details
Product Name ASTM A105 Forged Steel Socket Weld Flange B16.5 Class 150 RF Flange Pressure Class150
Feature Seamless Standard ASME, ANSI, DIN, JIS, BS
Seal RF, FF Loading Shanghai Port
Treatment Lightly Oiled Face FF, RF, RTJ, Etc.
Technice Hot Pushing Class 900#
Thickness Sch10 Temperature Range -20°F To 1000°F
Connectiontype Weld Neck, Slip On, Blind, Socket Weld, Threaded Diameter 200-1000mm
Sizerange 1/2 Inch To 48 Inches Skype Jennyyang35
Highlight

ASTM A105 forged steel flange

,

socket weld flange B16.5

,

Class 150 RF flange
Leave a Message
Product Description

ASTM A105 Forged Steel Socket Weld Flange B16.5 Class 150 RF



1. Product Description

Forged steel flanges are high-strength disc‑type connectors made by hot‑forging carbon, alloy, or stainless steel. The forging process refines grain structure and eliminates voids, ensuring uniform density and reliable mechanical properties. They are manufactured to ASME, DIN, JIS, EN, and GB standards, in all standard types and facing styles.

2. Product Applications

Used to connect pipes, valves, pumps, and equipment in oil & gas, chemical, power generation, shipbuilding, water treatment, and food/pharma industries. Suitable for steam, oil, gas, water, chemicals, and cryogenic fluids under normal to extreme conditions.

3.Product Advantages

  • Higher strength and impact resistance than cast or plate flanges.

  • Excellent corrosion and erosion resistance due to low carbon and fine grain.

  • Reliable sealing with precision‑machined faces, suitable for high pressure and temperature.

  • Longer service life and reduced maintenance costs.

  • Full traceability and compliance with international standards.

ASTM A105 Forged Steel Socket Weld Flange B16.5 Class 150 RF

4.Key Technical Parameters

Parameter Core Data
Standards ASME B16.5 / B16.47, EN 10921, DIN, JIS, GB
Size Range NPS ½″ – 120″ (DN 15 – DN 3000)
Pressure Classes Class 150 – 2500# ; PN 2.5 – PN 320
Temp. Range -196°C to +600°C (material dependent)
Common Materials Carbon: A105, A350 LF2; Alloy: F11, F22, F91; Stainless: F304/F316L
Types WN, SO, BL, SW, THRD, LJ, Orifice
Face Styles RF, FF, RTJ, MF, TG
Marking & Docs Heat number, material grade, EN 10204 3.1/3.2 certificates



FAQ

1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.

2.How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.

4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
