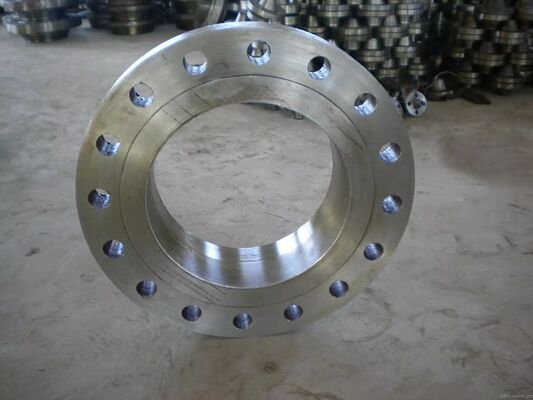

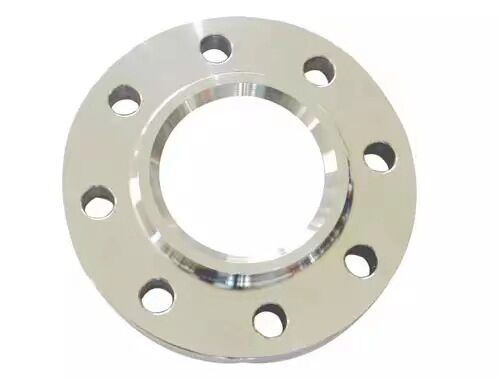

Forged Steel Socket Welding Flange ASTM A105 ANSI Class 150 RF

  • Forged Steel Socket Welding Flange ASTM A105 ANSI Class 150 RF
  • Forged Steel Socket Welding Flange ASTM A105 ANSI Class 150 RF
  • Forged Steel Socket Welding Flange ASTM A105 ANSI Class 150 RF
  • Forged Steel Socket Welding Flange ASTM A105 ANSI Class 150 RF
  • Forged Steel Socket Welding Flange ASTM A105 ANSI Class 150 RF
Place of Origin Shanghai,China
Brand Name TOBO
Certification ISO/TUV/SGS
Model Number Forged Steel Flanges
Minimum Order Quantity 1PC
Price Negotiable
Packaging Details Standard Shipping Package
Delivery Time 15-30 Workdays
Payment Terms T/T, Western Union
Supply Ability 10 Ton/Month
Product Details
Product Name Forged Steel Socket Welding Flange ASTM A105 ANSI Class 150 RF Size 1/2''-120'' Dn10 To Dn3600
Pplicable For Medium Pressure(Gas, Liquid, Dust) Flange Surface FF RF TG RJ
Temperaturerange -50°C To 600°C Type Flange
Craft Seamless Or Welded,butt Weld Types Flange
Class Rating 150~2500# Package Wooden Boxes
Face Type Raised Face, Flat Face, Ring Type Joint Shape Equal
Payment T/T Or Others Facing RF
Keyword Steel Productname Forged Steel Flanges
Highlight

ASTM A105 forged steel flange

,

ANSI Class 150 socket welding flange

,

RF forged steel welding flange
Leave a Message
Product Description

Forged Steel Socket Welding Flange ASTM A105 ANSI Class 150 RF



1. Product Description

Forged steel flanges are pressure‑containing components produced by hot forging from killed steel, ensuring a fully dense, fine‑grained structure. They meet ASME, EN, JIS, DIN, and GB standards. Available in carbon, alloy, and stainless steels, with all common types and facing finishes.

2. Product Applications

  • Oil & Gas – wellheads, pipelines, refineries

  • Chemical & Petrochemical – reactors, heat exchangers

  • Power Generation – boilers, steam lines, nuclear

  • Shipbuilding & Offshore – deck piping, subsea

  • Water & Wastewater – treatment plants, desalination

  • Pharma & Food – sanitary lines, sterile systems

  • Suited for steam, hydrocarbons, acids, cryogenic fluids, and high‑purity media.

3. Product Advantages

  • ✔ Stronger – Up to 30% higher tensile strength than cast equivalents.

  • ✔ Tougher – Fine grain ensures superior impact resistance at low temperatures.

  • ✔ Leak‑tight – Precision faces (Ra ≤ 3.2 µm) ensure reliable gasket sealing.

  • ✔ Durable – Excellent corrosion and erosion resistance prolongs service life.

  • ✔ Traceable – Each piece marked with heat number, full documentation available.

​Forged Steel Socket Welding Flange ASTM A105 ANSI Class 150 RF

4.Key Technical Parameters

Item Quick Reference Data
Standards ASME B16.5 (≤24″), B16.47 (≥26″); EN 10921; DIN; JIS; GB
Sizes NPS ½″ to 120″ (DN 15–3000)
Pressure ratings Class 150, 300, 600, 900, 1500, 2500 (equiv. PN 20–420)
Temperature range –196°C to +600°C (derate per standard)
Common materials • Carbon: A105 (general), A350 LF2 (low-temp)
• Alloy: F11/F22 (450–550°C), F91 (≤600°C)
• Stainless: F304/F316L (corrosion-resistant)
Flange types WN (weld neck), SO (slip-on), BL (blind), SW (socket weld), THRD (threaded), LJ (lap joint), Orifice
Face styles RF (raised face) – most common; FF (flat); RTJ (ring joint) – high pressure; MF / TG – special
Bolting (typical) Studs: ASTM A193 B7/B8; Nuts: A194 2H/8M. Quantities per ASME B16.5.
Inspection PMI 100%, MT/PT standard, UT optional, hydrotest 1.5× design pressure
Certificates EN 10204 Type 3.1 (standard), Type 3.2 (third-party witness)



FAQ

1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.

2.How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.

4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
