Forged Steel RF Socket Weld Flange ASTM A105 150# B16.5

  • Forged Steel RF Socket Weld Flange ASTM A105 150# B16.5
  • Forged Steel RF Socket Weld Flange ASTM A105 150# B16.5
  • Forged Steel RF Socket Weld Flange ASTM A105 150# B16.5
  • Forged Steel RF Socket Weld Flange ASTM A105 150# B16.5
  • Forged Steel RF Socket Weld Flange ASTM A105 150# B16.5
Place of Origin Shanghai,China
Brand Name TOBO
Certification ISO/TUV/SGS
Model Number Forged Steel Flanges
Minimum Order Quantity 1PC
Price Negotiable
Packaging Details Standard Shipping Package
Delivery Time 15-30 Workdays
Payment Terms T/T, Western Union
Supply Ability 10 Ton/Month
Product Details
Product Name Forged Steel RF Socket Weld Flange ASTM A105 150# B16.5 Class 150Psi/300 Psi/600psi /1500 Psi
Materia Carbon Steel, ASTM A-105 Thickness 0.5-100mm
Material Forged Steel Connectiontype Weld Neck, Slip-On, Blind, Threaded, Socket Weld
Shipment FOB Tianjin/Shanghai, CFR, CIF Etc Color Metallic Silver
Keyword Steel Temperature Range -29°C To 538°C
Logo Customized Logo
Highlight

Forged Steel RF Socket Weld Flange

,

ASTM A105 RF Flange

,

150# B16.5 Socket Weld Flange
Leave a Message
Product Description

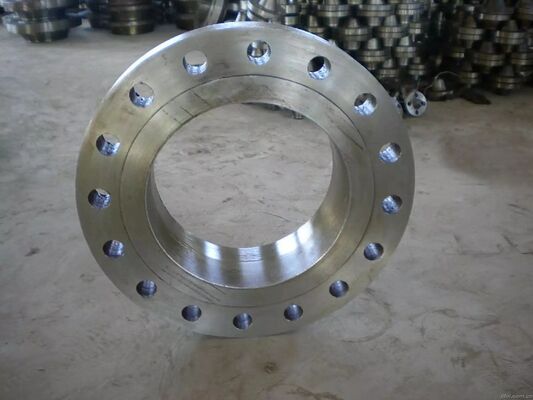

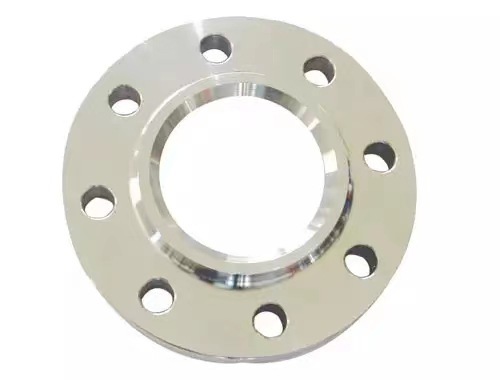

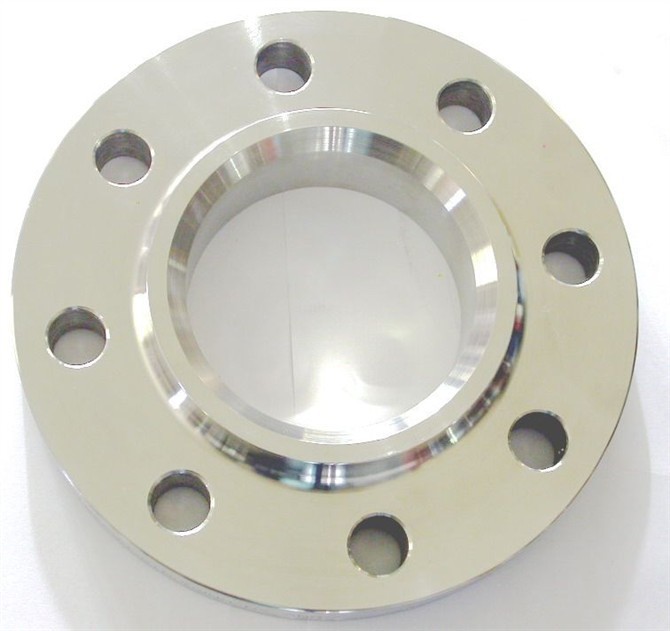

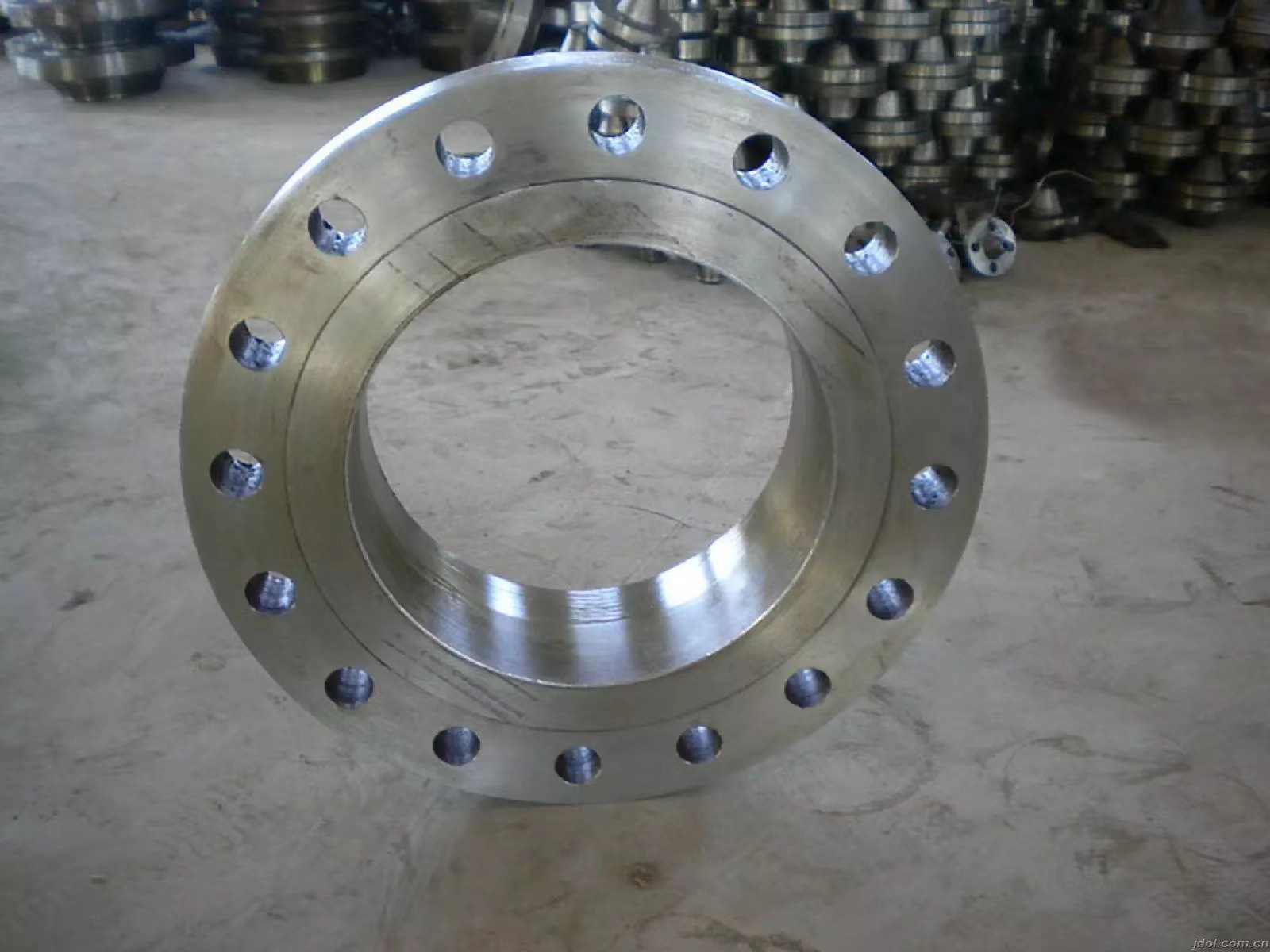

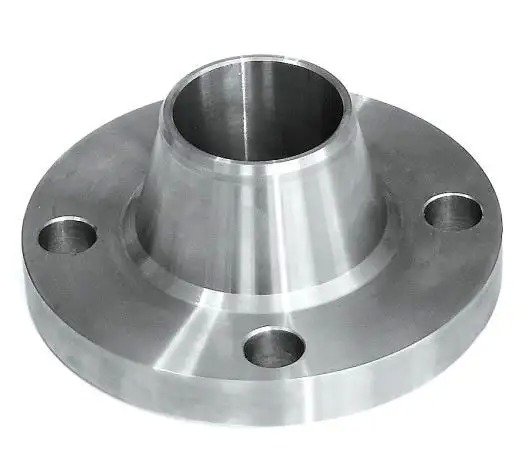

Forged Steel RF Socket Weld Flange ASTM A105 150# B16.5



1. Product Description

Forged steel flanges are high‑integrity connectors produced by hot forging from carbon, alloy, or stainless steel, with a dense, grain‑refined structure. Manufactured to ASME, EN, JIS, DIN, and GB standards, they are available in all standard types and pressure classes.

2. Product Applications

These flanges are used in oil and gas pipelines, chemical plants, power stations, shipbuilding, water treatment, and pharmaceutical facilities. They connect pipes, valves, pumps, and vessels for conveying steam, hydrocarbons, chemicals, water, and cryogenic fluids under both normal and severe service conditions.

3. Product Advantages



Forged steel flanges offer higher strength and impact resistance than cast or plate flanges. Their fine‑grained structure ensures excellent corrosion resistance and sealing reliability. Precision‑machined faces guarantee leak‑tight joints, while full traceability and compliance with international standards provide quality assurance.



​Forged Steel RF Socket Weld Flange ASTM A105 150# B16.5

4.Key Technical Parameters

Parameter Core Data
Standards ASME B16.5/B16.47, EN 10921, DIN, JIS, GB
Size Range NPS ½″ – 120″ (DN 15 – DN 3000)
Pressure Classes Class 150 – 2500# (PN 20 – 420)
Temperature –196°C to +600°C
Materials Carbon: A105, A350 LF2; Alloy: F11, F22, F91; Stainless: F304/F316L
Types & Faces WN, SO, BL, SW, THRD, LJ, Orifice; RF, FF, RTJ, MF, TG
Inspection PMI, MT/PT, optional UT/hydrotest; EN 10204 3.1/3.2



FAQ

1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.

2.How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.

4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
