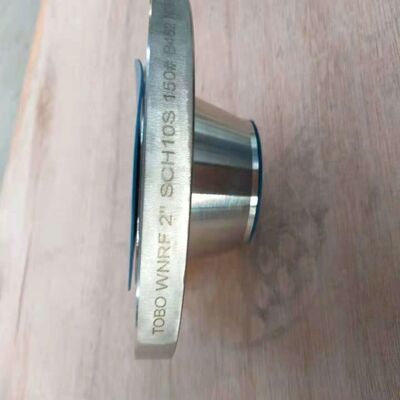

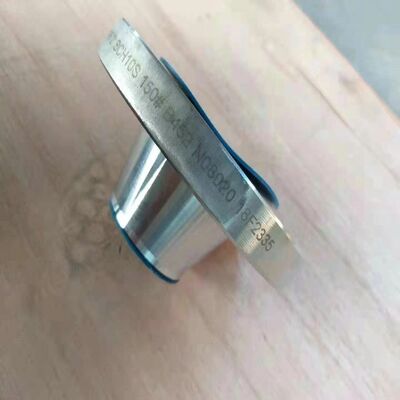

Forged Flanges Nickel Alloy B462 N08020 Welding Neck Flange WN RF 2'' 150# SCH10S ASME B16.5

  • Forged Flanges Nickel Alloy B462 N08020 Welding Neck Flange WN RF 2'' 150# SCH10S ASME B16.5
  • Forged Flanges Nickel Alloy B462 N08020 Welding Neck Flange WN RF 2'' 150# SCH10S ASME B16.5
Place of Origin Shanghai China
Brand Name TOBO
Certification ISO 9001 MTC TUV
Model Number N08020
Minimum Order Quantity 1pcs
Price Negotiation
Packaging Details PLY-WOODEN PACKAGE or AS PER CUSTOMERS' REQUIREMENT
Delivery Time 7-15days
Payment Terms T/T,Western Union
Supply Ability 500ton
Product Details
Product Name Welding Neck Flange Material ASTM B462 N08020
Technology Forged Size 2''
Pressure 150# Application Industry
Standard ASME/ANSI B16.5 Packing Plywood Case
Flange Face Raised Face
Leave a Message
Product Description

Forged Flanges Nickel Alloy B462 N08020 Welding Neck Flange WN RF 2'' 150# SCH10S ASME B16.5



Nickel alloy flange is a specialized pipe connector made from high-performance metal mixes containing nickel,

chromium, molybdenum, and iron. These components are used in extreme environments where standard

stainless steel or carbon steel fails due to intense heat, high pressure, or severe chemical corrosion.



Product Name

Forged Flange

(BL/ WN/ SO/ SW/ TH/ PL/ LWN/ Orifice/ Spade/ Spacer/ Figure 8 Blind)
Standard ASME/ANSI B16.5/16.36/16.47A/16.47B/B16.48, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092
Type Special Flange: According to the drawing Picture
Materials

Copper Nickel Alloy: ASTM B466 UNS C70600, ASTM B466 UNS C71500, CUNI90/10, CUNI70/30

Nickel Alloy: ASTM/ASME S/B366 UNS N08020, N04400, N06600, N06625, N08800, N08810, N08825, N10276,N10665,N10675
Super Stainless Steel: ASTM/ASME S/A182 F44, F904L, F317L, UNS S32750, UNS S32760
Stainless steel: ASTM/ASME S/A182 F304, F304L, F304H, F316, F316L, F321, F321H, F347H
Duplex Steel: ASTM A182 F51, F53, F55, UNS S31803, UNS S31254
Alloy Steel: ASTM/ASME S/ A182 F11, F12, F22, F5, F9, F91

Carbon Steel: ASTM/ASME S/A105, ASTM/ASME S/A350 LF2, ASTM/ASME S/A694/A694M, F42, F52, F56, F60, F65, F70....

ASTM A516 GRADE 70
Dimension (150#,300#,600#): DN15-DN1500
900# : DN15-DN1000
1500#: DN15-DN600
2500#:D N15-DN300
Test Chemical Component Analysis, Mechanical Properties, Metallurgical Analysis, Impact Testing, Hardness testing , Ferrite Testing, Inter granular corrosion testing, X-ray Inspection (RT), PMI, PT, UT, HIC & SSC test, etc. or as your requirement
Certificates API, ISO, SGS, BV, CE, PED, KOC, CCRC, PDO, CH2M HILL and etc.
Advantages

1. Abundant stock and prompt delivery

2. Reasonable for whole packages and processes.
3. 15 years' QC team service & sales management API& ASTM trained engineers.

4. More than 150 customers spread worldwide. (Petrofac, G.S Engineer, Fluor, Hyundai Heavy industry, Kuwait National Oil, Petrobras, PDVSA, Petrol Ecuador, SHELL, etc.)



NICKEL ALLOY

Trade Name ASTM Pipe Pipe Fittings UNS Forging & Flanges
Monel@ 400 B165 B366 WPNC N04400 B564 N04400
Inconel@ 600 B167 B366 WPNCI N06600 B564 N06600
Inconel@ 625 B444 B366 WPNCMC N06625 B564 N06625
Incoloy@ 800 B163 B366 WPNIC N08800 B564 N08800
Incoloy@ 800H B407 B366 WPNIC10 N08810 B564 N08810
Incoloy@ 800HT B407 B366 WPNIC11 N08811 B564 N08811
Incoloy@ 825 B423 B366 WPNICMC N08825 B564 N08825
Hastelloy@ B2 B619/622 B366 WPHB-2 N10665 B564 N10665
Hastelloy@ C276 B619/622 B366 WPHC276 N10276 B564 N10276
Hastelloy@ C22 B619/622 B366 WPHC22 N06022 B564 N06022
Carpenter 20Cb-3@ B729 B366 WP20Cb N08820 B462 N08820
SANICRO 28@ B668   N08028



STANDARDS:

ASTM B366 - ASME SB366 - Factory-Made Wrought Nickel and Nickel Alloy Fittings

ASTM A815-Standard Specification for Wrought Ferritic, Ferritic/Austenitic, and Martensitic Stainless Steel Piping Fittings

ASTM A403-Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings

ASTM A234-Standard Specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel for Moderate and High Temperature Service

ASTM A420-Standard Specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel for Low-Temperature Service

ASME B16.28 - Wrought Steel Buttwelding Short Radius Elbows and Returns 　 　 　

ASME B16.25 - Buttwelding Ends

MSS SP-43 - Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications



Our main products as follows:



· Stainless steel pipe & tube

(seamless pipe / welded pipe / square pipe / rectangular tube,duplex stainless / inconel tube)



· Carbon / alloy steel pipe & tube



(seamless pipe / ERW / SSAW / LSAW / UOE / hollow section pipe / Galvanized Pipe)



· Tubing and casting



(line pipe,water pipeline,gas pipeline,oil pipeline)



· Special steel tube



(copper tube/titanium tube/aluminium tube/nickel alloy )



· steel bar



(round bar/angle steel /flat steel/channel steel/steel wire)



· Pipe Fittings



(eblows, equal / reducing tees, concentric/eccentric reducers, caps, crosses, bends, dish end/end cup, stub ends, unions, couplings / hex couplings, swage nipples , nipples, hex. plug, sockolet, weldolet, thredolet, etc)



· Flange



(DIN flange/ AISI flange/blind flange/welding flange/stainless flange/slip on flange)



· steel sheet / coil



(stainless steel/carbon steel/alloy steel/galvanized steel/aluminium )



· Valve



(ball valve/gate valve/butterfly valve/globe valve/swing check valve/ check valve)



Forged Flanges Nickel Alloy B462 N08020 Welding Neck Flange WN RF 2'' 150# SCH10S ASME B16.5
