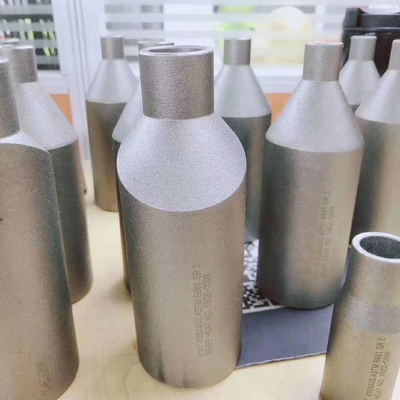

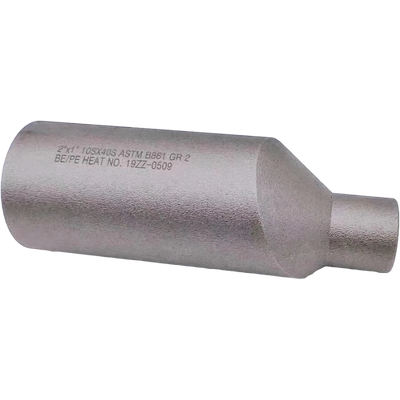

Forged Pipe Fittings 2'' x 1'' BE/PE Eccentric Swage Nipple ASTM B861 GR2 Titanium Ti2 MSS SP95

Forged Pipe Fittings 2'' x 1'' BE/PE Eccentric Swage Nipple ASTM B861 GR2 Titanium Ti2 MSS SP95

Specifications:

• Outlet’s: 1/2” to 24” in 3000 LBS, 6000 LBS, 9000 LBS available with NACE MR 01-75.

• Stainless Steel Sockolet

• Standard: ASTM / ASME A/SA 182

• Grade: F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L.

Swage Nipples Definition:

A pipe nipple is a length of straight pipe with male threads on both ends. It is one of the most popular category of pipe fittings. It is a connector or a coupling threaded on both ends. PBE Pipe nipples are used to allow plumbing to be connected to a water heater or other plumbing. They are used to fit straight end hose or pipe. A combination of pipe nipples are recommended for low-pressure discharge and suction service for various compatible liquids and not for compressible products like air, nitrogen or steam.

Swage nipples are often used in small diameter pipe systems, and are similar to butt weld reducers. They are concentric and eccentric available, with various ends. The most common types are:

• PBE nipple = Plain Both Ends

• BBE nipple= Beveled Both Ends

• TBE nipple= Treaded Both Ends

Titanium usage in different:

CP grade1 can be used in the deep drawing parts for it's good elogation and excellent corrossion-resistance.

CP grade2 is widely used in the commercially pure Titanium.

CP grade3 is almost only used in the pressure vessel.

CP grade4 can be used in some fittings and fastening pieces,but for complete shape need 300 degree celsius to form

Alloy Gr5 ,Ti6AL4V,is one of the most popular Ti alloys because of itscomprehensive

mechanical,physical and chemical properties.

Alloy Gr7,add little palladium in cp Titanium and it has the most excellent corrosion-resistence

Alloy Gr9,Ti3AL2.5v,is used mostly in the golf clubs and bicycle girders.

Alloy Gr12,it has the similar properties with the grade7.

TItanium tube process:

Titanium sponge→Compacting electrodes→Melting→Foring→Bar billets→ Extruding→Rolling→Strightening→Seamless Tubes

Duplex Steel:

• Standard: ASTM / ASME A/SA 182

• Grade: F44, F45, F51, F53, F55, F60, F61

Carbon Steel:

• Standard: ASTM A105/A694/ A350 LF3/A350 LF2.

• Grade: F42, 46, 52, 56, 60, 65, 70

Alloy Steel:

• Standard: ASTM A182

• Grade: F1, F5, F9, F11, F22, F91

Copper Alloy:

• Standard: ASTM / ASME SB 61, 62, 151, 152.

• Grade: UNS NO. C 70600 (CU -NI- 90/10), C 71500 (CU -NI- 70/30) C 71640

Product Details:

Material Description

Common titanium material
