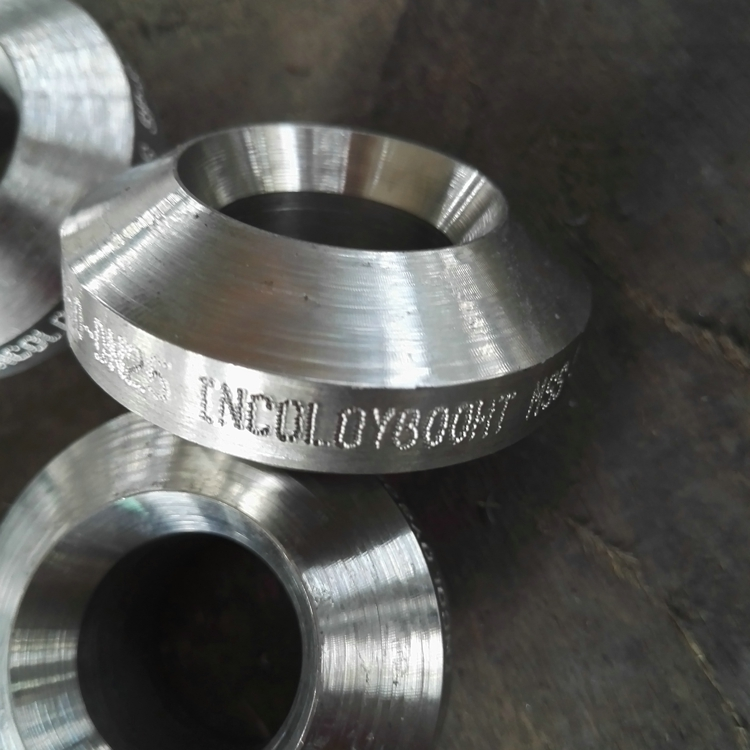

Nickel Alloy Fittings Incoloy 800HT Weldolet 3'' x 1'' SCH10S MSS SP97
Product Details
| Product Name | Weldolet | Material | Incoloy 800HT |
|---|---|---|---|
| Technology | Forged | Size | 3'' X 1'' |
| Pressure | 3000 | Application | Industry |
| Standard | MSS SP97 | Thickness | SCH10S |
| Highlight | Nickel Alloy Fittings Incoloy 800HT,Weldolet 3'' x 1'' SCH10S,Forged Pipe Fittings MSS SP97 |
||
Product Description
Nickel Alloy Fittings Incoloy 800HT Weldolet 3'' x 1'' SCH10S MSS SP97
Nickel Alloy Outlet
Nickel and nickel-based alloys possess effective resistance to a wide range of corrosive environments , in many cases, some materials such as stainless steel or super stainless steel are unable to resist these corrosive conditions. Nickel itself is a very versatile corrosion-resistant material, while as an alloying element, in a large composition range, nickel possesses Metallurgical compatibility with the other metals ,can be composed of a number of binary and ternary alloys and other complex alloys system,nickel-based alloys have a unique corrosion resistance and high temperature corrosion resistance.to deal with the corrosion problems that include chemical,petrochemical, marine, paper, agricultural chemicals, oil and gas, energy conversion and many other industrial environments. In this artical, the corrosion resistance in aqueous solution of nickel and Part of the nickel-base alloys was discussed.
Some common applications for nickel alloys:
- Desalination plants
- Pressure vessels
- Oil platforms
- Heat exchangers
- Seawater handling
- Pulp bleaching
| Product Name | Forged Fittings |
| Standard | ASME/ANSI B16.11 / MSS SP97 / MSS SP95 / ASTM A733 / MSS SP83 |
| Type | Threaded Fittings / Socket Welding Fittings |
| Materials |
Stainless steel:ASTM/ASMES/A182F304 | F304L |F304H | F316 | F316L | F321 | F321H | F347|316Ti | 309S |310S |409|410 | 410S | 416 | 420 | 430 | 630 | 660 | 254SMO | 253MA | 353MA Nickel Alloy: ASTM/ASME S/B564 UNS N08020| N04400|N06600| N06625| N08800| N08810|N08825| N10276|N10665|N10675|Incoloy 800 | Incoloy 800H | Incoloy 800HT | Incoloy 825 | Incoloy 901 | Incoloy 925 | Incoloy 926, Inconel 600 | Inconel 601 | Inconel 625 | Inconel 706 | Inconel 718 | Inconel X-750, Monel 400 | Monel 401 | Monel R 405 | Monel K 500 Ti alloy:ASTM R50250/GR.1 | R50400/GR.2 | R50550/GR.3 | R50700/GR.4 | GR.6 |R52400/GR.7 | R53400/GR.12 | R56320/GR.9 |R56400/GR.5 Carbon steel: ASTM/ASME S/A105, ASTM/ASME S/A350 LF2, ASTM/ASME S/A694/A694M, F42, F52, F56, F60, F65, F70.... ASTM A516 GRADE 70 |
| Marking | Supply Logo + Standard + Size(mm) + HEAT NO +or as your requirement |
| Test | Chemical Component Analysis, Mechanical Properties, Metallurgical Analysis, Impact Testing, Hardness testing , Ferrite Testing, Intergranular corrosion testing, X-ray Inspection (RT), PMI, PT, UT, HIC & SSC test, etc. or as your requirment |
| Certificates | API, ISO, SGS, BV, CE, PED, KOC, and etc. |
| Advantages |
Corrosion Resistance Heat Resistance Heat Treatment Welding Machining |
NICKEL ALLOY
| Trade Name | ASTM Pipe | Pipe Fittings | UNS | Forging & Flanges |
| Monel@ 400 | B165 | B366 WPNC | N04400 | B564 N04400 |
| Inconel@ 600 | B167 | B366 WPNCI | N06600 | B564 N06600 |
| Inconel@ 625 | B444 | B366 WPNCMC | N06625 | B564 N06625 |
| Incoloy@ 800 | B163 | B366 WPNIC | N08800 | B564 N08800 |
| Incoloy@ 800H | B407 | B366 WPNIC10 | N08810 | B564 N08810 |
| Incoloy@ 800HT | B407 | B366 WPNIC11 | N08811 | B564 N08811 |
| Incoloy@ 825 | B423 | B366 WPNICMC | N08825 | B564 N08825 |
| Hastelloy@ B2 | B619/622 | B366 WPHB-2 | N10665 | B564 N10665 |
| Hastelloy@ C276 | B619/622 | B366 WPHC276 | N10276 | B564 N10276 |
| Hastelloy@ C22 | B619/622 | B366 WPHC22 | N06022 | B564 N06022 |
| Carpenter 20Cb-3@ | B729 | B366 WP20Cb | N08820 | B462 N08820 |
| SANICRO 28@ | B668 | N08028 |
STANDARDS:
ASTM B366 - ASME SB366 - Factory-Made Wrought Nickel and Nickel Alloy Fittings
ASTM A815-Standard Specification for Wrought Ferritic, Ferritic/Austenitic, and Martensitic Stainless Steel Piping Fittings
ASTM A403-Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
ASTM A234-Standard Specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel for Moderate and High Temperature Service
ASTM A420-Standard Specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel for Low-Temperature Service
ASME B16.28 - Wrought Steel Buttwelding Short Radius Elbows and Returns
ASME B16.25 - Buttwelding Ends
MSS SP-43 - Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications
Our main products as follows:
· Stainless steel pipe & tube
(seamless pipe / welded pipe / square pipe / rectangular tube,duplex stainless / inconel tube)
· Carbon / alloy steel pipe & tube
(seamless pipe / ERW / SSAW / LSAW / UOE / hollow section pipe / Galvanized Pipe)
· Tubing and casting
(line pipe,water pipeline,gas pipeline,oil pipeline)
· Special steel tube
(copper tube/titanium tube/aluminium tube/nickel alloy )
· steel bar
(round bar/angle steel /flat steel/channel steel/steel wire)
· Pipe Fittings
(eblows, equal / reducing tees, concentric/eccentric reducers, caps, crosses, bends, dish end/end cup, stub ends, unions, couplings / hex couplings, swage nipples , nipples, hex. plug, sockolet, weldolet, thredolet, etc)
· Flange
(DIN flange/ AISI flange/blind flange/welding flange/stainless flange/slip on flange)
· steel sheet / coil
(stainless steel/carbon steel/alloy steel/galvanized steel/aluminium )
· Valve
(ball valve/gate valve/butterfly valve/globe valve/swing check valve/ check valve)
