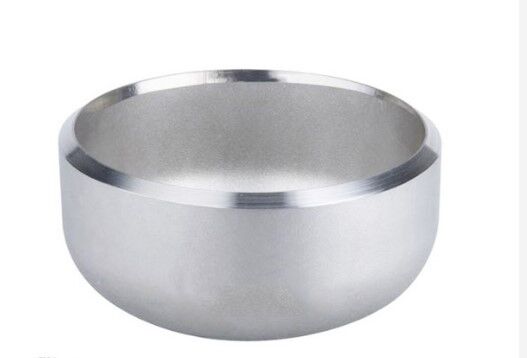

Alloy C-22 / Hastelloy C-22 Nickel Alloy Cap 2" SCH40 SMLS ASME B16.9

  • Alloy C-22 / Hastelloy C-22 Nickel Alloy Cap 2" SCH40 SMLS ASME B16.9
  • Alloy C-22 / Hastelloy C-22 Nickel Alloy Cap 2" SCH40 SMLS ASME B16.9
Place of Origin Shanghai, China
Brand Name TOBO
Certification SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number Alloy C-22 / Hastelloy C-22
Minimum Order Quantity 1pcs
Price Negotiation
Packaging Details In wooden case, pallets or as per customers’ requirement
Delivery Time 15 work days
Supply Ability 1000000 PCS/MONTH
Product Details
Product Name Cap Size 2''
Standard ASME B16.9 Material Grade Alloy C-22 / Hastelloy C-22
Product Type Butt Weld Fitting Type Seamless Or Weld
Connection Welding Thickness SCH40
Leave a Message
Product Description

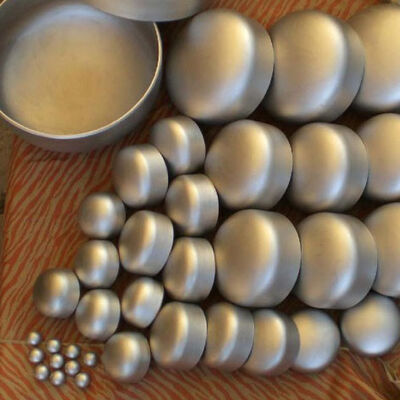

Alloy C-22 / Hastelloy C-22 Nickel Alloy Cap 2" SCH40 SMLS ASME B16.9


Nickel Alloy Pipe Fittings



Our nickel alloys are adopted for use in tough environments as oil platforms and desalination plants.

By us you find nickel alloys with corrosion resistance, good weldability and formability.



With a nickel alloy from us you get a material adopted for use in tough environment. Within our product range you can

find corrosion resistance alloys, welding alloys and nickel alloys for electrical resistance and electronic instruments.

We also have high temperature alloys. By varying the combination of different chemical elements a wide range of useful

properties can be achieved as high corrosion resistance, high rupture strength, toughness, metallurgical stability,

good fabricability, creep strength and good fatigue life.

Some common applications for nickel alloys:

· Desalination plants

· Pressure vessels

· Oil platforms

· Heat exchangers

· Seawater handling

· Pulp bleaching



Main Production Name 45 / 90 / 180 Long / Short Radius Elbows, Equal / Reducing Crosses, Concentric /Eccentric Reducers, Caps, Stub Ends,Pipe fittings
Standard ASME/ANSI B16.9, ISO, JIS, DIN, BS,GB, SH, HG,QOST,ETC.
Size 1/2’’~48’’(Seamless);16’’~72’’(Welded)
Wall thickness Sch5~Sch160XXS
Manufacturing process Push, Press, Forge, Cast, etc.
Nickel alloy steel Alloy 200/Nickel 200/N02200/2.4066/ASTM B366 WPN;
Alloy 201/Nickel 201/N02201/2.4068/ASTM B366 WPNL;
Alloy 400/Monel 400/N04400/NS111/2.4360/ASTM B366 WPNC;
Alloy K-500/Monel K-500/N05500/2.475;
Alloy 600/Inconel 600/N06600/NS333/2.4816;
Alloy 601/Inconel 601/N06001/2.4851;
Alloy 625/Inconel 625/N06625/NS336/2.4856;
Alloy 718/Inconel 718/N07718/GH169/GH4169/2.4668;
Alloy 800/Incoloy 800/N08800/1.4876;
Alloy 800H/Incoloy 800H/N08810/1.4958;
Alloy 800HT/Incoloy 800HT/N08811/1.4959;
Alloy 825/Incoloy 825/N08825/2.4858/NS142;
Alloy 925/Incoloy 925/N09925;
Hastelloy C/Alloy C/N06003/2.4869/NS333;
Alloy C-276/Hastelloy C-276/N10276/2.4819;
Alloy C-4/Hastelloy C-4/N06455/NS335/2.4610;
Alloy C-22/Hastelloy C-22/N06022/2.4602;
Alloy C-2000/Hastelloy C-2000/N06200/2.4675;
Alloy B/Hastelloy B/NS321/N10001;
Alloy B-2/Hastelloy B-2/N10665/NS322/2.4617;
Alloy B-3/Hastelloy B-3/N10675/2.4600;
Alloy X/Hastelloy X/N06002/2.4665;
Alloy G-30/Hastelloy G-30/N06030/2.4603;
Alloy X-750/Inconel X-750/N07750/GH145/2.4669;
Alloy 20/Carpenter 20Cb3/N08020/NS312/2.4660;
Alloy 31/N08031/1.4562;
Alloy 901/N09901/1.4898;
Incoloy 25-6Mo/N08926/1.4529/Incoloy 926/Alloy 926;
Inconel 783/UNS R30783;
NAS 254NM/N08367; Monel 30C
Nimonic 80A/Nickel Alloy 80a/UNS N07080/NA20/2.4631/2.4952
Nimonic 263/N07263
Nimonic 90/UNS N07090;
Incoloy 907/GH907; Nitronic 60/Alloy 218/UNS S21800
Package Wooden cases, pallets, nylon bags or according to the customers' requirements
Delivery time 10-100 days depending on quantity
Payment terms T/T or Western Union or LC
Shipment FOB Tianjin/Shanghai, CFR, CIF, etc
Application Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc
Remarks Other materials and drawings are available.
The third party inspection: BV,SGS,LOIYD,TUV,and other party alloyed by clients.



Chemical Composition

Nickel (plus cobalt) ......................................................99.0 min.
Copper........................................................................0.25 max.
Iron..............................................................................0.40 max.
Manganese .................................................................0.35 max.
Carbon........................................................................0.15 max.
Silicon .........................................................................0.35 max.
Sulfur ..........................................................................0.01 max



C Si Mn P S Ni Gr Al Ti Cu

≤0.10

≤1.0

≤1.50

≤0.030

≤0.015

 30.0~35.0 19.00~23.00 0.15~0.60 0.15~0.60

≤0.75
0.012 0.30 0.27 0.015 0.0005 30.5 19.9 0.32 0.40 0.03



Alloy Ni C Mn Fe S Si Cu Cr Al Ti Nb Mo
Nickel 200 99.5 0.08 0.2 0.2 0.005 0.2 0.1 -- -- -- -- --
Nickel 200 99.5 0.01 0.2 0.2 0.005 0.2 0.1 -- -- -- -- --
Monel 400 66.5 0.2 1 1.2 0.01 0.2 31.5 -- -- -- -- --
Monel 401 42.5 0.05 1.6 0.4 0.008 0.1   -- -- -- -- --
Monel K500 66.5 0.1 0.8 1 0.005 0.2 29.5 -- 2.7 0.5 -- --
Inconel 600 76 0.08 0.5 8 0.006 0.2 0.2 15.5 -- -- -- --
Inconel 601 60.5 0.05 0.5 14.1 0.007 0.2 0.5 23 1.4 -- -- --
Inconel 718 52.5 0.04 0.2 18.5 0.008 0.2 0.2 19 0.5 0.9 5.1 3
Inconel X-715 73 0.04 0.5 7 0.005 0.2 0.2 15.5 0.7 2.5 1 --
Incoloy 800 32.5 0.05 0.8 46 0.008 0.5 0.4 21 0.4 0.4 -- --
Incoloy 803 32.0-
37.0		 0.06-
0.10		 ≤1.5   ≤0.015 ≤1.0 ≤0.75 25.0-
29.0		 0.15-
0.60		 0.15-
0.6		 -- --
Incoloy 825 42 0.03 0.5 30.4 0.02 0.2 2.2 21.5 0.1 0.9 -- 3



STANDARDS:

ASTM B366 - ASME SB366 - Factory-Made Wrought Nickel and Nickel Alloy Fittings

ASTM A815-Standard Specification for Wrought Ferritic, Ferritic/Austenitic, and Martensitic Stainless Steel Piping Fittings

ASTM A403-Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings

ASTM A234-Standard Specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel for Moderate and High Temperature Service

ASTM A420-Standard Specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel for Low-Temperature Service

ASME B16.28 - Wrought Steel Buttwelding Short Radius Elbows and Returns 　 　 　

ASME B16.25 - Buttwelding Ends

MSS SP-43 - Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications


Alloy C-22 / Hastelloy C-22 Nickel Alloy Cap 2" SCH40 SMLS ASME B16.9
