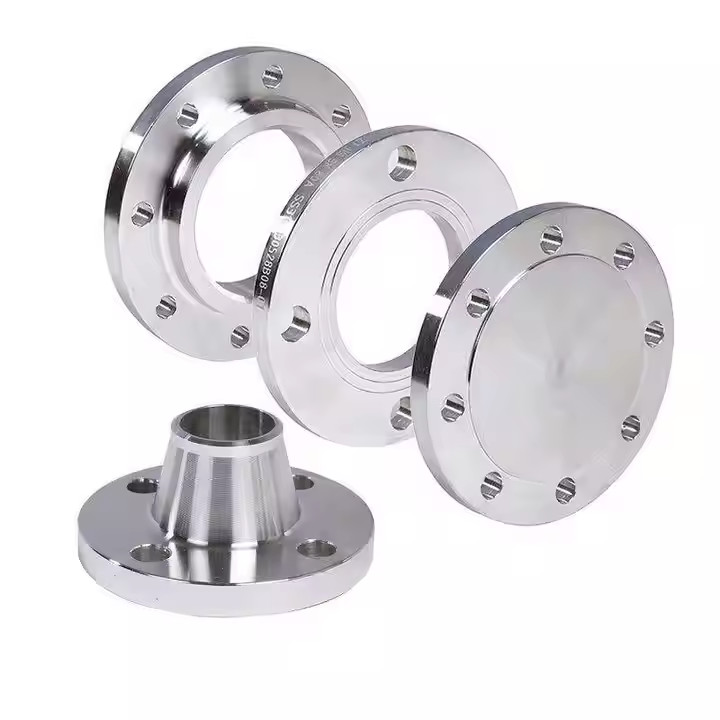

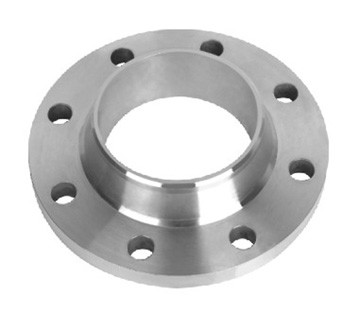

Chemical Processing Weld Neck Flange

The Chemical Processing Weld Neck Flange is designed for aggressive chemical service where corrosion resistance and leak-tight integrity are critical. Forged from 304L and 316L stainless steel, these flanges resist attack from acids, chlorides and oxidizing media commonly found in chemical plants, petrochemical facilities and pharmaceutical processing lines.

Available to ASME B16.5 and DIN 2633 standards, each chemical processing weld neck flange features a raised face sealing surface and a butt weld hub that delivers a smooth, crevice-free bore. The low carbon content of 304L and 316L minimizes sensitization during welding, preserving corrosion resistance at the heat-affected zone and extending service life in demanding chemical environments.

Product Specifications

Key Advantages

• Forged 316L and 304L stainless steel for superior corrosion resistance
• Low carbon content minimizes sensitization during welding
• Resists acids, chlorides and oxidizing chemical media
• Raised face sealing surface for reliable gasket performance
• Crevice-free butt weld bore reduces contamination risk
• Conforms to ASME B16.5 and DIN 2633 dimensional standards
• Full material traceability with EN 10204 3.1 certificates
• Suitable for pharmaceutical and food-grade processing lines

Frequently Asked Questions

Q: Why choose 316L stainless steel for chemical processing weld neck flanges?

A: 316L stainless steel contains molybdenum, which significantly improves resistance to pitting and crevice corrosion in chloride-containing chemical environments. Its low carbon content also prevents sensitization during welding, making it the preferred choice for chemical plant piping.

Q: What chemical media can these flanges handle?

A: Chemical processing weld neck flanges in 316L resist a wide range of acids, alkalis and salt solutions, including dilute sulfuric acid, phosphoric acid and chlorides. For highly concentrated acids or elevated temperatures, we recommend upgrading to duplex or nickel alloy materials.

Q: Do you offer flanges to DIN standards for chemical plants?

A: Yes, our chemical processing weld neck flanges are available to DIN 2633 (PN series) as well as ASME B16.5 (Class series). We also support EN 1092-1 dimensions for European chemical projects.

Manufacturing & Quality Control

Chemical processing weld neck flanges are forged and then solution annealed to restore corrosion resistance after hot working. The raised face sealing surface is machined to a controlled finish for reliable gasket performance, and each flange is pickled and passivated to remove surface contaminants and form a protective oxide layer. Material traceability is maintained from raw bar stock through to final inspection.

Q: Do you provide passivation and surface treatment for chemical flanges?

A: Yes, all stainless steel chemical processing flanges are pickled and passivated as standard. For pharmaceutical and high-purity applications, we can also provide electropolished finishes and certified cleanliness levels on request.

Q: What size range do you offer for chemical processing weld neck flanges?

A: We supply chemical processing weld neck flanges from 1/2 inch up to 24 inch in Class 150 through Class 600 ratings. Larger sizes and custom dimensions are available on request to suit specific chemical plant piping layouts.
