Corrosion Resistant SS Stub Ends

  • Corrosion Resistant SS Stub Ends
  • Corrosion Resistant SS Stub Ends
  • Corrosion Resistant SS Stub Ends
  • Corrosion Resistant SS Stub Ends
  • Corrosion Resistant SS Stub Ends
Place of Origin China
Brand Name Tobo
Certification ISO 9001:2015, SGS, BV
Model Number SS-STUBEND-CORR
Minimum Order Quantity 1 Piece
Price USD 3-55 / Piece (Depends on material and size)
Packaging Details Plywood cases or wooden pallets with waterproof wrapping, export standard
Delivery Time 10-30 days depending on quantity
Payment Terms L/C,T/T,Western Union
Supply Ability 30,000 Pieces per Month
Product Details
Product Name Corrosion Resistant SS Stub Ends Application Chemical Processing
Corrosion Resistance Excellent (Passivation Treated) Material Grade SS304, SS304L, SS316, SS316L
Standard ASME B16.9, MSS SP-43 Size Range 1/2 Inch To 24 Inch
Wall Thickness Sch5S To Sch160 Surface Treatment Pickling And Passivation
Highlight

Corrosion Resistant Stub End

,

Anti Rust SS Fittings

,

Stainless Steel Stub Ends
Leave a Message
Product Description

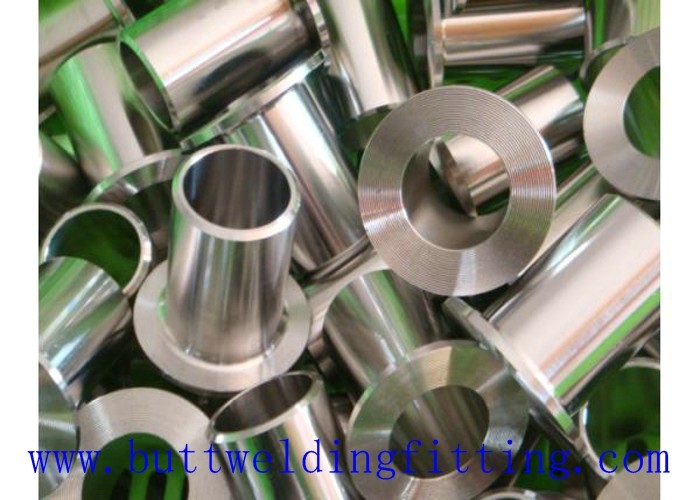

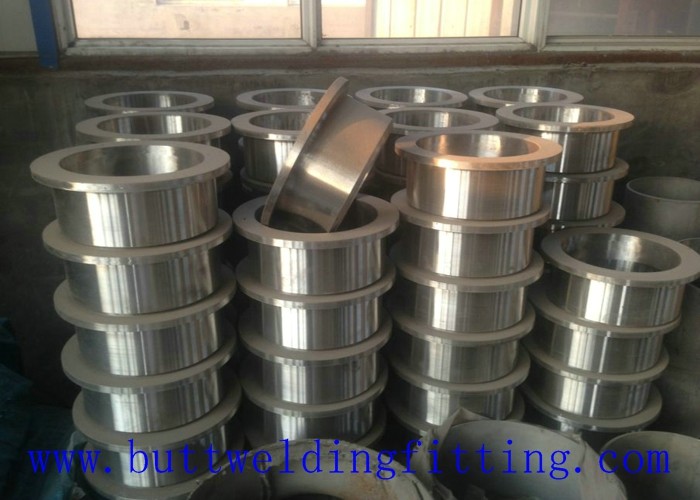

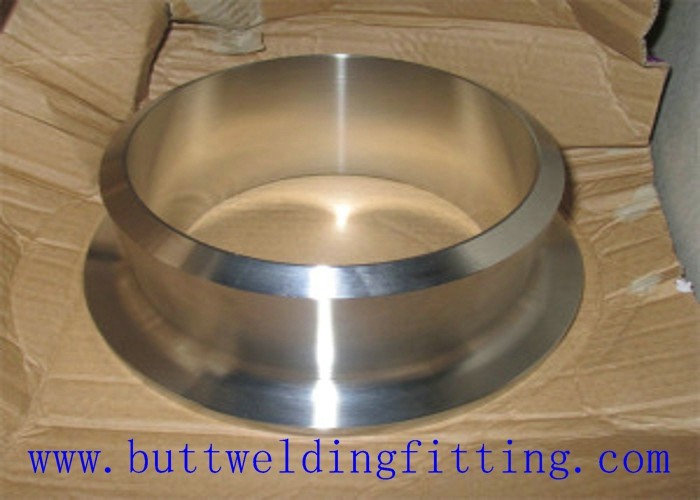

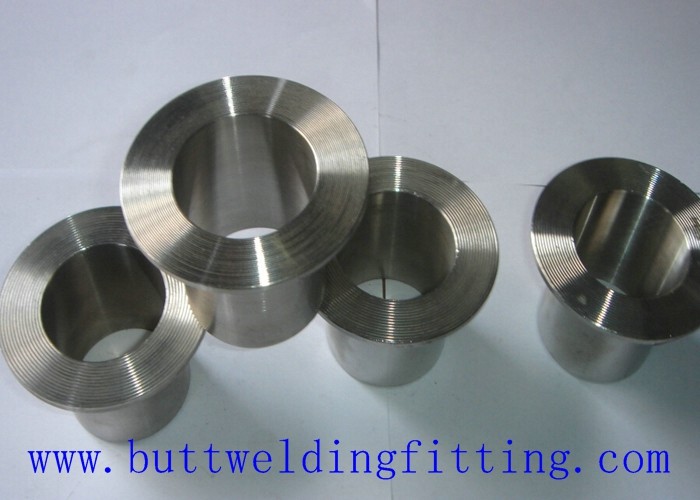

Corrosion Resistant SS Stub Ends
Product Overview

The Corrosion Resistant SS Stub Ends are specially processed stainless steel lap joint fittings engineered for chemical processing and other aggressive media applications. Manufactured to ASME B16.9 and MSS SP-43 standards, these SS stub ends combine dimensional accuracy with long-term durability through passivated stainless steel surfaces.

Every corrosion resistant stub end is produced from verified stainless steel plates and pipes with full material traceability. After forming and machining, each fitting undergoes pickling and passivation treatment to remove surface contaminants and restore the protective chromium oxide layer. This process significantly enhances anti-rust performance, extending service life even in humid, acidic, or chloride-containing environments.

Specifications
Standard ASME B16.9, MSS SP-43
Material Grade SS304, SS304L, SS316, SS316L
Surface Treatment Pickling, Passivation
Size Range 1/2 Inch to 24 Inch
Wall Thickness Sch5S to Sch160
Type Long Type, Short Type
Connection Type Butt Weld
Corrosion Test Salt Spray Test Available
Certification ISO 9001:2015
Key Features
  • Passivated surface provides excellent corrosion resistance in aggressive media
  • SS316L option delivers superior performance against chlorides and acids
  • Low carbon grades minimize sensitization risk during welding
  • Smooth surface finish reduces media adhesion and localized corrosion
  • Precise machining ensures consistent wall thickness and flange fit
  • Anti-rust packaging protects fittings during long-distance sea transport
  • Full mill test certificates confirm chemical composition and corrosion performance
Applications
  • Chemical and pharmaceutical processing lines
  • Acid and alkali transfer piping
  • Food and beverage production plants
  • Water treatment and desalination facilities
  • Coastal and offshore installations
Quality Assurance

Corrosion resistance starts with material quality. We source stainless steel from certified steel mills and verify the chemical composition of every heat before production. Our passivation process follows ASTM A967 standards, and we can provide salt spray test reports to demonstrate anti-rust performance.

The production line is managed under an ISO 9001:2015 quality system, with dimensional inspection, surface inspection, and pressure verification performed at multiple checkpoints. With 15 years of experience supplying corrosion resistant pipe fittings to chemical and marine projects worldwide, we ensure material integrity and reliable performance.

Frequently Asked Questions
Which grade is best for seawater service?
For seawater and chloride-rich environments, we recommend SS316L corrosion resistant stub ends. The addition of molybdenum in SS316L provides significantly better pitting and crevice corrosion resistance than SS304.
How is the passivation treatment performed?
The fittings are first pickled in a nitric acid solution to remove scale and surface contamination, then passivated to promote the formation of a uniform chromium oxide layer. The treated surface is tested to confirm corrosion resistance.
Can you supply stub ends for high temperature acid service?
Yes, but the grade selection depends on the acid type, concentration and temperature. Please provide your service conditions and our engineers will recommend the most suitable stainless steel grade for your application.
Do you offer salt spray test reports?
Yes. Salt spray testing per ASTM B117 can be arranged for each batch, and the test report will be included in the shipping documentation. Third-party testing is also available.
