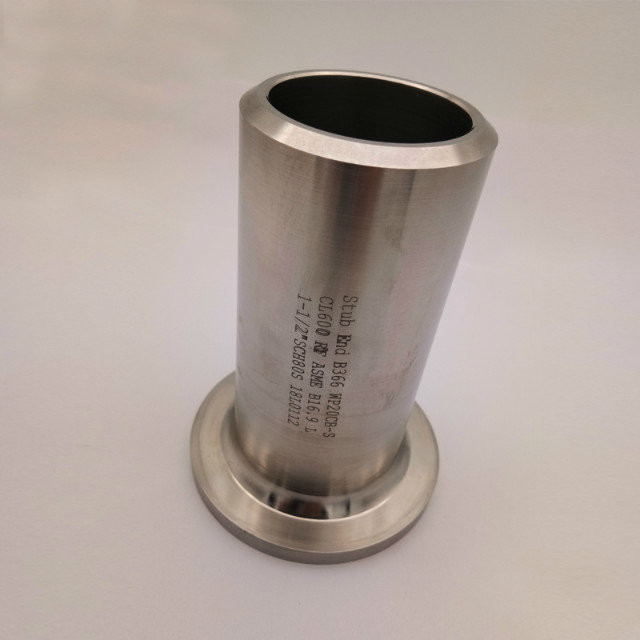

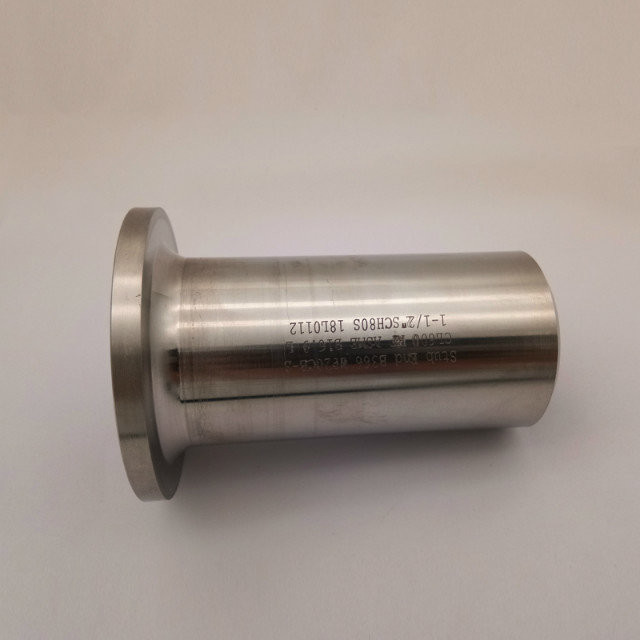

Seamless Stainless Steel Stub Ends ASME B16.9

  • Seamless Stainless Steel Stub Ends ASME B16.9
  • Seamless Stainless Steel Stub Ends ASME B16.9
  • Seamless Stainless Steel Stub Ends ASME B16.9
  • Seamless Stainless Steel Stub Ends ASME B16.9
  • Seamless Stainless Steel Stub Ends ASME B16.9
Place of Origin China
Brand Name Tobo
Certification ISO 9001:2015, FDA, SGS, BV
Model Number SS-STUBEND-FOOD
Minimum Order Quantity 1 Piece
Price USD 4-60 / Piece (Depends on material and size)
Packaging Details Plywood cases or wooden pallets with waterproof wrapping, export standard
Delivery Time 10-30 days depending on quantity
Payment Terms L/C,T/T,Western Union
Supply Ability 30,000 Pieces per Month
Product Details
Product Name Seamless Stainless Steel Stub Ends Application Food And Beverage Piping
Construction Seamless Material Grade SS304, SS316L
Standard ASME B16.9 Size Range 1/2 Inch To 24 Inch
Wall Thickness Sch10S To Sch160 Surface Finish Mirror Polished (Ra Less Than 0.8 Um)
Highlight

Seamless Stub End

,

ASME B16.9 Pipe Fitting

,

Food Grade SS Fittings
Leave a Message
Product Description
Seamless Stainless Steel Stub Ends ASME B16.9
Product Overview

The Seamless Stainless Steel Stub Ends ASME B16.9 are hygienic grade pipe fittings designed for food, beverage and pharmaceutical processing lines. Manufactured from seamless SS304 and SS316L pipe with a mirror polished surface finish, these stub ends provide the smooth, crevice-free surfaces required for sanitary applications.

Because the fittings are seamless, there are no weld seams inside the bore where product could accumulate and breed bacteria. The mirror polished interior with roughness below Ra 0.8 microns allows complete drainage and easy cleaning, meeting the strict hygiene standards of the food industry. Manufactured to ASME B16.9 dimensions, these food grade stub ends pair perfectly with lap joint flanges, enabling fast disassembly for inspection and sanitation.

Specifications
Standard ASME B16.9
Construction Seamless
Material Grade SS304, SS316L
Surface Finish Mirror Polished, Ra Less Than 0.8 um
Size Range 1/2 Inch to 24 Inch
Wall Thickness Sch10S to Sch160
Connection Type Butt Weld
Certification ISO 9001:2015, FDA Compliant Material
Key Features
  • Seamless construction eliminates internal crevices and bacteria traps
  • Mirror polished surface below Ra 0.8 microns for hygienic cleaning
  • SS316L option provides superior resistance to acidic food products
  • Complete drainage design prevents product retention
  • Fast disassembly with lap joint flanges for routine sanitation
  • FDA compliant material grades suitable for food contact
  • Full material certificates with each batch
Applications
  • Food processing and packaging lines
  • Beverage and dairy production plants
  • Pharmaceutical and biotech process piping
  • Brewery and distillery systems
  • Clean in place (CIP) installations
Quality Assurance

Hygienic applications demand rigorous quality control. Our seamless stainless steel stub ends are produced from food grade material with certified chemical composition, and the polishing process is verified with surface roughness measurement. Each fitting is inspected for internal surface quality, dimensional accuracy and weld preparation.

Our facility operates under ISO 9001:2015, and material certificates confirm FDA compliance for food contact applications. With 15 years of experience supplying hygienic pipe fittings to the food and beverage industry, we understand the importance of surface quality, cleanability and full documentation.

Why Choose Our Seamless Stub Ends

Our production team combines advanced pipe forming technology with rigorous process control to deliver seamless fittings that meet the expectations of international food and beverage manufacturers. Every order is supported by responsive communication, clear documentation and reliable delivery schedules.

We welcome sample orders so that your quality team can verify the surface finish and dimensional accuracy firsthand before volume procurement.

Frequently Asked Questions
Q1: Why is a seamless fitting better for food processing?

A: Seamless stub ends have no longitudinal weld seam inside the bore, eliminating crevices where food residue and bacteria could accumulate. This makes cleaning and sanitation much more effective.

Q2: What surface roughness can you achieve?

A: Our standard hygienic finish is mirror polished with surface roughness below Ra 0.8 microns. Finer finishes such as Ra 0.4 microns can be provided for pharmaceutical applications.

Q3: Is SS304 suitable for food contact?

A: Yes, SS304 is FDA compliant and widely used in food processing. For acidic or chloride containing food products, SS316L provides better corrosion resistance and is recommended.

Q4: Can these fittings be cleaned with CIP systems?

A: Yes. The smooth mirror polished bore and seamless construction make these stub ends fully compatible with clean in place systems, allowing effective cleaning without disassembly of the pipeline.
