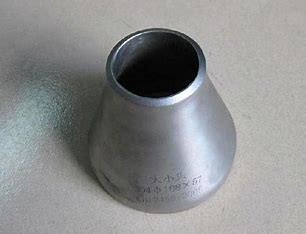

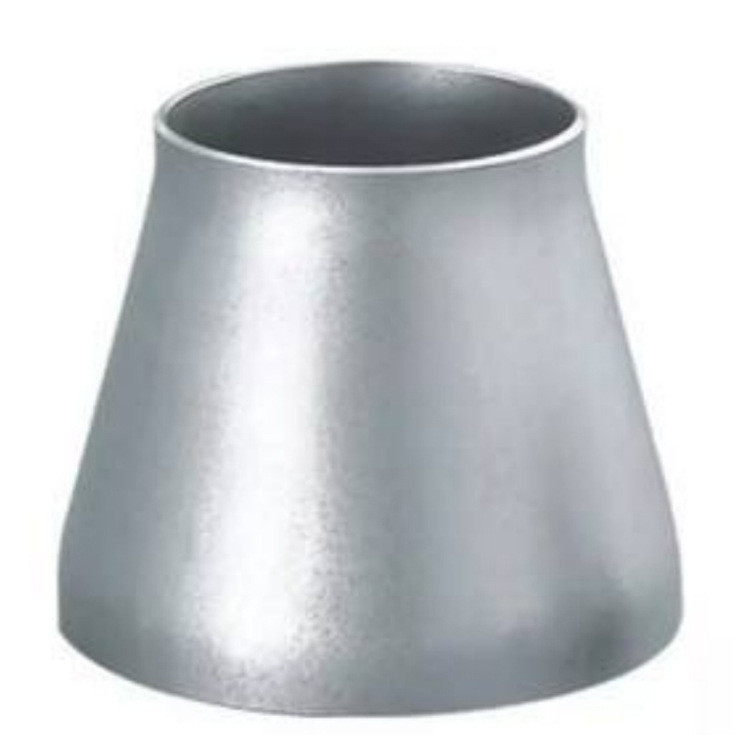

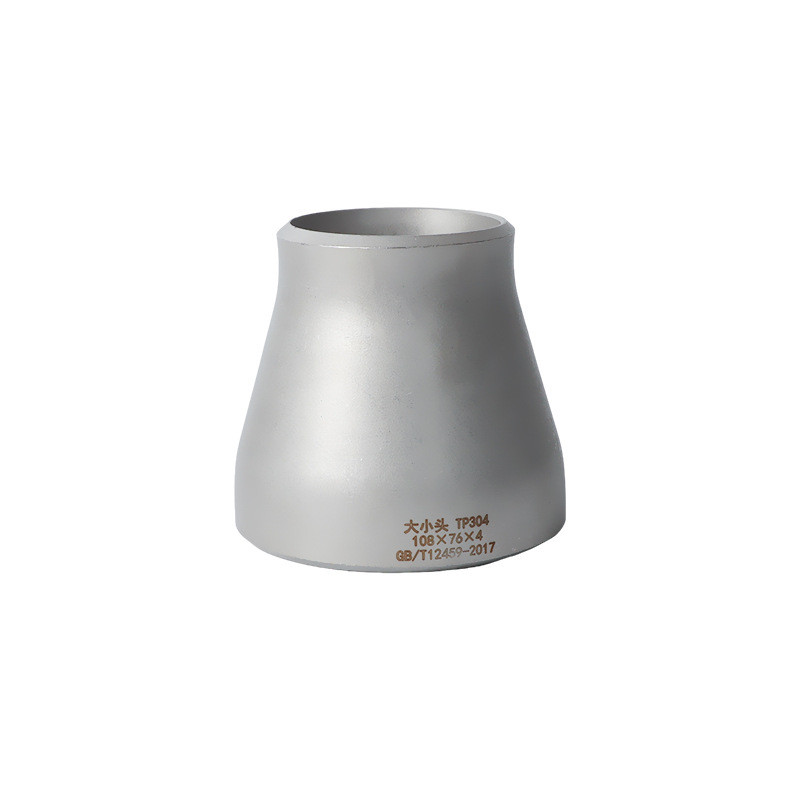

EN10253-2 Stainless Steel Concentric Reducer DN150 SCH40S

  • EN10253-2 Stainless Steel Concentric Reducer DN150 SCH40S
  • EN10253-2 Stainless Steel Concentric Reducer DN150 SCH40S
  • EN10253-2 Stainless Steel Concentric Reducer DN150 SCH40S
  • EN10253-2 Stainless Steel Concentric Reducer DN150 SCH40S
  • EN10253-2 Stainless Steel Concentric Reducer DN150 SCH40S
  • EN10253-2 Stainless Steel Concentric Reducer DN150 SCH40S
  • EN10253-2 Stainless Steel Concentric Reducer DN150 SCH40S
Place of Origin Cangzhou, Hebei, China
Brand Name HENGYU
Certification ISO 9001:2015, PED 2014/68/EU, EN 10204 3.1
Model Number SSR-RD-EN10253-DN150
Minimum Order Quantity 10 Pieces
Price USD 22-48 / Piece
Packaging Details Plywood case with waterproof paper, steel strip and sea worthy export packing
Delivery Time 7-10 days for stock sizes, 20-25 days for production
Payment Terms T/T,L/C at sight,D/P at sight
Supply Ability 800 Tons per Month
Product Details
Product Name EN10253-2 Concentric Reducer Application European Food And Pharmaceutical Process Line
Material Grade 1.4404 / 316L, 1.4307 / 304L Size DN150 X DN100
Schedule SCH40S, EN 3.6 Mm Wall Wall Thickness 3.6 Mm X 3.0 Mm Per EN Table
Standard EN 10253-2 Type A, DIN 2616, GOST 17378 End Connection Beveled End
Surface Finish Pickled And Passivated Documentation EN 10204 3.1 Certificate
Highlight

EN10253-2 Concentric Reducer

,

DIN2616 Equivalent Reducer

,

DN150 Stainless Reducer
Leave a Message
Product Description
EN 10253-2 Type A Concentric Reducer, DN150 x DN100, SCH40S

European buyers usually ask for EN 10253-2 rather than ASME B16.9, and the difference is not only paperwork. The EN 10253-2 fitting is dimensioned on the outside diameter with a defined wall table, so a DN150 x DN100 fitting ordered to this standard will not match a B16.9 fitting of the same nominal size at the bevel.

This concentric reducer is produced to EN 10253-2 Type A in 1.4404 (316L) and 1.4307 (304L), with the wall taken from the EN table and the bevel prepared for the mating pipe schedule. For contractors working to DIN 2616 drawings or to GOST 17378 on eastern European projects, the same body can be supplied against those dimensional tables.

Technical Specification
Material 1.4404 / AISI 316L, 1.4307 / AISI 304L, 1.4541 / 321
Size DN150 x DN100, 6 Inch x 4 Inch
Wall Thickness EN 10253-2 table, 3.6 mm at DN150, 3.0 mm at DN100
Standard EN 10253-2 Type A, DIN 2616, GOST 17378 equivalents
Ends Beveled end prepared to the mating schedule
Surface Pickled and passivated, Ra 3.2 or better on request
Length (H) 140 mm
Documentation EN 10204 3.1 certificate, dimensional report
Marking Standard, size, heat number and cast identifier
Design, Inspection and Application Highlights
  • Standard fidelity: the concentric reducer is dimensioned to the EN 10253-2 table, so the outside diameter, H dimension and bevel match what the European piping drawing shows.
  • Grade pairing: 1.4404 and 1.4307 are both produced, and the European designation is stencilled on the body alongside the UNS number for the receiving inspection.
  • Alternative tables: DIN 2616 and GOST 17378 versions are available from the same production cell for eastern European projects.
  • Hygienic surface: pickled and passivated finish with controlled roughness suits food, dairy and pharmaceutical process lines.
  • Application fit: EU process plants, brewery and dairy skids, pharmaceutical utilities and district heating networks.
Frequently Asked Questions
What is the difference between EN 10253-2 Type A and Type B?

Type A covers fittings with a defined wall thickness table and a weld bevel matched to the pipe, while Type B is dimensioned on the inside diameter for a closer bore match. For most European process lines the concentric reducer is ordered as Type A.

Can you supply the European grade designations on the certificate?

Yes. The certificate lists 1.4404 and its UNS equivalent S31603, and the same applies to 1.4307 and S30403, which is what EU receiving inspection expects.

Does the DN150 reducer match a B16.9 fitting of the same size?

No. The outside diameter and the H dimension follow the EN table, so the bevel will not line up with an ASME fitting. Please confirm the standard before ordering this size.

Which surface finish is standard for food service?

Pickled and passivated with roughness better than Ra 3.2. Electropolished finish is available when the process requires a lower roughness inside the concentric reducer.

Is a GOST version available for a Russian project?

Yes. GOST 17378 dimensions and the 12X18H10T grade equivalent can be produced, with the certificate issued against the requested Russian standard.

Send the piping drawing reference and the wall schedule, and we will confirm the EN 10253-2 dimensional data of the concentric reducer before we start production.
