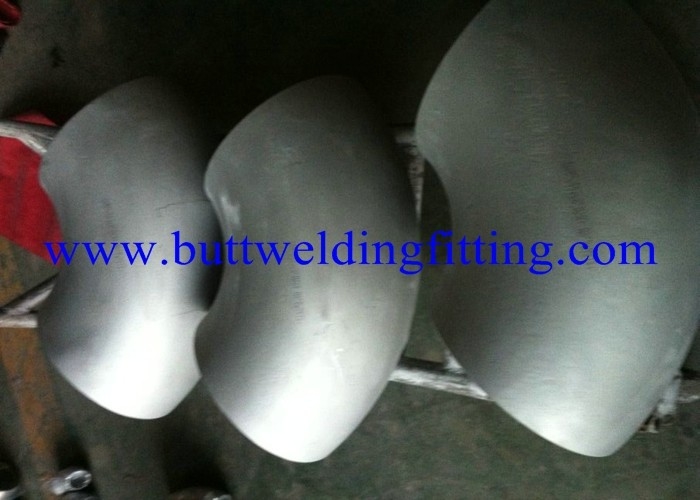

Seamless Stainless Steel Pipe Elbow 90 Degree LR BW ASTM–A403 WP304

  • Seamless Stainless Steel Pipe Elbow 90 Degree LR BW ASTM–A403 WP304
  • Seamless Stainless Steel Pipe Elbow 90 Degree LR BW ASTM–A403 WP304
  • Seamless Stainless Steel Pipe Elbow 90 Degree LR BW ASTM–A403 WP304
  • Seamless Stainless Steel Pipe Elbow 90 Degree LR BW ASTM–A403 WP304
  • Seamless Stainless Steel Pipe Elbow 90 Degree LR BW ASTM–A403 WP304
Place of Origin China
Brand Name TOBO
Certification SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number ASTM–A403 WP304 LS ASME/ANSI B16.9
Minimum Order Quantity 1PC
Price negotiation
Packaging Details PLY-WOODEN CASE OR PALLET
Delivery Time 15 work days
Payment Terms T/T, D/P, D/A, Western Union
Supply Ability 9800000PCS Per month
Product Details
Material Grade ASTM–A403 WP304 Standard ASME B16.9
Type Seamless Or Weld Application Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding Etc
Highlight

Pipe Fittings Elbow

,

Butt Welding Elbow
Leave a Message
Product Description



Seamless Stainless Steel Pipe Elbow 90 Degree LR BW ASTM–A403 WP304







Description:



1. Product Item No.:Seamless Stainless Steel Elbow

2. Degree:15 ° , 30° , 45° , 60° , 90° , 180° , male and female

3. Grade: 310S, 310, 309, 309S, 316, 316L, 316Ti, 316LN, 317, 317L, 321, 321H, 347, 347H, 304, 304L,

 304H, 304N, 304LN, 302, 301, 201, 202, 904L, Duplex, etc
We can also produce other specifications according to customers' requirements.

4. Material:310S,310,309,309S,316,316L,316Ti,316LN,317,317L,321,321H,347,347H,304,304L,304H,

5. 304N,304LN,302, 301,201,202,904L,Duplex,etc

6. Standard:
JIS B2311,B2312,B2312,B2316
ASME/ANSI B16.9,B16.11,B16.28,ASTM A403
MSS SP-43,SP-83,SP-97
GB 12459,GB/T 13401-2005,GB/T 14383-2005,GB/T10752-1995
SY/T0510-1998,ST5257-91

7. Working pressure: -20° C~150° C

8. Applications range:For use in the petroleum, smelting, foodstuff, power, papermaking, chemical,

medical equipment, aviation, boiler heat exchanger, and other fields.

9. Technique: welded elbow,punched elbow,Hot-pressed elbow,forged elbow

10. Radius:Long radius,Short radius ,R=1.5D,R=3D,R=5D,female,male,etc

11. Type:15  °  ,30 °  ,45 °  ,60 ° ,90 °  , 180 ° ,male and female

12. Outside Diameter: 1/8"-100" (6-2500mm)

13. Wall Thickness:SCH5-SCH 160S ,SCH XXS 150lb,300lb,400lb,600lb,900lb,1500lb,2500lb

14. Surface:annealing,picking,hair line,polished,bright,brush,coated,sand blast,etc

15. Export to: Ireland,Singapore,Indonesia,Ukraine,SaudiArabia,Spain,Canada,USA,Brazil,Thailand

,Korea,Iran,India, Egypt,Oman,Kuwait,South Africa,Dubai,Mexico,Peru,Malaysia,Viet Nam,Russia,Italy,

etc

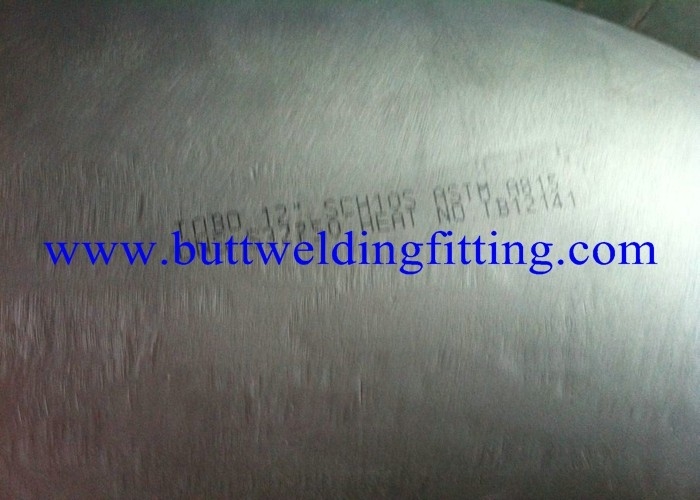

16. Marking: Registered logo,Heat Number,Steel Grade,Standard,Size

17. Packing: Wooden box or wooden pallet.

18. H.S Code: 73072300

19. Material:





Seamless Stainless Steel Pipe Elbow 90 Degree LR BW ASTM–A403 WP304



Unit : inch
Nominal
 Pipe
 Size

Outside Dia.
(OD)

Wall

Thickness (T)

90o L/R Elbow

Center To

 End A

45o L/R

Elbow

Center

To End B

90o S/R

 Elbow

Center

To End A





Sch.5S

Sch.10S

Sch.40S

Sch.80S







1/2

0.840

0.065

0.083

0.109

0.147

1.50

0.625



3/4

1.050

0.065

0.083

0.113

0.154

1.12

0.438



1

1.315

0.065

0.109

0.133

0.179

1.50

0.875

1.00

1-1/4

1.660

0.065

0.109

0.140

0.191

1.88

1.00

1.25

1-1/2

1.900

0.065

0.109

0.145

0.200

2.25

1.12

1.50

2

2.375

0.065

0.109

0.154

0.218

3.00

1.38

2.00

2-1/2

2.875

0.083

0.120

0.203

0.276

3.75

1.75

2.50

3

3.500

0.083

0.120

0.216

0.300

4.50

2.00

3.00

4

4.500

0.083

0.120

0.237

0.337

6.00

2.50

4.00

5

5.563

0.109

0.134

0.258

0.375

7.50

3.12

5.00

6

6.625

0.109

0.134

0.280

0.432

9.00

3.75

6.00

8

8.625

0.109

0.148

0.322

0.500

12.00

5.00

8.00

10

10.750

0.134

0.165

0.375

0.500

15.00

6.25

10.00

12

12.750

0.156

0.180

0.375

0.500

18.00

7.50

12.00

14

14.000

0.156

0.250

0.375

0.500

21.00

8.75

14.00

16

16.000

0.165

0.250

0.375

0.500

24.00

10.00

16.00

18

18.000

0.165

0.250

0.375

0.500

27.00

11.25

18.00
