Tube End Caps Stainless Steel Pipe Cap 304 / CF8 1.4301 316L CF8M

Tube End Caps Stainless Steel Pipe Cap 304 / CF8 1.4301 316L CF8M
Tube End Caps Stainless Steel Pipe Cap 304 / CF8 1.4301 316L CF8M Tube End Caps Stainless Steel Pipe Cap 304 / CF8 1.4301 316L CF8M Tube End Caps Stainless Steel Pipe Cap 304 / CF8 1.4301 316L CF8M Tube End Caps Stainless Steel Pipe Cap 304 / CF8 1.4301 316L CF8M Tube End Caps Stainless Steel Pipe Cap 304 / CF8 1.4301 316L CF8M Tube End Caps Stainless Steel Pipe Cap 304 / CF8 1.4301 316L CF8M Tube End Caps Stainless Steel Pipe Cap 304 / CF8 1.4301 316L CF8M Tube End Caps Stainless Steel Pipe Cap 304 / CF8 1.4301 316L CF8M Tube End Caps Stainless Steel Pipe Cap 304 / CF8 1.4301 316L CF8M Tube End Caps Stainless Steel Pipe Cap 304 / CF8 1.4301 316L CF8M Tube End Caps Stainless Steel Pipe Cap 304 / CF8 1.4301 316L CF8M Tube End Caps Stainless Steel Pipe Cap 304 / CF8 1.4301 316L CF8M Tube End Caps Stainless Steel Pipe Cap 304 / CF8 1.4301 316L CF8M Tube End Caps Stainless Steel Pipe Cap 304 / CF8 1.4301 316L CF8M Tube End Caps Stainless Steel Pipe Cap 304 / CF8 1.4301 316L CF8M
Basic Information
Place of Origin: CHINA
Brand Name: TOBO
Certification: ISO9001, API,CE
Model Number: 304 / CF8,1.4301,316L CF8M,1.4408,2205
Minimum Order Quantity: 1PCS
Price: Negotiation
Packaging Details: Wooden box or wooden pallet
Delivery Time: 99880000000PCS PER MONTH
Payment Terms: T/T, Western Union, MoneyGram, D/P, D/A, L/C
Get Best Price Contact Now
Standard Specification: ANSI B16.9, ANSI B16.28, DIN 2605, ISO3419,DIN EN10253,JIS B2312, JIS B2313, MSS SP-25, MSS SP-75, BS1387 Material: 304 / CF8,1.4301,316L CF8M,1.4408,2205
Type Of Pipe Fittings:: Eccentric Reducer Concentric Reducer Thickness:: Sch5-Sch160, STD, XS, XXS
Highlight:

stainless steel pipe end caps

,

tube end caps



Tube End Caps Stainless Steel Pipe Cap 304 / CF8 1.4301 316L CF8M







pipe fittings caps

Size

1/2"-68"DN15-DN1800

Wall thickness

Sch5-Sch160XXS


Standard

ISO, SNSI, JIS, DIN, GB/T12459GB/T13401ASME B16.9SH3408 SH3409HG/T21635HG/T21631SY/T05010


Material

A234-WPB.A420-WPL6.A234-WP12.A234-WP11.A234-WP5.A403-WP304.A403-WP304L. A403-WP316.A403-WP316L


Packaging

Wooden Cases or wooden pallet or as per customers requirement
Applications range Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc



Min Order Quantity

According to customer's requirement



Delivery Time

According to customer's requirement

Quality

First grade



Productivity

1,118,000T/Y

1. anti-corrosion and high-temperature resistant with black painting
2. All special design available according to requirementS
3. The production process are made under the ISO9001:2000 strictly.

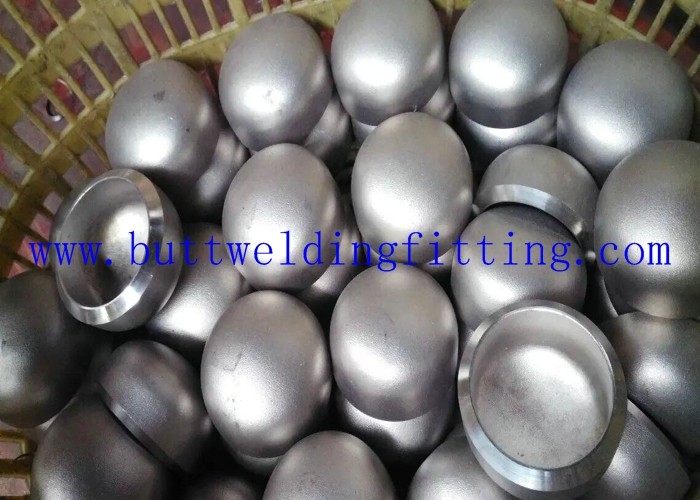

Cap



1.Product Details.



Standrad



1 )Standard: ASTM, ASME , DIN ,JIS,API ,GB ,ISO

2) Certifications : ABS ,CC ,TUV,CC ,GL ,BV ,ISO14001 ,ISO9001 ,OHSMS



Material :



 Carbon Steel: ASTM A-234 (WPB,WPC)

                          EN 10216-2 (P235GH,P265GH)

                          EN10222-2(P245GH,P280GH)

                          NF A49-213 (TU42C,TU48C)

Low Alloy Steel : ASTM A-420(WPL6)

                             ASTM A-234(WP11,WP22,WP5)

                             ASTM A-860(A860-WPHY52)

Stainless Steel: ASTMA403M (WP304,WP304L,WP304H,WP316,WP316L,WP321,WP321H,WP347,

WP347H) EN10216-5(X2CrNiN18-10(1.4311),X5CrNi18-10(1.4301),X5CrNiMo17-12-2(1.4401),X2CrNiMo

17-12-2(1.4404)





Standrad



1 )Standard: ASTM, ASME , DIN ,JIS,API ,GB ,ISO

2) Certifications : ABS ,CC ,TUV,CC ,GL ,BV ,ISO14001 ,ISO9001 ,OHSMS



Material :



 Carbon Steel: ASTM A-234 (WPB,WPC)

                          EN 10216-2 (P235GH,P265GH)

                          EN10222-2(P245GH,P280GH)

                          NF A49-213 (TU42C,TU48C)



Low Alloy Steel : ASTM A-420(WPL6)

                             ASTM A-234(WP11,WP22,WP5)

                             ASTM A-860(A860-WPHY52)



Stainless Steel: ASTMA403M (WP304,WP304L,WP304H,WP316,WP316L,WP321,WP321H,WP347,

WP347H) EN10216-5(X2CrNiN18-10(1.4311),X5CrNi18-10(1.4301),X5CrNiMo17-12-2(1.4401),

X2CrNiMo17-12-2(1.4404)



Tube End Caps Stainless Steel Pipe Cap 304 / CF8 1.4301 316L CF8M 0

Nominal Diameter

Outside Diameter at Bevel

Back to End

Series A

Series B

E

T

E1

DN

NPS

15

1/2

21.3

18

25

4.57

25

25

1

33.7

32

38

4.57

38

40

1.1/2

48.3

45

38

5.08

38

50

2

60.3

57

38

5.59

44

65

2.1/2

76.1(73)

76

38

7.11

51

80

3

88.9

89

51

7.62

64

100

4

114.3

108

64

8.64

76

125

5

139.7

133

76

9.65

89

150

6

168.3

159

89

10.92

102

200

8

219.1

219

102

12.70

127

300

12

323.9

325

152

12.70

178

350

14

355.6

377

165

12.70

191

400

16

406.4

426

178

12.70

203

450

18

457.2

478

203

12.70

229

500

20

508.0

529

229

12.70

254

550

22

559

-

254

12.70

254

600

24

610

630

267

12.70

305

When T is less the dimension in parentheses, the height E is available. Otherwise E1 is available.

 Above dimensions acc.to GB/T12459,GB/T13401,ASME B16.9,SH3408,SH3409,HG/T21635

,HG/T21631,SY/T05010
