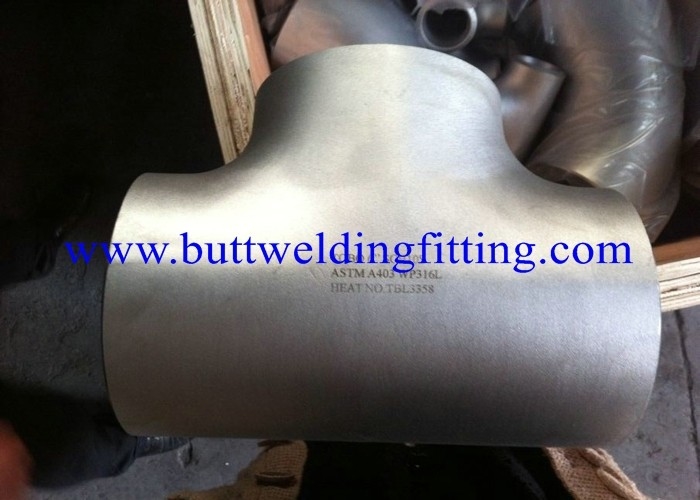

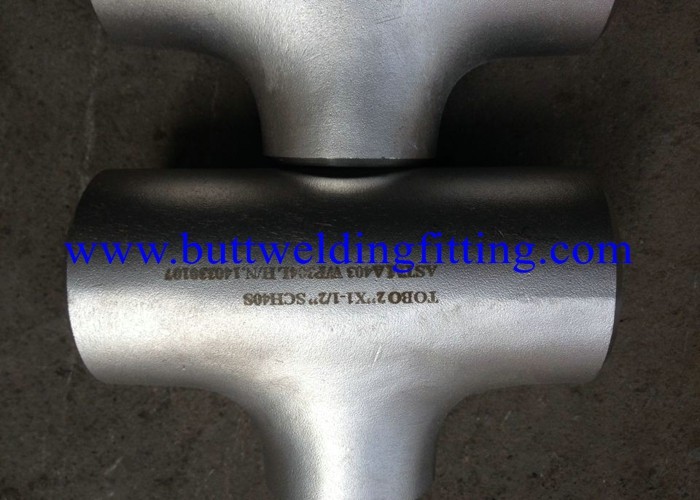

A403 - WP317L SS Pipe Equal Reducer Butt Weld Tee 1 Inch To 48 Inch



A403 - WP317L SS Pipe Equal Reducer Butt Weld Tee 1 Inch To 48 Inch





Standards

ASME B16.9-2007

ASME B16.25-2007

ASME B16.5-2007

EN10253-1-1999 EN10253-2-2007 EN10253-3-2008 EN10253-4-2008

DIN2605-1-1992 DIN2605-2-1995

JIS B2311-2009 JIS B2312-2009 JIS B2313-2009

GB/T12459-2005 GB/T13401-2005 GB/T10752-2005

SH/T3408-1996 SH/T3409-1996

SY/T0609-2006 SY/T0518-2002 SY/T0510-1998

DL/T695-1999 GD2000 GD87-1101

HG/T21635-1987 HG/T21631-1990



Dtailed Production Description

1)Size: Seamless: 1/2”-60" SCH10s-XXS

2)Standard: ANSI B16.9/B16.11/B16.28, DIN, JIS, ISO

3)Material:carbon steel:A234-WPB WPC,

                 alloy steel :A420-WPL6, A234-WP11, A234-WP12, A234-WP5,A234-WP9,A234-WP22,15Mo3,15CrMoV,35CrmoV

                stainless steel:A403 WP 304-304L-304H-304LN-304N

                                        A403  WP 316-316L-316H-316LN-316N-316Ti

                                        A403  WP 321-321H

                                        A403  WP 347-347H

                low tempture steel: A402 WPL3-WPL6

                high performance steel: A860 WPHY 42-46-52-60-55-70

4)Surface treatment: carbon steel: shot blasted, black painting, rust-proof oil,transparent oil, galvanizing,hot

 galvanizing

                                   alloy steel: Shot blasted, black painting, rust-proof oil,transparent oil, galvanizing,

hot galvanizing

                                   stainless steel: pickled ,Polish

5)Nominal wall thickness:SCH5-SCH160, STD, XS, XXS

6)Packing: Wooden case or wooden pallet according to the size of fittings

7)Delivery time:7-10 days for a 20 ft container

8)Others:1) Special design available 2)All the production process are made under the ISO 9001:2000 strictly.

Application

 Our products are widely used in pipeline engineering of the industries of oil and gas (including petrochemical),

chemical

and pharmaceutial, pulp and paper, fertilizer, desalination, nuclear, electrict power, boiler,heat exchanger,

metallurgy, refinery,

machinery,steel fabrication,shipbuilding, water disposal, construction, aviation,textile,ect.

our  advangtage

1) Raw material use 100% material steel

2) good service

3) Competive price

4) Fast delivery

5)High quality products

other products

we can provide steel butt weld pipe fittings such as elbow, tee, reducer,cap,bend and so on. Good quality,

competitive price

and excellence service are your best choice.









Unit : inch Nominal  Pipe  Size	Outside Dia. (OD)	Wall Thickness (T)				Tees Center To Ends C.M
		Sch.5S	Sch.10S	Sch.40S	Sch.80S
1/2	0.840	0.065	0.083	0.109	0.147	1.00
3/4	1.050	0.065	0.083	0.113	0.154	1.13
1	1.315	0.065	0.109	0.133	0.179	1.50
1-1/4	1.660	0.065	0.109	0.140	0.191	1.88
1-1/2	1.900	0.065	0.109	0.145	0.200	2.25
2	2.375	0.065	0.109	0.154	0.218	2.50
2-1/2	2.875	0.083	0.120	0.203	0.276	3.00
3	3.500	0.083	0.120	0.216	0.300	3.38
4	4.500	0.083	0.120	0.237	0.337	4.13
5	5.563	0.109	0.134	0.258	0.375	4.88
6	6.625	0.109	0.134	0.280	0.432	5.63
8	8.625	0.109	0.148	0.322	0.500	7.00
10	10.750	0.134	0.165	0.375	0.500	8.50
12	12.750	0.156	0.180	0.375	0.500	10.00
14	14.000	0.156	0.250	0.375	0.500	11.00
16	16.000	0.165	0.250	0.375	0.500	12.00
18	18.000	0.165	0.250	0.375	0.500	13.50
20	20.000	0.188	0.250	0.375	0.500	15.00
24	24.000	0.218	0.250	0.375	0.500	17.00
