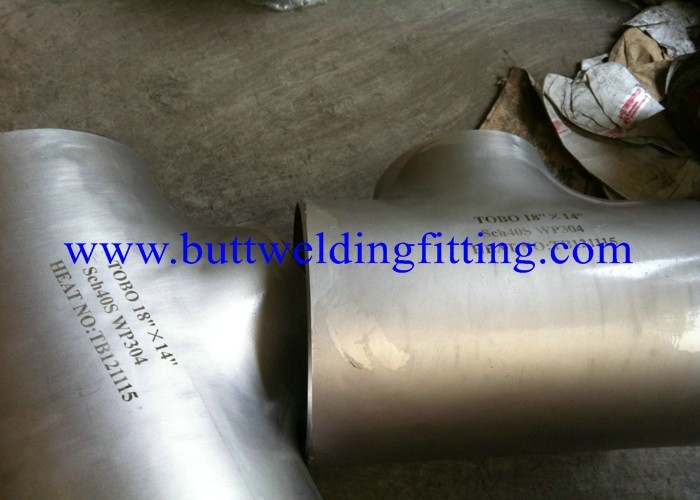

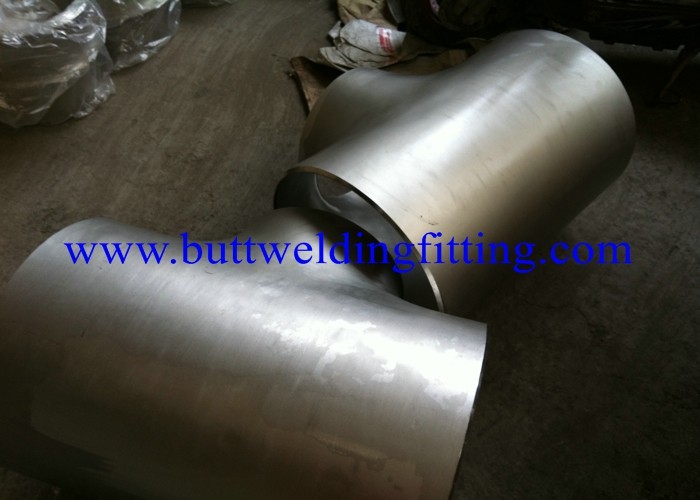

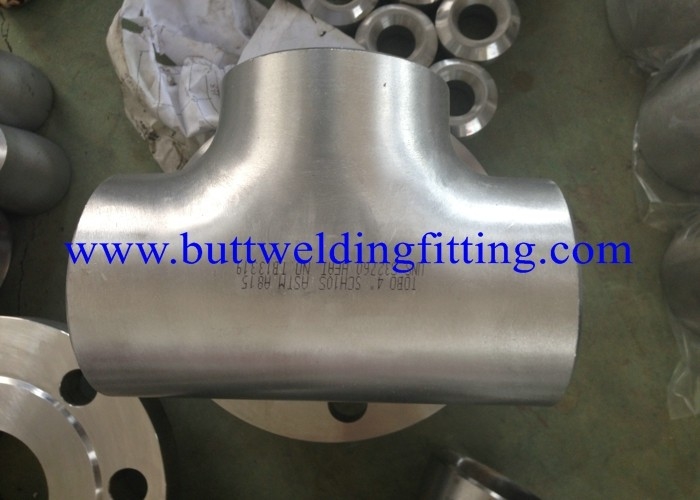

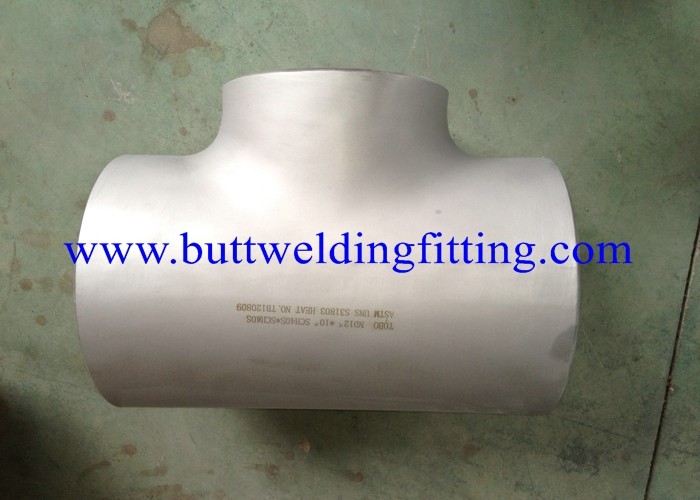

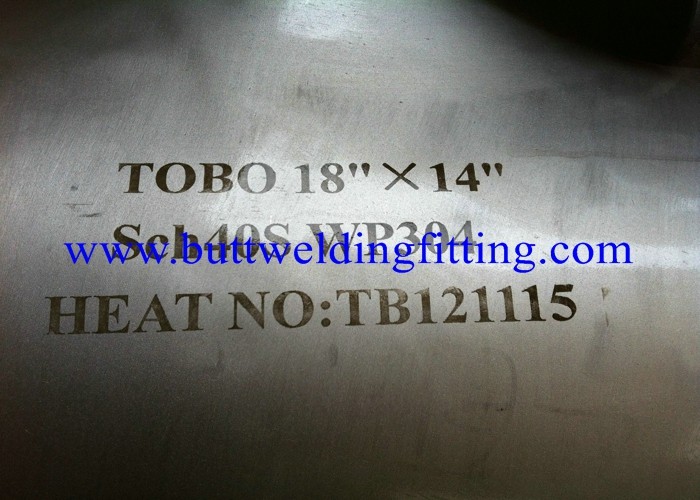

904L Butt Weld Fittings Stainless Steel Equal Tee 1-48 Inch

  • 904L Butt Weld Fittings Stainless Steel Equal Tee 1-48 Inch
  • 904L Butt Weld Fittings Stainless Steel Equal Tee 1-48 Inch
  • 904L Butt Weld Fittings Stainless Steel Equal Tee 1-48 Inch
  • 904L Butt Weld Fittings Stainless Steel Equal Tee 1-48 Inch
  • 904L Butt Weld Fittings Stainless Steel Equal Tee 1-48 Inch
Place of Origin China
Brand Name TOBO
Certification SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number 904L
Minimum Order Quantity 1PCS
Packaging Details PLY-WOODEN CASE OR PALLET
Delivery Time 15days
Payment Terms T/T, Western Union, D/P, T/T
Supply Ability Negotiation
Product Details
Material Grade 904L Standard ASME B16.9
Size 1-48 Inch Application Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding Etc
Highlight

butt weld tube fittings

,

industrial pipe fittings
Leave a Message
Product Description



904L Butt Weld Fittings Stainless Steel Equal Tee 1-48 Inch

Chemical Composition %


C

Cr

Cu

Mn

Mo

Ni

P

S

Si

Max





Max





Max

Max

Max

0.02

19.0-23.0

1.0-2.0

2.0

4.0-5.0

23.0-28.0

0.045

0.035

1.0



SPECIFICATIONS


ASTM B677, B366
ASME SB677, SB366

DESCRIPTION
904L is a high-alloy austenitic stainless steel with low carbon content. The grade is intended for use under severe corrosive conditions.



standardized and approved for pressure vessel use in several countries. Structurally, 904

L is fully austenitic and is less sensitive to precipitation ferrite and sigma phases than conventional austenitic grades with high molybdenum content. Characteristically, due to the combination of relatively high contents of chromium, nickel, molybdenum and copper 904L has good resistance to general corrosion, particularly in sulfuric and phosphoric conditions.






TENSILE REQUIREMENTS
KSI 70   KSI 25   KSI can be converted to MPA (Megapascals) by multiplying by 6.895.


Unit : inch
Nominal
 Pipe
 Size

Outside Dia.
(OD)

Wall Thickness (T)

Tees Center To Ends C.M





Sch.5S

Sch.10S

Sch.40S

Sch.80S



1/2

0.840

0.065

0.083

0.109

0.147

1.00

3/4

1.050

0.065

0.083

0.113

0.154

1.13

1

1.315

0.065

0.109

0.133

0.179

1.50

1-1/4

1.660

0.065

0.109

0.140

0.191

1.88

1-1/2

1.900

0.065

0.109

0.145

0.200

2.25

2

2.375

0.065

0.109

0.154

0.218

2.50

2-1/2

2.875

0.083

0.120

0.203

0.276

3.00

3

3.500

0.083

0.120

0.216

0.300

3.38

4

4.500

0.083

0.120

0.237

0.337

4.13

5

5.563

0.109

0.134

0.258

0.375

4.88

6

6.625

0.109

0.134

0.280

0.432

5.63

8

8.625

0.109

0.148

0.322

0.500

7.00

10

10.750

0.134

0.165

0.375

0.500

8.50

12

12.750

0.156

0.180

0.375

0.500

10.00

14

14.000

0.156

0.250

0.375

0.500

11.00

16

16.000

0.165

0.250

0.375

0.500

12.00

18

18.000

0.165

0.250

0.375

0.500

13.50

20

20.000

0.188

0.250

0.375

0.500

15.00

24

24.000

0.218

0.250

0.375

0.500

17.00


904L Butt Weld Fittings Stainless Steel Equal Tee 1-48 Inch
