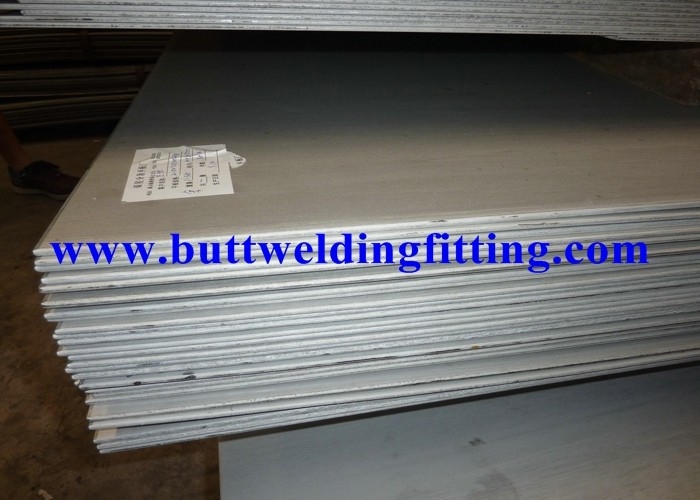

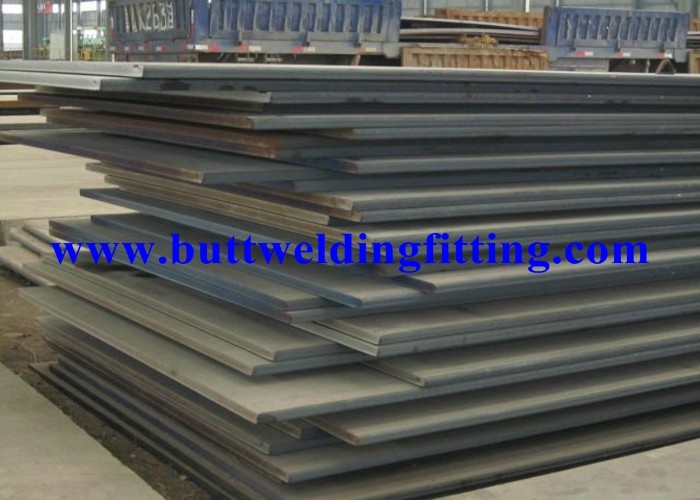

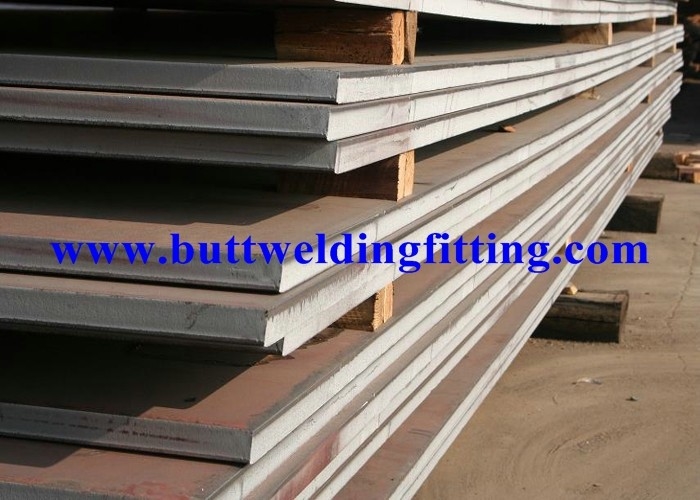

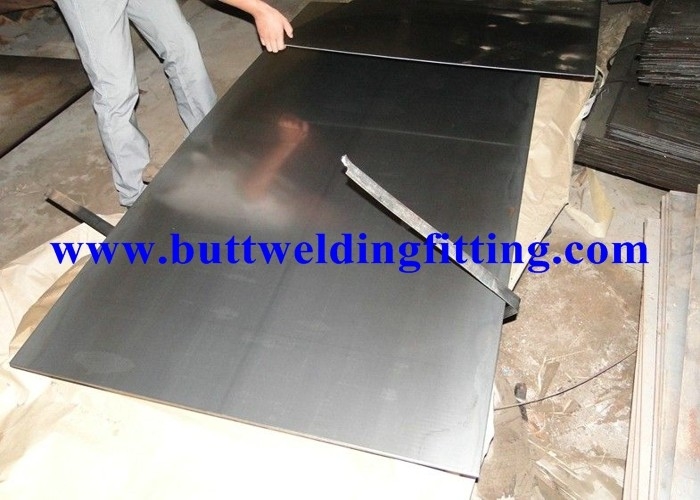

ASTM A204 / A204m Standard Pressure Vessel Plates Alloy Steel

  • ASTM A204 / A204m Standard Pressure Vessel Plates Alloy Steel
  • ASTM A204 / A204m Standard Pressure Vessel Plates Alloy Steel
  • ASTM A204 / A204m Standard Pressure Vessel Plates Alloy Steel
  • ASTM A204 / A204m Standard Pressure Vessel Plates Alloy Steel
Place of Origin China/Japan/Germany
Brand Name TOBO/TPCO/TISCO/VALIN/METAL
Certification ISO/PED/TUV/SGS/LR/BV
Model Number ASTM A387,ASTM A516
Minimum Order Quantity 100KGS
Price negotiable
Packaging Details in plastic bags then in bundles
Delivery Time 15days->
Payment Terms T/T, L/C, Western Union,
Supply Ability 1500 tons per month
Product Details
Standard ASTM A387,ASTM A516 Color White, Silver
Material Stainless Steel Type Steel Plate
Highlight

Stainless Steel Coils

,

Stainless Steel Flat Sheets
Leave a Message
Product Description



ASTM A204 / A204m Standard Pressure Vessel Plates Alloy Steel



ASTM A20/A20M Standard Specification for General Requirements for Steel Plates for Pressure Vessels
ASTM A202/A202M Standard Specification for Pressure Vessel Plates, Alloy Steel, Chromium-Manganese-Silicon A202(GrA.B)
ASTM A203/A203M Standard Specification for Pressure Vessel Plates, Alloy Steel, Nickel A203(GrA.B.D.E.F)
ASTM A204/A204M Standard Specification for Pressure Vessel Plates, Alloy Steel, Molybdenum A204(GrA.B.C)
ASTM A225/A225M Standard Specification for Pressure Vessel Plates, Alloy Steel, Manganese-Vanadium-Nickel A225(GrC.D)
ASTM A240/A240M Standard Specification for Chromium and Chromium-Nickel Stainless Steel Plate, Sheet, and Strip for Pressure Vessels and for General Applications
ASTM A283/A283M Standard Specification for Pressure Vessel Plates, Carbon Steel, Low- and Intermediate-Tensile Strength A283(GrA.B.C)
ASTM A285/A285M Standard Specification for Pressure Vessel Plates, Carbon Steel, Low- and Intermediate-Tensile Strength A285(GrA.B.C)
ASTM A299/A299M Standard Specification for Pressure Vessel Plates, Carbon Steel, Manganese-Silicon A299(GrA.B)
ASTM A302/A302M Standard Specification for Pressure Vessel Plates, Alloy Steel, Manganese-Molybdenum and Manganese-Molybdenum-Nickel A302(GrA.B.C.D)
ASTM A353/A353M Standard Specification for Pressure Vessel Plates, Alloy Steel, 9 Percent Nickel, Double-Normalized and Tempered
ASTM A387/A387M Standard Specification for Pressure Vessel Plates, Alloy Steel, Chromium-Molybdenum A387(Gr2.11.12.21.21L.22.22L.5.9.91.911)
ASTM A414/A414M Standard Specification for Steel, Sheet, Carbon, for Pressure Vessels A414(GrA.B.C.D.E.F.G)
ASTM A455/A455M Standard Specification for Pressure Vessel Plates, Carbon Steel, High-Strength Manganese
ASTM A515/A515M Standard Specification for Pressure Vessel Plates, Carbon Steel, for Intermediate- and Higher-Temperature Service A515(Gr60.65.70)
ASTM A516/A516M Standard Specification for Pressure Vessel Plates, Carbon Steel, for Moderate- and Lower-Temperature Service A516(Gr55.60.65.70)
ASTM A517/A517M Standard Specification for Pressure Vessel Plates, Alloy Steel, High-Strength,Quenched and Tempered A517(GrA.B.C.J) 1.25in



ASTM/ ASME  EN 10028-2 BS 1501 DIN 17175 C  Si  Mn  P  S  Al  Cr  Cu  Ni  Mo  Nb  Ti  V  Y.S.(N/mm²) T.S.(N/mm²)
A285-C/A516-55 P235GH  161-360A  H1  0.16 0.35 0.4/ 1.2  0.03 0.03 0.02 0.3 0.3 0.3 0.08 0.01 0.03 0.02 235 360/ 480
A516-60  P265GH  161-430A  H11  0.2 0.4 0.5/ 1.40  0.03 0.03 0.02 0.3 0.3 0.3 0.08 0.01 0.03 0.02 265 410/ 530
-  -  223-490A/B  -  0.2 0.4 0.5/ 1.40  0.03 0.03 0.02 0.3 0.3 0.3 0.08 0.01 0.03 0.02 265 410/ 530
A516-65  P295GH  224-460A/B  17Mn4  0.08/ 0.20  0.4 0.9 / 1.5  0.03 0.03 0.02 0.3 0.3 0.3 0.08 0.01 0.03 0.02 295 460/ 580
A516-70  P355GH  224-490A/B  -  0.10/ 0.22  0.6 1 / 1.7  0.03 0.03 0.02 0.3 0.3 0.3 0.08 0.01 0.03 0.02 355 510/ 650
-  P355N/NH  225-490A/B  19Mn6  0.2 0.5 0.9 / 1.7  0.03 0.03 0.02 0.3 0.3 0.5 0.08 0.05 0.03 0.1 355 430/ 630
A204-A  16Mo3  243 15Mo3  0.12/ 0.20  0.35 0.4/ 0.90  0.03 0.03 -  0.3 0.3 0.3 0.25/ 0.35 -  -  -  275 440/ 590
A387-12-2  13CrMo45  620 B  13CrMo44  0.08/ 0.18  0.35 0.4/ 1.00  0.03 0.03 -  0.7/ 1.15 0.3 -  0.4/ 0.60  -  -  -  300 450/ 600
A387-11-2  -  621 B  -  0.09/ 0.17  0.5 0.400.65  0.03 0.02 0.02 1/ 1.50 0.3 0.3 0.45/ 0.60 -  -  -  340 515/ 690
A387-22-2  10CrMo910 622-515B  10CrMo910  0.08/ 0.14  0.5 0.4/ 0.80  0.03 0.03 -  2/ 2.50  0.3 -  0.3/ 1.10  -  -  -  310 520/ 630
A387-5-2  -  -  -  0.15 0.5 0.3/ 0.60  0.04 0.03 -  4/ 6.00  0.3 -  0.45/ 0.65 -  -  -  310 515/ 690
A387-9-2  -  -  -  0.15 1.0 0.3/ 0.60  0.03 0.03 -  8/ 10.0  -  -  0.9/ 1.10  -  -  -  310 515/ 690

TOBOGROUP deal with steel plate and tube already more than 10 years, every year sell
more than 80000 tons of stainless steel pipe and tube. Our client already cover more than 45 countries.
Our stainless steel seamless pipe and tube was width used in Mining, Energy, Petrochemical, Chemical
 Industry, Food plant, Paper plant, Gas and Fluid Industry etc.

Why choose us!


1. We are the specialized supplier of stainless steel materials, can provide the best price!
2. We have more than 30 years experience in exporting products to worldwide countries, can provide the high quality products!
3.  We have three thousand tons of stock in warehouses with abundant capital. Furthermore, we offer charge sales, credit and 7-day 24-hour services.
4. Wide excellent experiences with after-sale service.
5. Every process will be checked by responsible QC which insures every product's quality.
6. Professional packing teams which keep every packing ely.
7. Trial order can be done in very short time.
8. Samples can be provided as your requirements.



ASTM A204 / A204m Standard Pressure Vessel Plates Alloy SteelASTM A204 / A204m Standard Pressure Vessel Plates Alloy SteelASTM A204 / A204m Standard Pressure Vessel Plates Alloy Steel
