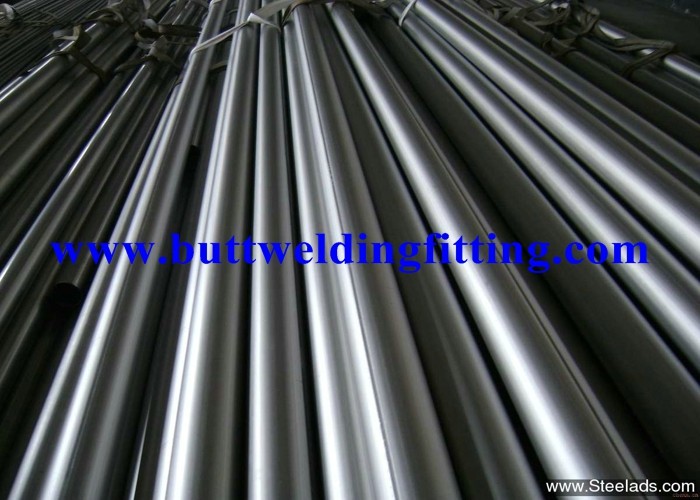

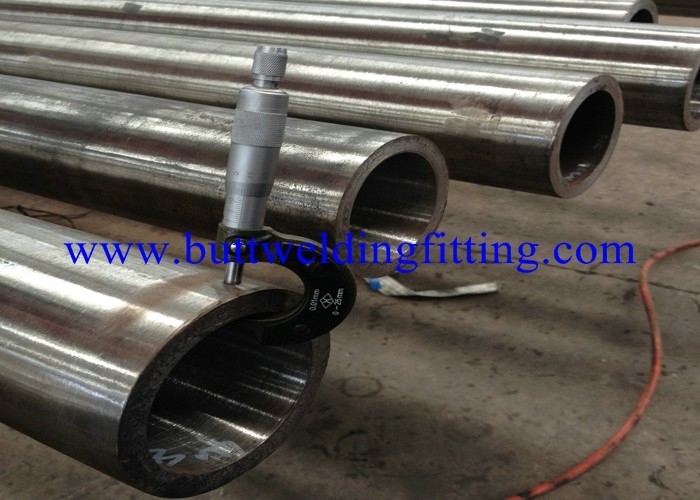

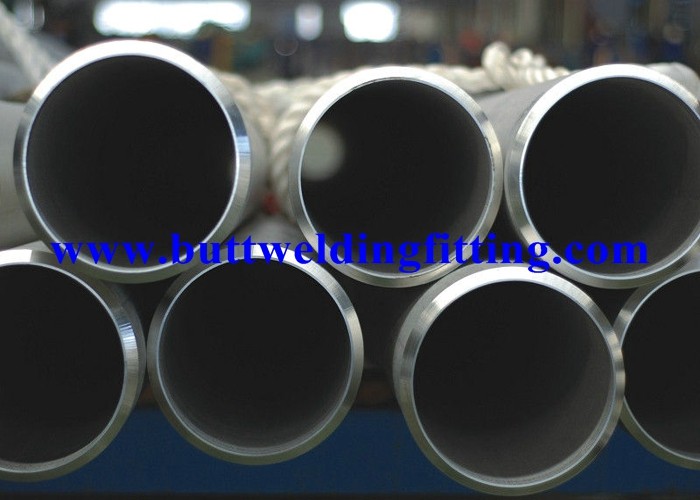

ASTM A249 S30409 304H Stainless Seamless Steel Tubes For Boiler

  • ASTM A249 S30409 304H Stainless Seamless Steel Tubes For Boiler
  • ASTM A249 S30409 304H Stainless Seamless Steel Tubes For Boiler
  • ASTM A249 S30409 304H Stainless Seamless Steel Tubes For Boiler
  • ASTM A249 S30409 304H Stainless Seamless Steel Tubes For Boiler
Place of Origin China/Japan/Germany
Brand Name TOBO/TPCO/TISCO/VALIN/METAL
Certification ISO/PED/TUV/SGS/LR/BV
Model Number ASTM A249 S30409 304H
Minimum Order Quantity 0.5-1 tons
Price negotiable
Packaging Details in plastic bags then in bundles
Delivery Time 15days->
Payment Terms T/T, L/C, Western Union,
Supply Ability 50000tons/year or stocks
Product Details
Standard ASTM, ASTM A312-2001, ASTM A312-2007, ANSI A312-2001 Technics Hot Rolled
Types Seamless Thickness 1.65 - 25.4 Mm
Outer Diameter 0.5 - 48 Inch Grade 300 Series
Application Boiler Pipe Surface As Customer's Requirement
Highlight

seamless stainless steel tube

,

stainless steel round tube
Leave a Message
Product Description


ASTM A249 S30409 304H Stainless Seamless Steel Tubes For Boiler


Quick Details

Standard:
ASTM, ASTM A312-2001, ASTM A312-2007, ANSI A312-2001
Thickness:
1.65 - 25.4 mm
Section Shape:
Round
Outer Diameter:
0.5 - 48 inch
Place of Origin:
Shanghai, China (Mainland)
Secondary Or Not:
Non-secondary
Application:
Boiler Pipe
Technique:
Hot Rolled
Certification:
DIN
Surface Treatment:
As customer's requirement
Special Pipe:
Thick Wall Pipe
Alloy Or Not:
Non-alloy
STAINLESS STEEL PIPE:
STAINLESS Seamed tube 1 1/2" SCHEDULE 40 SA-312

Packaging & Delivery

Packaging Details:In bundles or according to requirements of customers
Delivery Detail:7~25 Days

Specifications

1.MTC is supplied together with the pipe
2.Any third party inspection is acceptable
3.Do business based on mutual benefit

Specialized excellent stainless STEEL Pipe 312
KEY WORDS: sa312 tp304/ STAINLESS Seamed tube  1 1/2" SCHEDULE 40  SA-312/ Seamless SA312 TP304 stainless steel pipes/ welded steel tube SA312 TP304 / 304H/ sa312 tp304 seamless pipe/ 304 stainless steel pipe/ ASTM TP 304 Stainless Steel Pipe price per kg

1. Tolerance

1:Outerdiameter:+-0.05mm     2:Thickness:+-5%       3:Length:+-0-4.5mm

2. Wall thickness

0.3-11 mm

STAINLESS STEEL PIPE



Standard:



ASTM A312/A312M 05a--Standard of American Society for Testing
&Materials

ASTM A269 04--------- Standard of American Society for Testing &Materials



Application:



ASTM A312/A312M 05a



ASTM A312/A312M 05a is used for general corrosive and low-or high-temperature condition service

ASTM A269 04



ASTM A269 04 is used for high-temperature and general corrosive condition service

Main Steel Tube Grades:



TP304,TP304L,TP321,TP316,TP316L,TP347,TP347H



Other Grades can also be provided after consulting with customers.



Chemical Compositon



Steel Grade

Chemical Composition (%)

C

Mn

P

S

Si

Cr

Ni

Mo

TP304

0.08

2

0.045

0.03

0.75

18.0-20.0

8.0-11.0

/

TP304L

0.035

2

0.045

0.03

0.75

18.0-20.0

8.0-13.0

/

TP304H

0.04-0.10

2

0.045

0.03

0.75

18.0-20.0

8.0-11.0

/

TP316

0.08

2

0.045

0.03

0.75

16.0-18.0

11.0-14.0

2.00-3.00

TP316L

0.035

2

0.045

0.03

0.75

16.0-18.0

10.0-14.0

2.00-3.00

TP316H

0.04-0.10

2

0.045

0.03

0.75

16.0-18.0

11.0-14.0

2.00-3.00

TP321

0.08

2

0.045

0.03

0.75

17.0-19.0

9.0-12.0

/

TP347

0.08

2

0.04

0.03

0.75

17.0-20.0

9.0-13.0

/

TP347H

0.04-0.10

2

0.04

0.03

0.75

17.0-20.0

9.0-13.0

/

Mechanical Properties



Steel Grade

 Mechanical Properties

(MPa)
Tensile Strength

(MPa)
Yield Strength

(%)
Elongation

TP304

≥515

≥205

≥35

TP304L

≥485

≥170

≥35

TP304H

≥515

≥205

≥35

TP316

≥515

≥205

≥35

TP316L

≥485

≥170

≥35

TP316H

≥515

≥205

≥35

TP321

≥515

≥205

≥35

TP347

≥515

≥205

≥35

TP347H

≥515

≥205

≥35






Steel Grade:

304/304L(1.4301/1.4306);316/316L(1.4401/1.4404);316Ti(1.4571); 321(1.4541);310S(1.4845); 317L(1.4438);321H(1.4878); 304H(1.4948); 347/347H(1.4550/1.4551);2205(1.4462);904L(1.4539);UNS31803(2205/1.4462),2507(S32750/1.4410)

Outside Diameter:6 – 630mm(1/4" – 25")
Wall Thickness:1 - 50mm
Standards(Norm)EN 10216-5;DIN 17456;DIN 17458
 GB/T14975;T14976;T13296;GB5310; ISO2037
 ASTM A 312;A269;A213;A511;A789;A790;
 JIS G3459;G3463;
 GOST 9940;GOST 9941;

ASTM A249 S30409 304H Stainless Seamless Steel Tubes For Boiler
