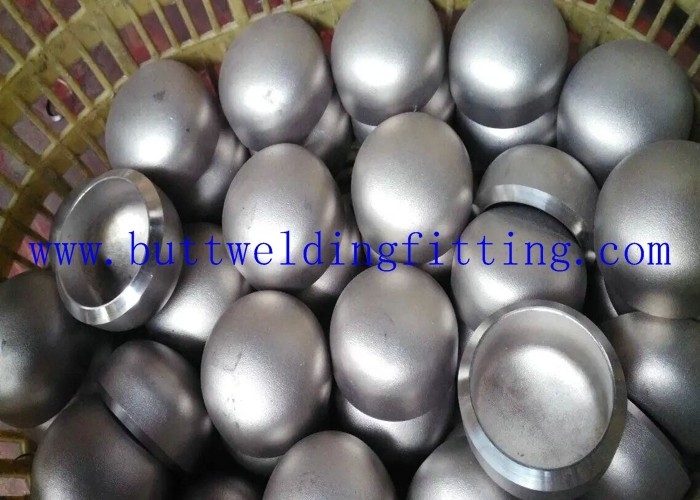

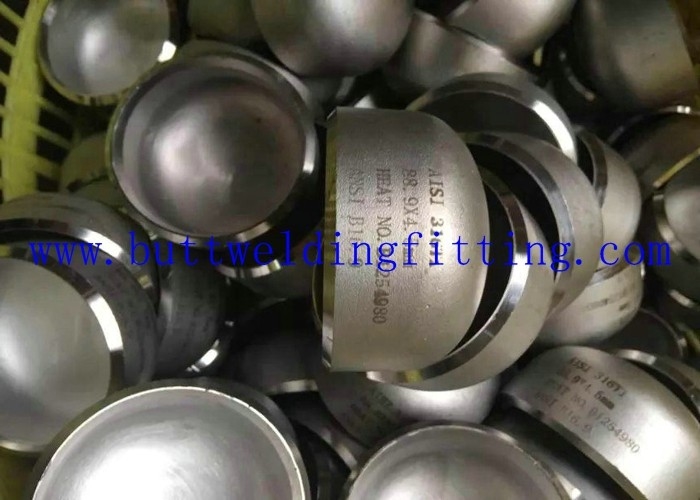

SS 316TI UNS S31635 1.457 Stainless Steel Pipe Cap 347 S34700 Sch80s

  • SS 316TI UNS S31635 1.457 Stainless Steel Pipe Cap 347 S34700 Sch80s
  • SS 316TI UNS S31635 1.457 Stainless Steel Pipe Cap 347 S34700 Sch80s
  • SS 316TI UNS S31635 1.457 Stainless Steel Pipe Cap 347 S34700 Sch80s
  • SS 316TI UNS S31635 1.457 Stainless Steel Pipe Cap 347 S34700 Sch80s
  • SS 316TI UNS S31635 1.457 Stainless Steel Pipe Cap 347 S34700 Sch80s
Place of Origin China
Brand Name TOBO
Certification SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number SS 316Ti / UNS S31635 / 1.4571 / 347/UNS S34700
Minimum Order Quantity 1PCS
Price Negotiate
Packaging Details PLY-WOODEN CASE OR PALLET
Delivery Time 15 work days
Payment Terms T/T, Western Union, D/P, D/A
Supply Ability 9990000000Pcs per month
Product Details
Size 1/2’’~48’’(Seamless);16’’~72’’(Welded) Wall Thickness Sch5~Sch160\XXS
Manufacturing Process Push, Press, Forge, Cast, Etc Standard ASME/ANSI B16.9
Highlight

stainless steel pipe end caps

,

tube end caps
Leave a Message
Product Description



SS 316TI UNS S31635 1.457 Stainless Steel Pipe Cap 347 S34700 Sch80s



Pipe fittings caps

Size

1/2"-68"DN15-DN1800

Wall thickness

Sch5-Sch160XXS


Standard

ISO, SNSI, JIS, DIN, GB/T12459GB/T13401ASME B16.9SH3408 SH3409HG/T21635HG/T21631SY/T05010


Material

A234-WPB.A420-WPL6.A234-WP12.A234-WP11.A234-WP5.A403-WP304.A403-WP304L. A403-WP316.A403-WP316L


Packaging

Wooden Cases or wooden pallet or as per customers requirement
Applications range Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc



Min Order Quantity

According to customer's requirement



Delivery Time

According to customer's requirement

Quality

First grade



Productivity

1,118,000T/Y

1. anti-corrosion and high-temperature resistant with black painting
2. All special design available according to requirementS
3. The production process are made under the ISO9001:2000 strictly.





Cap



1.Product Details.



Standrad



1 )Standard: ASTM, ASME , DIN ,JIS,API ,GB ,ISO

2) Certifications : ABS ,CC ,TUV,CC ,GL ,BV ,ISO14001 ,ISO9001 ,OHSMS



Material :



 Carbon Steel: ASTM A-234 (WPB,WPC)

                          EN 10216-2 (P235GH,P265GH)

                          EN10222-2(P245GH,P280GH)

                          NF A49-213 (TU42C,TU48C)

Low Alloy Steel : ASTM A-420(WPL6)

                             ASTM A-234(WP11,WP22,WP5)

                             ASTM A-860(A860-WPHY52)

Stainless Steel: ASTMA403M (WP304,WP304L,WP304H,WP316,WP316L,WP321,WP321H,WP347,WP347H) EN10216-5(X2CrNiN18-10(1.4311),X5CrNi18-10(1.4301),X5CrNiMo17-12-2(1.4401),X2CrNiMo17-12-2(1.4404)





Standrad



1 )Standard: ASTM, ASME , DIN ,JIS,API ,GB ,ISO

2) Certifications : ABS ,CC ,TUV,CC ,GL ,BV ,ISO14001 ,ISO9001 ,OHSMS

Nominal Diameter

Outside Diameter at Bevel

Back to End



Series A

Series B

E

T

E1

DN

NPS











15

1/2

21.3

18

25

4.57

25

25

1

33.7

32

38

4.57

38

40

1.1/2

48.3

45

38

5.08

38

50

2

60.3

57

38

5.59

44

65

2.1/2

76.1(73)

76

38

7.11

51

80

3

88.9

89

51

7.62

64

100

4

114.3

108

64

8.64

76

125

5

139.7

133

76

9.65

89

150

6

168.3

159

89

10.92

102

200

8

219.1

219

102

12.70

127

300

12

323.9

325

152

12.70

178

350

14

355.6

377

165

12.70

191

400

16

406.4

426

178

12.70

203

450

18

457.2

478

203

12.70

229

500

20

508.0

529

229

12.70

254

550

22

559

-

254

12.70

254

600

24

610

630

267

12.70

305

When T is less the dimension in parentheses, the height E is available. Otherwise E1 is available.

 Above dimensions acc.to GB/T12459,GB/T13401,ASME B16.9,SH3408,SH3409,HG/T21635,HG/T21631,SY/T05010
