Place of Origin: | China |
---|---|
Brand Name: | TOBO |
Certification: | SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED |
Model Number: | ASTM A 182, F 304L, 316L,ANSI B16.5, ANSI B16.47 |
Minimum Order Quantity: | 1PC |
Price: | Negotiate |
Packaging Details: | PLY-WOODEN CASE |
Delivery Time: | 15work days |
Payment Terms: | T/T, D/P, Western Union, MoneyGram |
Supply Ability: | 98000000 Pcs Per month |
Material: | ASTM A 182, F 304L, 316L,ANSI B16.5, ANSI B16.47 | Size: | 1/2’’-60’’ DN15-DN1500 |
---|---|---|---|
Standard: | ASME B16.5 DIN,EN,ASTM,BS,JIS,GB,etc. | Packaging Details:: | Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding Etc |
High Light: | forgings flanges and fittings,forged fittings and flanges |

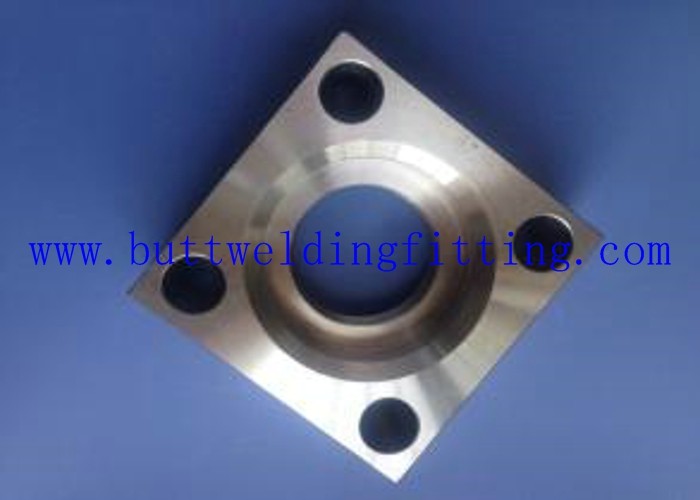

High Pressure Square Flange Forged Steel Flanges ASTM A 182, F 304L, 316L,ANSI B16.5, ANSI B16.47
High Pressure Square Flange Forged
Other Type: Slip-On, Welding Neck, Blind, Socket Welding, Lap Joint,Threaded and Plate etc.
Pressure Ratings: Class 150, 300, 600, 900, 1500 and2500.
Pressure Ratings: PN 6, PN 10 , PN 16, PN 25, PN 40 and PN 64.
Pressure Ratings: JIS 5K, 10K, 16K, and 20K.
Standdard: ANSI,DIN,EN,BS,JIS,AWWA,BS and GB ect
Material: Stainless steel, Carbon steel and Alloy steel etc.
Size: Up to 5000mm
Treatment of Prevent Oxygenizement:Oil, Paint, Galvanization or based the willing of customers
Packing: Wooden case, sea-worthy plywood pallets or as per customers requirement
item | standard No. | size | PN | Type | Material |
1 | ANSI B16.5 | 1/2"--24" | 150-2500LBS | BL,SO,SW,LJ,WN,THD | A105, A350LF2, A182 F11A182 F304/F304L,F316/F316L |
2 | LONG WN | 1/2"--24" | 150-2500LBS | Long welding-neck | A105, A350LF2,A182 F304/F304L,F316/F316L |
3 | ANSI B16.47 A(MSS SP-44) | 26"--60" | 150--900LBS | BL,WN | A105, A350LF2, A694,A182 F304/F304L,F316/F316L |
4 | BS3293-1960 STANDARD | 26"--48" | 150-600LBS | SO,WN | A105, A350LF2,A182 F304/F304L,F316/F316L |
5 | ANSI B16.47 B(API605) | 26"--60" | 75--900LBS | BL,WN | A105, A350LF2,A182 F304/F304L,F316/F316L |
6 | ASMEB16.36 STANDARD | 1"--24" | 300--2500LBS | SO,WN,THD | A105, A350LF2,A182 F304/F304L,F316/F316L |
7 | AWWA C207 | 4"--144" | Class B,D,E,F T/1 | PL |
A105,A181 A36, A516Gr.60,65,70 |
8 | EN1092-1:20002 STANDARD | DN10-4000 |
PN2.5,6,10,16, 25,40,63,100 |
TYPE01,02,04,05,11, 12,13,21,32,33,34 |
EN10025(S235JRG2), EN10222-2AND3 (P245GH ANDP280GH), EN10222-5(1.4303,1.4306, 1.4307,1.4401,1.4404, 1.4435,1.4541,1.4571) A105/C21/1.0432 C22.8/ P150GH/1.0460 |
9 | BS4504 SEC.3.1/1989 STANDARD | NS15-2000 |
PN2.5,6,10,16, 25,40 |
CODE101,102,104,105,111, 112,113,121,132,133,134 |
BS970 070M20 BS4360 GR.43A BS1503-164 GR.490 BS 1503-224 GR.410 BS 1503-304S11 304S31 321S31 316S31 316S11 |
10 | BS10-1962 STANDARD | NB10-3000 | TABLE D/ E /F/H/J | SO THD BL WN |
BS1501-161 GR.B AND C BS1633 GR.B BS 1503-240 GR.240 BS 1503-620 BS3604 |
11 | ISO 7005-1 STANDARD | DN10-4000 |
PN2.5,6,10,16,20, 25,40,50,110,150, 260,420 |
TYPE01,02,03,04,05,11, 12,13,14,15,21,32,33,34 |
ISO2604-1 F8 F9 F13 F18 F22 F49 F62 F46 F59 |
12 | NFE29203 STANDARD | DN10-600 |
PN2.5,6,10,16,20, 25,40,50,100,150, 250,420 |
TYPE01,02,03,04,05,11,12, 13,14,15,21,32,33,34,35 |
NFE29204 BF 42 BF42N BF48 BF48N |
13 | JIS B2220 STANDARD | 10A-1500A |
PN5K,10K,16K, 20K,30K |
SOP(PL) SOH(SO A B C ) WN |
JIS G3101 SS41 JIS G3201 SF40A(S20C) AND SF45A(S25C) JIS G3202 SFVC1 AND SFVC 2A |
14 | DIN STANDARD | DN10-4000 |
PN2.5,6,10,16,25, 40,64,100,160 |
SO,BL,PL,WN,LOOSE,THD |
RST37.2/1.0038/ DIN17100C22.8/1.0460 A105/C21/1.0432 1.430 1.4307 1.4401 1.4404 1.4541 1.4571/DIN17440 |
